Data Gateway in Power BI

The Power BI Data Gateway acts as a bridge to connect Power BI cloud service with on-premises data sources. It unlocks key capabilities that empower organizations to extend analytics to their on-premises data estates. In this article, we will dive deep into all aspects of the Power BI Data Gateway.

What is Power BI Data Gateway?

The Power BI Data Gateway is an application installed on-premises that enables access to internal data sources residing within private corporate networks.

It acts as a secure proxy that allows communication between Power BI and on-premises databases, Analysis Services models, file shares, and more. The gateway establishes a connection to on-premises sources and serves data to Power BI cloud service to populate reports and dashboards.

Core Capabilities Unlocked by the Gateway

Here are some of the key capabilities enabled by the data gateway:

• Scheduled Data Refresh: Refresh Power BI datasets on a schedule with the latest data from on-premises sources like SQL Server.
• DirectQuery: Use DirectQuery to fetch data live from large on-premises datasets for interactive analysis.
• Live Connections: Connect live to on-premises Analysis Services Tabular models.
• Row-Level Security: Apply on-premises row-level security policies to Power BI reports.

Architecture and Communication Flow

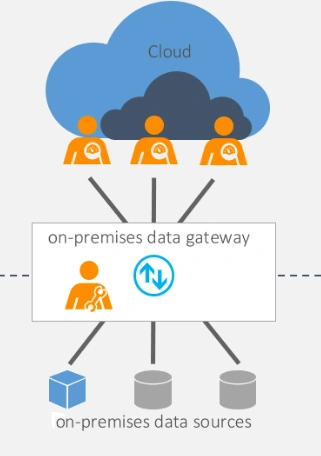

The Power BI Gateway gets installed on a Windows server as an on-premises service application within the corporate firewall. It then gets configured with data sources and credentials. The gateway connects to the on-premises data sources using the configured credentials. It keeps the connection open.

When any data request comes from Power BI, either through scheduled refresh or DirectQuery, the gateway pulls the data from the connected on-premises source and serves it to Power BI over a secure channel. It acts as the mediator managing all communication and data transfers between the cloud and on-premises.

Installation and Configuration

Here are the key steps to install and configure the Power BI Data Gateway.

Power BI Data Gateway Installation

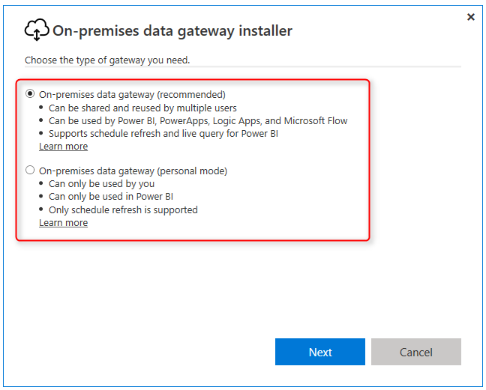

• Download the gateway installer from the Power BI admin portal.

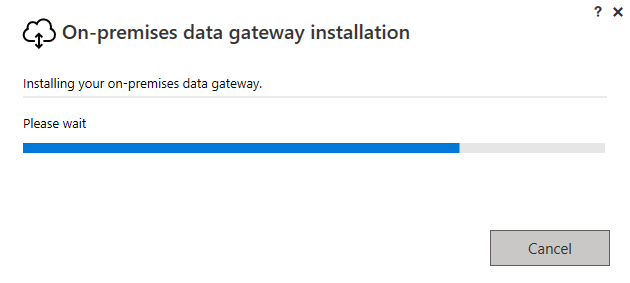

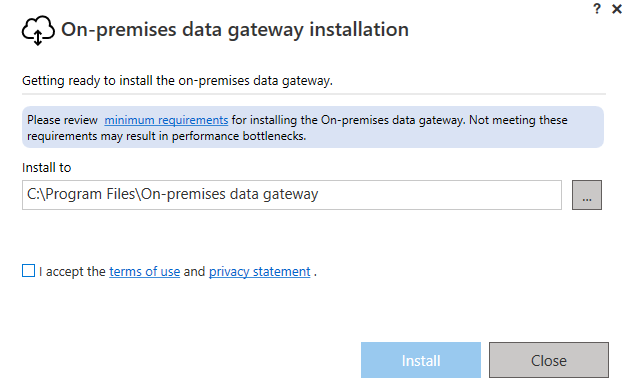

• Run the installer on an on-premises machine.

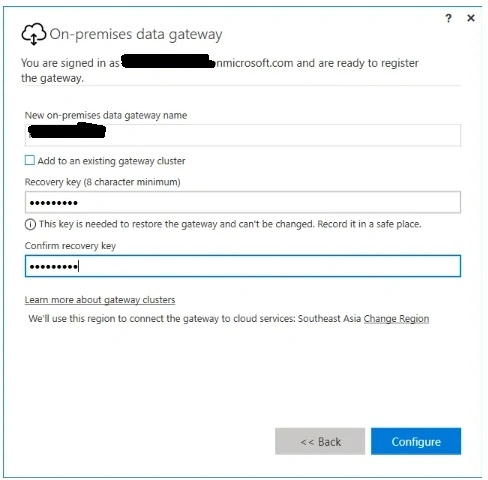

• Provide gateway name and recovery key.

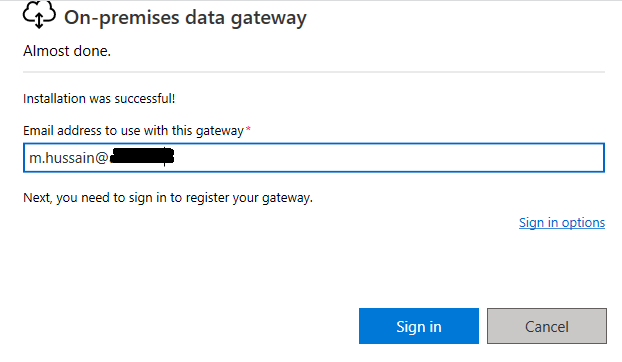

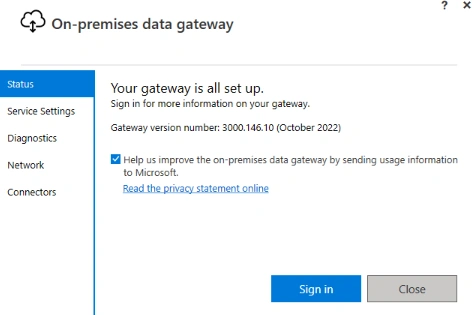

• Gateway gets installed as a Windows service.

Power BI Data Gateway Configuration

• Launch the gateway configuration manager.
• Click on Manage Data Sources.
• Add new data sources like SQL Server and Analysis Services.
• Enter source details like server and database names.
• Select authentication method - Windows or Database auth.
• Enter database credentials if using database auth.
• Click Create to add the data source.
• Repeat for additional data sources.

User Authentication Methods

The gateway supports two authentication mechanisms:

• Windows Authentication: Uses the Windows credentials of the gateway service account to connect to data sources.
• Database Credentials: Specific database usernames/passwords can be configured within the gateway for authentication. Useful when Windows auth is not available.

Choose the appropriate method based on security policies. The credentials can be updated easily.

Data Security

All data flow between the gateway and Power BI cloud is encrypted using the latest cryptography standards like TLS 1.2 and AES-256 encryption.

Only authorized users within the organization's tenant can access data based on permissions.

The gateway itself does not store any data locally apart from some temporary caching for performance.

Scalability and High Availability

For large enterprises, multiple gateways can be deployed across departments for better manageability.

Critical gateways can be load balanced for high availability using Windows Network Load Balancing (NLB) feature.

This distributes traffic across multiple gateway instances. If one goes down, others continue serving traffic.

Monitoring and Troubleshooting

Gateway logs provide detailed diagnostics information. They get stored under ProgramData/Microsoft/Power BI Desktop/Log.

Gateway health status can be monitored in the Power BI admin portal. Any errors are flagged here.

Some common troubleshooting tips

• Unable to activate gateway: Recover using the gateway recovery key
• Datasource connection failures: Verify configured data source details and credentials
• Refreshes failing: Check refresh timeouts and credentials
• Performance issues: Review resource usage on the gateway machine
• Kerberos errors: Ensure SPNs and DNS settings are configured correctly

Best Practices for Optimal Performance

Here are some key best practices to ensure optimal performance.

• Install gateways on machines closer to data sources.
• Load balance gateways to distribute the load.
• Limit the number of concurrent data refreshes based on capacity.
• Use incremental refresh whenever possible.
• Tune query timeouts to avoid timeouts.
• Update to the latest gateway version for performance fixes.
• Ensure sufficient network bandwidth.

Careful capacity planning and testing help determine the right gateway deployment architecture.

Future Roadmap

The gateway continues to evolve rapidly with new capabilities on the horizon:

• Unified data connectivity platform across the Power Platform
• Hybrid data pipeline integration with Power BI dataflows
• Gateway clusters for simplified management at scale
• Support for non-Windows data sources over SSH
• Integrated monitoring and diagnostics

Microsoft is heavily investing in making the gateway a robust, secure, and high-performance conduit for hybrid and multi-cloud analytics.

Conclusion

The Power BI Data Gateway is the key enabler for unlocking the value of on-premises data sources with Power BI's modern analytics capabilities. Leverage the gateway as a strategic component in your analytics modernization initiatives to drive maximum value from data.
