JWT Token Authentication And Role Authorization Using .Net Core 6.0 Web APIs

Introduction

JSON Web Token (JWT) is an open standard (RFC 7519) that defines a compact and self-contained way for securely transmitting information between parties as a JSON object. This information can be verified and trusted because it is digitally signed. JWTs can be signed using a secret (with the HMAC algorithm) or a public/private key pair using RSA or ECDSA.

In this post, I specifically talk about.

Authentication for an ASP.NET Core Web API
Using JWT Tokens
Using Role-Based Authorization
Using only ASP.NET's low-level Auth features - not using ASP.NET Core Identity.

In this post, I follow the Repository Pattern.

Prerequisites

.NET Core 6 SDK
Visual Studio 2022
Postman

Step-by-step Implementation

Step 1. Create a new .Net Core 6.0 Web API project.

Web API

New project

Web

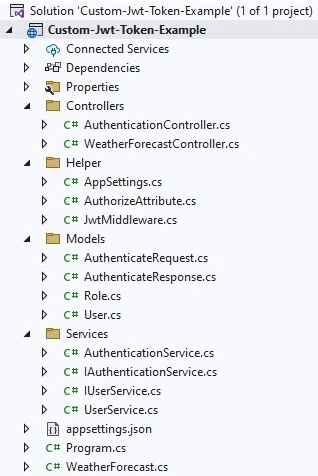

Step 2. Project Structure.

Project Structure

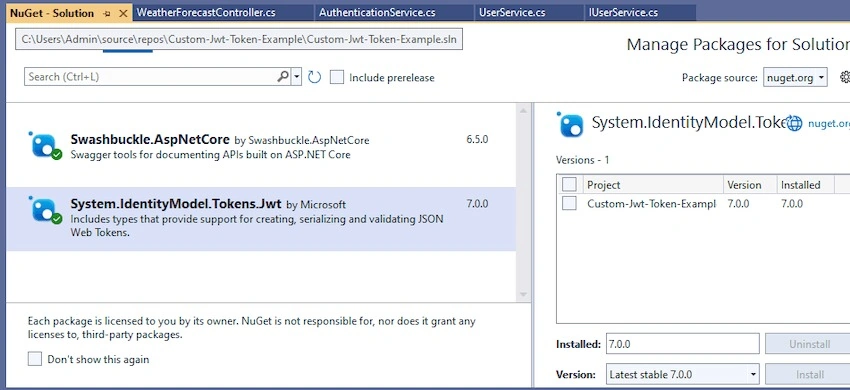

Step 3. Install-Package

System.IdentityModel.Token.Jwt

Install Package

Step 4. Authenticating users using a Web API endpoint.

Next, we need to authenticate a user within the application by asking for Credentials, generating a Token, and returning it to the API client

This likely happens in a controller Action Method or Middleware Endpoint Handler. Here's what this looks like using the controller Action Method

using Custom_Jwt_Token_Example.Models;
using Custom_Jwt_Token_Example.Services;
using Microsoft.AspNetCore.Mvc;
namespace Custom_Jwt_Token_Example.Controllers
{
    [Route("api/[controller]")]
    public class AuthenticationController : Controller
    {
        private readonly IAuthenticationService authenticationService;
        public AuthenticationController(IAuthenticationService authenticationService) {
        this.authenticationService = authenticationService;
        }
        [HttpPost]
        [Route("Login")]
        public AuthenticateResponse Login(AuthenticateRequest model)
        {
            return this.authenticationService.Authenticate(model);

        }
    }
}

Implementing the Repository interface

Create the IAuthentication interface under the Services Folder.

This interface is planned to be an abstraction Layer over the Authentication Functionality.

using Custom_Jwt_Token_Example.Models;
namespace Custom_Jwt_Token_Example.Services
{
    public interface IAuthenticationService
    {
        AuthenticateResponse Authenticate(AuthenticateRequest model);
    }
}

Create the IUserService interface under the Services Folder

This interface is planned to be an abstraction Layer over the User Functionality.

using Custom_Jwt_Token_Example.Models;
namespace Custom_Jwt_Token_Example.Services
{
    public interface IUserService
    {
        User GetById(int id);
        IEnumerable<User> GetAll();
    }
}

I'm using the UserService class of the GetById method to actually Get user details by id.

using Custom_Jwt_Token_Example.Models;
namespace Custom_Jwt_Token_Example.Services
{
    public class UserService : IUserService
    {
        private List<User> _users = new List<User> {
            new User {
                Id = 1, FirstName = "mytest",Role= new List<Role>{Role.Customer}, LastName = "User", Username = "mytestuser", Password = "test123"
            },
            new User {
                Id = 2, FirstName = "mytest2", LastName = "User2", Username = "test", Password = "test"
            }
        };

        public IEnumerable<User> GetAll()
        {
            return _users;
        }
        public User GetById(int id)
        {
            return _users.FirstOrDefault(x => x.Id == id);

        }
    }
}

Create a class called AuthenticationService in the Service Folder with the following code.

using Custom_Jwt_Token_Example.Helper;
using Custom_Jwt_Token_Example.Models;
using Microsoft.Extensions.Options;
using Microsoft.IdentityModel.Tokens;
using System.IdentityModel.Tokens.Jwt;
using System.Security.Claims;
using System.Text;

namespace Custom_Jwt_Token_Example.Services
{
    public class AuthenticationService : IAuthenticationService
    {
        private List<User> _users = new List<User> {
            new User {
                Id = 1, FirstName = "mytest", LastName = "User", Username = "mytestuser",Role= new List<Role>{Role.Customer} , Password = "test123"
            }
        };
        private readonly AppSettings _appSettings;
        public AuthenticationService(IOptions<AppSettings> appSettings)
        {
            _appSettings = appSettings.Value;
        }
        public AuthenticateResponse Authenticate(AuthenticateRequest model)
        {
            var user = _users.SingleOrDefault(x => x.Username == model.UserName && x.Password == model.Password);
            if (user == null) return null;
            var token = generateToken(user);
            return new AuthenticateResponse() {Token= token};
        }
        private string generateToken(User user)
        {
            var securityKey = new SymmetricSecurityKey(Encoding.UTF8.GetBytes(_appSettings.Key));
            var credetial = new SigningCredentials(securityKey,SecurityAlgorithms.HmacSha256);
            List<Claim> claims = new List<Claim>(){
                    new Claim("Id",Convert.ToString(user.Id)),
                    new Claim(JwtRegisteredClaimNames.Sub, "Test"),
                    new Claim(JwtRegisteredClaimNames.Email, "[email protected]"),
                    //new Claim("Role", Convert.ToString(user.Role)),
                    new Claim(JwtRegisteredClaimNames.Jti, Guid.NewGuid().ToString())

            };
            foreach (var role in user.Role) {

                claims.Add(new Claim("Role", Convert.ToString(role)));
            }
            var token = new JwtSecurityToken(_appSettings.Issuer, _appSettings.Issuer, claims, expires: DateTime.UtcNow.AddHours(1), signingCredentials: credetial);

            return new JwtSecurityTokenHandler().WriteToken(token);
        }
    }
}

First, let's create a new class for our middleware component. In this example, let's assume we want to get a token from the header, validate the token, and attach it to the context of the user variable stored user information.

using Custom_Jwt_Token_Example.Services;
using Microsoft.Extensions.Options;
using Microsoft.IdentityModel.Tokens;
using System.IdentityModel.Tokens.Jwt;
using System.Text;

namespace Custom_Jwt_Token_Example.Helper
{
    public class JwtMiddleware
    {
        private readonly RequestDelegate _next;
        private readonly AppSettings _appSettings;
        public JwtMiddleware(RequestDelegate _next, IOptions<AppSettings> _appSettings)
        {
            this._next = _next;
            this._appSettings = _appSettings.Value;
        }
        public async Task Invoke(HttpContext context, IUserService userService)
        {

            var token = context.Request.Headers["Authorization"].FirstOrDefault()?.Split(" ").Last();
            if (token != null)
                //Validate Token
                attachUserToContext(context, userService, token);
            _next(context);
        }
        private void attachUserToContext(HttpContext context, IUserService userService, string token)
        {
            try
            {
                var tokenHandler = new JwtSecurityTokenHandler();
                var key = new SymmetricSecurityKey(Encoding.UTF8.GetBytes(_appSettings.Key));
                tokenHandler.ValidateToken(token, new TokenValidationParameters
                {
                    ValidateAudience = true,
                    ValidateIssuer = true,
                    ValidateIssuerSigningKey = true,
                    IssuerSigningKey = key,
                    ClockSkew = TimeSpan.Zero,
                    ValidIssuer = _appSettings.Issuer,
                    ValidAudience = _appSettings.Issuer
                }, out SecurityToken validateToken);
                var jwtToken = (JwtSecurityToken)validateToken;
                var userId = int.Parse(jwtToken.Claims.FirstOrDefault(_=>_.Type=="Id").Value);
                context.Items["User"] = userService.GetById(userId);
            }
            catch (Exception ex)
            {
            }
        }
    }
}

When decorating an API endpoint with the [Authorization] attribute, the OnAuthorization method will be called each time before the API Endpoint is called.

In this scenario, check user credentials and Role Validation. It returns Unathorization with a 401 status code. If the user does not exist and the role matches with the Authorize attribute,

using Custom_Jwt_Token_Example.Models;
using Microsoft.AspNetCore.Identity;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Mvc.Filters;

namespace Custom_Jwt_Token_Example.Helper
{
   [AttributeUsage(AttributeTargets.Class | AttributeTargets.Method)]
    public class Authorization : Attribute, IAuthorizationFilter
    {
        private readonly IList<Role> _roles;
        public Authorization(params Role[] _roles) {

            this._roles = _roles?? new Role[]{ };
        }
        public void OnAuthorization(AuthorizationFilterContext context)
        {
            var isRolePermission = false;
            User user = (User)context.HttpContext.Items["User"];
            if (user == null)
            {
                context.Result = new JsonResult(
                        new { Message = "Unauthorization" }
                    )
                { StatusCode = StatusCodes.Status401Unauthorized };
            }
            if(user != null && this._roles.Any())
                foreach (var userRole in user.Role)
                {
                    foreach (var AuthRole in this._roles)
                    {

                        if (userRole == AuthRole)
                        {
                            isRolePermission = true;
                        }
                    }
                }

            if(!isRolePermission)
                context.Result = new JsonResult(
                           new { Message = "Unauthorization" }
                       )
                { StatusCode = StatusCodes.Status401Unauthorized };
        }
    }
}

Add Decorator an API endpoint with [Authorization(Role. Customer)] attribute.

using Custom_Jwt_Token_Example.Helper;
using Custom_Jwt_Token_Example.Models;
using Microsoft.AspNetCore.Mvc;

namespace Custom_Jwt_Token_Example.Controllers
{
    [Authorization(Role.Customer)]
    [ApiController]
    [Route("[controller]")]
    public class WeatherForecastController : ControllerBase
    {
        private static readonly string[] Summaries = new[]
        {
        "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
    };
        private readonly ILogger<WeatherForecastController> _logger;
        public WeatherForecastController(ILogger<WeatherForecastController> logger)
        {
            _logger = logger;
        }
        [HttpGet(Name = "GetWeatherForecast")]
        public IEnumerable<WeatherForecast> Get()
        {
            return Enumerable.Range(1, 5).Select(index => new WeatherForecast
            {
                Date = DateTime.Now.AddDays(index),
                TemperatureC = Random.Shared.Next(-20, 55),
                Summary = Summaries[Random.Shared.Next(Summaries.Length)]
            })
            .ToArray();
        }
    }
}

In the Appsetting.Json File, add Appsetting Section JWT Token Key and Issuer.

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "AppSettings": {
    "Key": "986ghgrgtru989ASdsaerew13434545435",
    "Issuer": "TestIssuer"
  }
}

Add Middleware

Next, we need to register custom middleware using the Use<> extension method.

using Custom_Jwt_Token_Example.Helper;
using Custom_Jwt_Token_Example.Services;

var builder = WebApplication.CreateBuilder(args);
// Add services to the container.
builder.Services.AddControllers();
// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();
builder.Services.Configure<AppSettings>(builder.Configuration.GetSection("AppSettings"));
builder.Services.AddScoped<IAuthenticationService, AuthenticationService>();
builder.Services.AddScoped<IUserService,UserService>();

var app = builder.Build();
app.UseMiddleware<JwtMiddleware>();
// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}
app.UseHttpsRedirection();
app.UseAuthorization();
app.MapControllers();
app.Run();

I'm using the AuthenticationService class of the Authenticate method to actually generate a token.
The code creates a token and extracts a string from it that's ready to be returned as bearer token value.
The Token includes a username and role, which is what's required for ASP.Net Core's Authentication to work. I can then add some additional application-specific claims, if necessary, like the Display Name and User State object in the example below.

Next, we need to create the AuthenticationResponse class used for the Token Value set and get.

namespace Custom_Jwt_Token_Example.Models
{
    public class AuthenticateResponse
    {
        public string Token
        {
            get;
            set;
        }
    }
}

Next, we need to create an AuthenticationRequest class used for the username and password sent to an authentication request.

using System.ComponentModel.DataAnnotations;
namespace Custom_Jwt_Token_Example.Models
{
    public class AuthenticateRequest
    {
        [Required]
        public string UserName
        {
            get;
            set;
        }
        [Required]
        public string Password
        {
            get;
            set;
        }
    }
}

Next, we need to create a role enum used to store Admin User and Customer User.

namespace Custom_Jwt_Token_Example.Models
{
    public enum Role
    {
        Admin,
        Customer
    }
}

Next, we need to create a user class used for user information.

using System.Text.Json.Serialization;
namespace Custom_Jwt_Token_Example.Models
{
    public class User
    {
        public int Id
        {
            get;
            set;
        }
        public string FirstName
        {
            get;
            set;
        }
        public string LastName
        {
            get;
            set;
        }
        public string Username
        {
            get;
            set;
        }
        public List<Role> Role { get; set; }
        [JsonIgnore]
        public string Password
        {
            get;
            set;
        }
    }
}

Next, we need to create an Appsetting class used for storing Appsetting Section Key And Issuer Values.

namespace Custom_Jwt_Token_Example.Helper
{
    public class AppSettings
    {
        public string Key
        {
            get;
            set;
        }
        public string Issuer
        {
            get;
            set;
        }
    }
}

Valid Token With Role Is Customer

So, at this point, I have authenticated with the Customer Role. I have restricted only Admin User Accessible to get an unauthorized error.

Customer Role

To Change Admin Role Of testUser Username

TestUser Username
