In this article I will explain how to perform CRUD operations in MVC using Code First Approach, Web API, Repository pattern, Unit of work, and jqGrid. I will also create several different layers, including Data Access Layer, Business Layer, Service Layer, and Presentation Layer. Also, we will check some validation in jqgrid. Now, lets get started.
Step 1

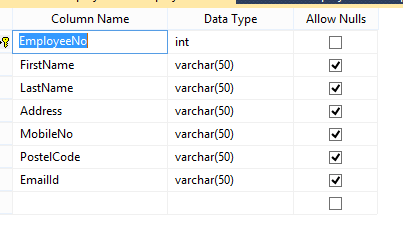

We will create a table in the database.

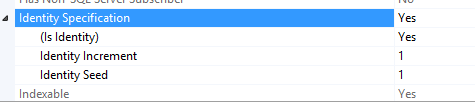

Here, set "EmployeeNo" as a primary key and set Identity to "Yes".
Step 2
Now, we will add projects using class library, like DataAccessLayer, BusinessLayer, ServiceLayer, and PersentationLayer.
First, we will create an MVC empty project and then we will add projects one by one. We will add tje DataAccessLayer first.

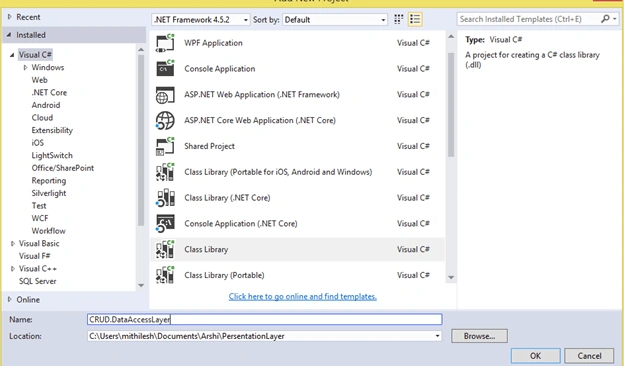

For this, right click on project solution and go to Add >> New Project.
Select Class library file and give it name such as CRUD.DataLayer (This is my example name, you can give any name).
Click OK.

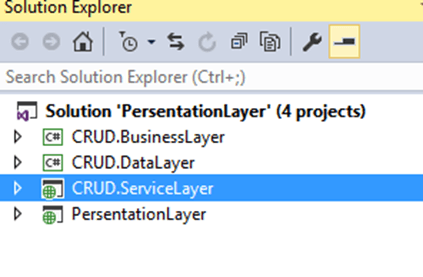

Similarly, we have to add 3 more projects.
Okay! Now let's add the DLL files.

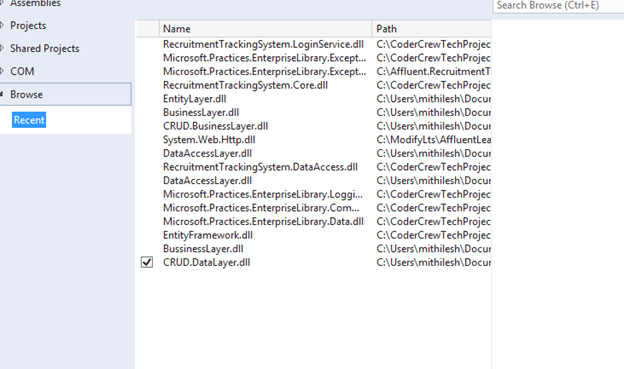

First we build a DataAccessLayer project and add the DLL file DataAccessLayer in the BussinessLayer. For this, right click on the project and select Add >> Reference. Select CRUD.DataLayer.dll.
Similarly, we have to add DLL file Business Layer in the Service Layer
Step 3

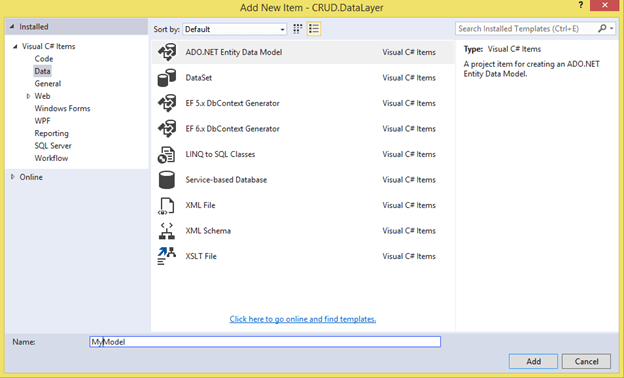

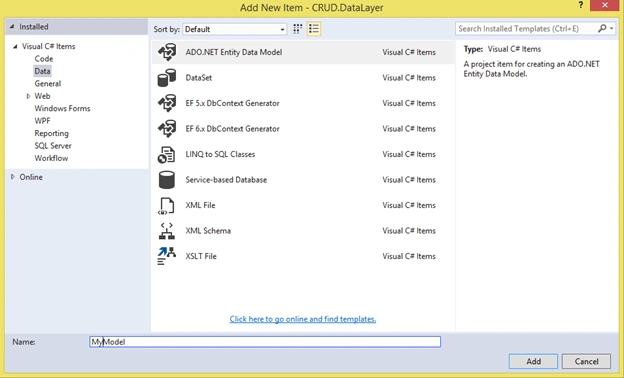

We will go to the Data Access Layer and add model classes but here we will use the code first approach using existing data. So for this, we add a folder like "Entity." After that right click the Entity folder and select the add option and select new item and then select data in the left panel and finally select ADO.Net Entity data model.
Click add button.

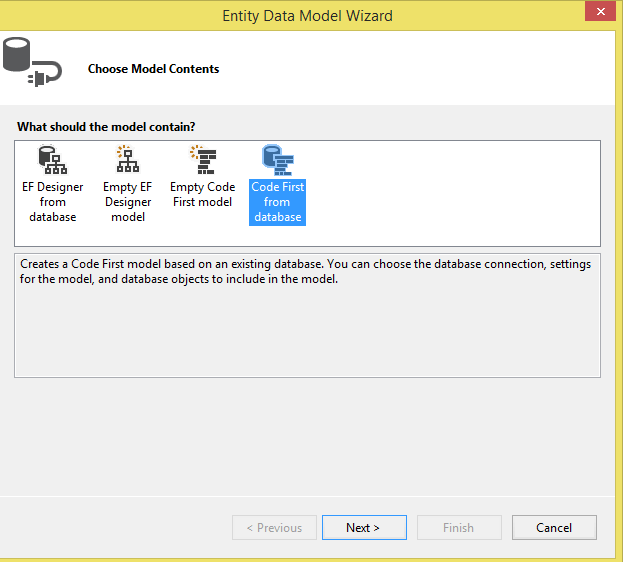

After that we will select Code First From database.
Click next and give the connection and select the table of the database.
After that again we will create a folder, my folder name is Implementation.
And this folder add two classes.
- DataAccess.cs
- UnitOfWork.cs
Write code in DataAccess.cs
- using CRUD.DataLayer.Entities;
- using CRUD.DataLayer.Interfaces;
- using System.Collections.Generic;
- using System.Data.Entity;
- using System.Linq;
-
- namespace CRUD.DataLayer.Implementation
- {
- public class DataAccess<TEntity> : IDataAccess<TEntity> where TEntity : class
- {
-
-
-
- internal MyModel context;
-
-
-
-
- internal DbSet<TEntity> dbSet;
-
-
-
-
-
- public DataAccess(MyModel context)
- {
- this.context = context;
- this.dbSet = context.Set<TEntity>();
- }
-
-
-
-
-
- public virtual IEnumerable<TEntity> Get()
- {
- IQueryable<TEntity> query = this.dbSet;
- return query.ToList();
- }
-
-
-
-
-
-
- public virtual TEntity GetByID(object id)
- {
- return this.dbSet.Find(id);
- }
-
-
-
-
-
- public virtual void Insert(TEntity entity)
- {
- this.dbSet.Add(entity);
- }
-
-
-
-
-
- public virtual void Delete(object id)
- {
- TEntity entityToDelete = this.dbSet.Find(id);
- this.Delete(entityToDelete);
- }
-
-
-
-
-
- public virtual void Delete(TEntity entityToDelete)
- {
- if (this.context.Entry(entityToDelete).State == System.Data.Entity.EntityState.Detached)
- {
- this.dbSet.Attach(entityToDelete);
- }
-
- this.dbSet.Remove(entityToDelete);
- }
-
-
-
-
-
- public virtual void Attach(TEntity entityToUpdate)
- {
- this.dbSet.Attach(entityToUpdate);
- this.context.Entry(entityToUpdate).State = System.Data.Entity.EntityState.Modified;
- }
- }
- }
Write code in UnitOfWork.cs
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Text;
- using System.Threading.Tasks;
- using CRUD.DataLayer.Entities;
-
- namespace CRUD.DataLayer.Implementation
- {
-
-
-
-
-
- public class UnitOfWork : IDisposable
- {
-
-
-
- private string errorMessage = string.Empty;
-
-
-
-
- private bool disposed = false;
-
- private DataAccess<EmployeeInfo> employeeInfoRepository;
-
-
-
-
- private MyModel objMyModel = new MyModel();
-
-
-
-
-
-
-
-
- public DataAccess<EmployeeInfo> GetEmployeeRepository
- {
- get
- {
- if (this.employeeInfoRepository == null)
- {
- this.employeeInfoRepository = new DataAccess<EmployeeInfo>(this.objMyModel);
- }
-
- return this.employeeInfoRepository;
- }
- }
-
-
-
-
-
-
-
-
- public int Save()
- {
- return this.objMyModel.SaveChanges();
- }
- public void Dispose()
- {
- this.Dispose(true);
- GC.SuppressFinalize(this);
- }
-
-
-
-
-
-
- protected virtual void Dispose(bool disposing)
- {
- if (!this.disposed)
- {
- if (disposing)
- {
- this.objMyModel.Dispose();
- }
- }
-
- this.disposed = true;
- }
- }
- }
Now we have completed the data access part.
Step 4
Now we go to the Business Layer.
Here we will create two folders:
- Implementation
- Interfaces
Now we add interface class like IEmployee.cs and declare our methods.
- using System.Collections.Generic;
- using CRUD.DataLayer.Entities;
-
- namespace CRUD.BusinessLayer.Interfaces
- {
- public interface IEmployee
- {
- IEnumerable<EmployeeInfo> EmployeeGet();
- string EmployeeInsert(EmployeeInfo emp);
- string EmployeeUpdate(EmployeeInfo emp);
- string EmployeeDelete(int id);
- }
- }
Now we add class Employee.cs in the Implementation folder.
- using CRUD.BusinessLayer.Interfaces;
- using System.Collections.Generic;
- using System.Linq;
- using CRUD.DataLayer.Entities;
- using CRUD.DataLayer.Implementation;
-
-
- namespace CRUD.BusinessLayer.Implementation
- {
- public class Employee : IEmployee
- {
- private UnitOfWork unitOfWork = new UnitOfWork();
-
- private List<EmployeeInfo> lstEmp = new List<EmployeeInfo>();
- private EmployeeInfo objEmp = new EmployeeInfo();
- public IEnumerable<EmployeeInfo> EmployeeGet()
- {
- lstEmp = unitOfWork.GetEmployeeRepository.Get().ToList();
-
- return lstEmp;
- }
-
- public string EmployeeUpdate(EmployeeInfo emp)
- {
-
- objEmp = unitOfWork.GetEmployeeRepository.GetByID(emp.EmployeeNo);
-
- if(objEmp !=null)
- {
- objEmp.FirstName = emp.FirstName;
- objEmp.LastName = emp.LastName;
- objEmp.Address = emp.Address;
- objEmp.MobileNo = emp.MobileNo;
- objEmp.PostelCode = emp.PostelCode;
- objEmp.EmailId = emp.EmailId;
- }
- this.unitOfWork.GetEmployeeRepository.Attach(objEmp);
- int result = this.unitOfWork.Save();
-
- if(result > 0)
- {
- return "Sucessfully updated of employee records";
- }
- else
- {
- return "Updation faild";
- }
- }
-
- public string EmployeeDelete(int id)
- {
- var objEmp = this.unitOfWork.GetEmployeeRepository.GetByID(id);
- this.unitOfWork.GetEmployeeRepository.Delete(objEmp);
- int deleteData = this.unitOfWork.Save();
- if(deleteData > 0)
- {
- return "Successfully deleted of employee records";
- }
- else
- {
- return "Deletion faild";
- }
- }
-
- public string EmployeeInsert(EmployeeInfo emp)
- {
- this.unitOfWork.GetEmployeeRepository.Insert(emp);
- int inserData =this.unitOfWork.Save();
-
- if(inserData > 0)
- {
- return "Successfully Inserted of employee records";
- }
- else
- {
- return "Insertion faild";
- }
- }
- }
- }
So now we have completed business layer part, next we will go to the service layer:
Step 5

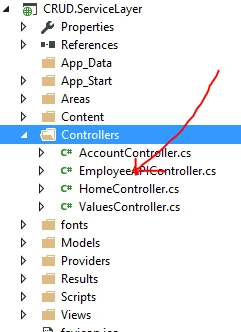

Now we have to add an API Controller in our Service layer.

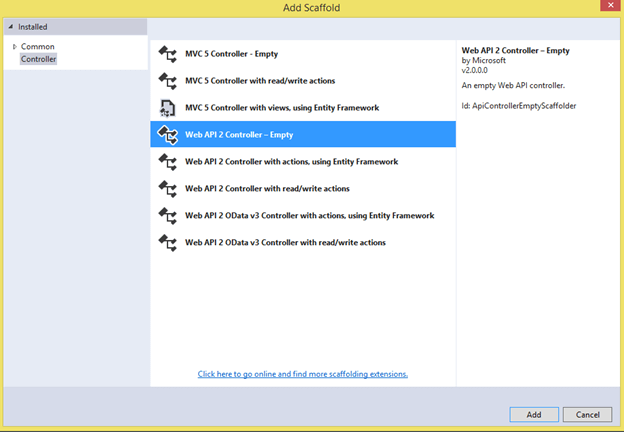

Right click the controller and add an API Controller.
Click add.
Next we write the code for all operations to perform CRUD Operation in EmplyeeAPI Controller.

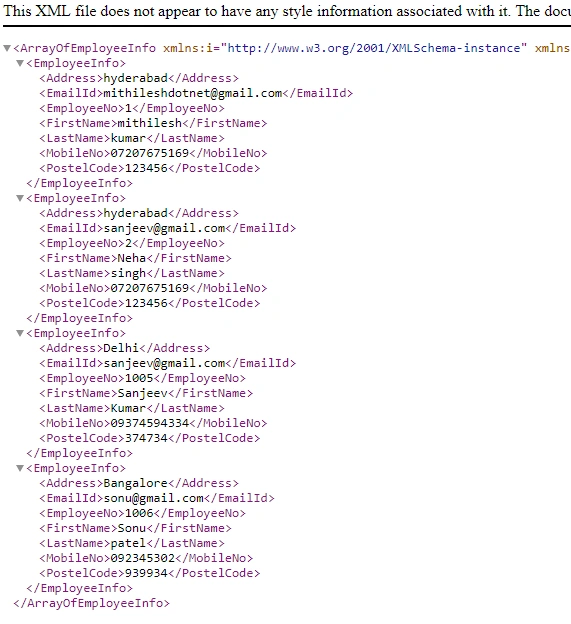

After that we will run the web api project the find some output...
Okay we have completed also Service layer part so now we have to consume in mvc so for this we will go Presentation layer part I.e MVC Layer
Step 6
First we will add a controller

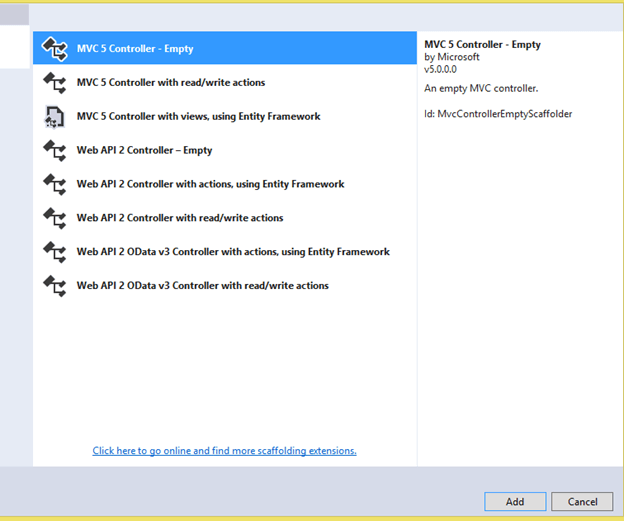

So for this, Go to controller folder and right click and add a empty controller

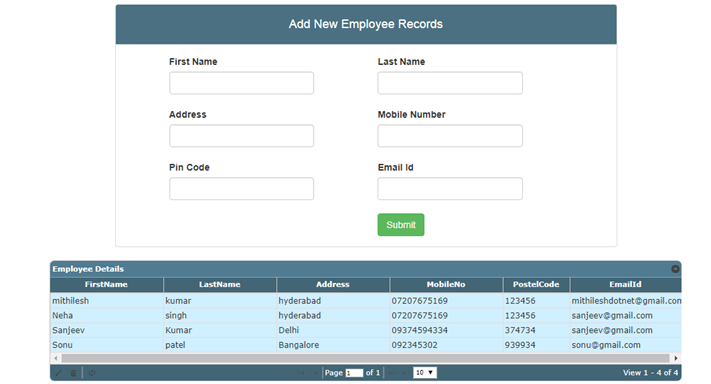

Now, we have to consume the Web API service and finally, we have to display records in View.
We will add a class in our Models folder and give it a class name of Rest Client. This is a common class for performing all CRUD operations.

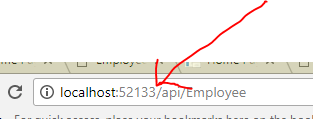

Here, we need to add the URL of our service layer.
- public const string ApiUri = "http://localhost:52133/";
Write the methods in RestClient Class.
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Net.Http;
- using System.Net.Http.Headers;
- using System.Threading.Tasks;
-
- namespace PersentationLayer.Models
- {
- public class RestClient : IDisposable
- {
-
-
-
- private HttpClient client;
- public const string ApiUri = "http://localhost:52133/";
-
-
-
- public const string MediaTypeJson = "application/json";
-
-
-
-
- public const string MediaTypeXML = "application/XML";
-
- public const string RequestMsg = "Request has not been processed";
- public static string ReasonPhrase { get; set; }
-
-
-
-
- public RestClient()
- {
- this.client = new HttpClient();
- this.client.BaseAddress = new Uri(ApiUri);
- this.client.DefaultRequestHeaders.Accept.Clear();
- this.client.DefaultRequestHeaders.Accept.Add(new MediaTypeWithQualityHeaderValue(MediaTypeJson));
- }
- public async Task<List<U>> RunAsyncGetAll<T, U>(dynamic uri)
- {
- HttpResponseMessage response = await this.client.GetAsync(uri);
- if (response.IsSuccessStatusCode)
- {
- return await response.Content.ReadAsAsync<List<U>>();
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadRequest)
- {
- throw new ApplicationException(response.ReasonPhrase);
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadGateway)
- {
- throw new Exception(response.ReasonPhrase);
- }
-
- throw new Exception(RequestMsg);
- }
-
- public async Task<List<U>> RunAsyncGet<T, U>(dynamic uri, dynamic data)
- {
- HttpResponseMessage response = await this.client.GetAsync(uri + "/" + data);
- if (response.IsSuccessStatusCode)
- {
- return await response.Content.ReadAsAsync<List<U>>();
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadRequest)
- {
- throw new ApplicationException(response.ReasonPhrase);
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadGateway)
- {
- throw new Exception(response.ReasonPhrase);
- }
-
- throw new Exception(RequestMsg);
- }
-
- public async Task<U> RunAsyncPost<T, U>(string uri, T entity)
- {
- HttpResponseMessage response = client.PostAsJsonAsync(uri, entity).Result;
- ReasonPhrase = response.ReasonPhrase;
- if (response.IsSuccessStatusCode)
- {
- return await response.Content.ReadAsAsync<U>();
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadRequest)
- {
- throw new ApplicationException(response.ReasonPhrase);
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadGateway)
- {
- throw new Exception(response.ReasonPhrase);
- }
-
- throw new Exception(RequestMsg);
- }
-
- public async Task<U> RunAsyncPut<T, U>(string uri, T entity)
- {
- HttpResponseMessage response = await this.client.PutAsJsonAsync(uri, entity);
- if (response.IsSuccessStatusCode)
- {
- return await response.Content.ReadAsAsync<U>();
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadRequest)
- {
- throw new ApplicationException(response.ReasonPhrase);
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadGateway)
- {
- throw new Exception(response.ReasonPhrase);
- }
-
- throw new Exception(RequestMsg);
- }
-
- public async Task<U> RunAsyncDelete<T, U>(string uri, dynamic id)
- {
- HttpResponseMessage response = await this.client.DeleteAsync(uri + "/" + id);
- if (response.IsSuccessStatusCode)
- {
- return await response.Content.ReadAsAsync<U>();
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadRequest)
- {
- throw new ApplicationException(response.ReasonPhrase);
- }
- else if (response.StatusCode == System.Net.HttpStatusCode.BadGateway)
- {
- throw new Exception(response.ReasonPhrase);
- }
-
- throw new Exception(RequestMsg);
- }
-
-
-
-
- public void Dispose()
- {
- this.Dispose(true);
- GC.SuppressFinalize(this);
- }
-
-
-
-
-
- protected virtual void Dispose(bool disposing)
- {
- if (disposing)
- {
-
- this.client.Dispose();
- }
-
- }
- }
- }
Add one more class in Models folder for declaring all entities of emplyee.
Employee.cs
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
-
- namespace PersentationLayer.Models
- {
- public class Employee
- {
- public int EmployeeNo { get; set; }
- public string FirstName { get; set; }
- public string LastName { get; set; }
-
- public string Address { get; set; }
- public string MobileNo { get; set; }
- public string PostelCode { get; set; }
- public string EmailId { get; set; }
- }
- }
After that, we will write all the code in MVC Controller class.
- using System;
- using System.Web.Mvc;
- using PersentationLayer.Models;
- using System.Threading.Tasks;
- using System.Net.Http;
- using System.Net;
- using System.Web.Http;
-
- namespace PersentationLayer.Controllers
- {
- public class EmployeeController : Controller
- {
-
- private RestClient restClient = new RestClient();
-
- public ActionResult EmployeeDetails()
- {
- return this.View();
- }
- public async Task<ActionResult> EmpInfoData()
- {
- try
- {
-
- return this.Json(await this.restClient.RunAsyncGetAll<Employee, Employee>("api/Employee/EmpDetails"), JsonRequestBehavior.AllowGet);
- }
- catch (ApplicationException ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadRequest, ReasonPhrase = ex.Message });
-
- }
- catch (Exception ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadGateway, ReasonPhrase = ex.Message });
- }
- }
-
- public async Task<ActionResult> InsertEmployeeInfo(Employee objEmp)
- {
- try
- {
- return this.Json(await this.restClient.RunAsyncPost<Employee, string>("api/Employee/InsertEmpDetails", objEmp));
- }
- catch (ApplicationException ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadRequest, ReasonPhrase = ex.Message });
- }
- catch (Exception ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadGateway, ReasonPhrase = ex.Message });
- }
- }
- public async Task<ActionResult> UpdateEmployeeInfo(Employee objEmp)
- {
- try
- {
- return this.Json(await this.restClient.RunAsyncPut<Employee, string>("api/Employee/UpdateEmpDetails", objEmp));
- }
- catch (ApplicationException ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadRequest, ReasonPhrase = ex.Message });
- }
- catch (Exception ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadGateway, ReasonPhrase = ex.Message });
- }
- }
-
-
- public async Task<ActionResult> DeleteEmployeeInfo(int id)
- {
- try
- {
- return this.Json(await this.restClient.RunAsyncDelete<int, string>("api/Employee/DeleteEmpData", id));
- }
- catch (ApplicationException ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadRequest, ReasonPhrase = ex.Message });
- }
- catch (Exception ex)
- {
- throw new HttpResponseException(new HttpResponseMessage { StatusCode = HttpStatusCode.BadGateway, ReasonPhrase = ex.Message });
- }
- }
-
- }
- }
We will display all our records in View however here we will use jqGrid for viewing the records. First, we have to add jqGrid library. Go to Manage NuGet Package, search for jqGrid library, and install.
Now, we will write code related to jqGrid so we will take a separate JavaScript file and give it a name like EmpDetails.js, now write this code...
-
-
- var EmployeeDetails = {
-
- GetEmpData: function () {
- $("#list").jqGrid({
- url: '/Employee/EmpInfoData',
- datatype: 'json',
- mtype: 'Get',
- colModel: [
- {
- key: true, hidden: true, name: 'EmployeeNo', index: 'EmployeeNo', editable: true
- },
-
- { key: false, name: 'FirstName', index: 'FirstName', width: 245, editable: true, editrules: { required: true }, },
-
- { name: 'LastName', index: 'LastName', width: 245, editable: true, editrules: { required: true }, },
- { name: 'Address', index: 'Address', width: 245, editable: true, editrules: { required: true }, },
-
- {
- name: 'MobileNo', index: 'MobileNo', width: 245, editable: true, editrules: { required: true }, editoptions: {
- maxlength: "10", dataInit: function (element) {
- $(element).keypress(function (e) {
- if (e.which != 8 && e.which != 0 && (e.which < 48 || e.which > 57)) {
- alert("Accept only numeric value and only ten digits");
- return false;
- }
- });
- }
- }
- },
-
- {
- name: 'PostelCode', index: 'PostelCode', width: 145, editable: true, editrules: { required: true }, editoptions: {
- maxlength: "6", dataInit: function (element) {
- $(element).keypress(function (e) {
-
- if (e.which != 8 && e.which != 0 && (e.which < 48 || e.which > 57)) {
-
- alert("Accept only numeric value and only six digits");
- return false;
- }
- });
- }
- }
- },
- { name: 'EmailId', index: 'EmailId', width: 245, editable: true, editrules: { required: true }, }
- ],
- pager: jQuery('#pager'),
- rowNum: 10,
- loadonce: true,
- rowList: [10, 20, 30, 40],
- height: '100%',
- viewrecords: true,
- caption: 'Employee Details',
- emptyrecords: 'No records to display',
- jsonReader: {
- repeatitems: false,
- root: function (obj) { return obj; },
- page: "page",
- total: "total",
- records: "records",
- repeatitems: false,
- EmployeeNo: "0"
- },
- autowidth: true,
- multiselect: false
- }).navGrid('#pager', { add: false, edit: true, del: true, search: false, refresh: true },
- {
-
- zIndex: 1000,
- url: '/Employee/UpdateEmployeeInfo',
- closeOnEscape: true,
- closeAfterEdit: true,
- recreateForm: true,
- loadonce: true,
- align: 'center',
- afterComplete: function (response) {
- GetEmpData()
- if (response.responseText) {
-
- alert(response.responseText);
- }
- }
- }, {},
- {
-
- zIndex: 1000,
- url: '/Employee/DeleteEmployeeInfo',
- closeOnEscape: true,
- closeAfterdel: true,
- recreateForm: true,
- msg: "Are you sure you want to delete this task?",
- afterComplete: function (response) {
- if (response.responseText) {
- $("#alert-Grid").html("<b>" + response.responseText + "</b>");
- $("#alert-Grid").show();
- $("#alert-Grid").delay(3000).fadeOut("slow");
- }
- }
- });
- },
- insertEmployeeDetails: function () {
-
- $("#btnSubmit").click(function () {
-
- $.ajax(
- {
- type: "POST",
- url: "/Employee/InsertEmployeeInfo",
- data: {
-
- FirstName: $("#txtFName").val(),
- LastName: $("#txtLName").val(),
- Address: $("#txtAddress").val(),
- MobileNo: $("#txtMobileNo").val(),
- PostelCode: $("#txtPinCode").val(),
- EmailId: $("#txtEmail").val()
- },
- success: function (data) {
- alert(data);
- $("##alert-danger").html("<b>" + data + "</b>");
- $("##alert-danger").show();
- $("##alert-danger").delay(10000).fadeOut("slow");
- },
- error: function (data) {
- GetEmpData();
-
-
- $("##alert-danger").html("<b>" + data + "</b>");
- $("##alert-danger").show();
- $("##alert-danger").delay(10000).fadeOut("slow");
- }
- });
- });
- }
- }
Now, let's design our UI with HTML in View.
- @{
- ViewBag.Title = "EmployeeDetails";
- }
-
- <link href="~/themes/jquery-ui-1.12.1.custom/jquery-ui.css" rel="stylesheet" />
- <link href="~/Content/jquery.jqGrid/ui.jqgrid.css" rel="stylesheet" />
-
- <script src="~/Scripts/jquery-1.9.1.js"></script>
- <script src="~/Scripts/jquery-ui-1.10.0.js"></script>
- <script src="~/Scripts/i18n/grid.locale-en.js"></script>
- <script src="~/Scripts/jquery.jqGrid.min.js"></script>
- <script src="~/Scripts/EmpDetails.js"></script>
- <br />
- <div class="row">
- <div class="col-xs-4 col-md-2"></div>
- <div class="col-xs-6 col-md-8" ng-hide="showHide">
- <div class="panel panel-default">
- <div class="panel-heading" style="background-color:#4B7082;color:white"><h4 align="center">Add New Employee Records</h4></div>
- <div class="panel-body">
- <div class="row">
- <form class="form-inline" id="form1">
-
- <div class="col-md-5" style="padding-left:80px;">
- <div class="form-inline">
- <label for="" id="label">First Name</label>
- <input type="text" class="form-control" required id="txtFName">
- </div>
- <br />
- <div class="form-inline">
- <label for="" id="label">Address</label>
- <input type="text" class="form-control" required id="txtAddress">
-
- </div>
- <br />
- <div class="form-inline">
- <label for="" id="label">Pin Code</label>
- <input type="text" class="form-control" required id="txtPinCode">
-
- </div>
- </div>
- <div class="col-md-5" style="padding-left:80px;">
- <div class="form-inline">
- <label for="" id="label">Last Name</label>
- <input type="text" required id="txtLName" class="form-control">
- </div>
- <br />
- <div class="form-inline">
- <label for="" id="label">Mobile Number</label>
- <input type="text" class="form-control" required id="txtMobileNo">
-
- </div><br />
- <div class="form-inline">
- <label for="" id="label">Email Id</label>
- <input type="text" class="form-control" required id="txtEmail">
-
- </div>
- <br />
- <input type="submit" class="btn btn-success" id="btnSubmit" value="Submit" />
-
- </div>
-
-
- </form>
- </div>
-
- </div>
- </div>
- </div>
- <div class="col-xs-6 col-md-2"></div>
- </div>
- <div class="row">
- <div class="col-md-10 col-md-offset-1">
- <div class="alert alert-danger" role="alert" id="alert-Grid"></div>
- <table align="center" id="list"></table>
- <div id="pager"></div>
-
- </div>
- </div>
Now, we will callour jqGrid methods in View. Write this code in View page.
- <script type="text/javascript">
- $(function () {
- $("#alert-Grid").hide();
- EmployeeDetails.GetEmpData();
- EmployeeDetails.insertEmployeeDetails();
-
- });
- </script>
So, we can see that this is my final View.
We will insert, update, and delete our records.

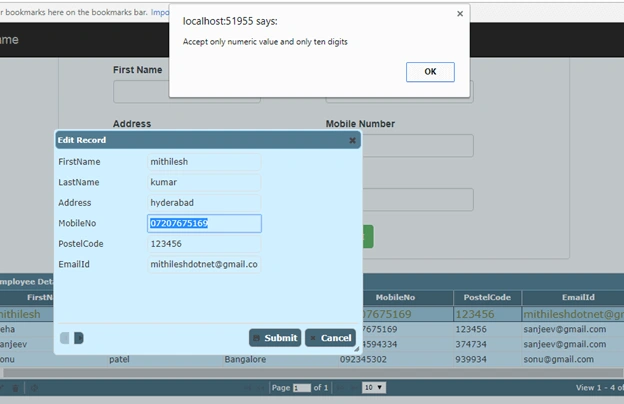

Here, it is working with all related validation. We can see that the mobile number should be numeric but if we try to enter it alphabetically, then it will show an error.
Thanks and happy coding.
