Introduction
In this article, we are going to discuss CRUD operation in dynamic 365 portals using web API.
We are going to cover.
- What is a power portal?
- How to create a portal?
- How to perform crud operation in power portal using web API.
What are portals?
Portals are websites that you can customize to give your customers, partners, and employees a tailored experience. Portals are integrated into Dynamics 365 for Customer Engagement so you can display data from the module directly on the portal.
How to create a portal?

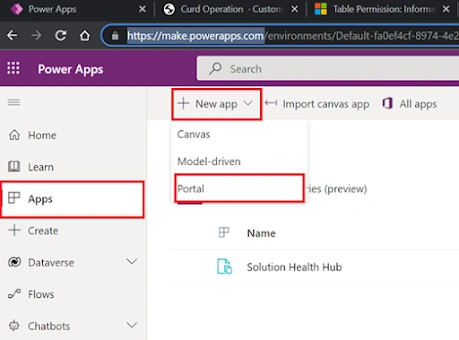

1. Logging to https://make.powerapps.com/
2. Navigate on Apps New app click ok portal
![Power Apps portal]()

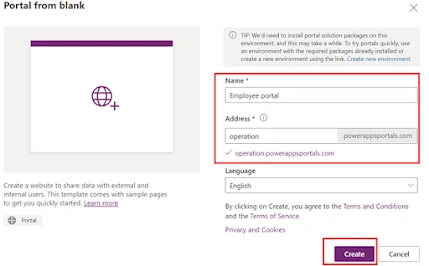

3. Please enter the required name and address of the portal to be created and click on Create.
![Portal from blank]()
It will take a few minutes of time to create a portal
![Create portal]()
How to perform crud operation in power portal using web API.

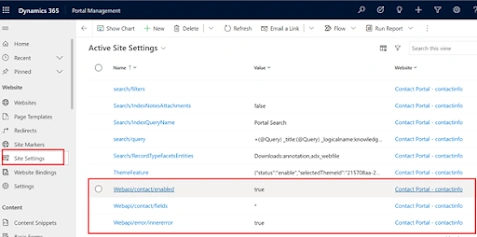

4. Once the power portal is created, navigate to portal management, click on site settings, create three active site settings with the same name and value as shown in the below figure, and select your website in the website column.
![Portal managemnet]()
5. Next, Navigate to table permission and create contact table permission as shown in the below screen with read, create, and delete privileges.
![table permission and create contact]()
6. Next, we need to create a web role so that only users who have access can perform this operation.
![perform this operation.]()

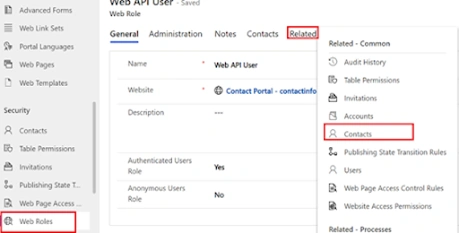

7. Once the web role is created, navigate to the related web role and select the entity. For ex, select the contact entity and add users.
![Select the contact entity and add users]()
![Contacts]()

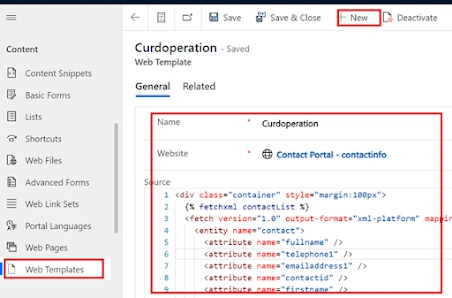

8. In the next step, we need to create web templates and add them below completed.
![create web templates]()
<div class="container" style="margin:100px">
{% fetchxml contactList %}
<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
<entity name="contact">
<attribute name="fullname" />
<attribute name="telephone1" />
<attribute name="emailaddress1" />
<attribute name="contactid" />
<attribute name="firstname" />
<order attribute="fullname" descending="false" />
<filter type="and">
<condition attribute="statecode" operator="eq" value="0" />
</filter>
</entity>
</fetch>
{% endfetchxml %}
<div style="float:right">
<button id="createContactNew" class="btn btn-success btn-large" onclick="create();"><i class="glyphicon glyphicon-plus"></i>Create</button>
<button id="updateContact" class="btn btn-success btn-large" onclick="update('U')"><i class="glyphicon glyphicon-inbox"></i>Update</button>
<button id="deleteContact" value="Delete" class="btn btn-danger btn-large " style="margin-left:20px" onclick="update('D')">Delete</button>
<button id="refreshcontact" value="Refresh" class="btn btn-danger btn-large " style="margin-left:20px" onclick="javascript:location.reload(true);"><i class="glyphicon glyphicon-refresh"></i>Refresh</button>
</div>
<div id="processingMsg" class="alert alert-warning" role="alert"><span class="glyphicon glyphicon-info-sign"></span>Power Portal Crud Operation Using Web API</div>
<table id="tblData" class="table" style="border:1px solid">
<thead class="thead-dark">
<tr class="table-heading">
<th><input type="checkbox" id="checkedAll" style="margin-left:30px" /></th>
<th>First Name</th>
<th>Email</th>
<th>Business Phone</th>
</tr>
</thead>
<tbody>
{% for result in contactList.results.entities %}
{% assign contactids = result.contactid %}
<tr>
<td><input type="checkbox" id="{{ result.contactid }}" class="contactIDs" style="margin-left:30px" onchange="pushArrayCheckBox(this);" /></td>
<td><input type="text" id="txtfullName|{{result.contactid}}" contactid="{{result.contactid}}" value="{{ result.firstname }}" onchange="pushArray(this);"></td>
<td>{{ result["emailaddress1"] }}</td>
<td><input type="number" id="txtBusinessPhone|{{result.contactid}}" contactid="{{result.contactid}}" value="{{ result.telephone1 }}" pattern="\d*" title="Please enter Numbers only..." onchange="pushArray(this);"></td>
</tr>
<tr class="no-records" style="display: none;">
<td colspan='6'>No Record Found</td>
</tr>
{% endfor %}
</tbody>
</table>
</div>
<script>
(function(webapi, $) {
function safeAjax(ajaxOptions) {
var deferredAjax = $.Deferred();
shell.getTokenDeferred().done(function(token) {
// add headers for AJAX
if (!ajaxOptions.headers) {
$.extend(ajaxOptions, {
headers: {
"__RequestVerificationToken": token
}
});
} else {
ajaxOptions.headers["__RequestVerificationToken"] = token;
}
$.ajax(ajaxOptions).done(function(data, textStatus, jqXHR) {
validateLoginSession(data, textStatus, jqXHR, deferredAjax.resolve);
}).fail(deferredAjax.reject);
//AJAX
}).fail(function() {
deferredAjax.rejectWith(this, arguments);
// on token failure pass the token AJAX and args
});
return deferredAjax.promise();
}
webapi.safeAjax = safeAjax;
})(window.webapi = window.webapi || {}, jQuery)
//custom code
var globalArray = [];
function pushArray(currentObject) {
var str = currentObject.id;
var res = str.split("|");
var contId = res[1];
var checkbox = document.getElementById(contId).checked;
var fullname = document.getElementById("txtfullName|" + contId).value;
var phonenumber = document.getElementById("txtBusinessPhone|" + contId).value;
let objIndex = globalArray.findIndex((obj => obj.id == contId));
if (objIndex == -1) {
globalArray.push({
id: contId,
fullname: fullname,
phone: phonenumber,
checkboxval: checkbox
})
} else {
globalArray[objIndex].fullname = fullname;
globalArray[objIndex].phone = phonenumber;
globalArray[objIndex].checkboxval = checkbox;
}
}
function pushArrayCheckBox(currentObject) {
var contId = currentObject.id;
var checkbox = document.getElementById(contId).checked;
var fullname = document.getElementById("txtfullName|" + contId).value;
var phonenumber = document.getElementById("txtBusinessPhone|" + contId).value;
let objIndex = globalArray.findIndex((obj => obj.id == contId));
if (objIndex == -1) {
globalArray.push({
id: contId,
fullname: fullname,
phone: phonenumber,
checkboxval: checkbox
})
} else {
globalArray[objIndex].fullname = fullname;
globalArray[objIndex].phone = phonenumber;
globalArray[objIndex].checkboxval = checkbox;
}
}
function update(flag) {
var i;
for (i = 0; i < globalArray.length; i++) { //update checked row changes
alert(globalArray[i].fullname + "-" + globalArray[i].phone + "-" + globalArray[i].checkboxval);
if (globalArray[i].checkboxval == 1) //true
{
document.getElementById("processingMsg").innerHTML = "Processing....";
try {
let value = {
"firstname": globalArray[i].fullname,
"telephone1": globalArray[i].phone
};
if (flag == "U") {
webapi.safeAjax({
type: "PATCH",
url: "/_api/contacts(" + globalArray[i].id + ")",
contentType: "application/json",
data: JSON.stringify(value),
success: function(res) {
document.getElementById("processingMsg").innerHTML = "Records updated successfully.";
}
});
} else if (flag == "D") {
webapi.safeAjax({
type: "DELETE",
url: "/_api/contacts(" + globalArray[i].id + ")",
contentType: "application/json",
success: function(res) {
document.getElementById("processingMsg").innerHTML = "Records deleted successfully. Refresh the page.";
}
});
}
} catch (e) {
alert(e.message);
}
}
}
}
// To create new contact
function create() {
var fname = prompt("Please enter your first name", "First Name");
var lname = prompt("Please enter your last name", "Last Name");
var email = prompt("Please enter your email", "Email");
var phone = prompt("Please enter your phone number", "Phone Number");
var recordObj = {
"firstname": fname,
"lastname": lname,
"emailaddress1": email,
"telephone1": phone
};
document.getElementById("processingMsg").innerHTML = "Creating record...";
webapi.safeAjax({
type: "POST",
url: "/_api/contacts",
contentType: "application/json",
data: JSON.stringify(recordObj),
success: function(res, status, xhr) {
document.getElementById("processingMsg").innerHTML = "Records created successfully. Refresh the page. ID:" + xhr.getResponseHeader("entityid");
}
});
}
$(document).ready(function() {
$('#checkedAll').on('click', function() {
if (this.checked) {
$('.contactIDs').each(function() {
this.checked = true;
$(this).parent().parent().css({
"color": "red",
"background-color": "#faffd6"
});
});
} else {
$('.contactIDs').each(function() {
this.checked = false;
$(this).parent().parent().css({
"color": "black",
"background-color": "#ffffff"
});
});
}
});
$('.contactIDs').on('click', function() {
if ($('.contactIDs:checked').length == $('.contactIDs').length) {
$('#checkedAll').prop('checked', true);
$('.contactIDs').each(function() {
$(this).parent().parent().css({
"color": "red",
"background-color": "#faffd6"
});
});
$(this).parent().parent().css({
"color": "black",
"background-color": "#ffffff"
});
} else {
$('#checkedAll').prop('checked', false);
$(this).parent().parent().css({
"color": "black",
"background-color": "#ffffff"
});
}
});
});
</script>
9. Next, we need to create a page template to display web content, navigate to the page template, and click on New and New.
10. Enter the required field information in the type field, select the web template, and in the web template field, select your template. When you have created a table name, we need to select the entity and click on Save.
![CRUD Operations]()

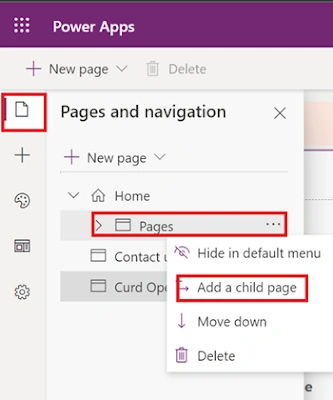

11. Navigate to https://make.powerapps.com/ click on edit portal, and create a new sub-page. Refer to the below screen.
![Apps]()
![Pages and navigation]()
12. In the web component, give the required information and select your template.
![Webpage]()
Final screen.
![Final screen]()
Once you click on create a record, a pop will display, enter the details, and click ok.
![]()
Thank you...!
