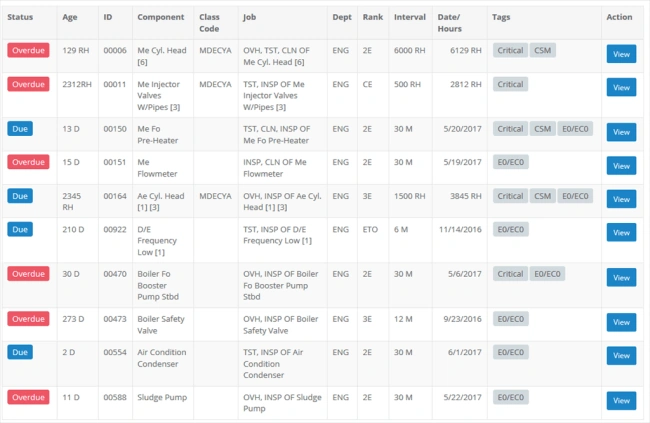

How To Create A Grid Dynamically Using Angular

Introduction

AngularJS provides various features. One of them is 2-way data binding. In this article, I will explain how to create Grid dynamically using Angular.

AngularJS

Download the requred JavaScript and css files from the below links
Get Started
  • Open Visual Studio and create a new MVC web application.
  • Copy the downloaded AngularJS file in "Scripts" folder of the solution.
  • Create a JavaScript file and name it as Module.js.
  • Then, write the following code in it.
    1. var app = angular.module("myApp",[]);
  • Create another JavaScript file and name it as Controller.js.
  • Start writing code as given below.
    1. app.controller("gridController", function($scope, $rootScope) {
    2.             var data = [];
    3.             var columns = [];
    4.             columns.push({
    5.                 "key": "Status",
    6.                 "width": "5%",
    7.                 "dataType": "status",
    8.                 "showTags": "false",
    9.                 "showColumns": "true"
    10.             });
    11.             columns.push({
    12.                 "key": "ID",
    13.                 "width": "1%",
    14.                 "dataType": "string",
    15.                 "showTags": "false",
    16.                 "showColumns": "true"
    17.             });
    18.             columns.push({
    19.                 "key": "Critical",
    20.                 "width": "1%",
    21.                 "dataType": "bool",
    22.                 "showTags": "true",
    23.                 "showColumns": "false"
    24.             });
    25.             columns.push({
    26.                 "key": "CSM",
    27.                 "width": "1%",
    28.                 "dataType": "bool",
    29.                 "showTags": "true",
    30.                 "showColumns": "false"
    31.             });
    32.             columns.push({
    33.                 "key": "E0/EC0",
    34.                 "width": "1%",
    35.                 "dataType": "bool",
    36.                 "showTags": "true",
    37.                 "showColumns": "true"
    38.             });
    39.             columns.push({
    40.                 "key": "MT2",
    41.                 "width": "5%",
    42.                 "dataType": "bool",
    43.                 "showTags": "true",
    44.                 "showColumns": "false"
    45.             });
    46.             columns.push({
    47.                 "key": "MT3",
    48.                 "width": "5%",
    49.                 "dataType": "bool",
    50.                 "showTags": "true",
    51.                 "showColumns": "false"
    52.             });
    53.             columns.push({
    54.                 "key": "Component",
    55.                 "width": "9%",
    56.                 "dataType": "string",
    57.                 "showTags": "false",
    58.                 "showColumns": "true"
    59.             });
    60.             columns.push({
    61.                 "key": "Class Code",
    62.                 "width": "3%",
    63.                 "dataType": "string",
    64.                 "showTags": "false",
    65.                 "showColumns": "true"
    66.             });
    67.             columns.push({
    68.                 "key": "Caption",
    69.                 "width": "13%",
    70.                 "dataType": "string",
    71.                 "showTags": "false",
    72.                 "showColumns": "true"
    73.             });
    74.             columns.push({
    75.                 "key": "Dept",
    76.                 "width": "1%",
    77.                 "dataType": "string",
    78.                 "showTags": "false",
    79.                 "showColumns": "true"
    80.             });
    81.             columns.push({
    82.                 "key": "Rank",
    83.                 "width": "1%",
    84.                 "dataType": "string",
    85.                 "showTags": "false",
    86.                 "showColumns": "true"
    87.             });
    88.             columns.push({
    89.                 "key": "Interval",
    90.                 "width": "3%",
    91.                 "dataType": "string",
    92.                 "showTags": "false",
    93.                 "showColumns": "true"
    94.             });
    95.             columns.push({
    96.                 "key": "Start Date",
    97.                 "width": "4%",
    98.                 "dataType": "date",
    99.                 "showTags": "false",
    100.                 "showColumns": "false"
    101.             });
    102.             columns.push({
    103.                 "key": "End Date",
    104.                 "width": "4%",
    105.                 "dataType": "date",
    106.                 "showTags": "false",
    107.                 "showColumns": "false"
    108.             });
    109.             columns.push({
    110.                 "key": "Date/ Hours",
    111.                 "width": "3%",
    112.                 "dataType": "date",
    113.                 "showTags": "false",
    114.                 "showColumns": "true"
    115.             });
    116.             columns.push({
    117.                 "key": "Action",
    118.                 "width": "4%",
    119.                 "dataType": "commands",
    120.                 "showTags": "false",
    121.                 "showColumns": "true"
    122.             });
    123.             $rootScope.columns = eval(columns);
    1. data.push({
    2.     "Status": [{
    3.         "val": "Overdue",
    4.         "color": "label label-danger"
    5.     }],
    6.     "Start Date": "2017-05-11",
    7.     "End Date": "2017-05-11",
    8.     "Critical": "true",
    9.     "CSM": "true",
    10.     "E0/EC0": "false",
    11.     "MT2": "CRI",
    12.     "Component": "Me Cyl. Head [6]",
    13.     "Class Code": "MDECYA",
    14.     "Caption": "OVH, TST, CLN OF Me Cyl. Head [6]",
    15.     "Dept": "ENG",
    16.     "Rank": "2E",
    17.     "ID": "00006",
    18.     "Interval": "6000 R/Hs",
    19.     "Date/ Hours": "6129 R/Hs",
    20.     "Action": ""
    21. });
    22. data.push({
    23.     "Status": [{
    24.         "val": "Overdue",
    25.         "color": "label label-danger"
    26.     }, {
    27.         "val": "P",
    28.         "color": "label label-info",
    29.         "title": "Planned"
    30.     }],
    31.     "Start Date": "2017-05-09",
    32.     "End Date": "2017-05-11",
    33.     "Critical": "false",
    34.     "CSM": "false",
    35.     "E0/EC0": "false",
    36.     "Component": "Me Injector Valves W/Pipes [3]",
    37.     "Class Code": "MDECYA",
    38.     "Caption": "TST, INSP OF Me Injector Valves W/Pipes [3]",
    39.     "Dept": "ENG",
    40.     "Rank": "CE",
    41.     "ID": "00011",
    42.     "Interval": "500 R/Hs",
    43.     "Date/ Hours": "2812 R/Hs",
    44.     "Action": ""
    45. });
    46. data.push({
    47.     "Status": [{
    48.         "val": "Due",
    49.         "color": "label label-success"
    50.     }],
    51.     "Start Date": "2017-05-01",
    52.     "End Date": "2017-05-01",
    53.     "Critical": "true",
    54.     "CSM": "true",
    55.     "E0/EC0": "true",
    56.     "Component": "Me Fo Pre-Heater",
    57.     "Class Code": "",
    58.     "Caption": "TST, CLN, INSP OF Me Fo Pre-Heater",
    59.     "Dept": "ENG",
    60.     "Rank": "2E",
    61.     "ID": "00150",
    62.     "Interval": "30 M",
    63.     "Date/ Hours": "5/20/2017",
    64.     "Action": ""
    65. });
    66. data.push({
    67.     "Status": [{
    68.         "val": "Overdue",
    69.         "color": "label label-danger"
    70.     }],
    71.     "Start Date": "2017-05-04",
    72.     "End Date": "2017-05-04",
    73.     "Critical": "false",
    74.     "CSM": "false",
    75.     "E0/EC0": "true",
    76.     "Component": "Me Flowmeter",
    77.     "Class Code": "",
    78.     "Caption": "INSP, CLN OF Me Flowmeter",
    79.     "Dept": "ENG",
    80.     "Rank": "2E",
    81.     "ID": "00151",
    82.     "Interval": "30 M",
    83.     "Date/ Hours": "5/19/2017",
    84.     "Action": ""
    85. });
    86. data.push({
    87.     "Status": [{
    88.         "val": "Due",
    89.         "color": "label label-success"
    90.     }],
    91.     "Start Date": "2017-05-04",
    92.     "End Date": "2017-05-04",
    93.     "Critical": "true",
    94.     "CSM": "true",
    95.     "E0/EC0": "true",
    96.     "Component": "Ae Cyl. Head [1] [3]",
    97.     "Class Code": "MDECYA",
    98.     "Caption": "OVH, INSP OF Ae Cyl. Head [1] [3]",
    99.     "Dept": "ENG",
    100.     "Rank": "3E",
    101.     "ID": "00164",
    102.     "Interval": "1500 R/Hs",
    103.     "Date/ Hours": "3845 R/Hs",
    104.     "Action": ""
    105. });
    106. data.push({
    107.     "Status": [{
    108.         "val": "Due",
    109.         "color": "label label-success"
    110.     }],
    111.     "Start Date": "2017-05-01",
    112.     "End Date": "2017-05-02",
    113.     "Critical": "false",
    114.     "CSM": "false",
    115.     "E0/EC0": "true",
    116.     "Component": "D/E Frequency Low [1]",
    117.     "Class Code": "",
    118.     "Caption": "TST, INSP OF D/E Frequency Low [1]",
    119.     "Dept": "ENG",
    120.     "Rank": "ETO",
    121.     "ID": "00922",
    122.     "Interval": "6 M",
    123.     "Date/ Hours": "11/14/2016",
    124.     "Action": ""
    125. });
    126. data.push({
    127.     "Status": [{
    128.         "val": "Overdue",
    129.         "color": "label label-danger"
    130.     }],
    131.     "Start Date": "2017-05-24",
    132.     "End Date": "2017-05-26",
    133.     "Critical": "true",
    134.     "CSM": "false",
    135.     "E0/EC0": "true",
    136.     "Component": "Boiler Fo Booster Pump Stbd",
    137.     "Class Code": "",
    138.     "Caption": "OVH, INSP OF Boiler Fo Booster Pump Stbd",
    139.     "Dept": "ENG",
    140.     "Rank": "2E",
    141.     "ID": "00470",
    142.     "Interval": "30 M",
    143.     "Date/ Hours": "5/6/2017",
    144.     "Action": ""
    145. });
    146. data.push({
    147.     "Status": [{
    148.         "val": "Overdue",
    149.         "color": "label label-danger"
    150.     }],
    151.     "Start Date": "2017-05-14",
    152.     "End Date": "2017-05-26",
    153.     "Critical": "false",
    154.     "CSM": "false",
    155.     "E0/EC0": "true",
    156.     "Component": "Boiler Safety Valve",
    157.     "Class Code": "",
    158.     "Caption": "OVH, INSP OF Boiler Safety Valve",
    159.     "Dept": "ENG",
    160.     "Rank": "3E",
    161.     "ID": "00473",
    162.     "Interval": "12 M",
    163.     "Date/ Hours": "9/23/2016",
    164.     "Action": ""
    165. });
    166. data.push({
    167.     "Status": [{
    168.         "val": "Due",
    169.         "color": "label label-success"
    170.     }],
    171.     "Start Date": "2017-05-29",
    172.     "End Date": "2017-05-14",
    173.     "Critical": "false",
    174.     "CSM": "false",
    175.     "E0/EC0": "true",
    176.     "Component": "Air Condition Condenser",
    177.     "Class Code": "",
    178.     "Caption": "TST, INSP OF Air Condition Condenser",
    179.     "Dept": "ENG",
    180.     "Rank": "2E",
    181.     "ID": "00554",
    182.     "Interval": "30 M",
    183.     "Date/ Hours": "6/1/2017",
    184.     "Action": ""
    185. });
    186. data.push({
    187.     "Status": [{
    188.         "val": "Overdue",
    189.         "color": "label label-danger"
    190.     }],
    191.     "Start Date": "2017-05-11",
    192.     "End Date": "2017-05-29",
    193.     "Critical": "false",
    194.     "CSM": "false",
    195.     "E0/EC0": "true",
    196.     "Component": "Sludge Pump",
    197.     "Class Code": "",
    198.     "Caption": "OVH, INSP OF Sludge Pump",
    199.     "Dept": "ENG",
    200.     "Rank": "2E",
    201.     "ID": "00588",
    202.     "Interval": "30 M",
    203.     "Date/ Hours": "5/22/2017",
    204.     "Action": ""
    205. });
    206. data.push({
    207.     "Status": [{
    208.         "val": "Overdue",
    209.         "color": "label label-danger"
    210.     }],
    211.     "Start Date": "2017-05-13",
    212.     "End Date": "2017-05-11",
    213.     "Critical": "false",
    214.     "CSM": "false",
    215.     "E0/EC0": "true",
    216.     "Component": "Bilge Filters",
    217.     "Class Code": "",
    218.     "Caption": "CLN, INSP OF Bilge Filters",
    219.     "Dept": "ENG",
    220.     "Rank": "2E",
    221.     "ID": "00589",
    222.     "Interval": "1 M",
    223.     "Date/ Hours": "9/5/2016",
    224.     "Action": ""
    225. });
    226. data.push({
    227.     "Status": [{
    228.         "val": "Overdue",
    229.         "color": "label label-danger"
    230.     }],
    231.     "Start Date": "2017-05-11",
    232.     "End Date": "2017-05-14",
    233.     "Critical": "false",
    234.     "CSM": "false",
    235.     "E0/EC0": "true",
    236.     "Component": "Emergency Bilge Suction - Er",
    237.     "Class Code": "",
    238.     "Caption": "TST, INSP OF Emergency Bilge Suction - Er",
    239.     "Dept": "ENG",
    240.     "Rank": "2E",
    241.     "ID": "00591",
    242.     "Interval": "1 M",
    243.     "Date/ Hours": "9/5/2016",
    244.     "Action": ""
    245. });
    246. data.push({
    247.     "Status": [{
    248.         "val": "Overdue",
    249.         "color": "label label-danger"
    250.     }],
    251.     "Start Date": "2017-05-14",
    252.     "End Date": "2017-05-13",
    253.     "Critical": "false",
    254.     "CSM": "false",
    255.     "E0/EC0": "true",
    256.     "Component": "Hydraulic For Operating Valve System",
    257.     "Class Code": "",
    258.     "Caption": "ANL, INSP OF Hydraulic For Operating Valve System",
    259.     "Dept": "ENG",
    260.     "Rank": "2E",
    261.     "ID": "00594",
    262.     "Interval": "6 M",
    263.     "Date/ Hours": "12/2/2016",
    264.     "Action": ""
    265. });
    266. $rootScope.gridData = eval(data);
    267. });
  • Here, we have static JSON data in the same way you do with the db data.
  • Data is in the form of array objects.
  • In every column object, we have multiple key value pairs.
  • In the object showTags, the key is used to merge multiple boolean columns into one column as tags.
  • showColumns is used for show and hide of columns.
  • Other keys serve the same purpose as the name given to them.
  • $rootScope is available globally in the whole application that is we can set rootscope in 1 controller and access the value in other controller with rootscope.
  • we store the array of columns in $scope.columns and array of data in $rootScope.gridData.
  • We are going to access these in View for binding of data.
In the Index view of home controller, start writing the following code.
  1. <html ng-app = "myApp">
  2. <body>
  3. <div class="table-responsive" ng-controller="gridController">
  4.    <table class="table table-striped table-bordered table-hover dataTables-example">
  5.       <thead>
  6.          <tr>
  7.             <th ng-repeat="column in columns" width="{{column.width}}" ng-if="column.showColumns == 'true' && column.dataType != 'commands' && column.dataType != 'bool'">
  8.                <b>{{column.key}}</b>
  9.             </th>
  10.             <th ng-repeat="column in columns" ng-if="column.dataType == 'bool' && column.showColumns=='true'" width="5%">Tags</th>
  11.             <th aria-sort="descending" ng-repeat="column in columns" width="{{column.width}}" ng-if="column.showColumns == 'true' && column.dataType == 'commands'">{{column.key}}</th>
  12.          </tr>
  13.       </thead>
  14.       <tbody>
  15.          <tr ng-class="{'primaryRow':rowIndex===key}" data-ng-repeat="(key,val) in gridData">
  16.             <td ng-repeat="column in columns" class="project-status" ng-if="column.dataType== 'status' && column.showColumns == 'true'">
  17.                <span ng-repeat="col in column" ng-class="val[col][0].color">{{val[col][0].val}}</span>
  18.             </td>
  19.             <td ng-repeat="column in columns" class="project-title" ng-if="column.dataType == 'string' && column.showColumns == 'true'">{{val[column.key]}}
  20.             </td>
  21.             <td ng-repeat="column in columns" class="project-title" ng-if="column.dataType == 'date' && column.showColumns == 'true'" style="text-align: right;">{{val[column.key]}}
  22.             </td>
  23.             <td ng-repeat="column in columns" class="project-title" ng-if="column.dataType == 'check' && column.showColumns == 'true'">
  24.                <input type="checkbox" ng-checked="{{val[column.key]}}" disabled />
  25.             </td>
  26.             <td class="project-title">
  27.                <span id="tagSpan" ng-if="column.showTags == 'true' && val[column.key] == 'true'" ng-repeat="column in columns" class="label label-default">{{column.key}}</span>
  28.                <span ng-hide="true">{{val[column.key]}}</span>
  29.             </td>
  30.             <td ng-repeat="column in columns" ng-if="column.key == 'Action'">
  31.                <a>@Html.ActionLink("View", "ActionName", "ControllerName", new { @class = "btn btn-xs btn-success" })</a>
  32.             </td>
  33.          </tr>
  34.       </tbody>
  35.    </table>
  36. </div>
  37. </body>
  38. </html>
  • Put ng-app directive on html tag and ng-controller on div tag.
  • Here in the view we created key value pairs.
  • We automized the entire grid without hardcoding the name of single column in grid.
  • We use ng-repeat for automizing the entire json.

    • Columns are created by putting ng-repeat on th. Example : <th ng-repeat = "column in Columns">column.key</th>.
    • Show and hide the columns by putting column.showColumns key on tags.
    • We also put multiple conditions and set different styles by iterating.
    • It iterates as many times as number of keys in $scope.columns.
    • Similarly row data are created by iterating $scope.gridData with column key.Example : <tr ng-repeat="(key,val) in gridData"><td ng-repeat="column in Columns"> val[column.key]</td></tr>.
    • Include scripts in bundle config.cs.
  1. bundles.Add(new ScriptBundle("~/bundles/angular").Include(
  2.                 "~/Scripts/angular1.5.5.min.js",
  3.                 "~/Scripts/Module.js",
  4.                 "~/Scripts/Controller.js"));
  • Add this bundle in RegisterBundle method in BundleConfig.cs file.
  • Include bundle on layout page as given below.
  1. @Scripts.Render("~/bundles/jquery")
  2. @Scripts.Render("~/bundles/bootstrap")
  3. @Scripts.Render("~/bundles/angular")

Now, run the application and get the result.


Similar Articles
