Creating Custom Objects In Salesforce Lightning Platform

Salesforce is a cloud-based CRM software company, it can provide sales cloud, service cloud, Salesforce maps, Salesforce block-chain, sustainability cloud, Einstein platform and many features for customers. Salesforce objects store  customer data -- it works like a database . These objects are classified by two types: tandard object and custom object. Both custom and standard objects have fields.


About Salesforce Objects


Standard Objects

Standard objects are predefined by Salesforce. These objects are Accounts, Contacts, Leads, etc.

Custom Objects

Custom objects are created by users.  It's based on our requirements.

By reading this article you can learn about how to create a custom object in the Salesforce lightning platform. We will start with a step by step procedure.

Prerequisites for creating custom object

Before login, you must sign up in the Salesforce lightning platform account.Click this link for signup in trailhead.

Step 1

Login to the Salesforce lightning platform by clicking this link.

Step 2

After you  successfully login, you can enter in the trailhead landing page. After you launch the trailhead playground or Salesforce developer edition, if you do not setup any trailhead playground in trailhead, you must refer to the Salesforce trailhead playground management module. It's very helpful to setup the trailhead playground.

Step 3

If your Trailhead playground setup is completed, launch your playground in trailhead.

Your playground is successfully launched, after that you can see the main page of trailhead playground (lightning platform). For creating tacustom object in the setup page, now we can move on to setup page.

Step 4

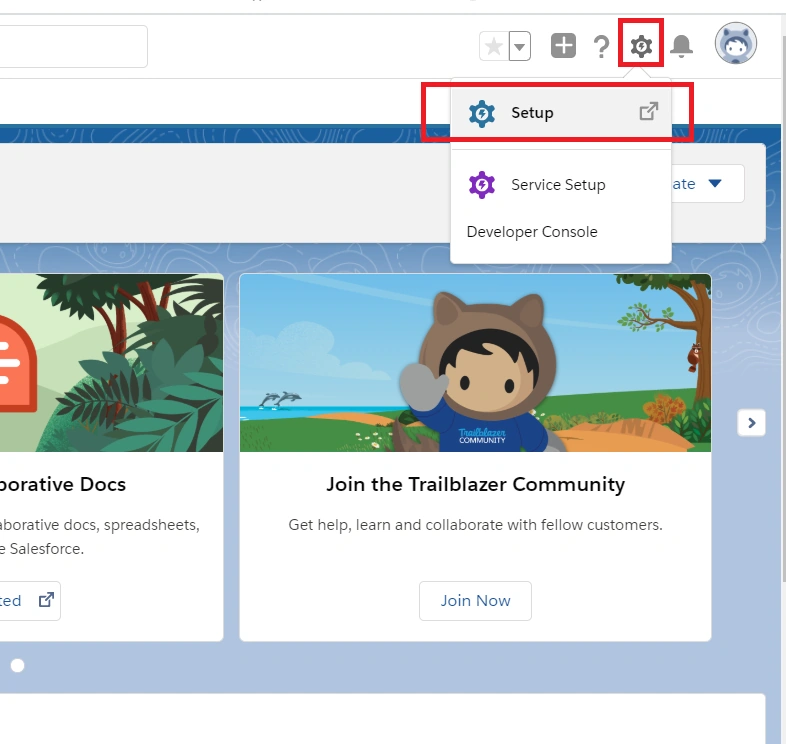

Click setup icon at the top right corner of our webpage. Now select setup option. Next, we are forwarded to setup page.

Creating Custom Objects In Salesforce Lightning Platform

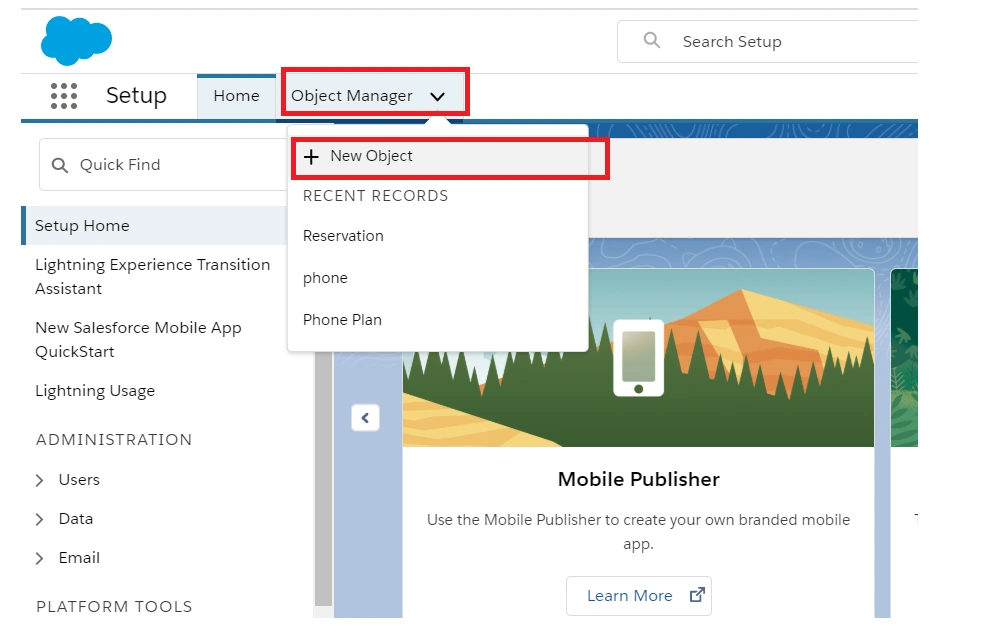

Step 5

Now we are seeing salesforce lightning setup page. First we can click Object Manager and then select New object in Navigation tab. You can forward to New Custom object page.

Creating Custom Objects In Salesforce Lightning Platform

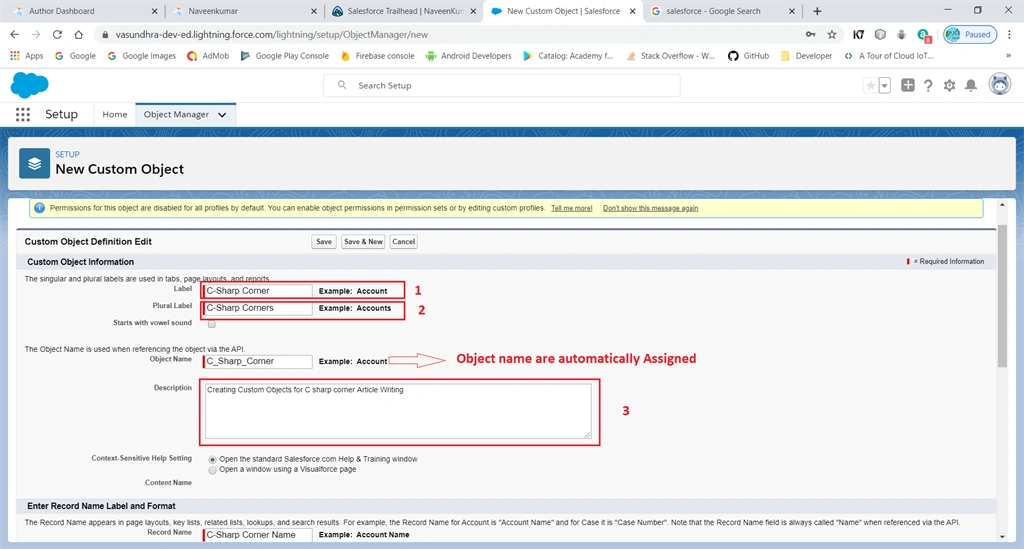

Step 6

In this custom object page, you can fill the object label, plural name, object name and description. You can refer to the below image for references,

Creating Custom Objects In Salesforce Lightning Platform

Step 7

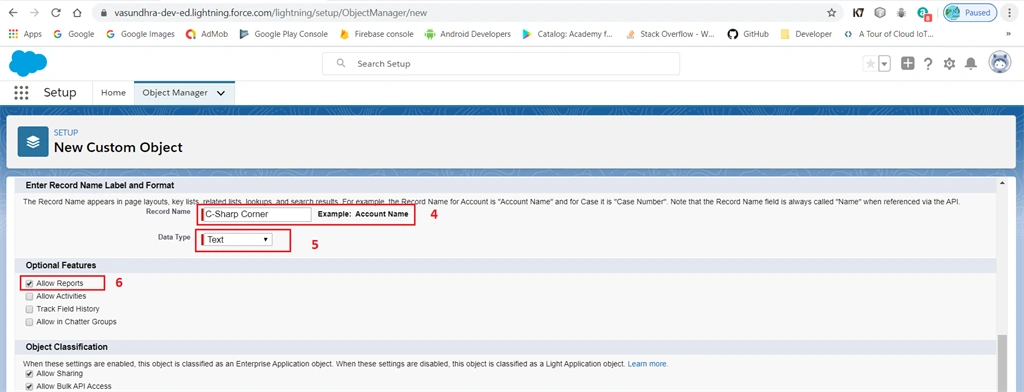

Next, record name fields are automatically populated. Change the record name filed for your wish, otherwise you can leave it and enable an allow report checkbox in optional features.
Creating Custom Objects In Salesforce Lightning Platform

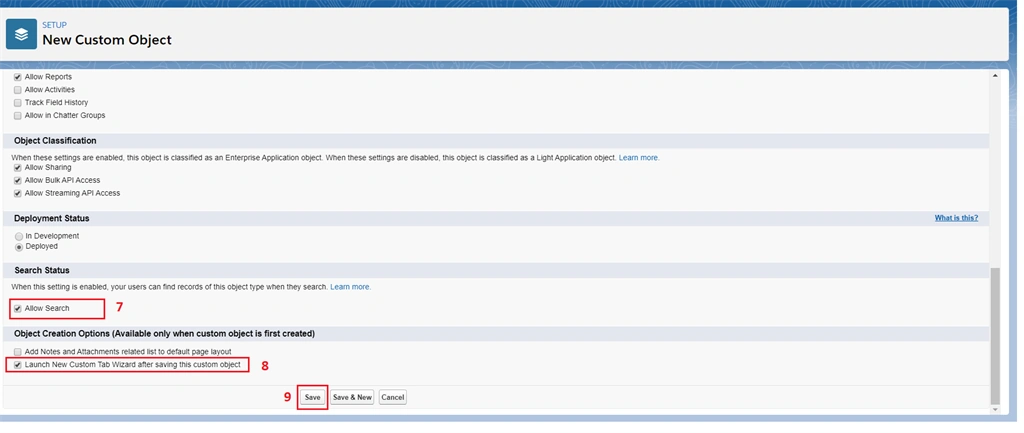

Step 8

Next, select the Allow Search checkbox under the search status section and select the "Launch the new custom tab" wizard after saving the custom object. Check that all fields are filled, and after that you can click the Save Button.

Creating Custom Objects In Salesforce Lightning Platform

Step 9

After saving, the page can automatically go to Custom Tab Style page. Now you can click tab-style search box icon for selecting the custom tab style.

Creating Custom Objects In Salesforce Lightning Platform

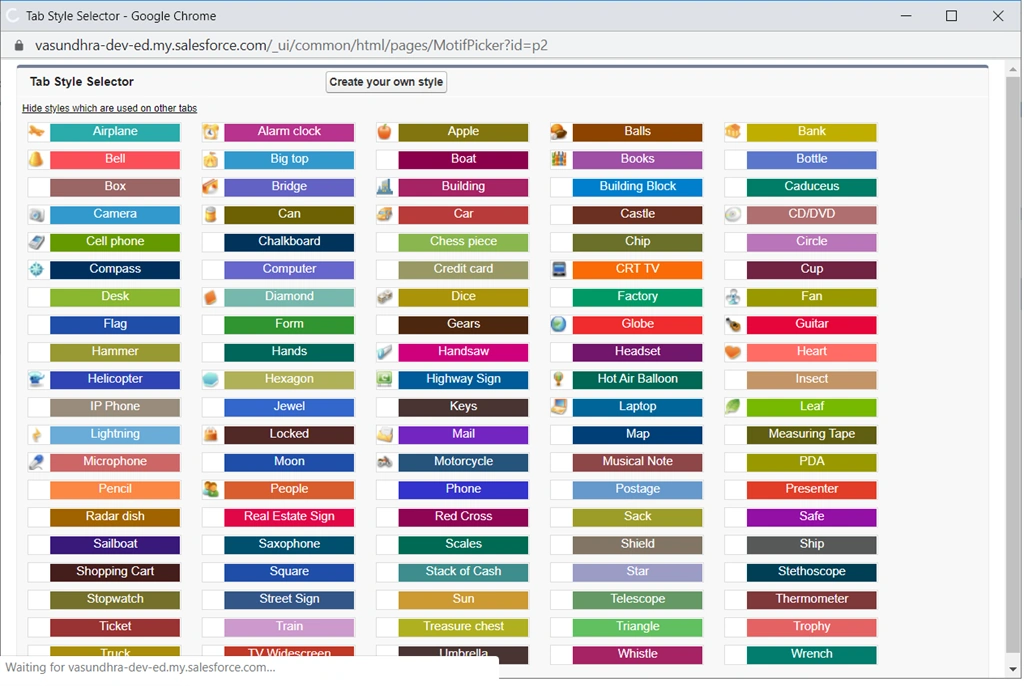

Step 10

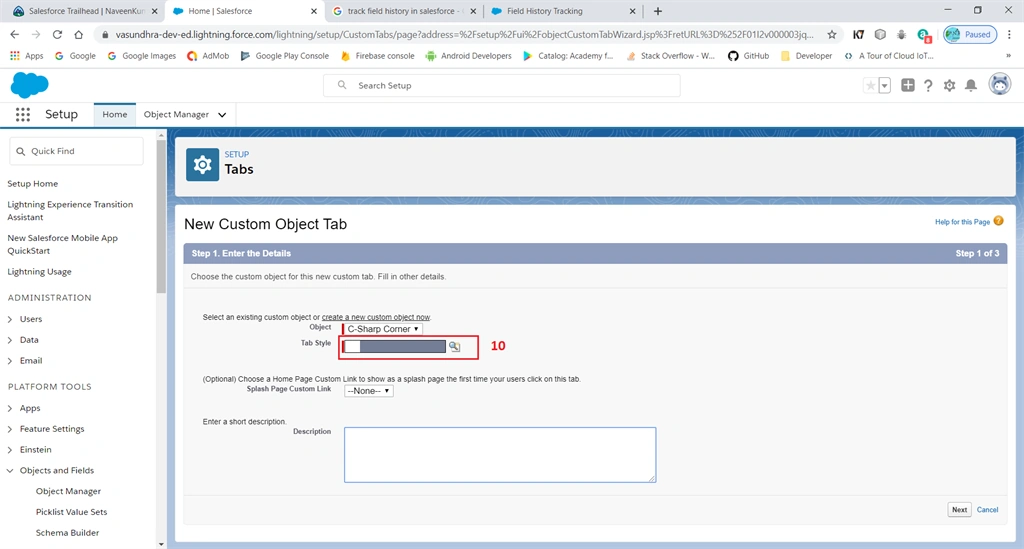

Click the tab-style search box, and a new window can be opened in your browser. Select any one of the tab-styles for created custom objects.

Creating Custom Objects In Salesforce Lightning Platform

Step 11

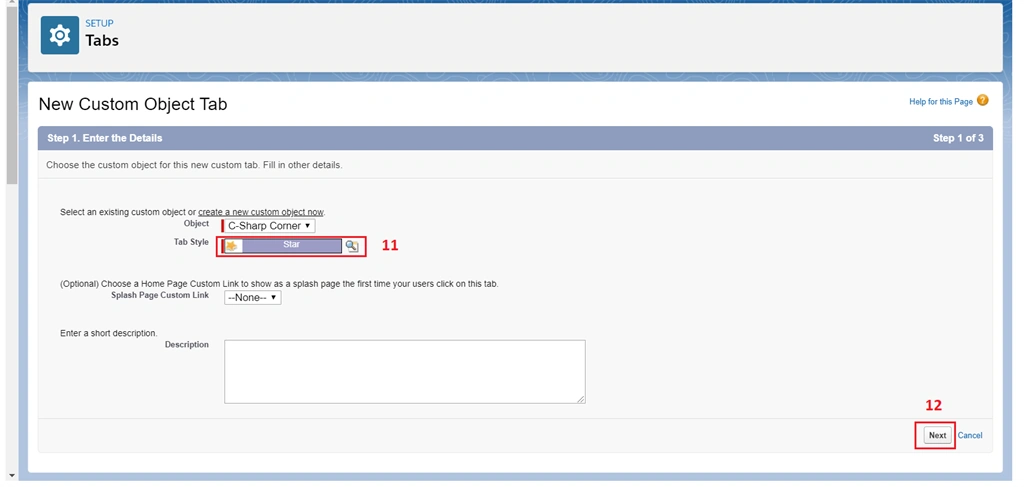

Select any one style from that palette, click the Next button at the bottom of our Lightning page to move to the next setup page.

Creating Custom Objects In Salesforce Lightning Platform

Step 12

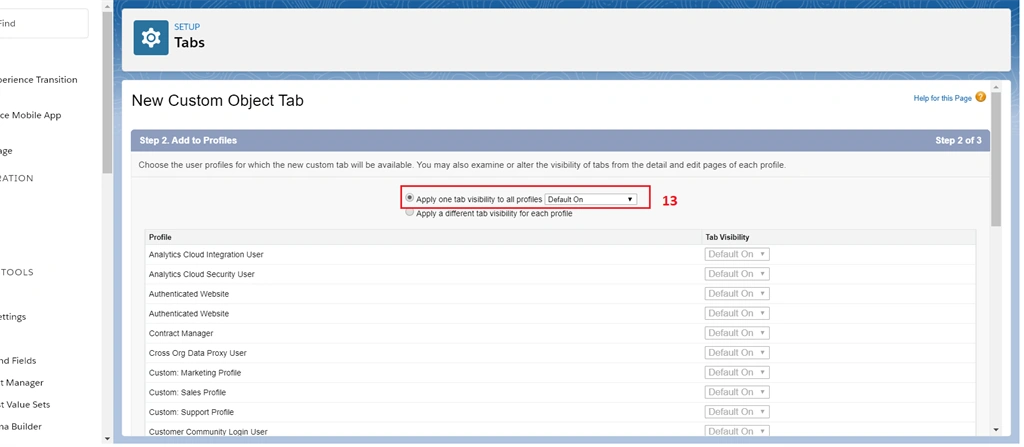

In the  Add to Profile page, select "Apply one-tab visibility to all profiles" [Default on]. Click Next to move to add to custom app page.

Creating Custom Objects In Salesforce Lightning Platform

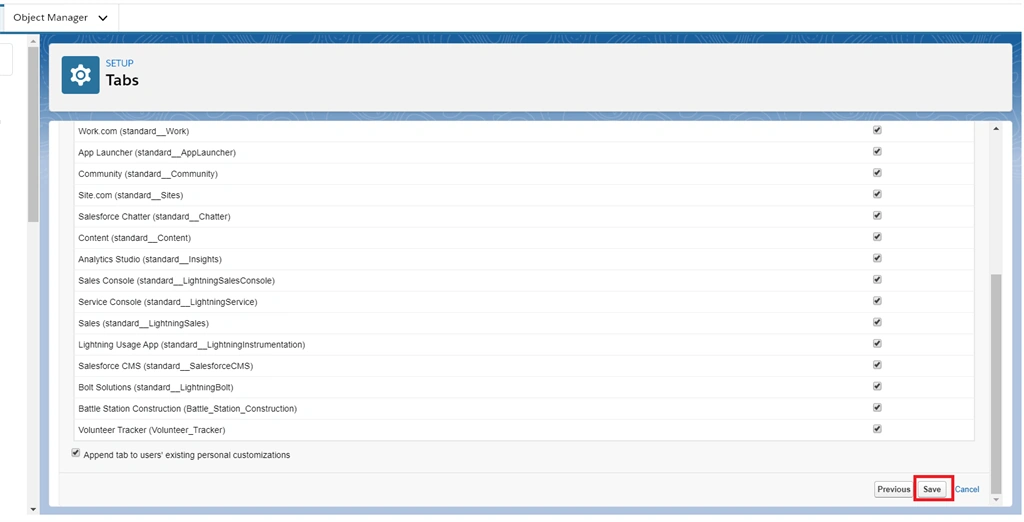

Step 13

There is  no need to change anything in this page, scroll down and click the Save button to save the object configuration setup.

Creating Custom Objects In Salesforce Lightning Platform

Step 14

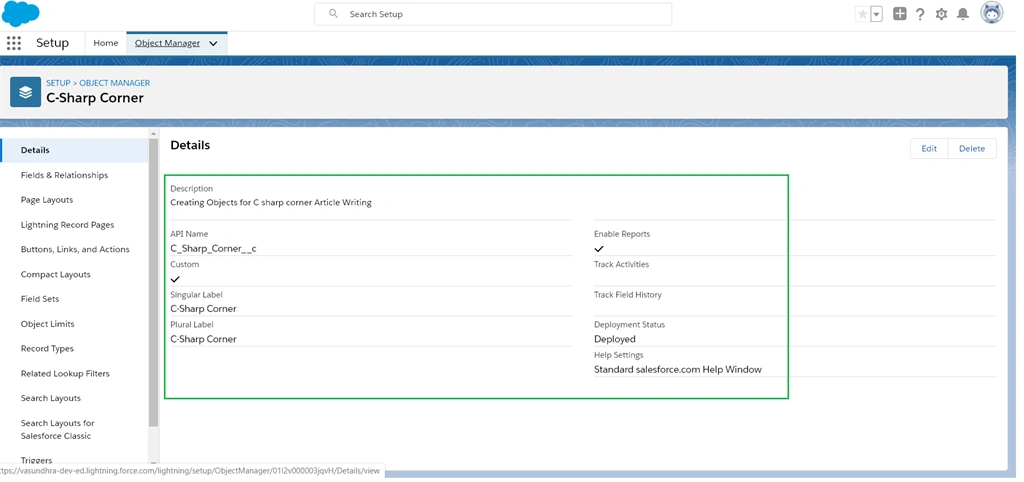

Finally, Custom object is created in Salesforce lightning platform. The custom object details page shows details about your created custom object.

Creating Custom Objects In Salesforce Lightning Platform

Step 15

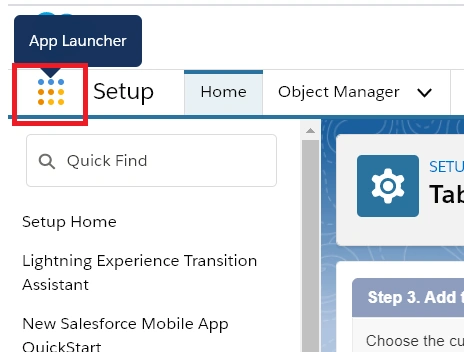

Now, we can verify the created custom object (C-sharp Corner) through App Launcher. Click the App Launcher icon

Creating Custom Objects In Salesforce Lightning Platform

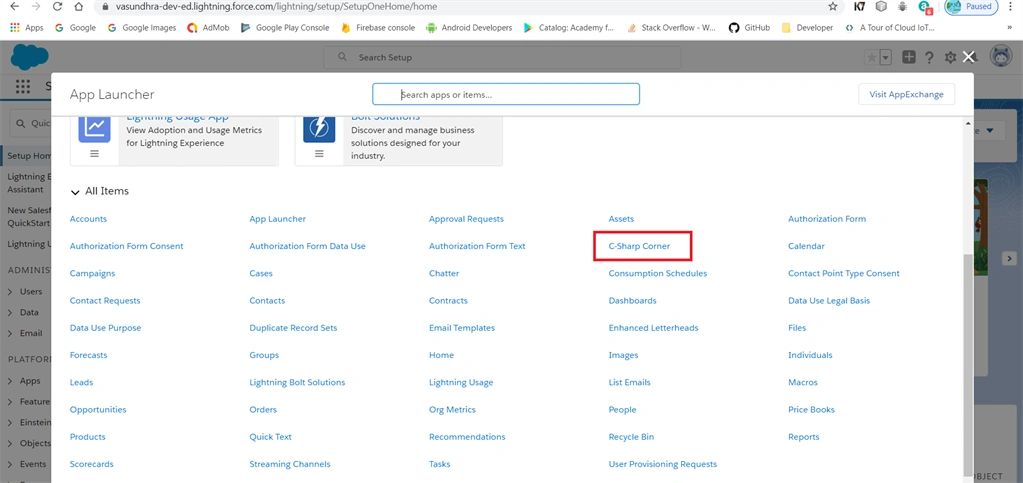

Step 16

In App launcher C-sharp corner object name is displayed.

Creating Custom Objects In Salesforce Lightning Platform

Step 17

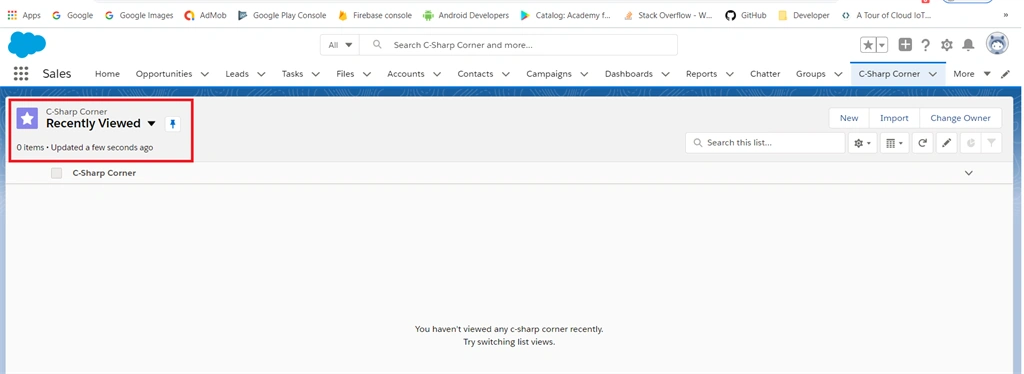

Click a created object name (C-Sharp Corner). Now we have finally tested the created object.

Creating Custom Objects In Salesforce Lightning Platform


Summary


Now, you have successfully created and tested the custom object in the Salesforce Lightning Platform.
