In this article, we will explore about creating a time-triggered function using the Azure function app. First of all, let’s take an overview of Azure Functions and let’s have a look at creating a time-triggered function using it. Let’s get started! The Azure Functions is a kind of solution for executing small lines of code in the cloud with our own desired programming language. The application may be a few lines of code or it may be a high-level one, it doesn’t matter and we don’t have to worry about running it. The major advantage is that the Azure Functions will provide a way of developing serverless applications.
Now let’s take a look at time-triggered functions. The time-triggered functions will allow the users to schedule a time for executing a particular function. In other words, we can describe as the function will be executed at the scheduled time. When we create a time-triggered function, the function must be given time for executing the task. The time is given in the format of CRON expressions. The CRON time format is expressed in the format of the second, minute, hour, month and day. The CRON expression also uses the following expression like,
- The Forward slash (/) for reoccurring the execution time.
- The Hyphen (-) is for indicating the range of values.
- The Asterisk (*) value is used for expressing the expression value
- And finally, comma (,) is used for specification of listing the values.
|
Expression
|
Description
|
|
0*****
|
Execution in every minute
|
|
0*/5****
|
Execution in every five minutes
|
|
*/2*****
|
Execution in every two second
|
|
00****
|
Execution in every hour
|
|
000***
|
Execution in every day
|
|
0 10 10 ***
|
Execution every day at 10:10:00
|
|
000**5
|
Execution at every Friday
|
|
000**FRI
|
Execution at every Friday
|
|
000**1-5
|
Execution at workday
|
|
000**SAT, SUN
|
Execution at every Saturday & Sunday
|
|
0 07-11***
|
Execution at Every hour between 7 to 11
|
|
00011*
|
Execution at every year 1st Jan
|
|
0001-7*SUN
|
Execution at every first Sunday of month
|
Now let’s get started off creating a function app first and then we can proceed to creating the time-triggered function app.
Setting Up
An Active Azure Login Subscription.
Step 1
You can log-in to the Azure portal by using the following
link.

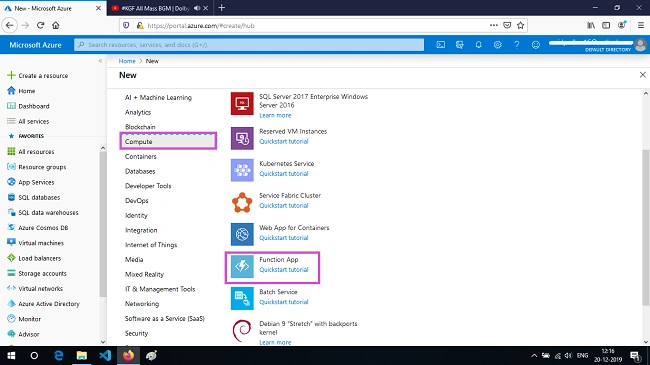

For creation of an Azure Function app, select >> create a resource >> compute & select >> Function App.
Step 2

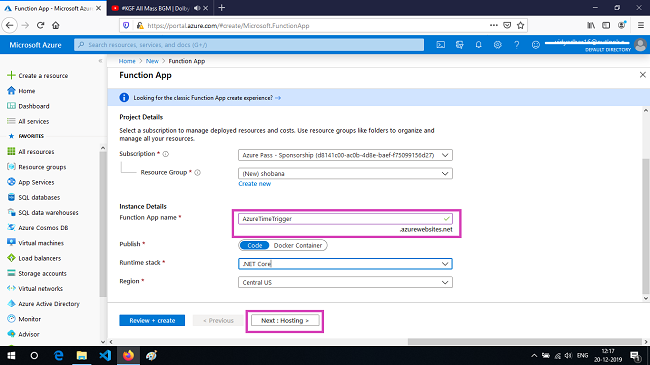

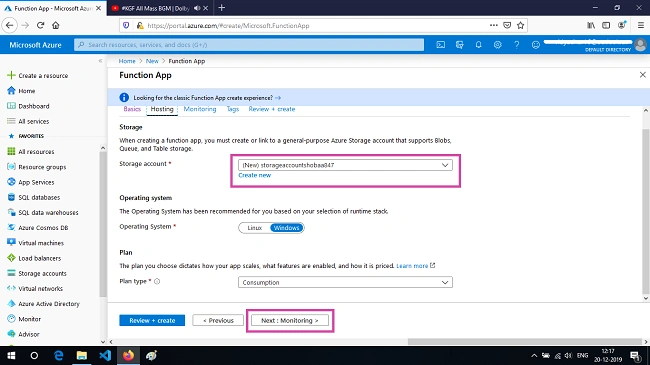

- Here comes the main part, we have to provide the basic needs (requirements), such as we have provided the name for the app.
- Next, we need to select the subscription.
- The further step is selecting the resource group, we can either select the existing resource group or create a new resource group.

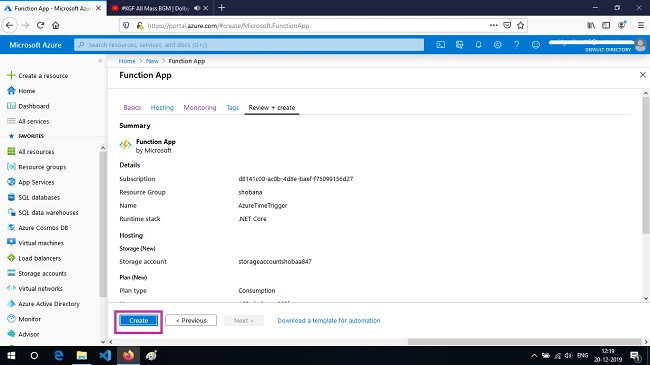

- The next step is to need to select the hosting plan and the location., after that select >>Create.
Step 3

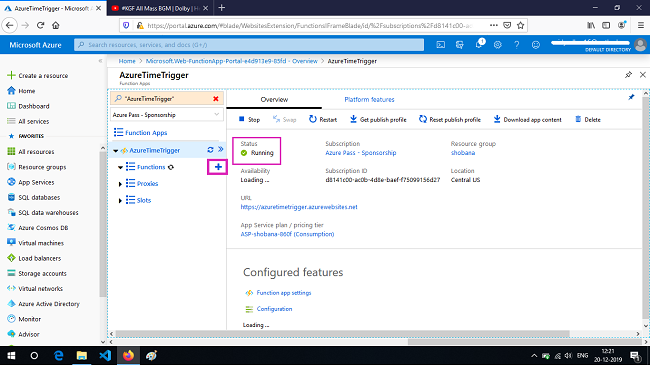

- After the deployment process we can see the function app is running and now we need to select a new function to create a new function app.

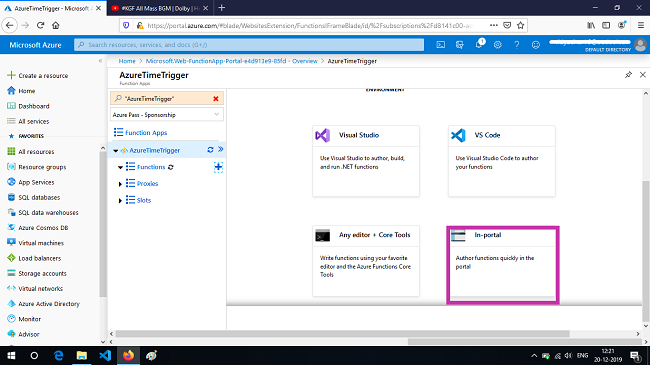

- Expand the function app and select “+” button and select >> continue.

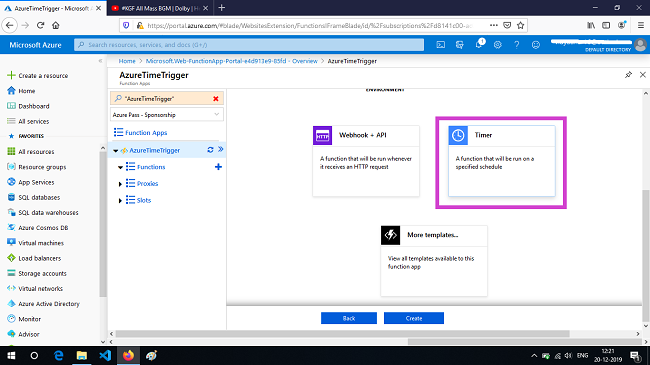

- We can proceed on continuing to further step, select >> timer and select >> create.
Step 4

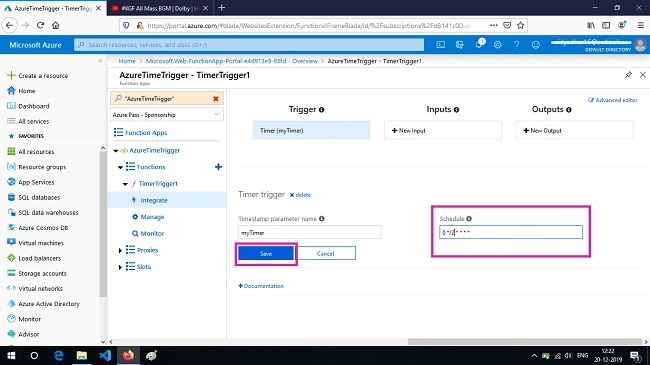

- Now we can see that we have created a new timer function. Now we need to provide a name for the function and we need to schedule a time so that the function will be executed at the scheduled time.

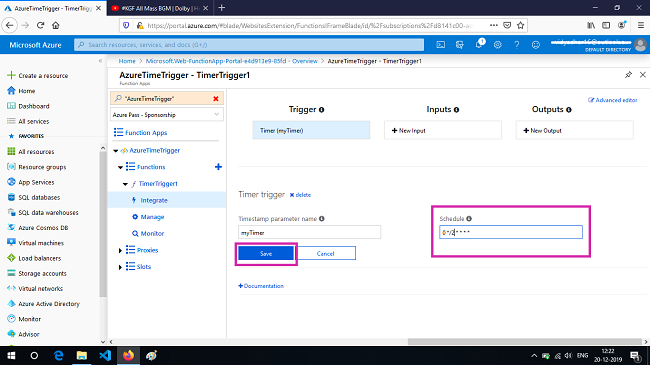

- We can see the CRON expression is schedule with time with the six fields now click >> Save.

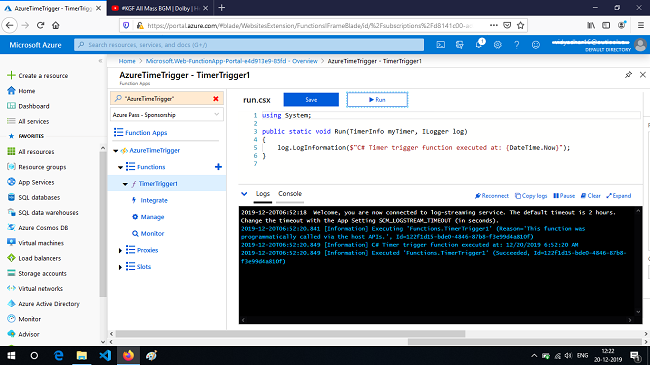

- When the time-triggered function is scheduled the logs will be generated and we can see the values are displayed in the console window
Step 5
We can reschedule the time for our need and let’s make a reschedule time with the help of CRON expression so that the task will be executed at the scheduled time and the logs will be displayed in the console window.
Summary
In this article, we have explored creating a function app and time-triggered function with task execution on scheduled time. I hope this article will be useful to you. Thanks for reading.
