Hello guys.

In this article, we are creating an app, and this is the first part of the Covid-19 App. In this app we have the following pages.
  1. Global
  2. Home
  3. Covid-19 Search Countries
  4. About us
  5. CovidTabbedPage
Idea: During the COVID pandemic situation all over the world, I got an idea to develop an app which  tracks records of the cases by counties and also show safety measures.

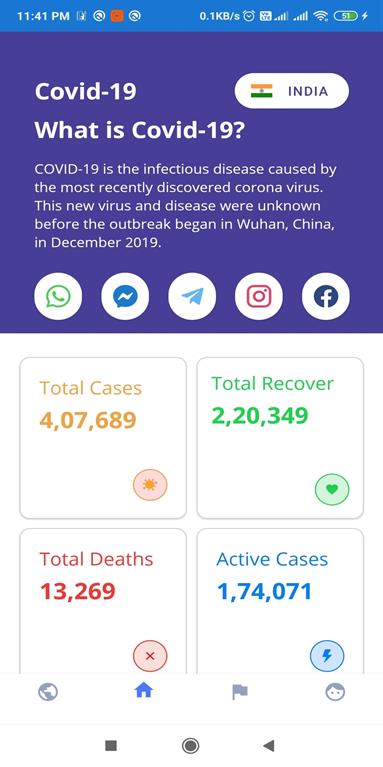

In this article, we have a COVID-19 App Global Page and Home Page, In the home page, we add a carousel view and cell view for showing the COVID-19 global data.

I am not going to describe the basic project setup steps here.

So let's design......

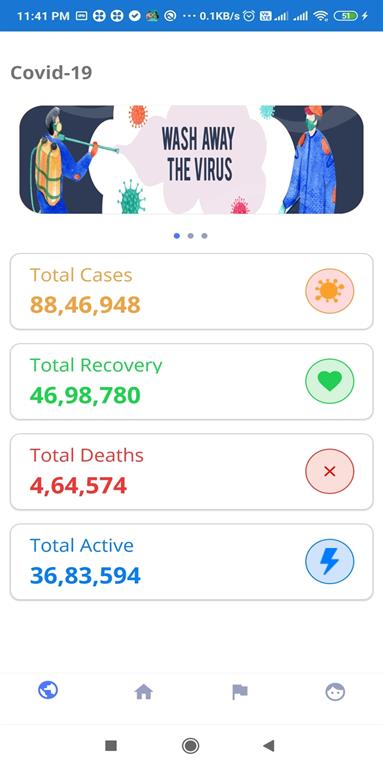

Global

In this Global page, we add one carousel and show the global data of COVID-19 like Total Cases, Total Recovery, Total Deaths and Total Active.

GlobalReport.xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage
  3.     x:Class="Covid19.Views.GlobalReport"
  4.     xmlns="http://xamarin.com/schemas/2014/forms"
  5.     xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  6.     xmlns:customcontrols="clr-namespace:Covid19.CustomControls"
  7.     xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  8.     xmlns:helper="clr-namespace:Covid19.Helper"
  9.     xmlns:local="clr-namespace:Covid19"
  10.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  11.     xmlns:pancakeview="clr-namespace:Xamarin.Forms.PancakeView;assembly=Xamarin.Forms.PancakeView"
  12.     xmlns:rainbows="clr-namespace:Xamarin.Forms.DebugRainbows;assembly=Xamarin.Forms.DebugRainbows"
  13.     rainbows:DebugRainbow.ShowColors="False"
  14.     BackgroundColor="White"
  15.     Visual="Material"
  16.     mc:Ignorable="d">
  17.     <ContentPage.Content>
  18.
  19.         <Grid>
  20.             <Grid.RowDefinitions>
  21.                 <RowDefinition Height="25" />
  22.                 <RowDefinition Height="25" />
  23.                 <RowDefinition Height="*" />
  24.             </Grid.RowDefinitions>
  25.             <Grid.ColumnDefinitions>
  26.                 <ColumnDefinition Width="*" />
  27.             </Grid.ColumnDefinitions>
  28.             <Label
  29.                 Grid.Row="1"
  30.                 Grid.Column="0"
  31.                 Margin="10,0,0,0"
  32.                 FontFamily="OpenSansBold"
  33.                 FontSize="20"
  34.                 Text="Covid-19" />
  35.             <Grid Grid.Row="2" Grid.Column="0">
  36.                 <Grid.RowDefinitions>
  37.                     <RowDefinition Height="0.35*" />
  38.                     <RowDefinition Height="*" />
  39.                 </Grid.RowDefinitions>
  40.                 <Grid.ColumnDefinitions>
  41.                     <ColumnDefinition Width="*" />
  42.                 </Grid.ColumnDefinitions>
  43.                 <StackLayout
  44.                     Grid.Row="0"
  45.                     Grid.Column="0"
  46.                     HorizontalOptions="CenterAndExpand"
  47.                     VerticalOptions="CenterAndExpand">
  48.                     <CarouselView
  49.                         HorizontalOptions="FillAndExpand"
  50.                         IndicatorView="indicatorView"
  51.                         ItemsSource="{Binding CarouselList}"
  52.                         VerticalOptions="CenterAndExpand">
  53.                         <CarouselView.ItemTemplate>
  54.                             <DataTemplate>
  55.                                 <StackLayout
  56.                                     Padding="0"
  57.                                     HorizontalOptions="Center"
  58.                                     Spacing="0"
  59.                                     VerticalOptions="Center">
  60.                                     <Frame
  61.                                         Margin="20"
  62.                                         Padding="0"
  63.                                         BackgroundColor="Red"
  64.                                         BorderColor="White"
  65.                                         CornerRadius="25"
  66.                                         HasShadow="true"
  67.                                         HeightRequest="120"
  68.                                         Visual="Material">
  69.
  70.                                         <Image Aspect="AspectFill" Source="{Binding .}" />
  71.                                     </Frame>
  72.                                 </StackLayout>
  73.                             </DataTemplate>
  74.                         </CarouselView.ItemTemplate>
  75.                     </CarouselView>
  76.                     <!--<Frame
  77.                         Padding="3"
  78.                         BackgroundColor="#999FBF"
  79.                         CornerRadius="15"
  80.                         HorizontalOptions="Center"
  81.                         VerticalOptions="Center">-->
  82.
  83.                     <IndicatorView
  84.                         x:Name="indicatorView"
  85.                         HorizontalOptions="Center"
  86.                         IndicatorColor="#999FBF"
  87.                         IndicatorsShape="Circle"
  88.                         SelectedIndicatorColor="#4C79FF"
  89.                         VerticalOptions="Start" />
  90.                     <!--</Frame>-->
  91.                 </StackLayout>
  92.
  93.                 <ScrollView Grid.Row="1" Grid.Column="0">
  94.                     <Grid Padding="10" RowSpacing="15">
  95.                         <Grid.RowDefinitions>
  96.                             <RowDefinition Height="{OnPlatform Android=85, iOS=100}" />
  97.                             <RowDefinition Height="{OnPlatform Android=85, iOS=100}" />
  98.                             <RowDefinition Height="{OnPlatform Android=85, iOS=100}" />
  99.                             <RowDefinition Height="{OnPlatform Android=85, iOS=100}" />
  100.                         </Grid.RowDefinitions>
  101.                         <Grid.ColumnDefinitions>
  102.                             <ColumnDefinition Width="*" />
  103.                         </Grid.ColumnDefinitions>
  104.                         <Frame
  105.                             Grid.Row="0"
  106.                             Grid.Column="0"
  107.                             Padding="10,0"
  108.                             BackgroundColor="White"
  109.                             BorderColor="LightGray"
  110.                             CornerRadius="10"
  111.                             Visual="Material">
  112.                             <Grid Padding="10" RowSpacing="5">
  113.                                 <Grid.RowDefinitions>
  114.                                     <RowDefinition Height="4*" />
  115.                                     <RowDefinition Height="6*" />
  116.                                 </Grid.RowDefinitions>
  117.                                 <Grid.ColumnDefinitions>
  118.                                     <ColumnDefinition Width="*" />
  119.                                     <ColumnDefinition Width="Auto" />
  120.                                 </Grid.ColumnDefinitions>
  121.
  122.                                 <Label
  123.                                     Grid.Row="0"
  124.                                     Grid.Column="0"
  125.                                     Style="{StaticResource SmallLabelStyle}"
  126.                                     Text="Total Cases"
  127.                                     TextColor="#EEA445" />
  128.                                 <ActivityIndicator
  129.                                     Grid.Row="1"
  130.                                     Grid.Column="0"
  131.                                     Margin="0,5"
  132.                                     HorizontalOptions="Start"
  133.                                     IsRunning="{Binding IsBussy}"
  134.                                     IsVisible="{Binding IsBussy}"
  135.                                     Color="#EEA445" />
  136.                                 <Label
  137.                                     Grid.Row="1"
  138.                                     Grid.Column="0"
  139.                                     Style="{StaticResource MediumLabelStyle}"
  140.                                     Text="{Binding GlobalCovid.cases, StringFormat='{0:N0}'}"
  141.                                     TextColor="#EEA445" />
  142.                                 <ImageButton
  143.                                     Grid.Row="0"
  144.                                     Grid.RowSpan="2"
  145.                                     Grid.Column="1"
  146.                                     Padding="10"
  147.                                     Aspect="AspectFit"
  148.                                     BackgroundColor="#FEDADC"
  149.                                     BorderColor="#EEA445"
  150.                                     BorderWidth="1"
  151.                                     CornerRadius="25"
  152.                                     HeightRequest="50"
  153.                                     HorizontalOptions="CenterAndExpand"
  154.                                     IsEnabled="False"
  155.                                     Source="{local:ImageResource Covid19.Resources.covid19.png}"
  156.                                     VerticalOptions="CenterAndExpand"
  157.                                     WidthRequest="50" />
  158.
  159.                             </Grid>
  160.                         </Frame>
  161.                         <Frame
  162.                             Grid.Row="1"
  163.                             Grid.Column="0"
  164.                             Padding="10,0"
  165.                             BackgroundColor="White"
  166.                             BorderColor="LightGray"
  167.                             CornerRadius="10"
  168.                             Visual="Material">
  169.
  170.                             <Grid Padding="10">
  171.                                 <Grid.RowDefinitions>
  172.                                     <RowDefinition Height="4*" />
  173.                                     <RowDefinition Height="6*" />
  174.                                 </Grid.RowDefinitions>
  175.                                 <Grid.ColumnDefinitions>
  176.                                     <ColumnDefinition Width="*" />
  177.                                     <ColumnDefinition Width="Auto" />
  178.                                 </Grid.ColumnDefinitions>
  179.                                 <Label
  180.                                     Grid.Row="0"
  181.                                     Grid.Column="0"
  182.                                     Style="{StaticResource SmallLabelStyle}"
  183.                                     Text="Total Recovery"
  184.                                     TextColor="#1FD34E" />
  185.                                 <ActivityIndicator
  186.                                     Grid.Row="1"
  187.                                     Grid.Column="0"
  188.                                     Margin="0,5"
  189.                                     HorizontalOptions="Start"
  190.                                     IsRunning="{Binding IsBussy}"
  191.                                     IsVisible="{Binding IsBussy}"
  192.                                     Color="#1FD34E" />
  193.                                 <Label
  194.                                     Grid.Row="1"
  195.                                     Grid.Column="0"
  196.                                     Style="{StaticResource MediumLabelStyle}"
  197.                                     Text="{Binding GlobalCovid.recovered, StringFormat='{0:N0}'}"
  198.                                     TextColor="#1FD34E" />
  199.                                 <ImageButton
  200.                                     Grid.Row="0"
  201.                                     Grid.RowSpan="2"
  202.                                     Grid.Column="1"
  203.                                     Padding="10"
  204.                                     Aspect="AspectFit"
  205.                                     BackgroundColor="#D6F4DC"
  206.                                     BorderColor="#1FD34E"
  207.                                     BorderWidth="1"
  208.                                     CornerRadius="25"
  209.                                     HeightRequest="50"
  210.                                     HorizontalOptions="CenterAndExpand"
  211.                                     IsEnabled="False"
  212.                                     Source="{FontImage FontFamily=FontAwesome,
  213.                                                        Glyph={x:Static helper:IconFont.Heart},
  214.                                                        Size=40,
  215.                                                        Color='#21CF55'}"
  216.                                     VerticalOptions="CenterAndExpand"
  217.                                     WidthRequest="50" />
  218.
  219.                             </Grid>
  220.                         </Frame>
  221.                         <Frame
  222.                             Grid.Row="2"
  223.                             Grid.Column="0"
  224.                             Padding="10,0"
  225.                             BackgroundColor="White"
  226.                             BorderColor="LightGray"
  227.                             CornerRadius="10"
  228.                             Visual="Material">
  229.
  230.                             <Grid Padding="10">
  231.                                 <Grid.RowDefinitions>
  232.                                     <RowDefinition Height="4*" />
  233.                                     <RowDefinition Height="6*" />
  234.                                 </Grid.RowDefinitions>
  235.                                 <Grid.ColumnDefinitions>
  236.                                     <ColumnDefinition Width="*" />
  237.                                     <ColumnDefinition Width="Auto" />
  238.                                 </Grid.ColumnDefinitions>
  239.
  240.
  241.                                 <Label
  242.                                     Grid.Row="0"
  243.                                     Grid.Column="0"
  244.                                     Style="{StaticResource SmallLabelStyle}"
  245.                                     Text="Total Deaths"
  246.                                     TextColor="#EF3936" />
  247.                                 <ActivityIndicator
  248.                                     Grid.Row="1"
  249.                                     Grid.Column="0"
  250.                                     Margin="0,5"
  251.                                     HorizontalOptions="Start"
  252.                                     IsRunning="{Binding IsBussy}"
  253.                                     IsVisible="{Binding IsBussy}"
  254.                                     Color="#EF3936" />
  255.                                 <Label
  256.                                     Grid.Row="1"
  257.                                     Grid.Column="0"
  258.                                     Style="{StaticResource MediumLabelStyle}"
  259.                                     Text="{Binding GlobalCovid.deaths, StringFormat='{0:N0}'}"
  260.                                     TextColor="#EF3936" />
  261.
  262.                                 <ImageButton
  263.                                     Grid.Row="0"
  264.                                     Grid.RowSpan="2"
  265.                                     Grid.Column="1"
  266.                                     Padding="15"
  267.                                     Aspect="AspectFit"
  268.                                     BackgroundColor="#FADEDA"
  269.                                     BorderColor="#EF3936"
  270.                                     BorderWidth="1"
  271.                                     CornerRadius="25"
  272.                                     HeightRequest="50"
  273.                                     HorizontalOptions="CenterAndExpand"
  274.                                     IsEnabled="False"
  275.                                     Source="{FontImage FontFamily=FontAwesome,
  276.                                                        Glyph={x:Static helper:IconFont.Close},
  277.                                                        Size=40,
  278.                                                        Color=Red}"
  279.                                     VerticalOptions="CenterAndExpand"
  280.                                     WidthRequest="50" />
  281.                             </Grid>
  282.                         </Frame>
  283.                         <Frame
  284.                             Grid.Row="3"
  285.                             Grid.Column="0"
  286.                             Padding="10,0"
  287.                             BackgroundColor="White"
  288.                             BorderColor="LightGray"
  289.                             CornerRadius="10"
  290.                             Visual="Material">
  291.
  292.                             <Grid Padding="10">
  293.                                 <Grid.RowDefinitions>
  294.                                     <RowDefinition Height="4*" />
  295.                                     <RowDefinition Height="6*" />
  296.                                 </Grid.RowDefinitions>
  297.                                 <Grid.ColumnDefinitions>
  298.                                     <ColumnDefinition Width="*" />
  299.                                     <ColumnDefinition Width="Auto" />
  300.                                 </Grid.ColumnDefinitions>
  301.                                 <Label
  302.                                     Grid.Row="0"
  303.                                     Grid.Column="0"
  304.                                     Style="{StaticResource SmallLabelStyle}"
  305.                                     Text="Total Active"
  306.                                     TextColor="#0A7FF3" />
  307.                                 <ActivityIndicator
  308.                                     Grid.Row="1"
  309.                                     Grid.Column="0"
  310.                                     Margin="0,5"
  311.                                     HorizontalOptions="Start"
  312.                                     IsRunning="{Binding IsBussy}"
  313.                                     IsVisible="{Binding IsBussy}"
  314.                                     Color="#0A7FF3" />
  315.                                 <Label
  316.                                     Grid.Row="1"
  317.                                     Grid.Column="0"
  318.                                     Style="{StaticResource MediumLabelStyle}"
  319.                                     Text="{Binding GlobalCovid.active, StringFormat='{0:N0}'}"
  320.                                     TextColor="#0A7FF3" />
  321.                                 <ImageButton
  322.                                     Grid.Row="0"
  323.                                     Grid.RowSpan="2"
  324.                                     Grid.Column="1"
  325.                                     Padding="10"
  326.                                     Aspect="AspectFit"
  327.                                     BackgroundColor="#CFE3FC"
  328.                                     BorderColor="#0A7FF3"
  329.                                     BorderWidth="1"
  330.                                     CornerRadius="25"
  331.                                     HeightRequest="50"
  332.                                     HorizontalOptions="CenterAndExpand"
  333.                                     IsEnabled="False"
  334.                                     Source="{local:ImageResource Covid19.Resources.active.png}"
  335.                                     VerticalOptions="CenterAndExpand"
  336.                                     WidthRequest="50" />
  337.
  338.
  339.                             </Grid>
  340.                         </Frame>
  341.                     </Grid>
  342.                 </ScrollView>
  343.             </Grid>
  344.         </Grid>
  345.     </ContentPage.Content>
  346. </ContentPage>
Now we are creating the ViewModel for the binding the data with a view.

GloalViewModel.cs
  1. using Covid19.Models;
  2. using Newtonsoft.Json;
  3. using System;
  4. using System.Collections.Generic;
  5. using System.Collections.ObjectModel;
  6. using System.Diagnostics;
  7. using System.IO;
  8. using System.Linq;
  9. using System.Net.Http;
  10. using System.Net.Http.Headers;
  11. using System.Text;
  12. using System.Threading.Tasks;
  13. using Xamarin.Forms;
  14.
  15. namespace Covid19.ViewModel
  16. {
  17.    public class GloalViewModel:BaseViewModel
  18.     {
  19.         public GloalViewModel()
  20.         {
  21.          GetGlobalCoronaDataCommand.Execute(null);
  22.          CarouselList = new List<string>() { "darkcar01.png""darkcar02.png""darkcar03.png" };
  23.         }
  24.         #region Properties
  25.
  26.         private bool isbussy=false;
  27.         public bool IsBussy
  28.         {
  29.             get { return isbussy; }
  30.             set { isbussy = value; RaisePropertyChanged(() =>IsBussy); }
  31.         }
  32.
  33.         private List<string> carouselList;
  34.         public List<string> CarouselList
  35.         {
  36.             get { return carouselList; }
  37.             set { carouselList = value; RaisePropertyChanged(() => CarouselList); }
  38.         }
  39.
  40.
  41.         private CountryModel globalcovid;
  42.         public CountryModel GlobalCovid
  43.         {
  44.             get { return globalcovid; }
  45.             set { globalcovid = value; RaisePropertyChanged(() => GlobalCovid); }
  46.         }
  47.
  48.         private List<CountryModel> allcountry;
  49.         public List<CountryModel> AllCountry
  50.         {
  51.             get { return allcountry; }
  52.             set { allcountry = value; RaisePropertyChanged(() => AllCountry); }
  53.         }
  54.
  55.         private ObservableCollection<CountryModel> searchcountry;
  56.         public ObservableCollection<CountryModel> SearchCountry
  57.         {
  58.             get { return searchcountry; }
  59.             set { searchcountry = value; RaisePropertyChanged(() => SearchCountry); }
  60.         }
  61.
  62.         private List<CountryFlag> countryflags;
  63.         public List<CountryFlag> CountryFlags
  64.         {
  65.             get { return countryflags; }
  66.             set { countryflags = value;RaisePropertyChanged(()=>CountryFlags); }
  67.         }
  68.
  69.         #endregion
  70.
  71.         #region Commands
  72.         public Command GetGlobalCoronaDataCommand => new Command(async()=>await GetGlobalCoronaDataCommandExecution());
  73.         #endregion
  74.
  75.         #region CommandExecution
  76.         private async Task GetGlobalCoronaDataCommandExecution()
  77.         {
  78.             var current = Xamarin.Essentials.Connectivity.NetworkAccess;
  79.             if (current != Xamarin.Essentials.NetworkAccess.Internet)
  80.                 UserDialogs.Instance.Alert("Please Check the internet connection""Network Error""OK");
  81.             else
  82.             {
  83.                 IsBussy = true;
  84.                // UserDialogs.Instance.ShowLoading();
  85.                 await Task.Delay(1000);
  86.                 using (var client = new HttpClient())
  87.                 {
  88.                     try
  89.                     {
  90.                     client.BaseAddress = new Uri("https://coronavirus-19-api.herokuapp.com/");
  91.                     client.DefaultRequestHeaders.Accept.Clear();
  92.                     client.DefaultRequestHeaders.Accept.Add(new MediaTypeWithQualityHeaderValue("application/json"));
  93.
  94.                     //GET Method
  95.                     HttpResponseMessage result = await client.GetAsync("countries");
  96.                     if (result.IsSuccessStatusCode)
  97.                     {
  98.                         var rawResult = result.Content.ReadAsStringAsync().Result;
  99.                         AllCountry = JsonConvert.DeserializeObject<List<CountryModel>>(rawResult);
  100.                         SearchCountry = new ObservableCollection<CountryModel>(AllCountry);
  101.                         GlobalCovid = AllCountry.Where(e => e.country == "World").SingleOrDefault();
  102.                         App.AppSetup.HomeViewModel.Country = AllCountry.Where(e => e.country == "India").SingleOrDefault();
  103.                         IsBussy = false;
  104.                     }
  105.                     else
  106.                     {
  107.                         IsBussy = false;
  108.                         UserDialogs.Instance.Alert("Internal server Error""Server Error""OK");
  109.                         }
  110.                     }
  111.                     catch (Exception ex)
  112.                     {
  113.                  //UserDialogs.Instance.Alert("Internal Error", $"Internal Error {ex.Message}", "OK");
  114.                     }
  115.                 }
  116.             }
  117.         }
  118.         #endregion
  119.     }
  120. }
Covid-19 App In Xamarin Forms

Home Report

In this Home page, we add the redirecting button for the social app (MyGov Corona) and show the home country (India) data of COVID-19 like Total Cases, Total Recovery, Total Deaths and Total Active.

HomeReport.xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage
  3.     x:Class="Covid19.Views.HomeReport"
  4.     xmlns="http://xamarin.com/schemas/2014/forms"
  5.     xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  6.     xmlns:customcontrols="clr-namespace:Covid19.CustomControls"
  7.     xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  8.     xmlns:helper="clr-namespace:Covid19.Helper"
  9.     xmlns:local="clr-namespace:Covid19"
  10.     xmlns:local1="clr-namespace:Covid19.CustomCells"
  11.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  12.     xmlns:rainbows="clr-namespace:Xamarin.Forms.DebugRainbows;assembly=Xamarin.Forms.DebugRainbows"
  13.     rainbows:DebugRainbow.ShowColors="False"
  14.     BackgroundColor="White"
  15.     Visual="Material"
  16.     mc:Ignorable="d">
  17.     <ContentPage.Content>
  18.         <ScrollView>
  19.             <Grid Padding="0,0,0,10">
  20.                 <Grid.RowDefinitions>
  21.                     <RowDefinition Height="0.45*" />
  22.                     <RowDefinition Height="0.55*" />
  23.                 </Grid.RowDefinitions>
  24.                 <Grid.ColumnDefinitions>
  25.                     <ColumnDefinition Width="Auto" />
  26.                 </Grid.ColumnDefinitions>
  27.                 <Grid
  28.                     Grid.Row="0"
  29.                     Grid.Column="0"
  30.                     Padding="35,15"
  31.                     BackgroundColor="#473F97">
  32.                     <Grid.RowDefinitions>
  33.                         <RowDefinition Height="25" />
  34.                         <RowDefinition Height="1.5*" />
  35.                         <RowDefinition Height="6.5*" />
  36.                         <RowDefinition Height="2*" />
  37.                     </Grid.RowDefinitions>
  38.                     <Grid Grid.Row="1" Grid.Column="0">
  39.                         <Grid.ColumnDefinitions>
  40.                             <ColumnDefinition Width="*" />
  41.                             <ColumnDefinition Width="*" />
  42.                         </Grid.ColumnDefinitions>
  43.                         <Label
  44.                             Grid.Row="0"
  45.                             Grid.Column="0"
  46.                             FontFamily="OpenSansBold"
  47.                             FontSize="25"
  48.                             HorizontalOptions="StartAndExpand"
  49.                             Text="Covid-19"
  50.                             TextColor="White"
  51.                             VerticalOptions="Center" />
  52.                         <Button
  53.                             Grid.Row="0"
  54.                             Grid.Column="1"
  55.                             BackgroundColor="White"
  56.                             CornerRadius="25"
  57.                             HorizontalOptions="EndAndExpand" ImageSource="https://www.countryflags.io/in/flat/64.png"
  58.                             Text=" India "
  59.                             TextColor="#473F97" />
  60.                     </Grid>
  61.                     <Grid
  62.                         Grid.Row="2"
  63.                         Grid.Column="0"
  64.                         RowSpacing="0">
  65.                         <Grid.RowDefinitions>
  66.                             <RowDefinition Height="Auto" />
  67.                             <RowDefinition Height="*" />
  68.                         </Grid.RowDefinitions>
  69.                         <Label
  70.                             Grid.Row="0"
  71.                             Grid.Column="0"
  72.                             FontFamily="OpenSansBold"
  73.                             FontSize="25"
  74.                             Text="What is Covid-19?"
  75.                             TextColor="White" />
  76.                         <Label
  77.                             Grid.Row="1"
  78.                             Grid.Column="0"
  79.                             FontFamily="OpenSansRegular"
  80.                             FontSize="15"
  81.                             HorizontalOptions="StartAndExpand"
  82.                             Text="COVID-19 is the infectious disease caused by the most recently discovered corona virus. This new virus and disease were unknown before the outbreak began in Wuhan, China, in December 2019."
  83.                             TextColor="White"
  84.                             VerticalOptions="Center" />
  85.                     </Grid>
  86.                     <Grid
  87.                         Grid.Row="3"
  88.                         Grid.Column="0"
  89.                         ColumnSpacing="20">
  90.                         <Grid.ColumnDefinitions>
  91.                             <ColumnDefinition Width="0.2*" />
  92.                             <ColumnDefinition Width="0.2*" />
  93.                             <ColumnDefinition Width="0.2*" />
  94.                             <ColumnDefinition Width="0.2*" />
  95.                             <ColumnDefinition Width="0.2*" />
  96.                         </Grid.ColumnDefinitions>
  97.                         <Grid.RowDefinitions>
  98.                             <RowDefinition Height="52" />
  99.                         </Grid.RowDefinitions>
  100.                         <Button
  101.                             Grid.Row="0"
  102.                             Grid.Column="0"
  103.                             BackgroundColor="White"
  104.                             Command="{Binding WhatsAppCommand}"
  105.                             CornerRadius="{OnPlatform Android=25,
  106.                                                       iOS=25}"
  107.                             HorizontalOptions="EndAndExpand"
  108.                             ImageSource="{FontImage FontFamily=FontAwesome,
  109.                                                     Glyph={x:Static helper:IconFont.Whatsapp},
  110.                                                     Size=30,
  111.                                                     Color='#4FCE5D'}" />
  112.                         <Button
  113.                             Grid.Row="0"
  114.                             Grid.Column="1"
  115.                             BackgroundColor="White"
  116.                             Command="{Binding MessengerCommand}"
  117.                             CornerRadius="25"
  118.                             HorizontalOptions="EndAndExpand"
  119.                             ImageSource="{FontImage FontFamily=FontAwesome,
  120.                                                     Glyph={x:Static helper:IconFont.FacebookMessenger},
  121.                                                     Size=30,
  122.                                                     Color='#1B7ACD'}" />
  123.                         <Button
  124.                             Grid.Row="0"
  125.                             Grid.Column="2"
  126.                             BackgroundColor="White"
  127.                             Command="{Binding TelegramCommand}"
  128.                             CornerRadius="25"
  129.                             HorizontalOptions="EndAndExpand"
  130.                             ImageSource="{FontImage FontFamily=FontAwesome,
  131.                                                     Glyph={x:Static helper:IconFont.Telegram},
  132.                                                     Size=30,
  133.                                                     Color='#64B5F6'}" />
  134.                         <Button
  135.                             Grid.Row="0"
  136.                             Grid.Column="3"
  137.                             BackgroundColor="White"
  138.                             Command="{Binding InstagramCommand}"
  139.                             CornerRadius="25"
  140.                             HorizontalOptions="EndAndExpand"
  141.                             ImageSource="{FontImage FontFamily=FontAwesome,
  142.                                                     Glyph={x:Static helper:IconFont.Instagram},
  143.                                                     Size=30,
  144.                                                     Color='#E74265'}" />
  145.                         <Button
  146.                             Grid.Row="0"
  147.                             Grid.Column="4"
  148.                             BackgroundColor="White"
  149.                             Command="{Binding FBCommand}"
  150.                             CornerRadius="25"
  151.                             HorizontalOptions="EndAndExpand"
  152.                             ImageSource="{FontImage FontFamily=FontAwesome,
  153.                                                     Glyph={x:Static helper:IconFont.Facebook},
  154.                                                     Size=30,
  155.                                                     Color='#2E4780'}" />
  156.                     </Grid>
  157.                 </Grid>
  158.                 <Grid
  159.                     Grid.Row="1"
  160.                     Grid.Column="0"
  161.                     Padding="20"
  162.                     ColumnSpacing="10"
  163.                     HorizontalOptions="FillAndExpand"
  164.                     RowSpacing="10"
  165.                     VerticalOptions="FillAndExpand">
  166.                     <Grid.ColumnDefinitions>
  167.                         <ColumnDefinition Width="5*" />
  168.                         <ColumnDefinition Width="5*" />
  169.
  170.                     </Grid.ColumnDefinitions>
  171.                     <Grid.RowDefinitions>
  172.                         <RowDefinition Height="5*" />
  173.                         <RowDefinition Height="5*" />
  174.                     </Grid.RowDefinitions>
  175.                     <Frame
  176.                         Grid.Row="0"
  177.                         Grid.Column="0"
  178.                         Padding="10"
  179.                         BackgroundColor="White"
  180.                         BorderColor="LightGray"
  181.                         CornerRadius="10">
  182.                         <StackLayout Padding="10" Spacing="0">
  183.                             <Grid RowSpacing="5">
  184.                                 <Grid.RowDefinitions>
  185.                                     <RowDefinition Height="Auto" />
  186.                                     <RowDefinition Height="Auto" />
  187.                                 </Grid.RowDefinitions>
  188.                                 <Label
  189.                                     Grid.Row="0"
  190.                                     Grid.Column="0"
  191.                                     Style="{StaticResource SmallLabelStyle}"
  192.                                     Text="Total Cases"
  193.                                     TextColor="#EEA445" />
  194.                                 <Label
  195.                                     Grid.Row="1"
  196.                                     Grid.Column="0"
  197.                                     Style="{StaticResource MediumLabelStyle}"
  198.                                     Text="{Binding Country.cases, StringFormat='{0:N0}'}"
  199.                                     TextColor="#EEA445" />
  200.                             </Grid>
  201.                             <ImageButton
  202.                                 Padding="10"
  203.                                 Aspect="AspectFit"
  204.                                 BackgroundColor="#FEDADC"
  205.                                 BorderColor="#EEA445"
  206.                                 BorderWidth="1"
  207.                                 CornerRadius="{OnPlatform Android=25,
  208.                                                           iOS=18}"
  209.                                 HeightRequest="35"
  210.                                 HorizontalOptions="End"
  211.                                 IsEnabled="False"
  212.                                 Source="{local:ImageResource Covid19.Resources.covid19.png}"
  213.                                 VerticalOptions="EndAndExpand"
  214.                                 WidthRequest="35" />
  215.                         </StackLayout>
  216.                     </Frame>
  217.
  218.
  219.                     <Frame
  220.                         Grid.Row="0"
  221.                         Grid.Column="1"
  222.                         Padding="10"
  223.                         BackgroundColor="White"
  224.                         BorderColor="LightGray"
  225.                         CornerRadius="10">
  226.                         <StackLayout Padding="5" Spacing="0">
  227.                             <Grid RowSpacing="5">
  228.                                 <Grid.RowDefinitions>
  229.                                     <RowDefinition Height="Auto" />
  230.                                     <RowDefinition Height="Auto" />
  231.                                 </Grid.RowDefinitions>
  232.                                 <Label
  233.                                     Grid.Row="0"
  234.                                     Grid.Column="0"
  235.                                     Style="{StaticResource SmallLabelStyle}"
  236.                                     Text="Total Recover"
  237.                                     TextColor="#1FD34E" />
  238.                                 <Label
  239.                                     Grid.Row="1"
  240.                                     Grid.Column="0"
  241.                                     Style="{StaticResource MediumLabelStyle}"
  242.                                     Text="{Binding Country.recovered, StringFormat='{0:N0}'}"
  243.                                     TextColor="#1FD34E" />
  244.                             </Grid>
  245.                             <ImageButton
  246.                                 Padding="10"
  247.                                 Aspect="AspectFit"
  248.                                 BackgroundColor="#D6F4DC"
  249.                                 BorderColor="#1FD34E"
  250.                                 BorderWidth="1"
  251.                                 CornerRadius="{OnPlatform Android=25,
  252.                                                           iOS=18}"
  253.                                 HeightRequest="35"
  254.                                 HorizontalOptions="End"
  255.                                 IsEnabled="False"
  256.                                 Source="{FontImage FontFamily=FontAwesome,
  257.                                                    Glyph={x:Static helper:IconFont.Heart},
  258.                                                    Size=40,
  259.                                                    Color='#21CF55'}"
  260.                                 VerticalOptions="EndAndExpand"
  261.                                 WidthRequest="35" />
  262.                         </StackLayout>
  263.                     </Frame>
  264.                     <Frame
  265.                         Grid.Row="1"
  266.                         Grid.Column="0"
  267.                         Padding="10"
  268.                         BackgroundColor="White"
  269.                         BorderColor="LightGray"
  270.                         CornerRadius="10">
  271.                         <StackLayout Padding="10" Spacing="0">
  272.                             <Grid RowSpacing="5">
  273.                                 <Grid.RowDefinitions>
  274.                                     <RowDefinition Height="Auto" />
  275.                                     <RowDefinition Height="Auto" />
  276.                                 </Grid.RowDefinitions>
  277.                                 <Label
  278.                                     Grid.Row="0"
  279.                                     Grid.Column="0"
  280.                                     Style="{StaticResource SmallLabelStyle}"
  281.                                     Text="Total Deaths"
  282.                                     TextColor="#EF3936" />
  283.                                 <Label
  284.                                     Grid.Row="1"
  285.                                     Grid.Column="0"
  286.                                     Style="{StaticResource MediumLabelStyle}"
  287.                                     Text="{Binding Country.deaths, StringFormat='{0:N0}'}"
  288.                                     TextColor="#EF3936" />
  289.                             </Grid>
  290.                             <ImageButton
  291.                                 Padding="10"
  292.                                 Aspect="AspectFit"
  293.                                 BackgroundColor="#FADEDA"
  294.                                 BorderColor="#EF3936"
  295.                                 BorderWidth="1"
  296.                                 CornerRadius="{OnPlatform Android=25,
  297.                                                           iOS=18}"
  298.                                 HeightRequest="35"
  299.                                 HorizontalOptions="End"
  300.                                 IsEnabled="False"
  301.                                 Source="{FontImage FontFamily=FontAwesome,
  302.                                                    Glyph={x:Static helper:IconFont.Close},
  303.                                                    Size=40,
  304.                                                    Color=Red}"
  305.                                 VerticalOptions="EndAndExpand"
  306.                                 WidthRequest="35" />
  307.                         </StackLayout>
  308.                     </Frame>
  309.                     <Frame
  310.                         Grid.Row="1"
  311.                         Grid.Column="1"
  312.                         Padding="10"
  313.                         BackgroundColor="White"
  314.                         BorderColor="LightGray"
  315.                         CornerRadius="10">
  316.                         <StackLayout Padding="10" Spacing="0">
  317.                             <Grid RowSpacing="5">
  318.                                 <Grid.RowDefinitions>
  319.                                     <RowDefinition Height="Auto" />
  320.                                     <RowDefinition Height="Auto" />
  321.                                 </Grid.RowDefinitions>
  322.                                 <Label
  323.                                     Grid.Row="0"
  324.                                     Grid.Column="0"
  325.                                     Style="{StaticResource SmallLabelStyle}"
  326.                                     Text="Active Cases"
  327.                                     TextColor="#0A7FF3" />
  328.                                 <Label
  329.                                     Grid.Row="1"
  330.                                     Grid.Column="0"
  331.                                     Style="{StaticResource MediumLabelStyle}"
  332.                                     Text="{Binding Country.active, StringFormat='{0:N0}'}"
  333.                                     TextColor="#0A7FF3" />
  334.                             </Grid>
  335.                             <ImageButton
  336.                                 Padding="10"
  337.                                 Aspect="AspectFit"
  338.                                 BackgroundColor="#CFE3FC"
  339.                                 BorderColor="#0A7FF3"
  340.                                 BorderWidth="1"
  341.                                 CornerRadius="{OnPlatform Android=25,
  342.                                                           iOS=18}"
  343.                                 HeightRequest="35"
  344.                                 HorizontalOptions="End"
  345.                                 IsEnabled="False"
  346.                                 Source="{local:ImageResource Covid19.Resources.active.png}"
  347.                                 VerticalOptions="EndAndExpand"
  348.                                 WidthRequest="35" />
  349.                         </StackLayout>
  350.                     </Frame>
  351.                 </Grid>
  352.             </Grid>
  353.         </ScrollView>
  354.     </ContentPage.Content>
  355. </ContentPage>
Now we are creating the ViewModel(HomeViewModel) and binding the data with a view.

HomeViewModel.cs
  1. public class HomeViewModel:BaseViewModel
  2.     {
  3.         public HomeViewModel { }
  4.         #region Properties
  5.         private CountryModel country;
  6.         public CountryModel Country
  7.         {
  8.             get { return country; }
  9.             set {country = value; RaisePropertyChanged(() => Country); }
  10.         }
  11.         #endregion
  12.         #region Commands
  13.         public Command WhatsAppCommand => new Command(() => Device.OpenUri(new Uri("https://api.whatsapp.com/send?phone=919013353535")));
  14.         public Command TelegramCommand => new Command(() => Device.OpenUri(new Uri("tg://resolve?domain=MyGovCoronaNewsdesk")));
  15.         public Command InstagramCommand => new Command(() => Device.OpenUri(new Uri("instagram://user?username=mygovindia")));
  16.         public Command FBCommand => new Command(() =>  Device.OpenUri(new Uri("fb://group/224193992332793")));
  17.         public Command MessengerCommand => new Command(() => Device.OpenUri(new Uri("http://m.me/MyGovIndia")));
  18.         #endregion
  19.     }
Covid-19 App In Xamarin Forms

That's it for this article, we will cover more in the next article.

If you want to see part 2 click here.


Similar Articles
