Counter App In Android Using Android Studio

Introduction


In this article, we are going to see how to create a Counter app in Android using the Android Studio. It will show you how many times the activity is done; i.e., operation is repeated. There are many types of counter processes that can be done.

Step 1

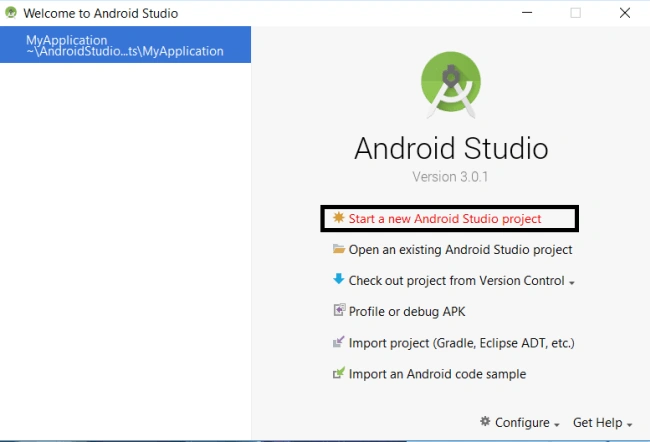

Create a new project in Android Studio.

Android

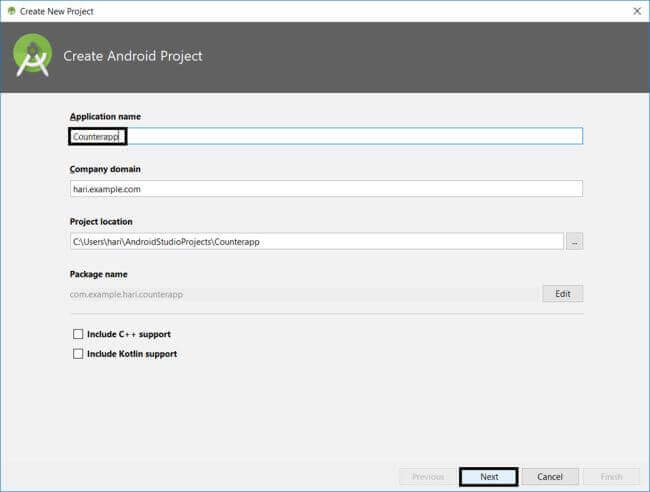

Give a name to the project and click "Next".

Android

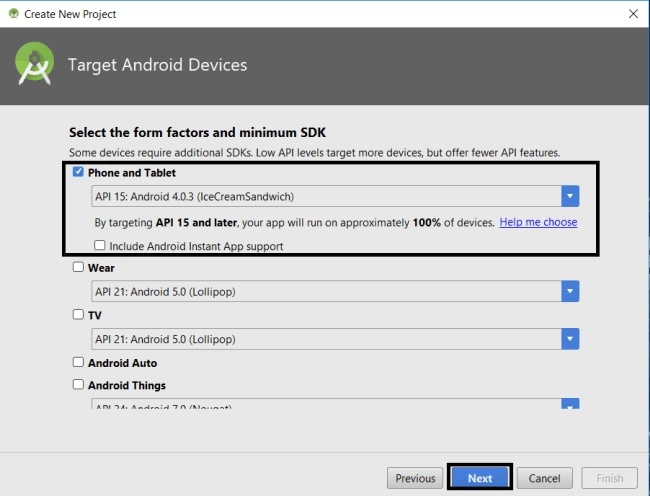

Select the "Phone and Tablet" and click "Next".

Android

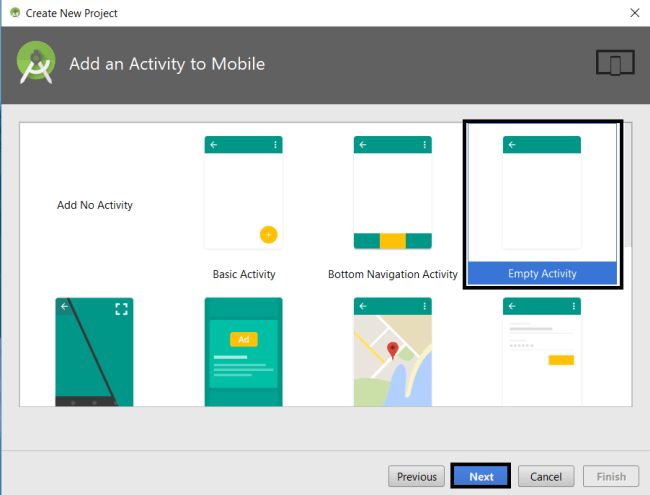

Select an empty activity and click "Next".

Android

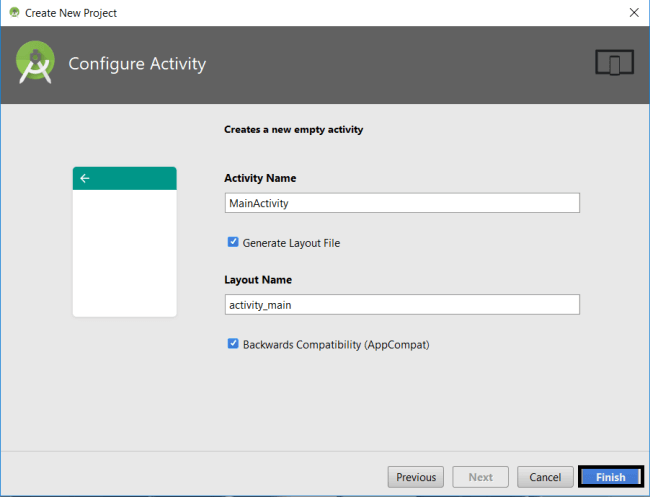

At last, give the activity a name and click on "Finish".

Android

Step 2

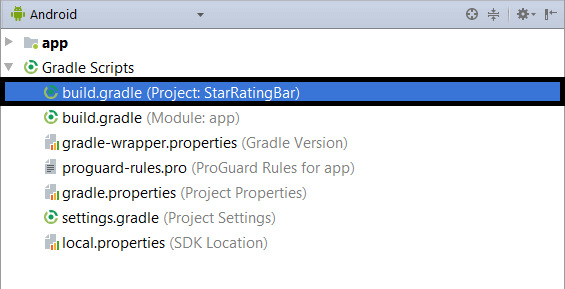

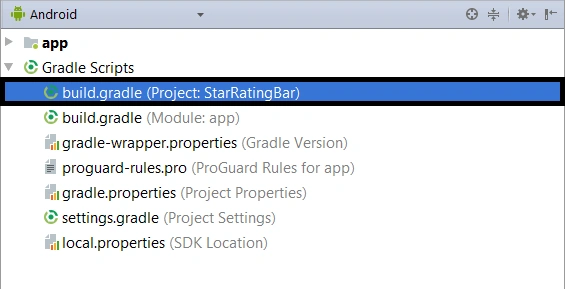

Setup the Gradle by just locate the Gradle Scripts>>Build. Gradle 1.

Android

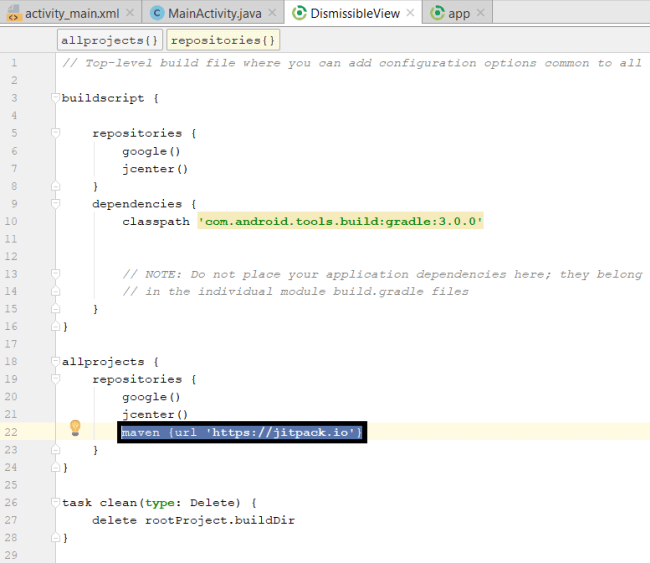

And type the following dependency in your app's build.gradle.

Android

Step 3

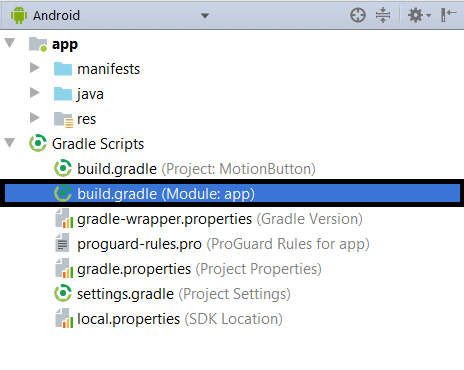

Locate the Gradle Scripts>>Build.Gradle 2

Android

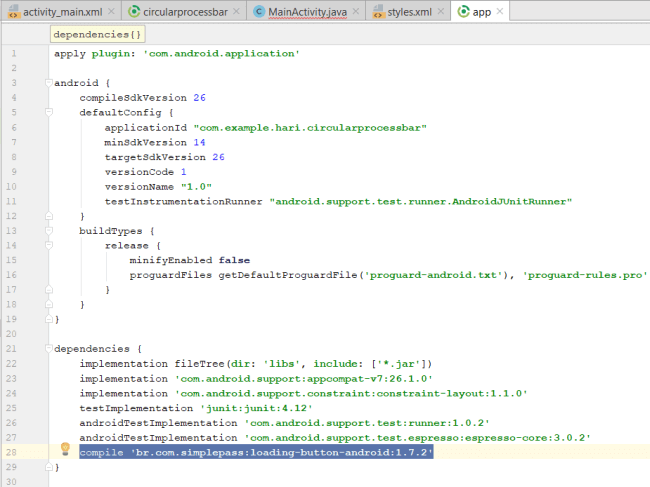

And type the following dependency in your app's build.gradle.

Android

Step 4

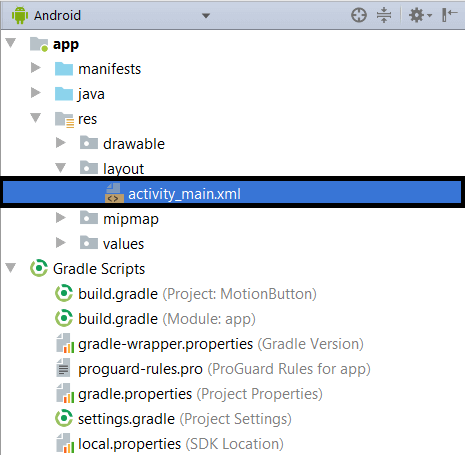

Next, go to app >> res >> layout >> activity_main.xml. Select activity page.

Android

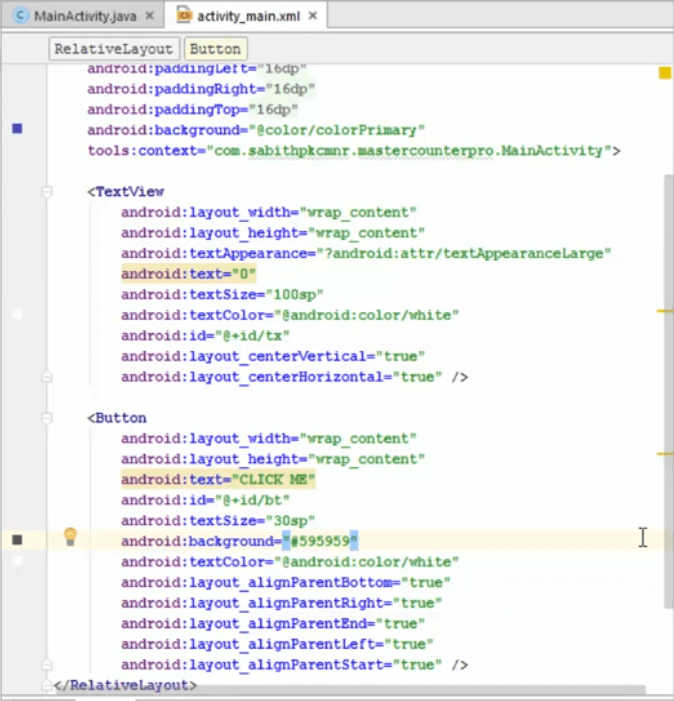

And, just type the code as follows.

Android

The code copy is given below.
  1. <TextView
  2.        android:id="@+id/tx"
  3.        android:layout_width="wrap_content"
  4.        android:layout_height="wrap_content"
  5.        android:layout_centerInParent="true"
  6.        android:layout_centerVerticle="true"
  7.        android:text="0"
  8.        android:textAppearance="?android:attr/textAppearance"
  9.        android:textSize="100sp" />
  10.
  11.    <Button
  12.        android:id="@+id/bt"
  13.        android:layout_width="wrap_content"
  14.        android:layout_height="wrap_content"
  15.        android:text="click me"
  16.        android:layout_alignParentBottom="true"
  17.        android:layout_alignParentRight="true"
  18.        android:layout_alignParentEnd="true"
  19.        android:layout_alignParentLeft="true"
  20.        android:layout_alignParentStart="true"
  21.
  22.        />
Step 5

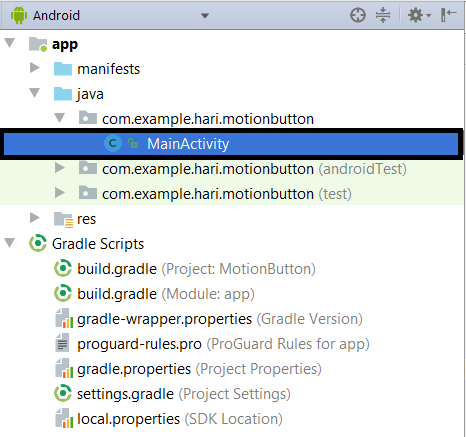

Next, go to app >> java>>Mainactivity.java. Select Mainactivity page:

Android

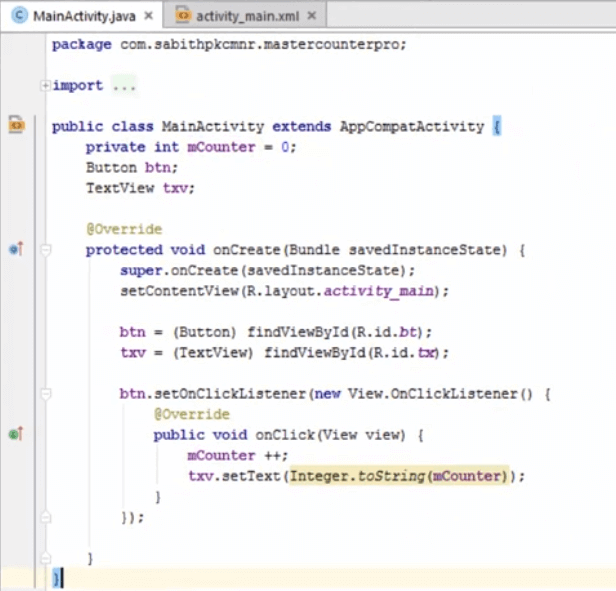

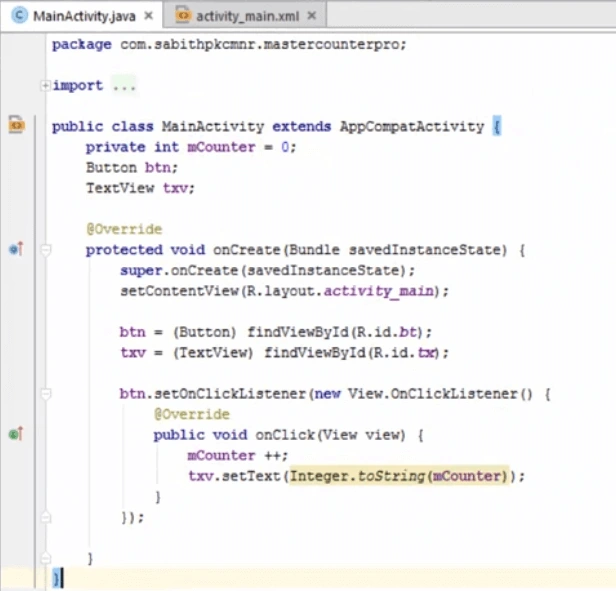

And just type the code as below.

Android

Code copy is here,
  1. public class MainActivity extends AppCompatActivity {
  2.     private int mCounter = 0;
  3.     Button btn;
  4.     TextView txv;
  5.
  6.     @Override
  7.     protected void onCreate(Bundle savedInstanceState) {
  8.         super.onCreate(savedInstanceState);
  9.         setContentView(R.layout.activity_main);
  10.
  11.         btn (Button) findViewById(R.id.bt);
  12.         txv (TextView) findViewById(R.id.tx);
  13.
  14.         btn.setOnClickListener(new View.OnClickListener() {
  15.             @Override
  16.             public void onClick(View view) {
  17.                 mCounter ++;
  18.                 txv.setText(Integer.toString(mCounter));
  19.             }
  20.         });
  21.     }
  22. }
Step 6

After step 4, Sync all the dependency gradles and Mainactivity.java resource files by clicking the Sync button on the top right corner of the gradle page.

Android

Step 7

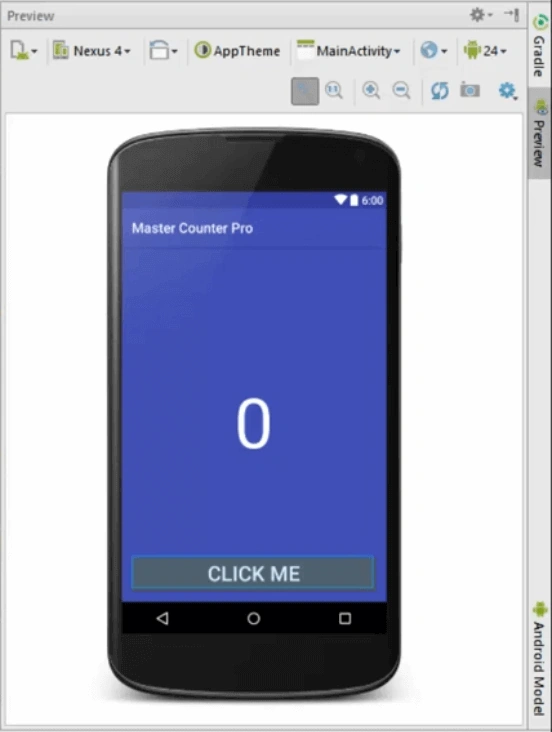

Verify the preview.
->After the code is applied, the preview will appear like this.

Android

Step 8

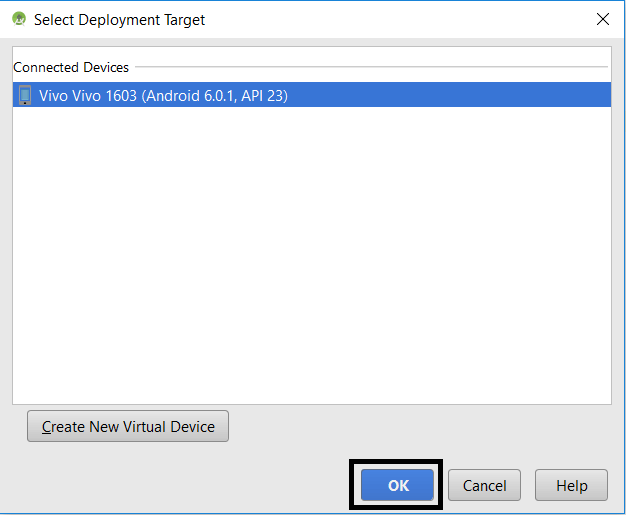

Next, go to Android Studio and deploy the application. Select an Emulator or your Android mobile with USB debugging enabled. Give it a few seconds to make installations and set permissions.

Android

Run the application in your desired emulator (Shift + F10).

Android

Explanation of source code

The source code provided in this article is just the dependencies of activity and the code used in activity_main.xml will create the counting process and define its attributes.


Summary


In this article we created the app named Counter app, then we have inserted a Gradle and we learned how to use the counter and finally, we have deployed that as output.
