Configuration Of Dynatrace On Azure Web App Service

Introduction

Through this article, you can learn how to install Dynatrace OneAgent Extension, and Configure Dynatrace OneAgent on Azure Web App service.

What is Dynatrace

Dynatrace, Inc. is a global technology company, listed on the NYSE, that provides a software intelligence platform based on artificial intelligence (AI) and automation to monitor and optimize application performance, development and security, IT infrastructure, and user experience for businesses and government agencies throughout the world.

Step 1 - Add Extension

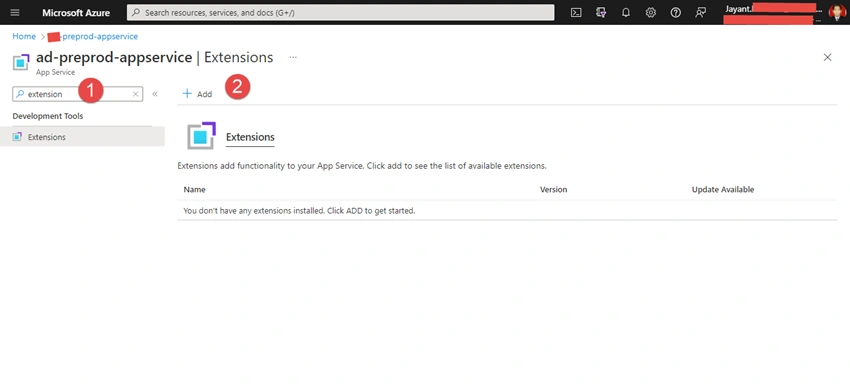

Go to Web App service and search for extension from left side panel. You need to click on add button to add extension for that web app service.

Configuration of Dynatrace on Azure Web App Service

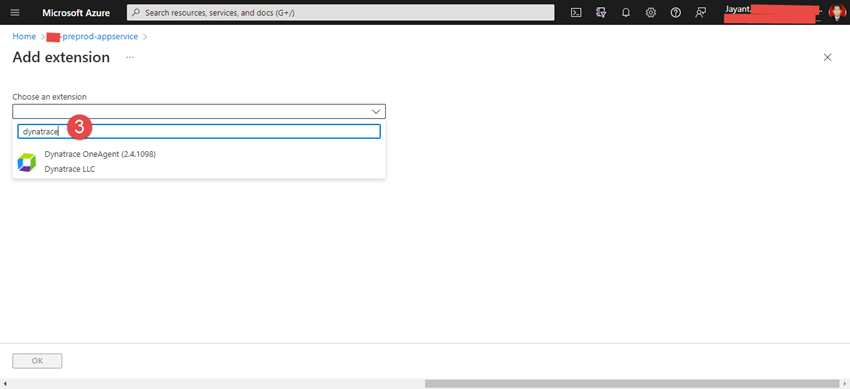

Once you clicked, you can have option to choose an extension. In the text box search for “Dynatrace” and select it.

Configuration of Dynatrace on Azure Web App Service

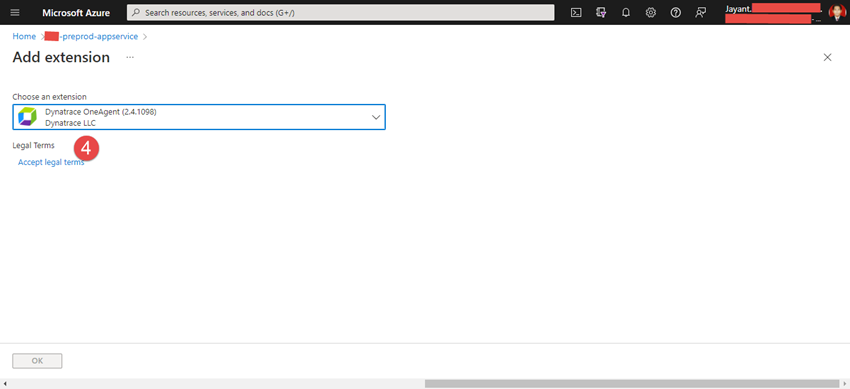

After extension selection, you need to accept legal terms.

Note
Do not get scared, it is just legal terms that says, for this extension Microsoft does not guarantee the contribution or purport to grant rights to it.

Configuration of Dynatrace on Azure Web App Service

Configuration of Dynatrace on Azure Web App Service

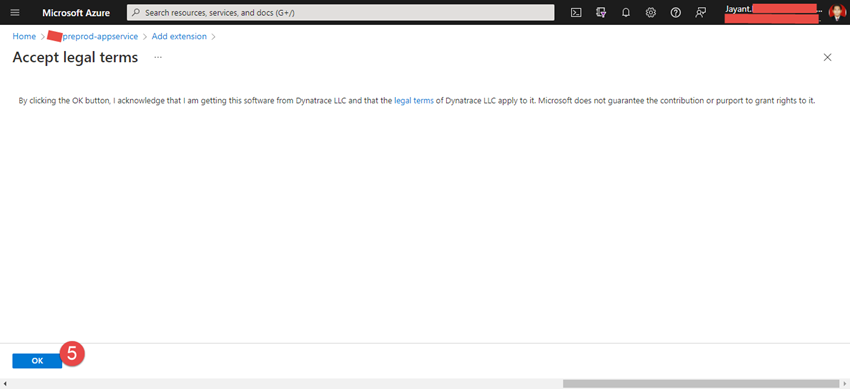

By clicking “OK” you are accepting the terms.

Configuration of Dynatrace on Azure Web App Service

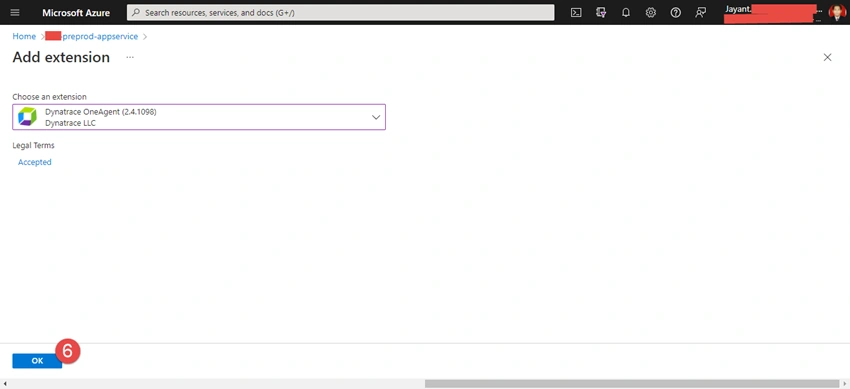

With this “OK” button click, starts the installation of extension on Web app service, which you have chosen.

Configuration of Dynatrace on Azure Web App Service

Note
Dynatrace OneAgent (Extension) installed, please restart your Web App service.

Now Dynatrace extension is added, to configure, you need to add

  1. Environment ID
  2. API Token

These details you can get from IT/ Dynatrace team.

Ready with Environment ID and API Token, then click on Dynatrace OneAgent you will be redirected to a screen with Dynatrace details.

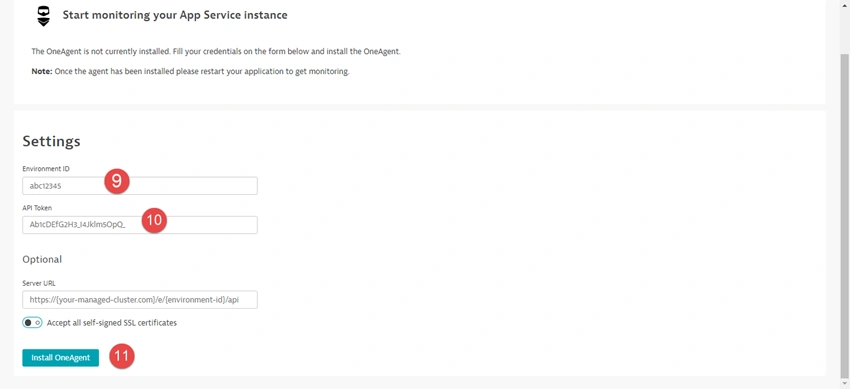

You just need to click on Browse so that will redirect to new screen in which you need to provide the details and click on Install OneAgent.

Configuration of Dynatrace on Azure Web App Service

Configuration of Dynatrace on Azure Web App Service

Configuration of Dynatrace on Azure Web App Service

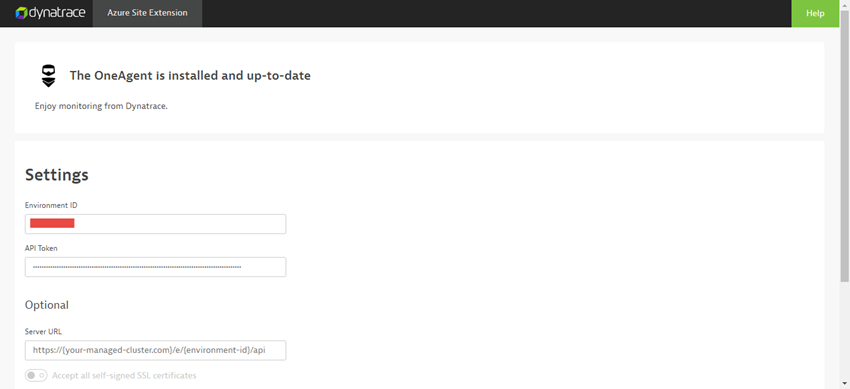

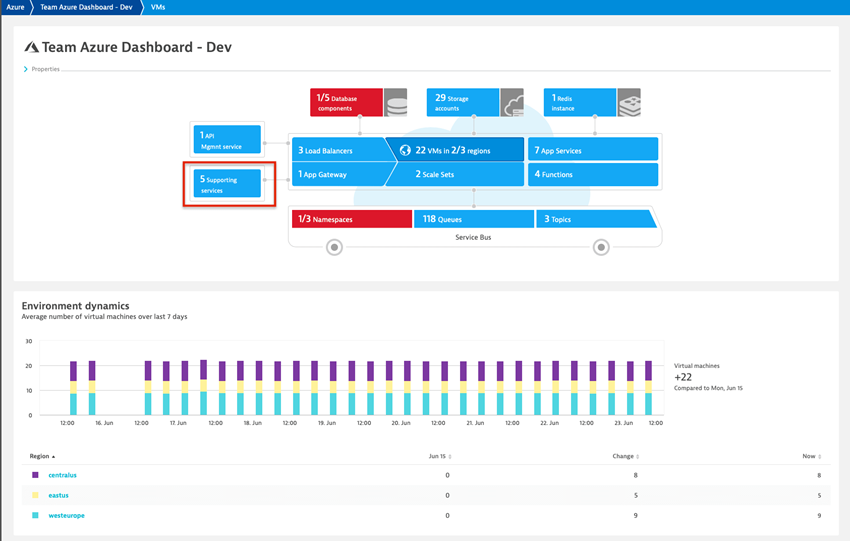

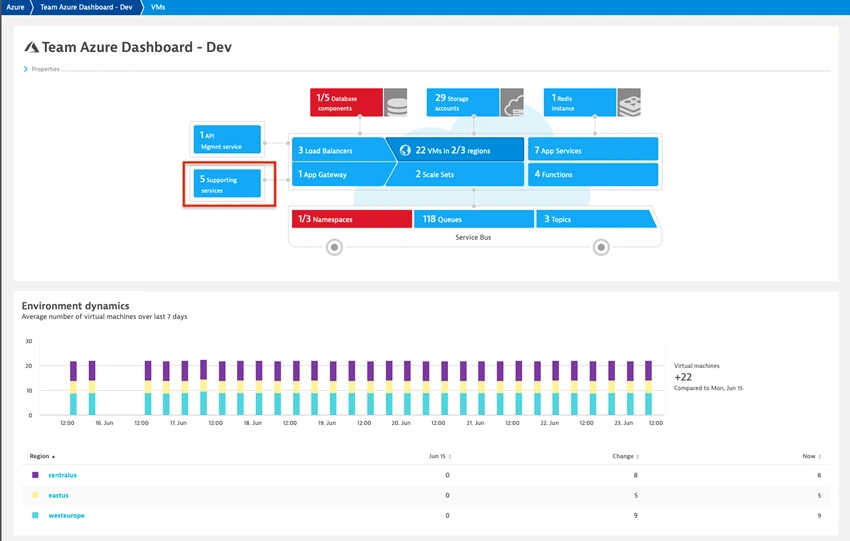

OneAgent installed, you can enjoy monitoring the logs on Dynatrace. Below is the example,

Configuration of Dynatrace on Azure Web App Service

Summary

By completing this article, you can able to Install Dynatrace extension on Azure Web App service, Configure Dynatrace OneAgent and monitor activity of the Web App service on Dynatrace.
