Database Recovery (1): Clone Database From One Instance To Another In SQL Server

I made these several articles as a series as Database Recovery:

Introduction

It is sometimes useful to copy a database from one computer to another, whether for testing, checking consistency, developing software, running reports, creating a mirror database, or, possibly, to make the database available to remote-branch operations.

There are several ways to copy a database:

  • Using the Copy Database Wizard

    You can use the Copy Database Wizard to copy or move databases between servers or to upgrade a SQL Server database to a later version. For more information, see Use the Copy Database Wizard.

  • Restoring a database backup

    To copy an entire database, you can use the BACKUP and RESTORE Transact-SQL statements. Typically, restoring a full backup of a database is used to copy the database from one computer to another for a variety of reasons. For information on using backup and restore to copy a database, see Copy Databases with Backup and Restore.

     Note

    To set up a mirror database for database mirroring, you must restore the database onto the mirror server by using RESTORE DATABASE <database_name> WITH NORECOVERY. For more information, see Prepare a Mirror Database for Mirroring (SQL Server).

  • Using the Generate Scripts Wizard to publish databases

    You can use the Generate Scripts Wizard to transfer a database from a local computer to a Web hosting provider. For more information, see Generate and Publish Scripts Wizard.

This article will discuss the ways to migrate database from one instance to another in the same machine or a different one, we will leave the topic of moving a table in a database to another database in a different article.

The following database migration methods will be included in this article,

  • 1 - Attach/Deattach
  • 2 - Backup/Restore
  • 3 - Export/Import --- Export/Import Wizard
  • 4 - Scripting --- Generate Scripts Wizard
  • 5 - Copy Database --- Copy Database Wizard

1 - Attach/Detach

The data and transaction log files of a database can be detached and then reattached to the same or another instance of SQL Server. [ref]

File access permissions are set during a number of database operations, including detaching or attaching a database.

Note:

Do not attach or restore databases from unknown or untrusted sources. Such databases could contain malicious code that might execute unintended Transact-SQL code or cause errors by modifying the schema or the physical database structure.

When you want to copy a database file from one computer to another, you have to have access to at least the source database location, and you have to detach the database first before your copying.  However, the security setting might not allow you to either access the database file folder or detach the database if the SQL server is located in server.

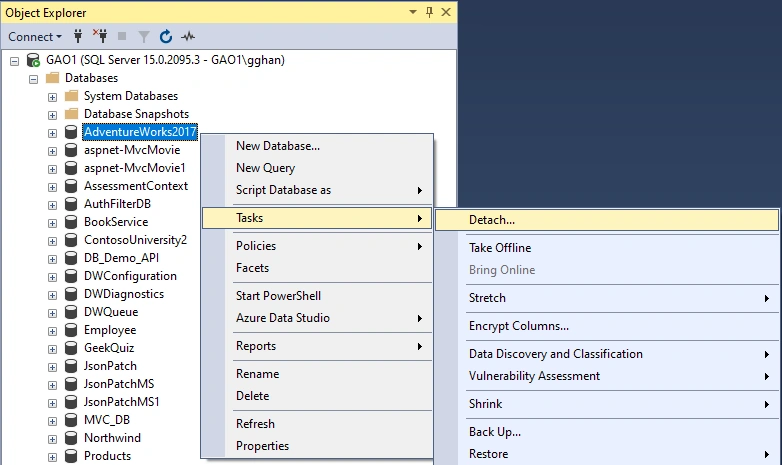

Detach:

Clone Database from one Instance to another in SQL Server

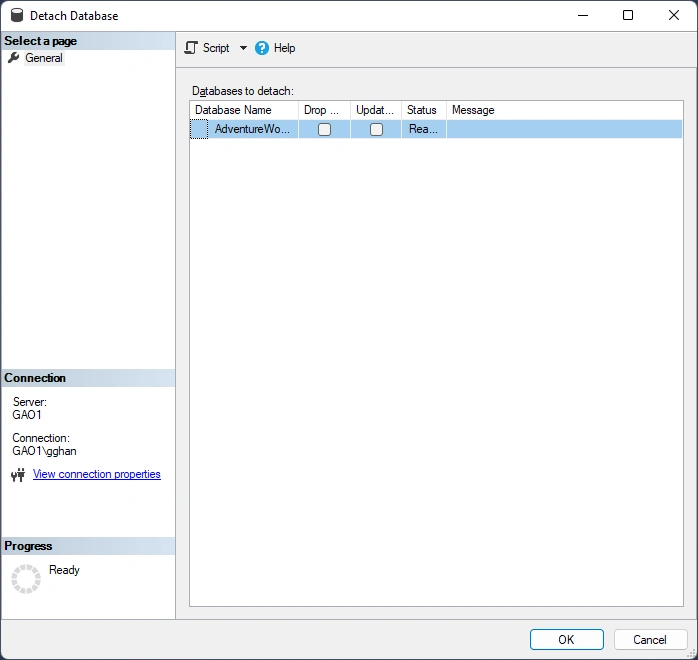

In the opened Detach Database Window: Click OK

Clone Database from one Instance to another in SQL Server

The database is detached:

Clone Database from one Instance to another in SQL Server

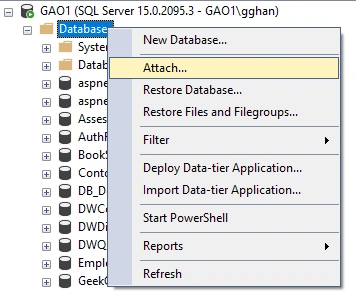

Attach

Clone Database from one Instance to another in SQL Server

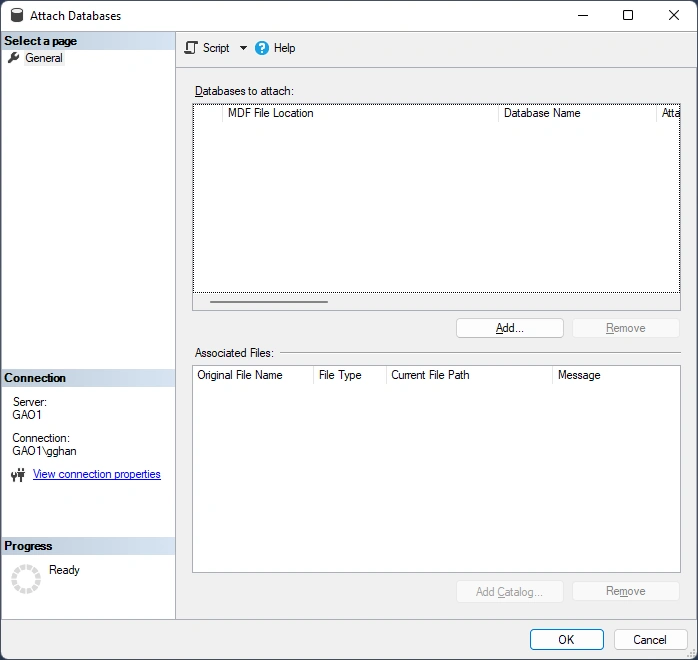

The Attach Databases Window is opened: Click Add button.

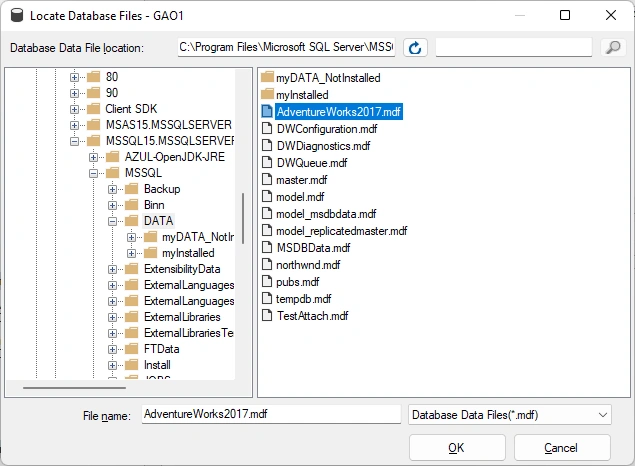

Choose a database file.

Clone Database from one Instance to another in SQL Server

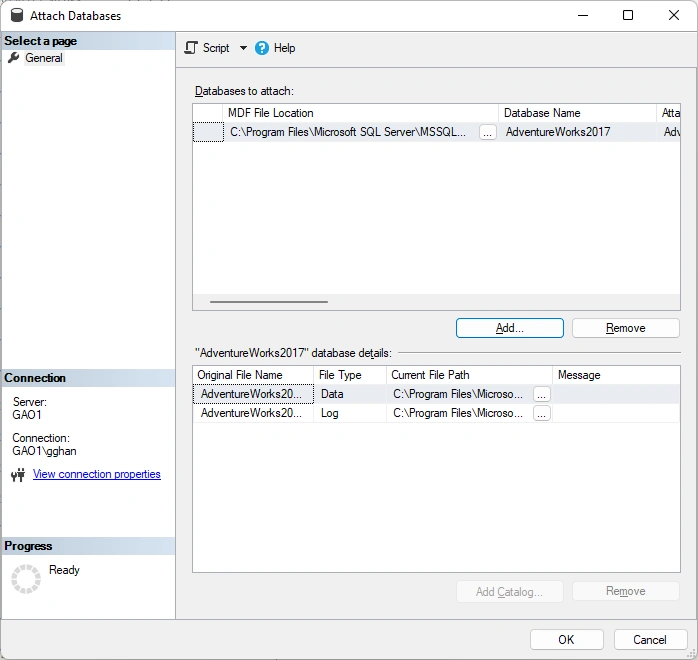

Click OK.

Clone Database from one Instance to another in SQL Server

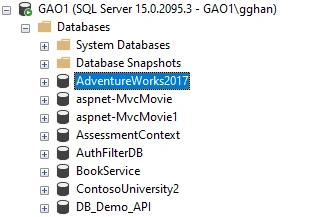

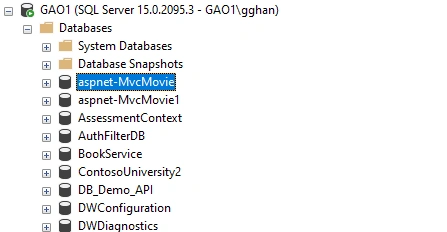

The database has been attached.

Clone Database from one Instance to another in SQL Server

2 - Backup/Restore

We can use them in either the same database or create a new database with a backup file: Note, for the later way, we do not need to shut down the source database, say in server.  This is an advantage compared with attach/detach method.

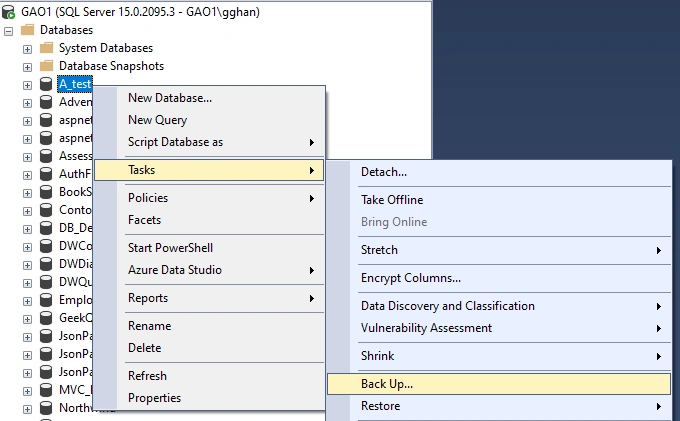

Backup

Clone Database from one Instance to another in SQL Server

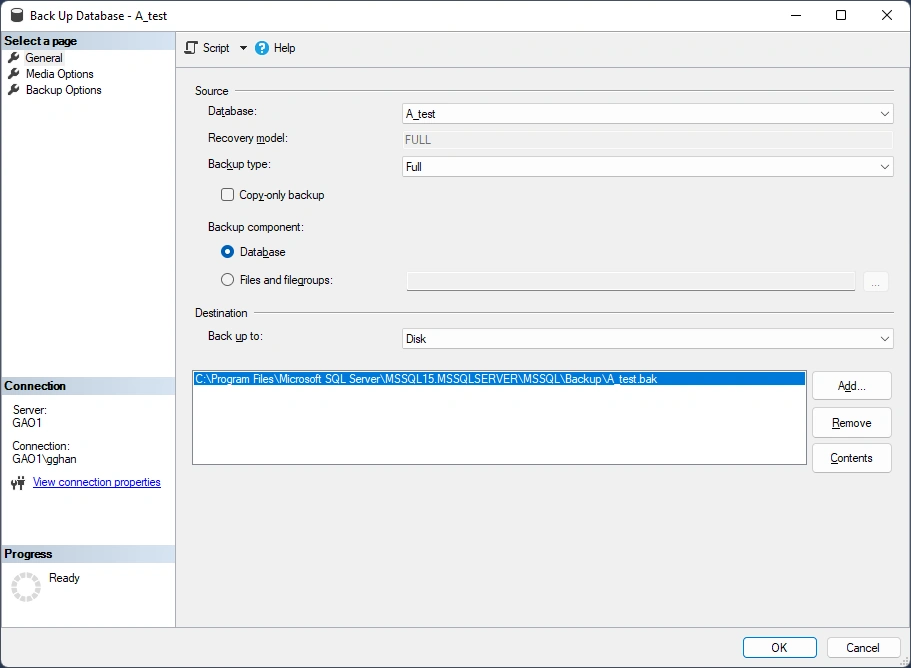

in Backup Database Window: Click OK

Clone Database from one Instance to another in SQL Server

Done, the backup file is in the directory indicated above

Clone Database from one Instance to another in SQL Server

Restore

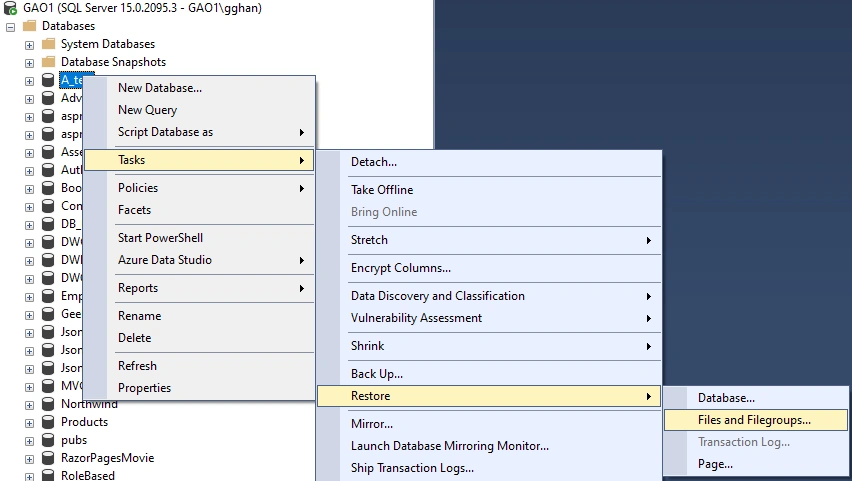

If restore to the same database, right click the database Name.

Clone Database from one Instance to another in SQL Server

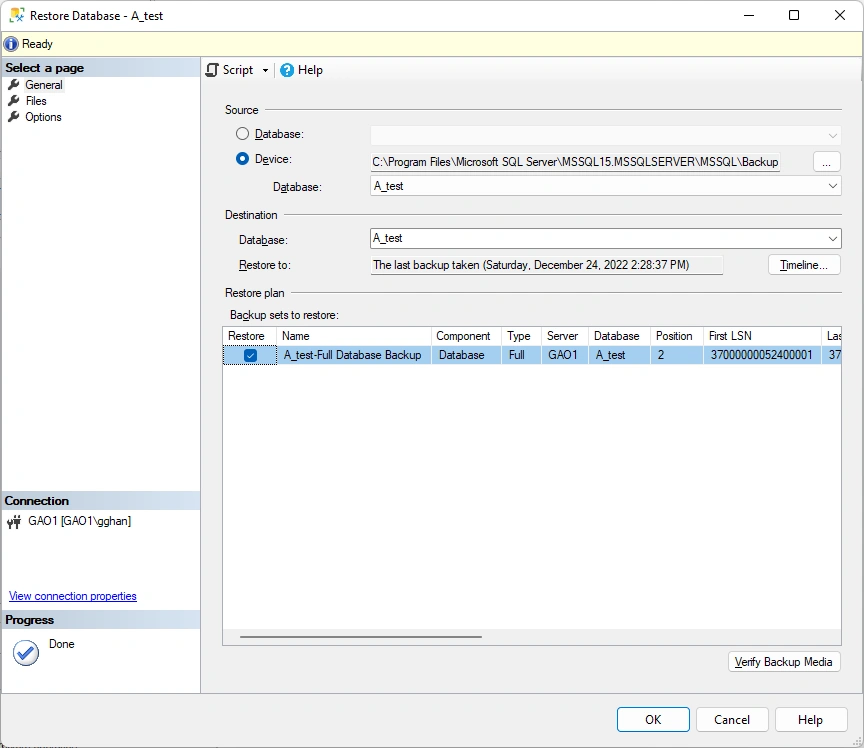

Choose the database you want to restore.

Clone Database from one Instance to another in SQL Server

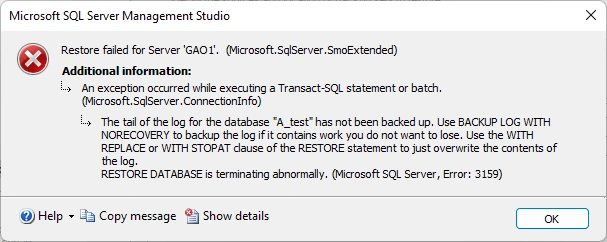

Click OK, we got an error.

Clone Database from one Instance to another in SQL Server

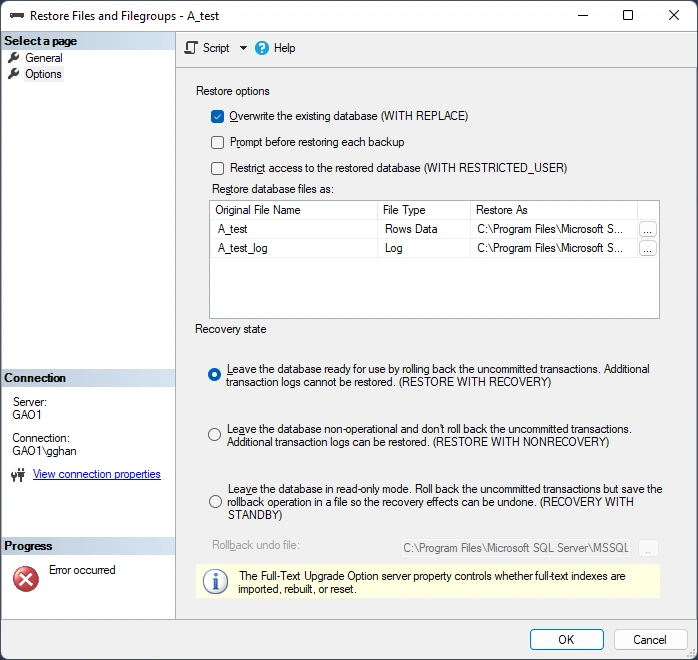

Following the instruction, Click Option and Check Overwrite the existing database (WITH REPLACE)

Clone Database from one Instance to another in SQL Server

Click OK.

Clone Database from one Instance to another in SQL Server

Done.

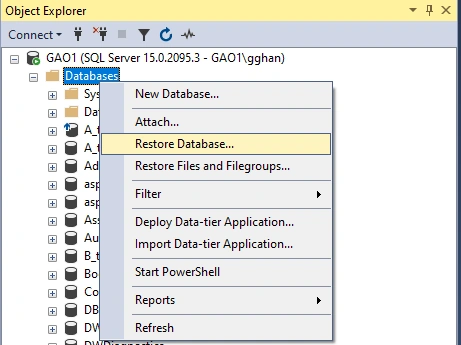

If restore to another server without an existing one: Right Click Database.

Clone Database from one Instance to another in SQL Server

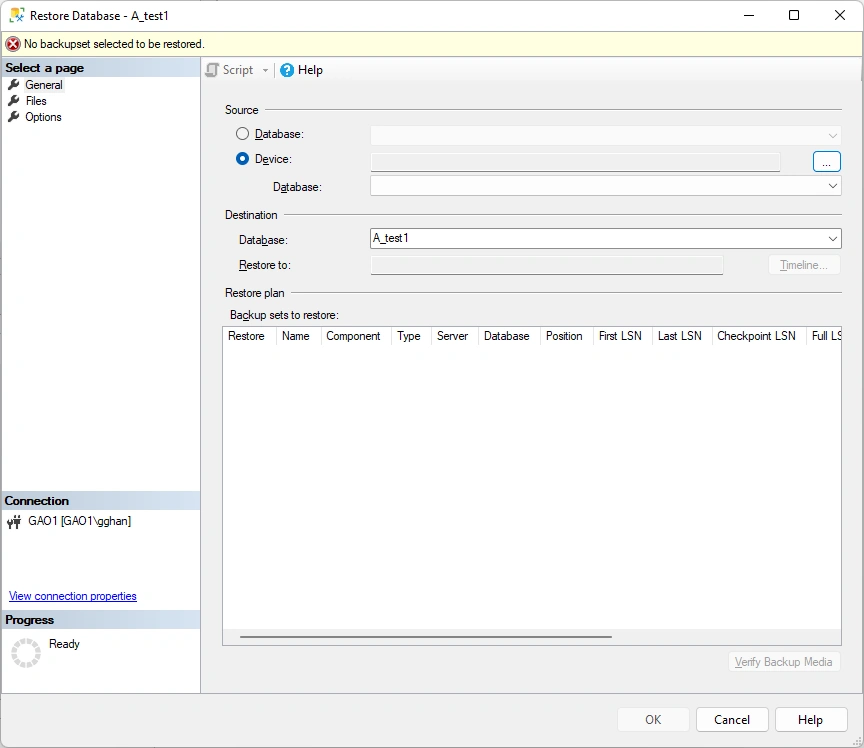

To use data file, Check Device, then Click the ... buton on the right.

Clone Database from one Instance to another in SQL Server

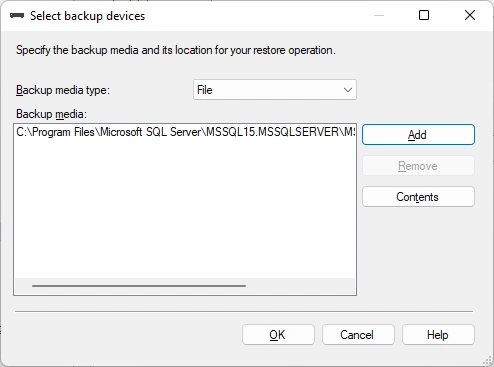

In a Select backup devices Window, Click Add button.

Clone Database from one Instance to another in SQL Server

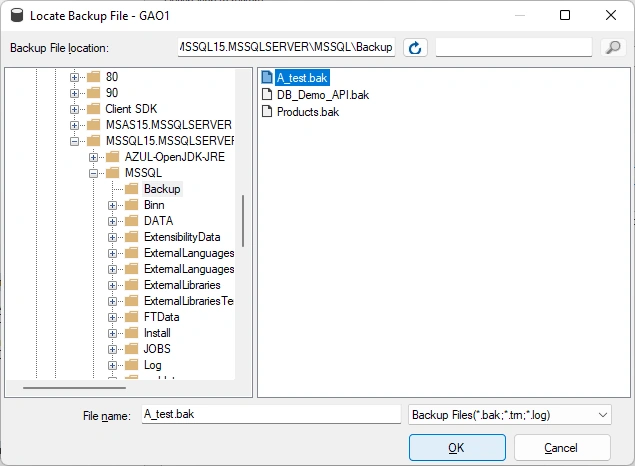

Choose the backup file (if we copied the file from server, and save into local)

Clone Database from one Instance to another in SQL Server

Click OK.

Clone Database from one Instance to another in SQL Server

Click OK, We got the input source file, and also auto-filed the same database name in the destination.

Clone Database from one Instance to another in SQL Server

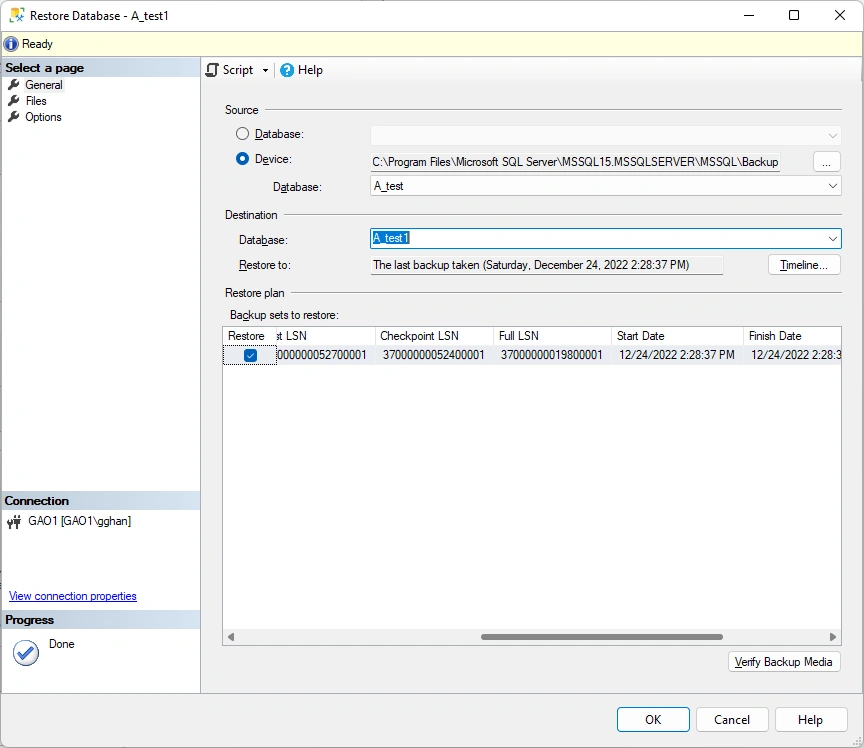

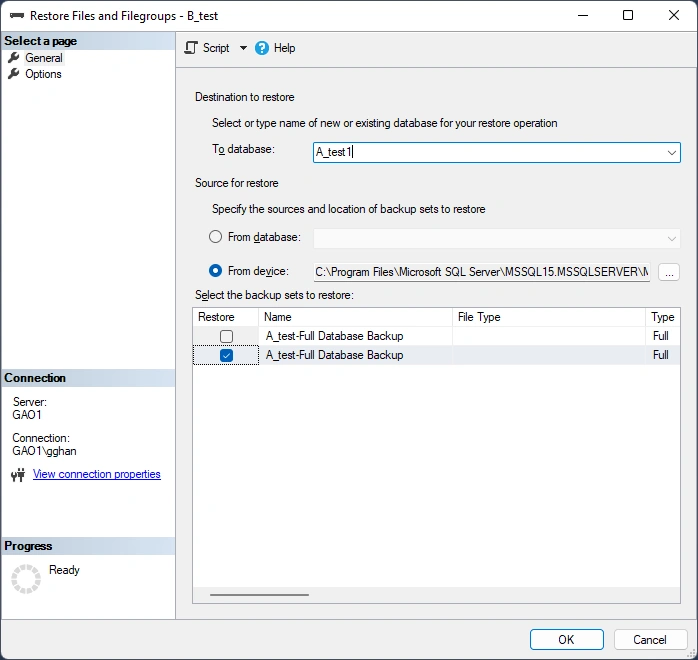

If we want a different database name, change it, say, as A_test1,

Clone Database from one Instance to another in SQL Server

Click OK

Clone Database from one Instance to another in SQL Server

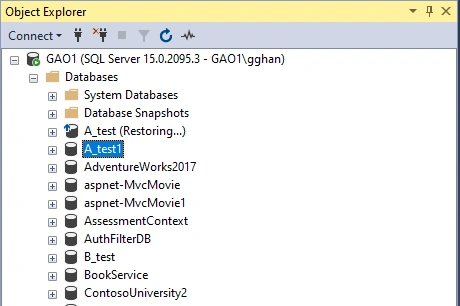

Done, Got the restored database.

Clone Database from one Instance to another in SQL Server

3 - Export/Import - Using the Export/Import Wizard

We make the export and import by the SQL Server Import and Export Wizard, the wizard will export a database from one server or SQL instance and directly import to another server or SQL instance.

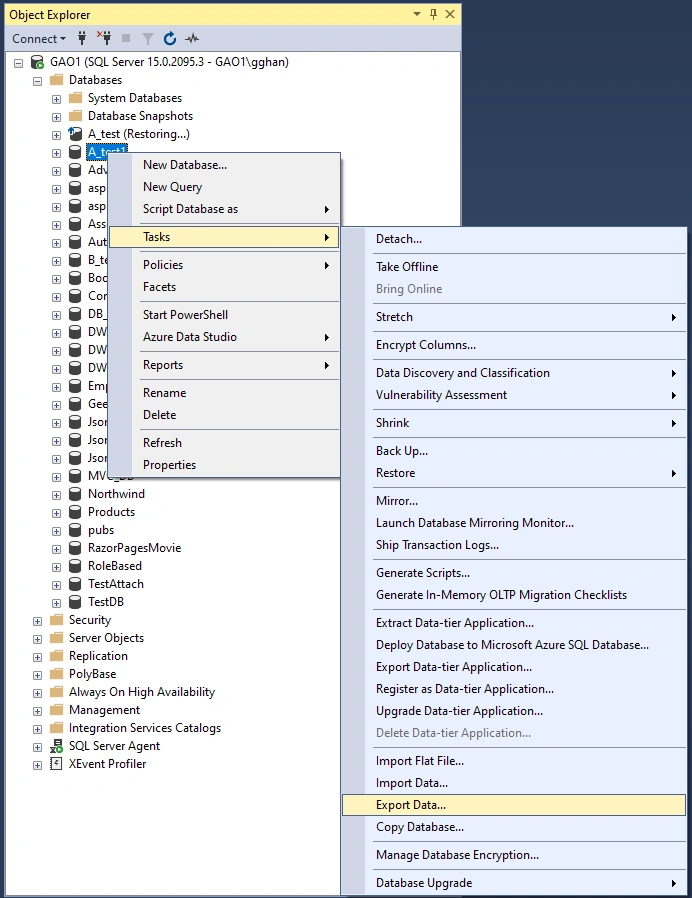

Run Export/Import Wizard

Clone Database from one Instance to another in SQL Server

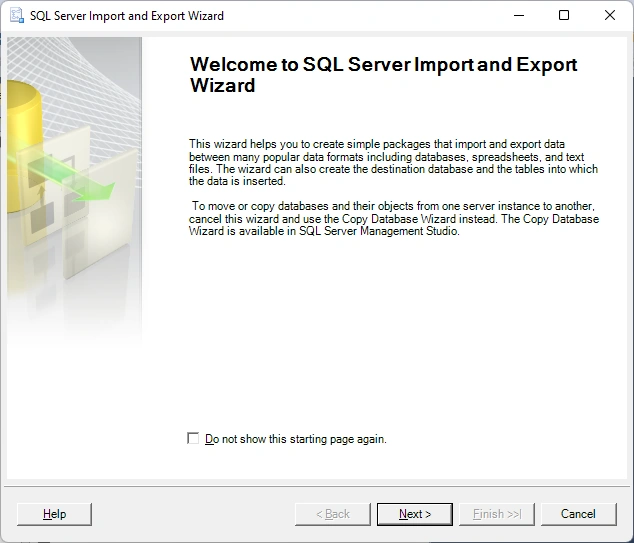

Click Next.

Clone Database from one Instance to another in SQL Server

In SQL Server Import and Export Wizard, choose Data Source as SQL Server Native Client 11.0

Clone Database from one Instance to another in SQL Server

Click Next, we have

Clone Database from one Instance to another in SQL Server

Click Next, Open SQL Server Import and Export Wizard again for Destination Database.

Clone Database from one Instance to another in SQL Server

Type in the server name, we got a list of database names.

Clone Database from one Instance to another in SQL Server

If we want to make a new database, Click New button.

Clone Database from one Instance to another in SQL Server

In the Create Database window, type in the database name. say, A_test2. Click OK button.

Clone Database from one Instance to another in SQL Server

Click Next.

Clone Database from one Instance to another in SQL Server

Next.

Clone Database from one Instance to another in SQL Server

Next

Clone Database from one Instance to another in SQL Server

Next,

Clone Database from one Instance to another in SQL Server

We got the Import/Export execution running.

Clone Database from one Instance to another in SQL Server

The Exported database created in the new server.

Clone Database from one Instance to another in SQL Server

4 - Scripting - Using the Generate Scripts Wizard [ref]

You can use the Generate and Publish Scripts Wizard to create scripts for transferring a database between instances of the SQL Server Database Engine or Azure SQL Database. You can generate scripts for a database on an instance of the Database Engine in your local network, or from SQL Database. The generated scripts can be run on another instance of the Database Engine or SQL Database. You can also use the wizard to publish the contents of a database directly to a Web service created by using the Database Publishing Services. You can create scripts for an entire database, or limit it to specific objects.

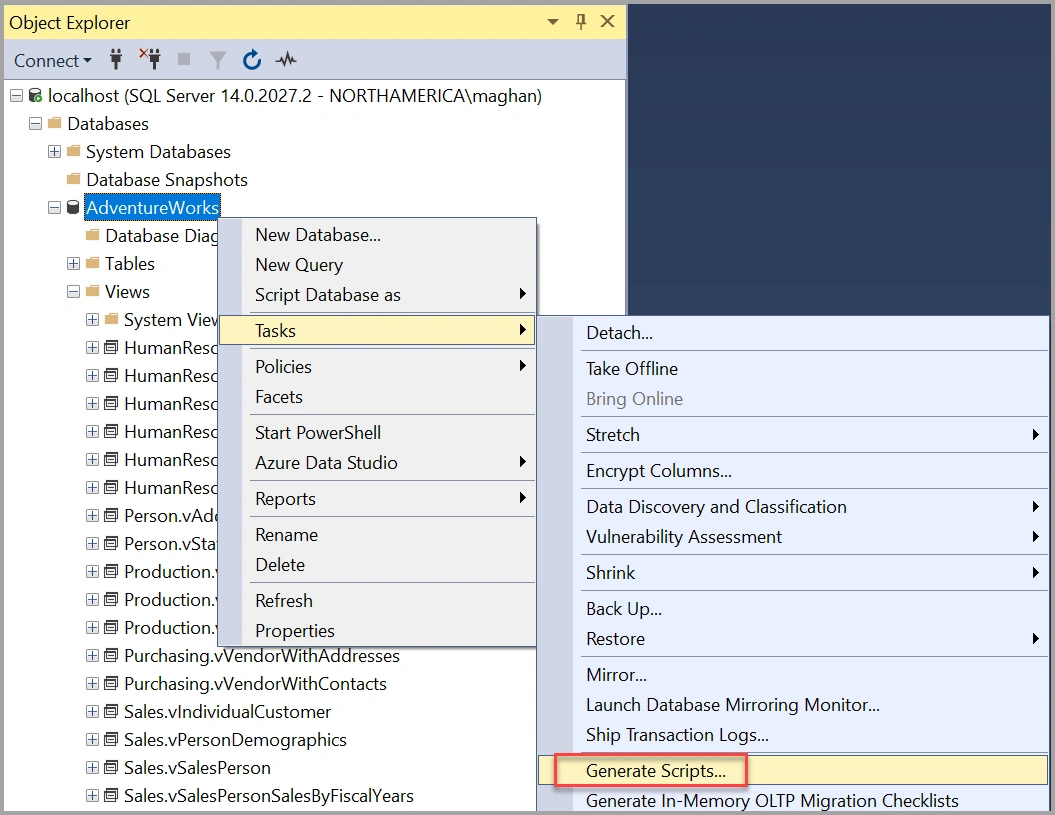

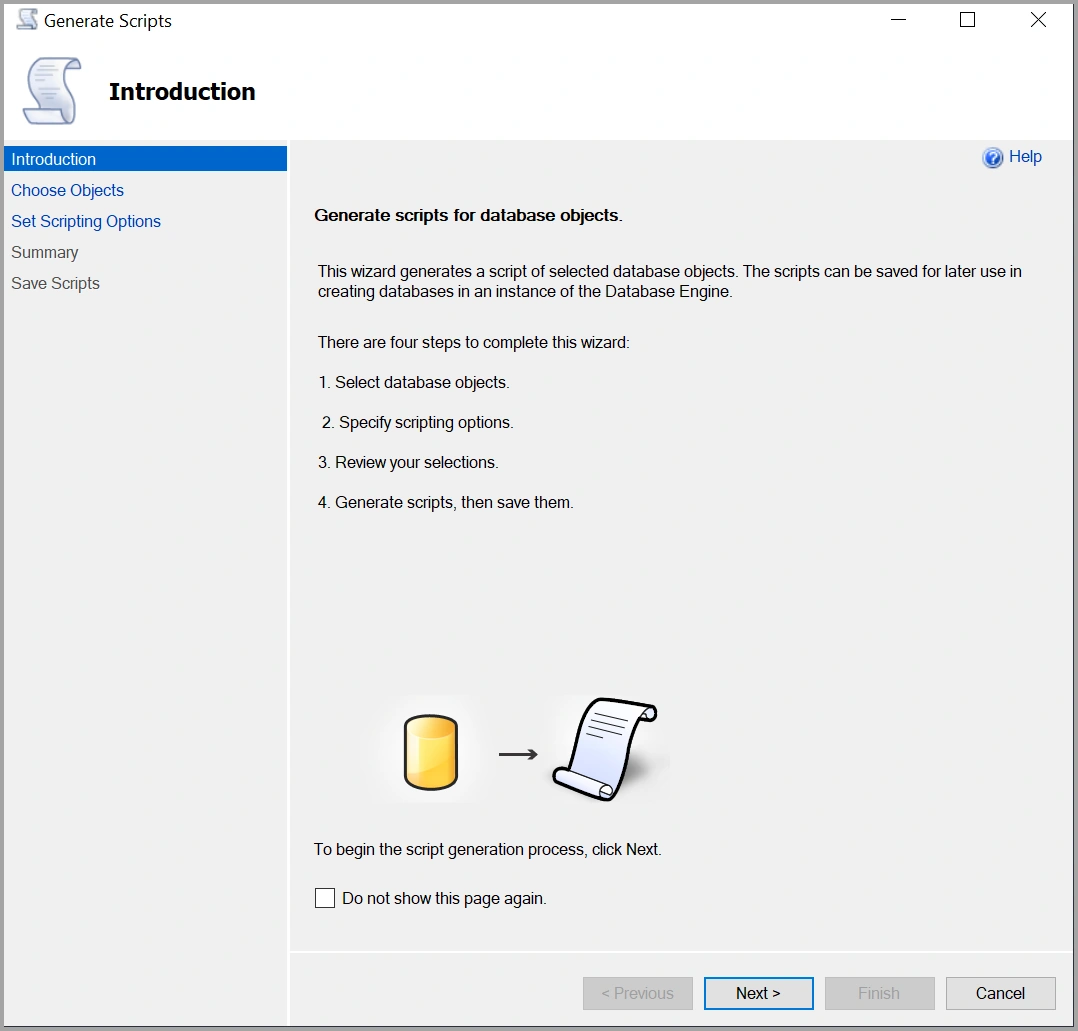

To generate a publish script

Clone Database from one Instance to another in SQL Server

Click Next

Clone Database from one Instance to another in SQL Server

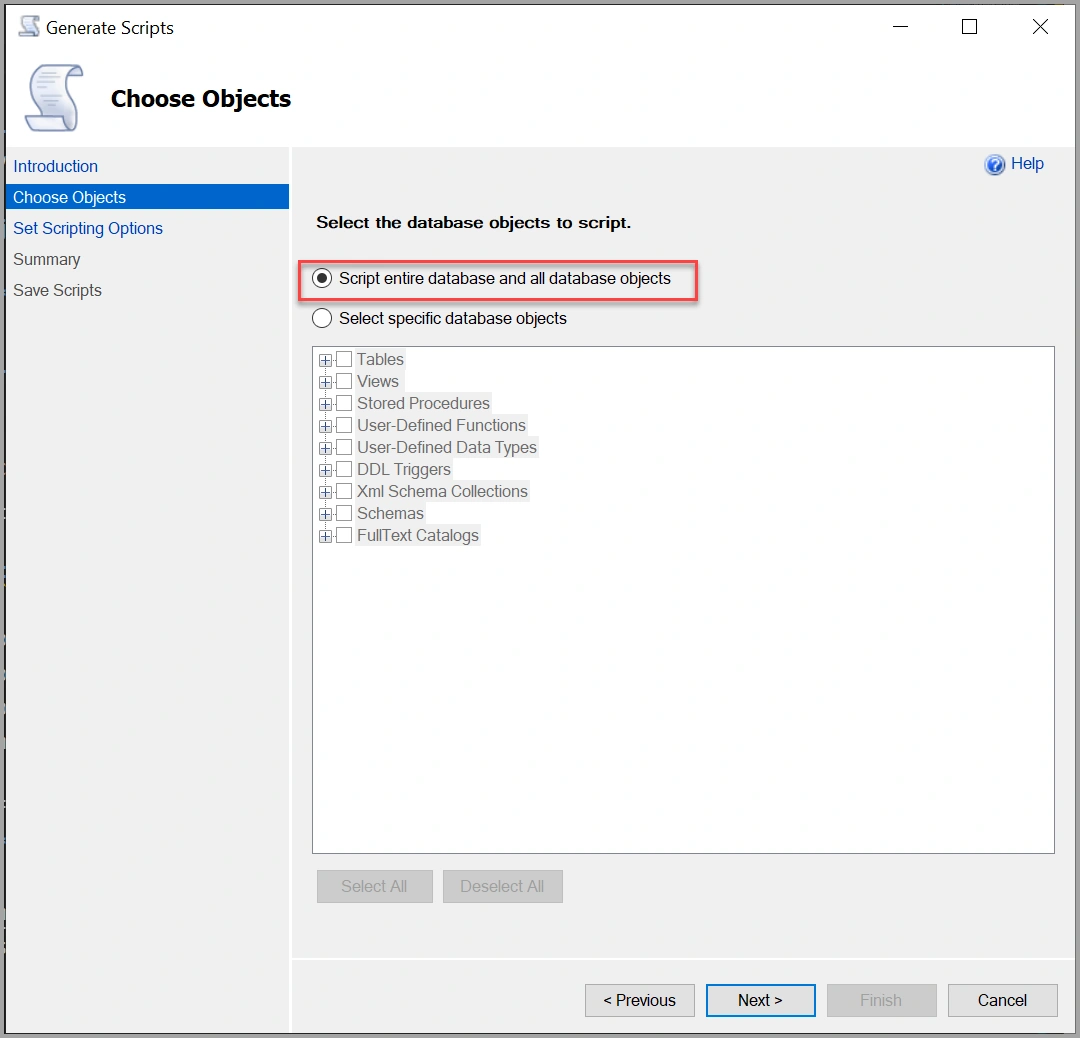

Choose Script Entire Database Option - Select to generate scripts for all objects in the database and to include a script for the database itself.

Clone Database from one Instance to another in SQL Server

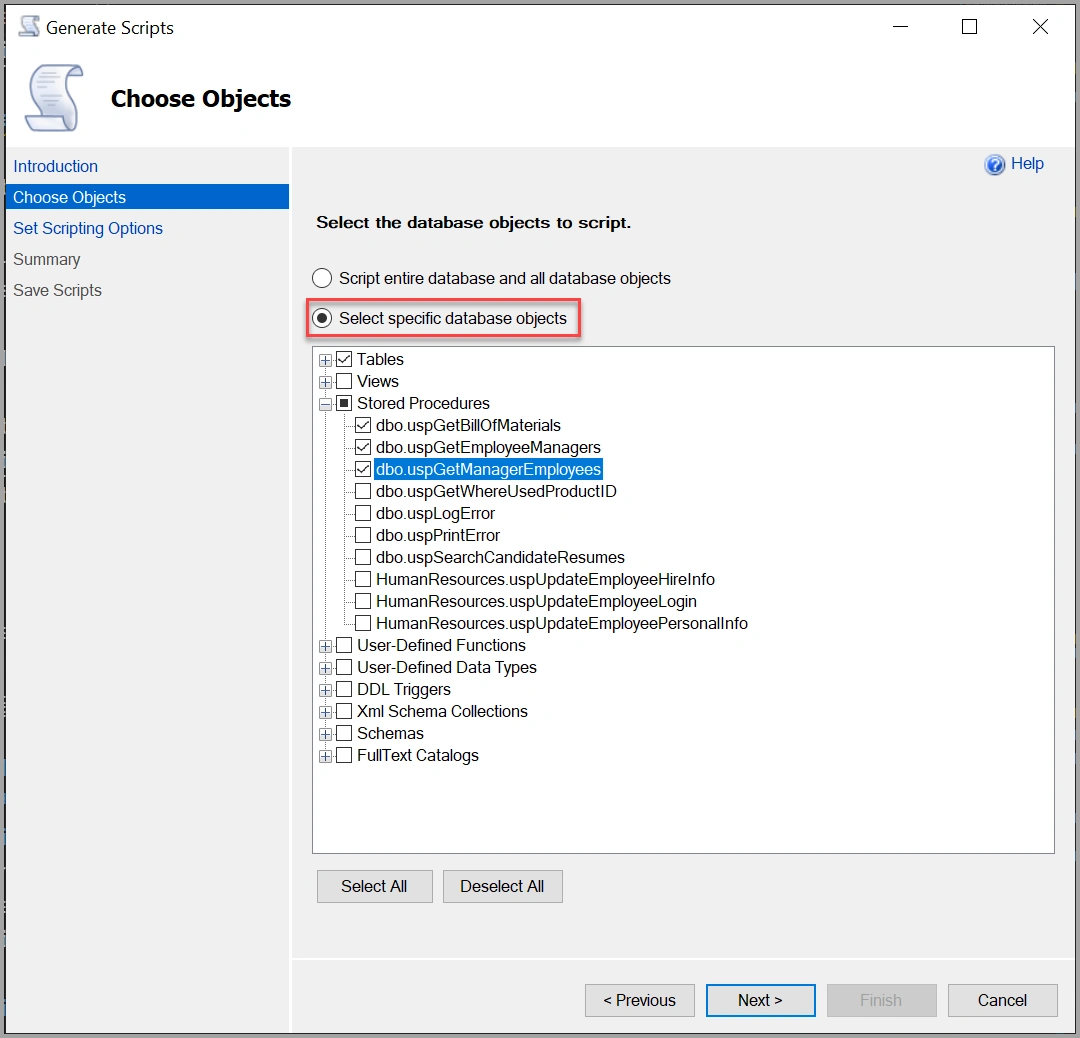

Or Select specific database objects - Select to limit the wizard to generate scripts for only the specific objects in the database that you choose.

Clone Database from one Instance to another in SQL Server

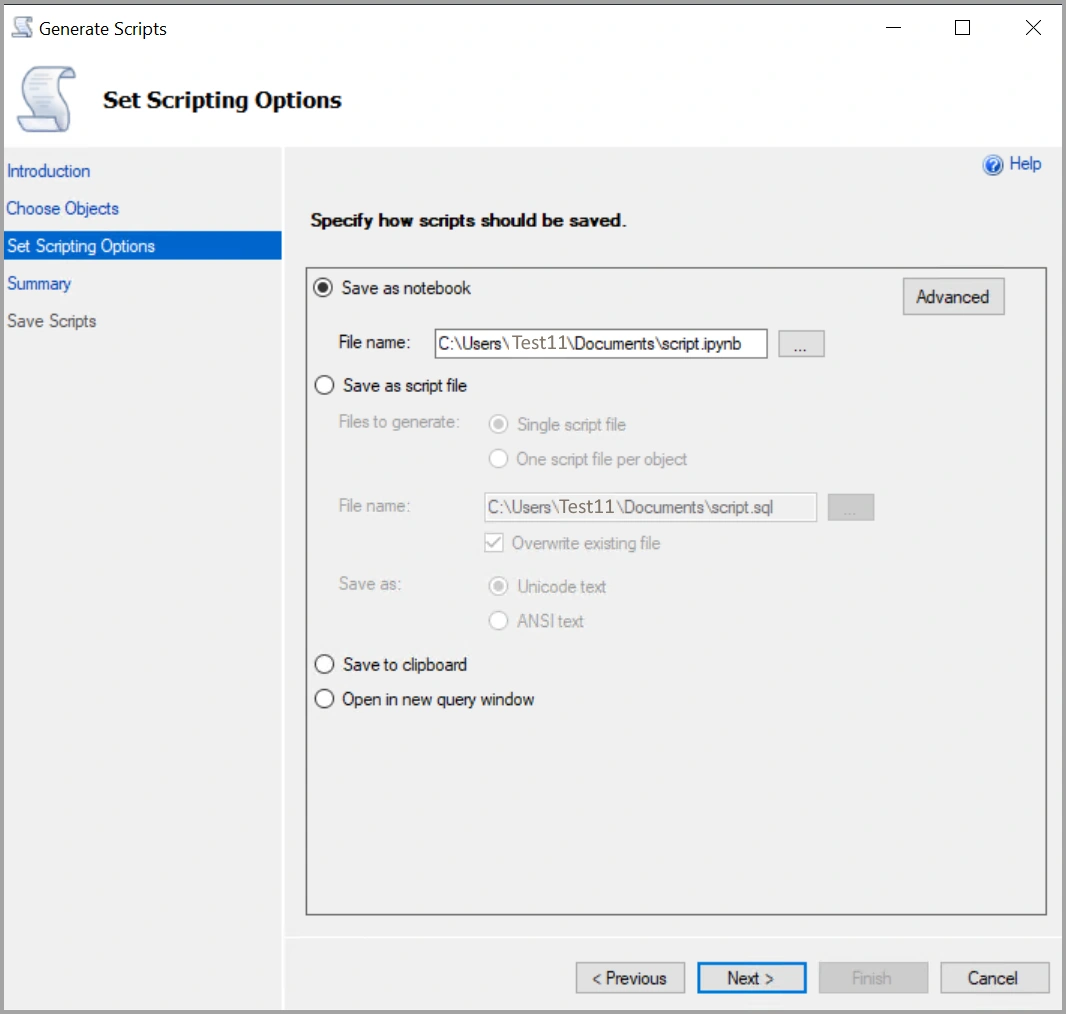

Set Scripting Options

Clone Database from one Instance to another in SQL Server

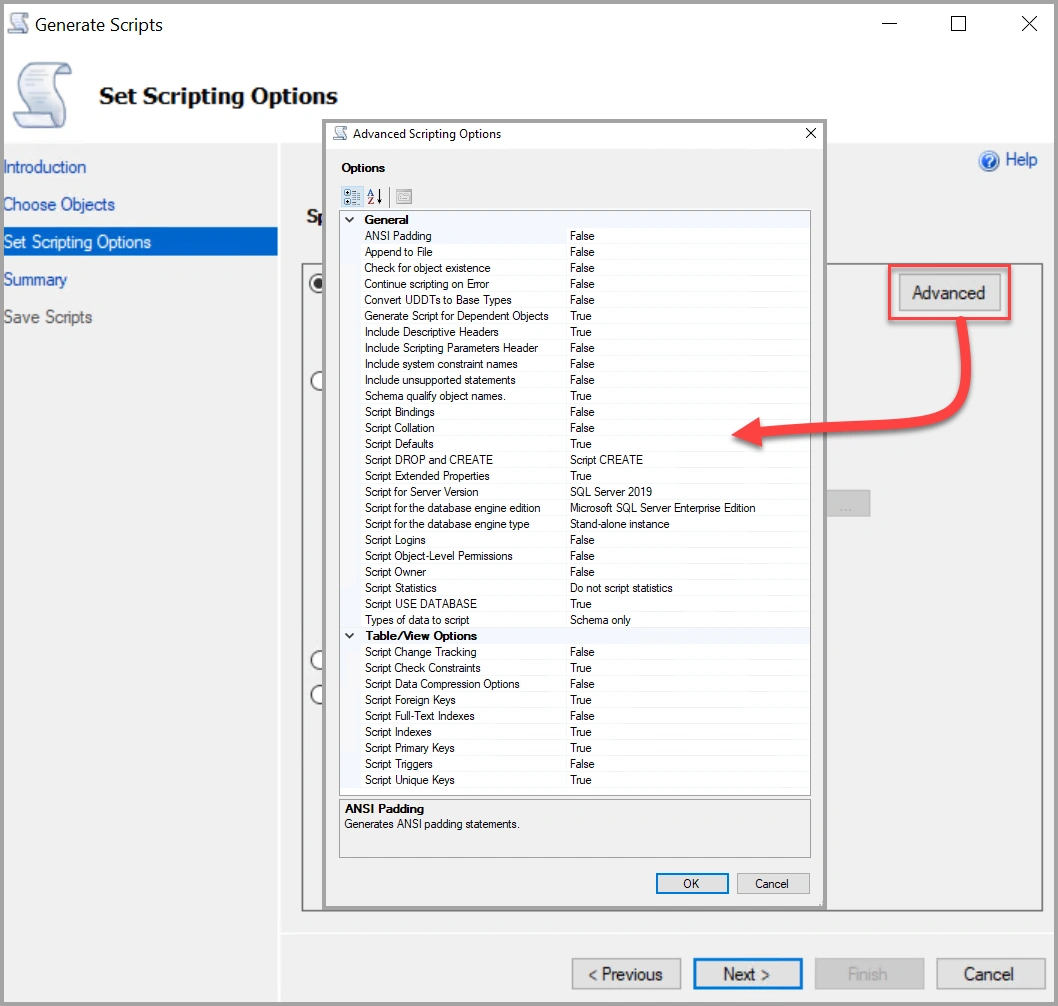

Click Advanced button for Advanced Scripting Options

Clone Database from one Instance to another in SQL Server

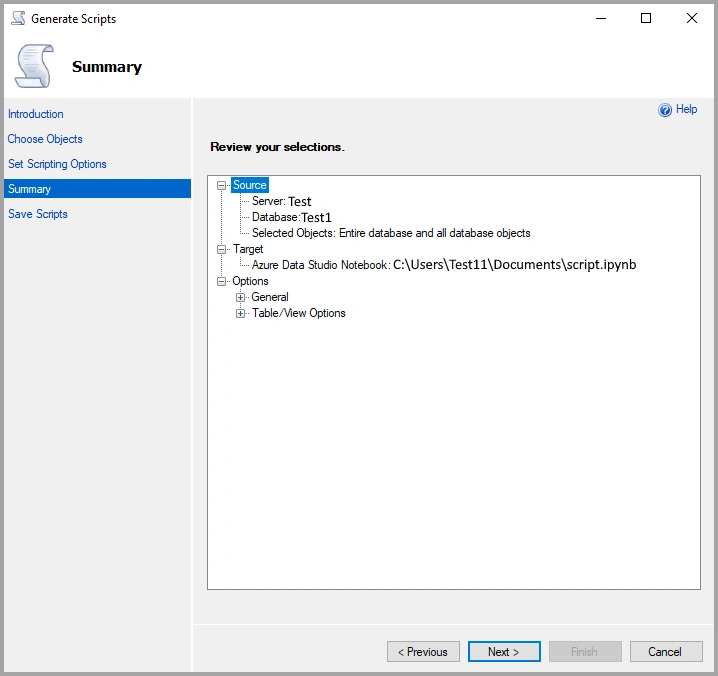

Summary page.

Clone Database from one Instance to another in SQL Server

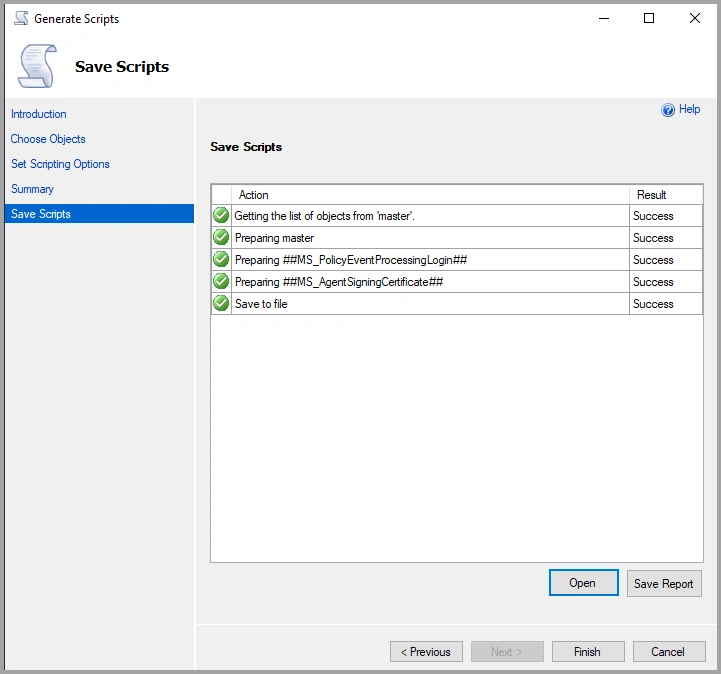

Run and Save Script.

Clone Database from one Instance to another in SQL Server

The script saved.

Clone Database from one Instance to another in SQL Server

5 - Copy Database - Using the Copy Database Wizard

You can use the Copy Database Wizard to copy or move databases between servers or to upgrade a SQL Server database to a later version. The Copy Database Wizard moves or copies databases and certain server objects easily from one instance of SQL Server to another instance, with no server downtime. By using this wizard, you can do the following [ref]:

  • Pick a source and destination server.

  • Select database(s) to move or copy.

  • Specify the file location for the database(s).

  • Copy logins to the destination server.

  • Copy additional supporting objects, jobs, user-defined stored procedures, and error messages.

  • Schedule when to move or copy the database(s).

Run Copy Wizard

Clone Database from one Instance to another in SQL Server

Open Copy Database Wizard, Click next.

Clone Database from one Instance to another in SQL Server

Choose Source Server, Next.

Clone Database from one Instance to another in SQL Server

Try to link to Destination Server, got error message.

Clone Database from one Instance to another in SQL Server

As indicated, SQL Server Agent does not start.

Clone Database from one Instance to another in SQL Server

Start SQL Server Agent

Clone Database from one Instance to another in SQL Server

SQL Server Agent started.

Clone Database from one Instance to another in SQL Server

Rerun.

Clone Database from one Instance to another in SQL Server

Next

Clone Database from one Instance to another in SQL Server

Next, we got the multiple choices of database to be copied.

Clone Database from one Instance to another in SQL Server
