CI/CD Pipeline Using Jenkins And GitHub For .NET Core Web Application

We are going to discuss Jenkins and build, test, and deploy the .NET Core application step-by-step

Agenda

  • Introduction of Jenkins
  • Features of Jenkins
  • Jenkins Continuous Integration
  • Installation of Java and Jenkins
  • Step by Step Implementation of.NET Core Application
  • Jenkins Pipeline and configuration

Prerequisites

  • GitHub
  • Jenkins
  • IIS
  • Visual Studio 2022
  • .NET Core SDK 6
  • Java 11

Introduction of Jenkins

  • Jenkins is the open-source automation server written in java
  • It supports all continuous integration and continuous deployment-related things right from build, test, and deploy in the software development
  • CI/CD is the main part of DevOps and many tools in the market are used by many organizations like Jenkins, TeamCity, Azure DevOps, and many more.
  • This makes it easier for a developer to just focus on software development for better productivity by integrating changes rather than focusing on the build, testing, and deploying of the application

Features of Jenkins

  • Open source
  • Easy to configure and Installation
  • Multiple plugins
  • User-Friendly Interface

Jenkins Continuous Integration

  • In the continuous integration process we integrate all the latest code changes which are committed by the developer into the git and any other.

Jenkins Continuous Integration

  • In real-time multiple developers are working on the same branch and EOD they will commit their work to the git.
  • Later on, the Jenkins server will trigger whenever the new code is committed, run a test case, and create an error-free build for many environments like QA, DEV, and Production as per our need.
  • If some build and unit test cases failed then the user will get notified about that and again the new code will come and this process is continuously work
  • If you want to learn more about Jenkins then read the official documentation (jenkins.io/doc).

Installation of Java and Jenkins


Java

Step 1

Install Java 11 for Jenkins

https://www.oracle.com/java/technologies/downloads/#java11

Step 2

Open the exe file and installed Java on your system

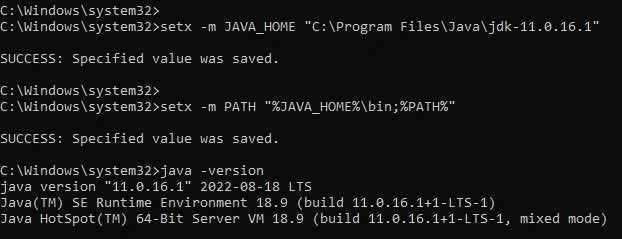

Step 3

Set the environment variable of Java Path using CMD administrator mode

setx -m JAVA_HOME "C:\Program Files\Java\jdk-11.0.16.1"
setx -m PATH "%JAVA_HOME%\bin;%PATH%"

Step 4

Check whether the Java is properly installed or not as I showed below

Installation of Java and Jenkins

Jenkins

Step 1

Install Jenkins

https://www.jenkins.io/download/

Step 2

Open the exe file and select local service as a logon type

Step 3

Configure port number (default port is 8080) but I set 8888 you can configure as per availability

Step 4

Provide Java JDK path of bin folder which are present in Java folder inside Program Data

Step 5

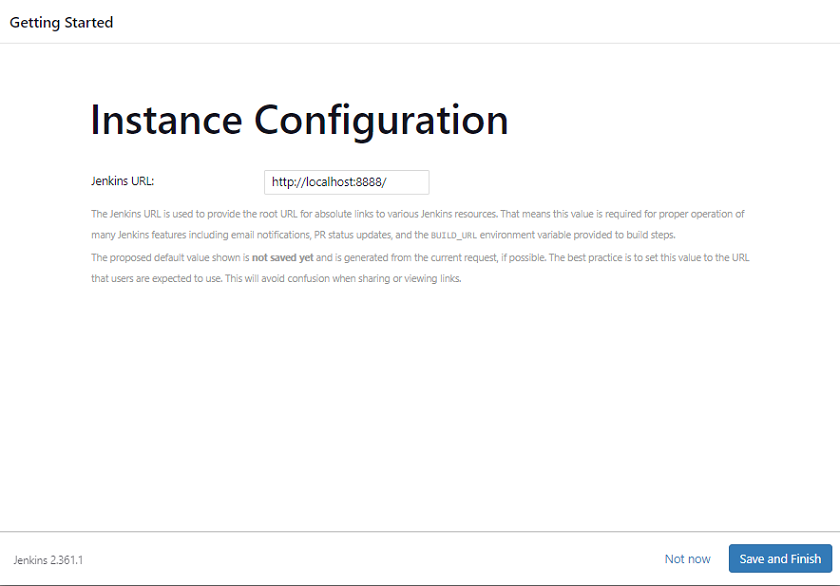

After successful installation of the Jenkins, the server opens the URL in the browser(http://localhost:8888/)

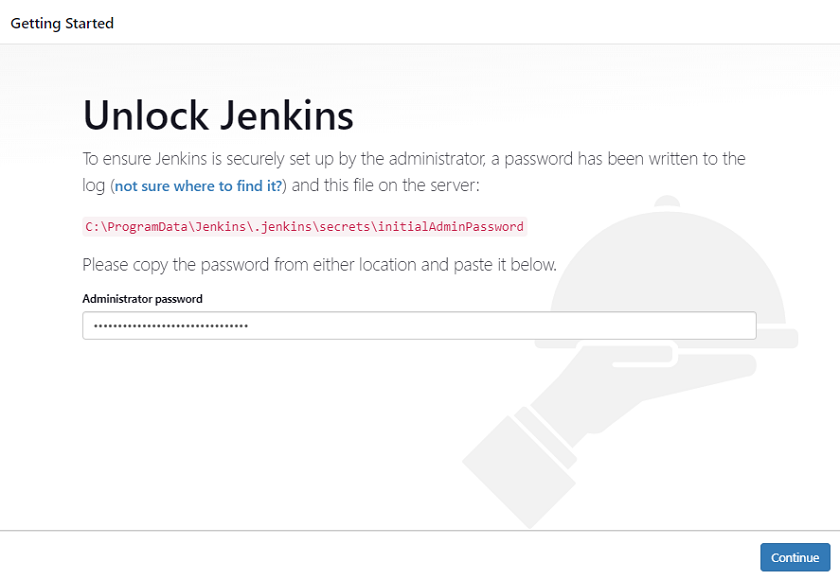

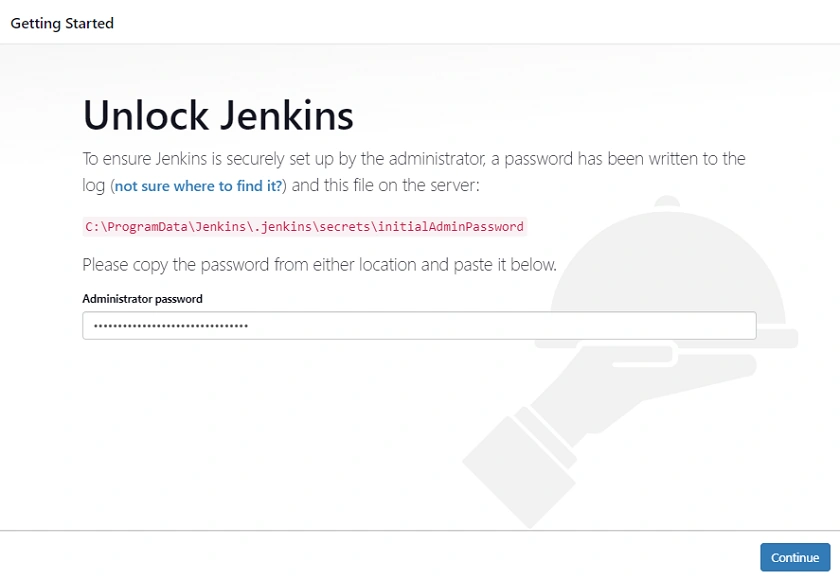

Step 6

You can see one inside that provides an admin key

Installation of Java and Jenkins

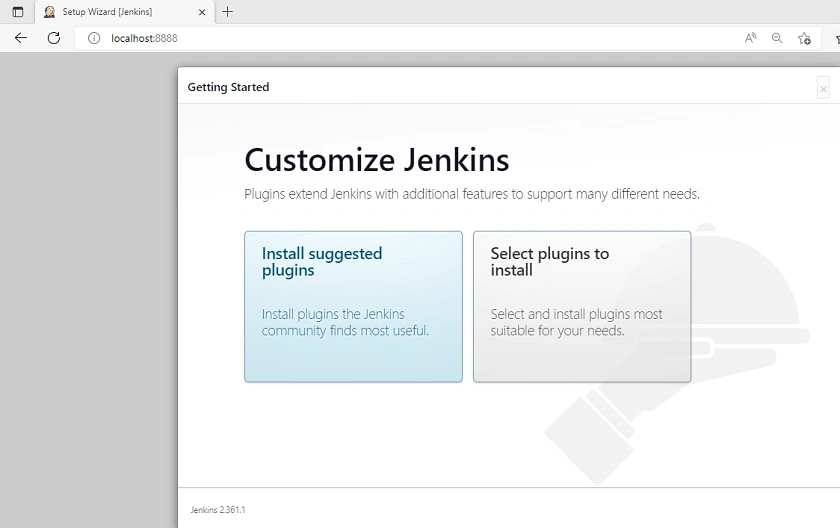

Step 7

Customize Jenkins plugin as you wish. I installed Git, MS Build MS Test, and a few others for .NET Application

Installation of Java and Jenkins

Step 8

Set user credentials which you need while login each time on Jenkins Server.

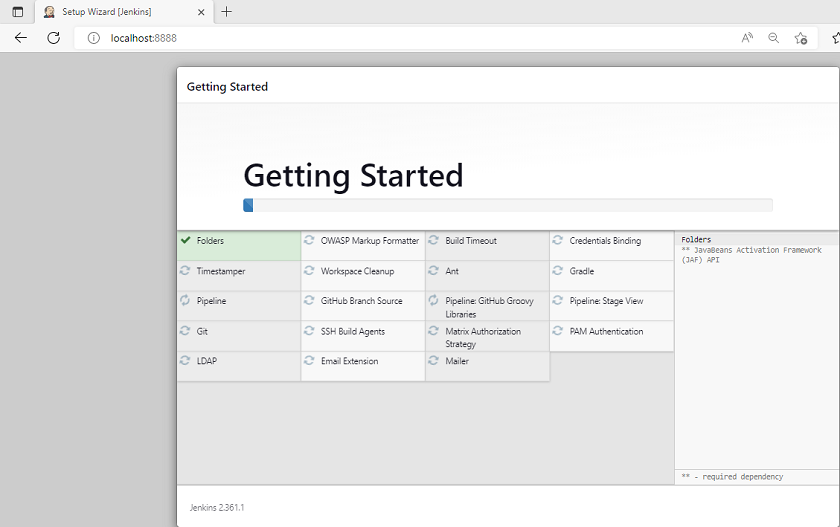

Step 9

It will take some time to install default plugins

Installation of Java and Jenkins

Installation of Java and Jenkins

Installation of Java and Jenkins

Installation of Java and Jenkins

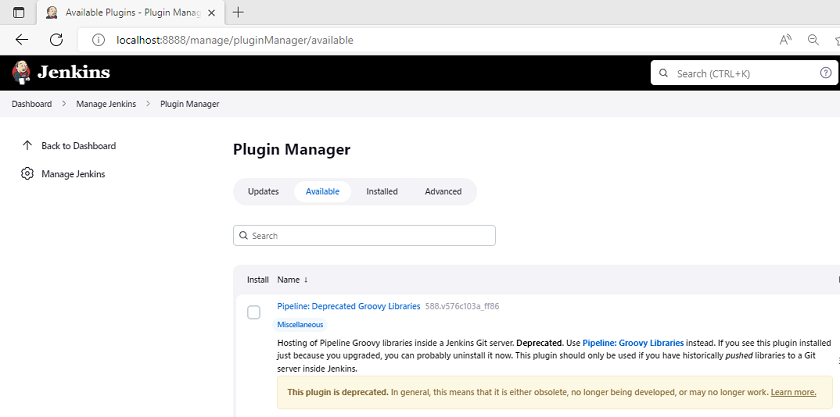

Step 10

Go to the Manage Plugins inside Manage Jenkins and installed necessary plugins which you want for .NET Application I installed, MS Build, Git, MS Test, and a few others.

Installation of Java and Jenkins

Step by Step Implementation of.NET Core Application

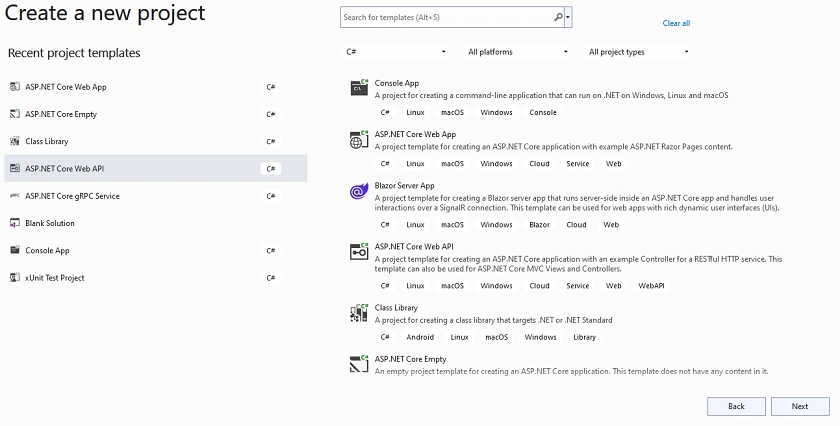

Step 1

Create a new Web API

Implementation of.NET Core Application

Step 2

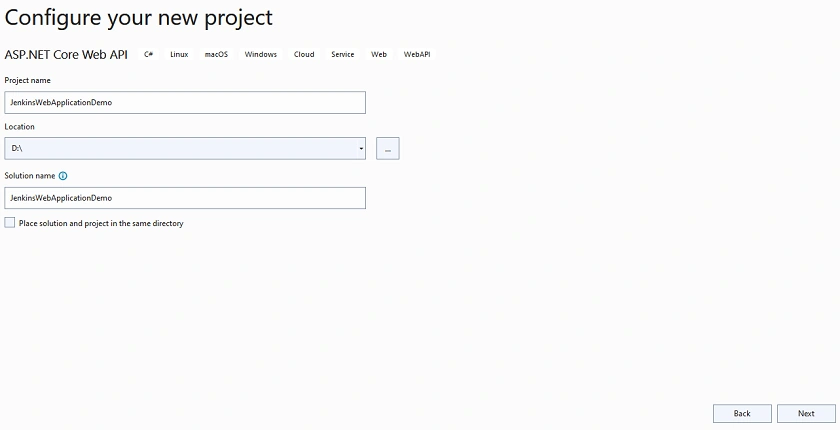

Configure the application

Implementation of.NET Core Application

Step 3

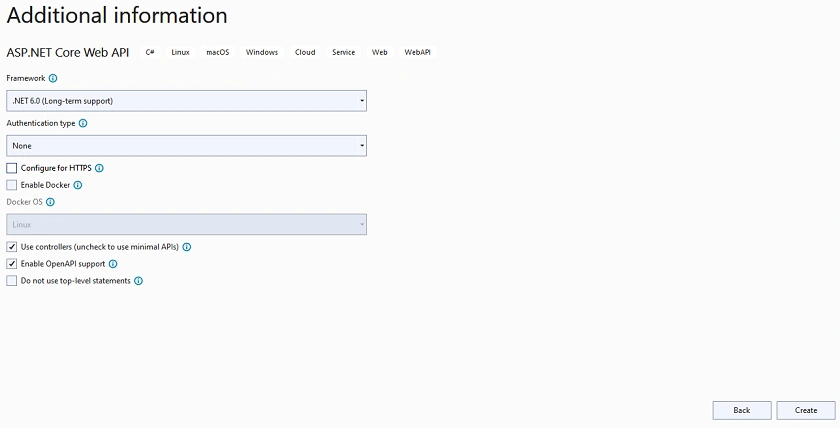

Provide additional information

Implementation of.NET Core Application

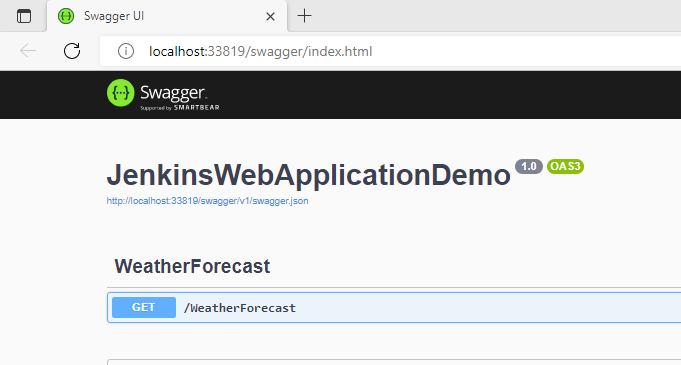

Step 4

Finally, run the application

Implementation of.NET Core Application

Step 5

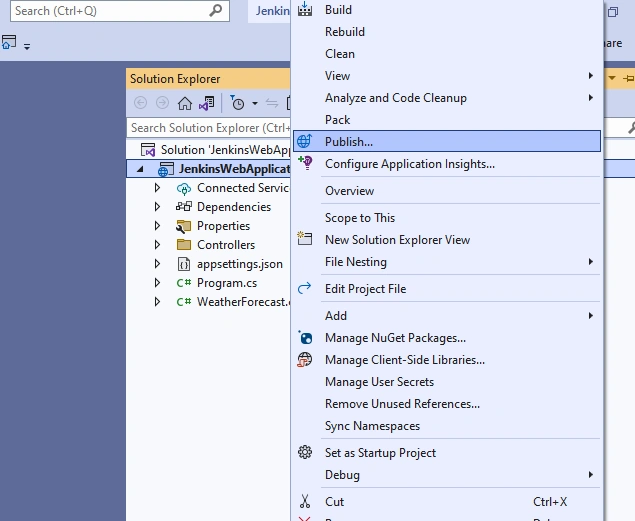

Now we are going to publish this code

Implementation of.NET Core Application

Step 6

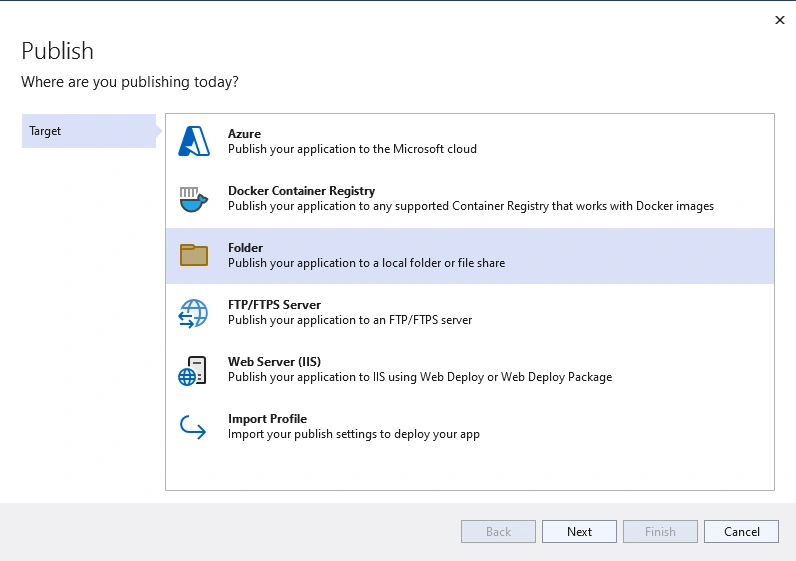

Select folder

Implementation of.NET Core Application

Step 7

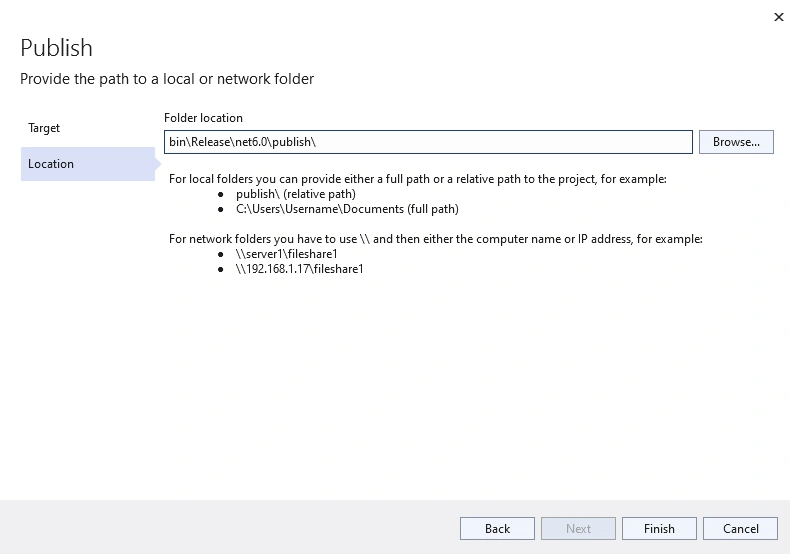

It will take default publish path

Implementation of.NET Core Application

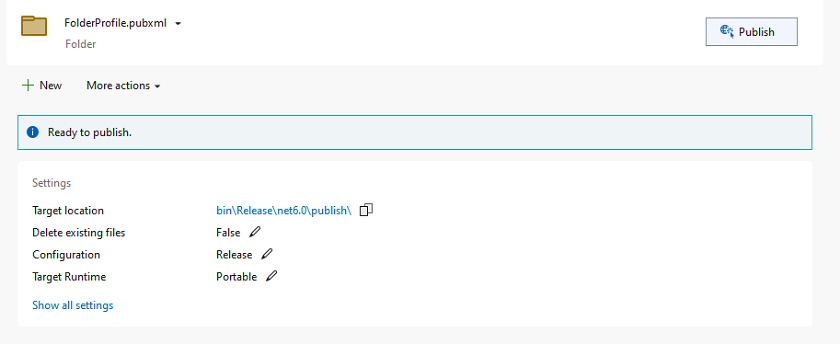

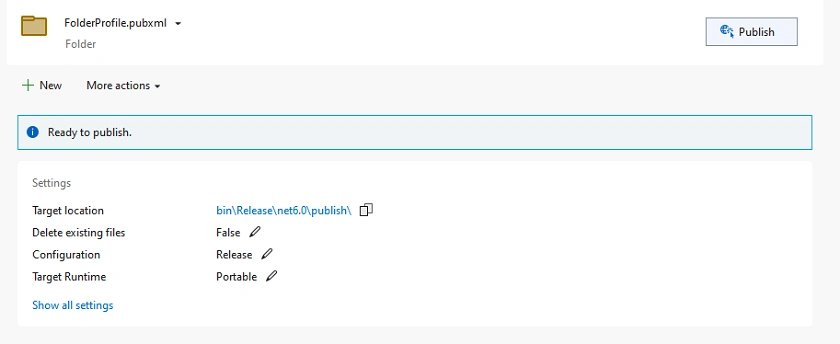

Step 8

Finally, publish

Implementation of.NET Core Application

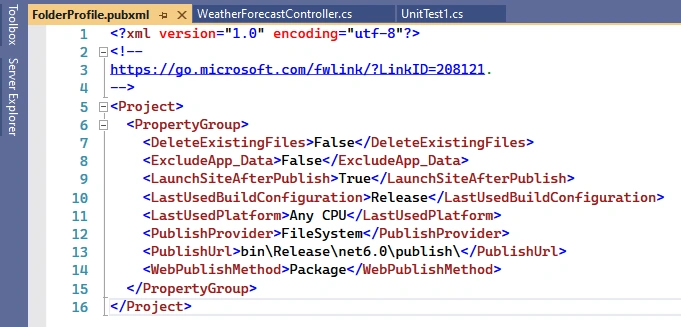

Step 9

Go to the property section of project inside solution and edit FolderProfile.pubxml file and change the web publish method to Package

Implementation of.NET Core Application

Step 10

We also need Microsoft Web Deploy, and most of time it will come with Visual Studio

Step 11

Later on, we just create an empty xUnit Test Case project just for demo purposes inside the same solution

Step 11

Run your project and confirm all things are working fine on your system before committing to git.

Step 12

Next, create a git repository and push your code into that

Jenkins Pipeline and Configuration

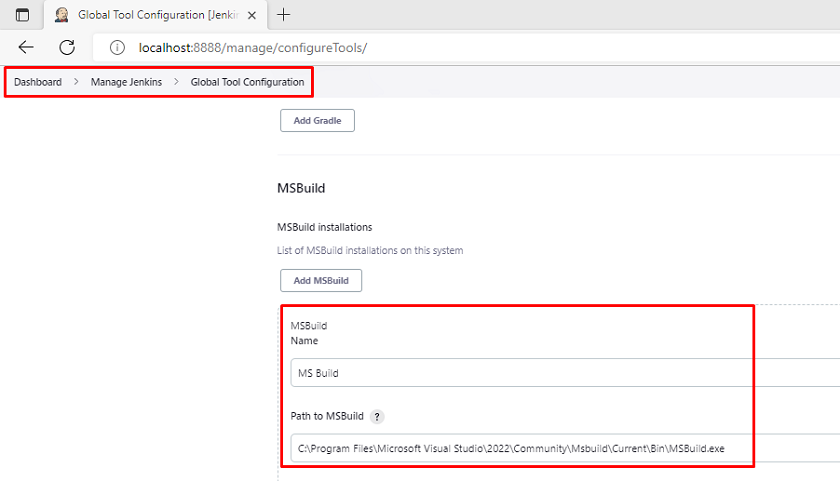

Step 1

First, we are going to add MS Build Path and Configuration for that go to the Global Tool Configuration inside the Manage Jenkins

Jenkins Pipeline and Configuration

Step 2

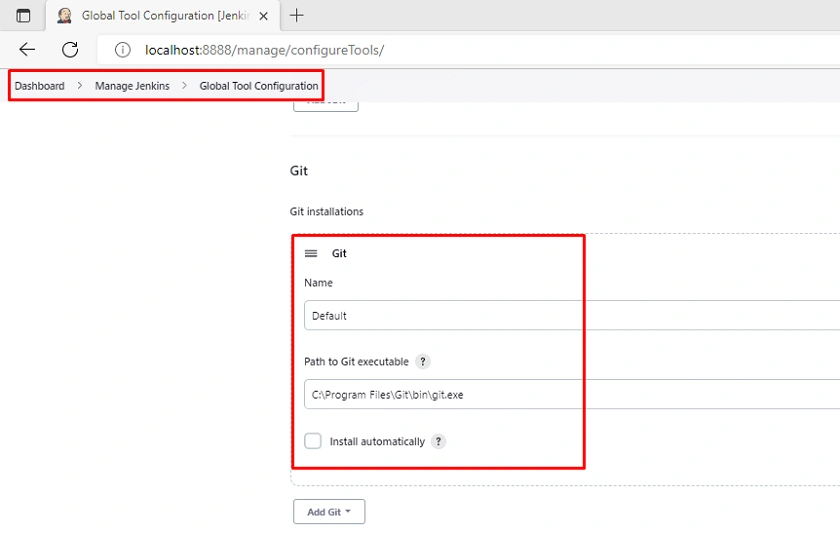

Next, we add the git file path inside the global tool configuration

Jenkins Pipeline and Configuration

Step 3

Now, we are going to add git credentials in Manage Credentials inside Manage Jenkins click and global credentials(unrestricted) add and your git credentials like username and password it will create credential id automatically once you click on save and that id you need to put inside pipeline configuration.

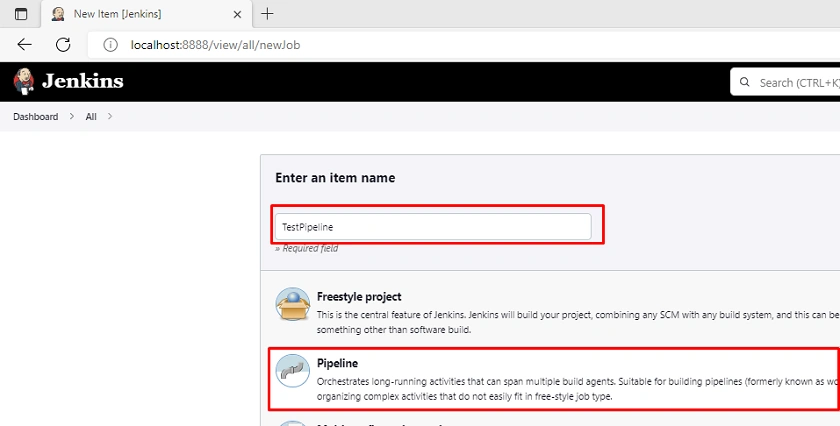

Step 4

Open Jenkins Dashboard and click on New Item to create a Pipeline

The pipeline is basically the set of steps that are going to execute before creating the build that includes unit test, integration test case, and many more as per need

Jenkins Pipeline and Configuration

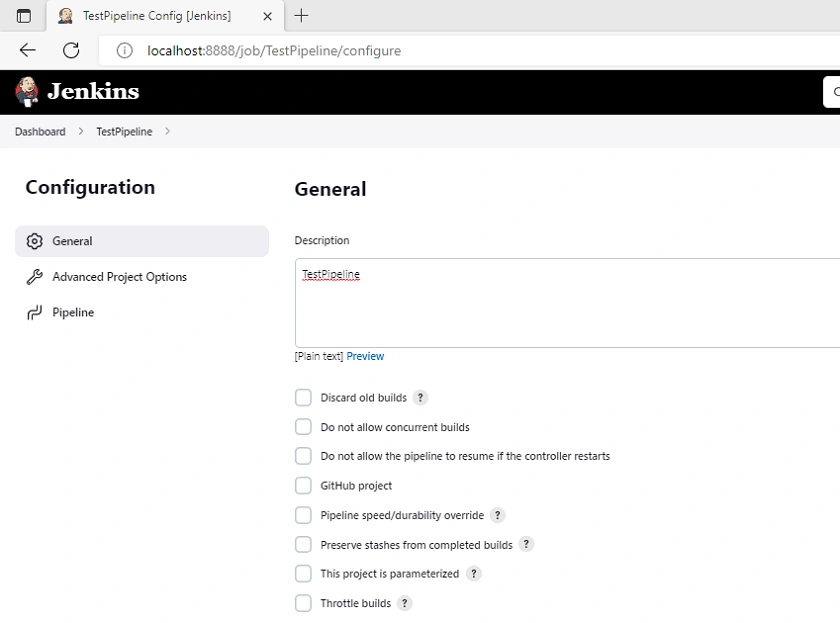

Step 5

Provide general information like a description

Jenkins Pipeline and Configuration

Step 6

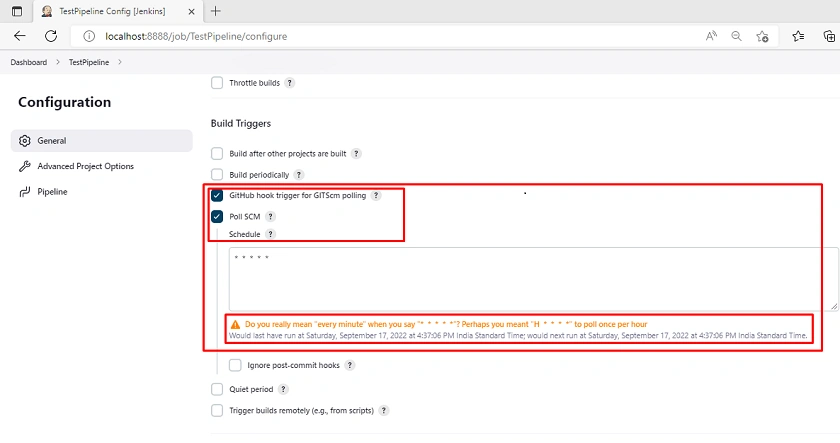

Next, click on a few checkboxes which help us to automatically trigger the pipeline whenever we commit code inside git repositories and put five start separated by spaces that is us to trigger pipeline instantly whenever the developers commit the code

Jenkins Pipeline and Configuration

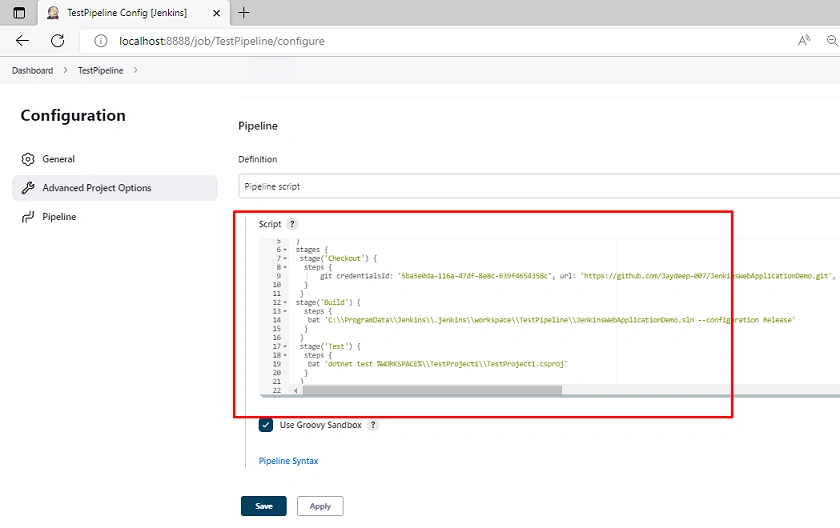

Step 7

Add the following pipeline script which is basically a set of steps that are going to executes before creating the build (Note- Please make sure all your paths are corrects otherwise it will throw errors in the build process)

Jenkins Pipeline and Configuration

pipeline {
    agent any
    environment {
        dotnet = 'C:\\Program Files\\dotnet\\dotnet.exe'
    }
    stages {
        stage('Checkout Stage') {
            steps {
                git credentialsId: '5ba5e0da-116a-47df-8e8c-639f4654358c', url: 'https://github.com/Jaydeep-007/JenkinsWebApplicationDemo.git', branch: 'main'
            }
        }
        stage('Build Stage') {
            steps {
                bat 'C:\\ProgramData\\Jenkins\\.jenkins\\workspace\\TestPipeline\\JenkinsWebApplicationDemo.sln --configuration Release'
            }
        }
        stage('Test Stage') {
            steps {
                bat 'dotnet test %WORKSPACE%\\TestProject1\\TestProject1.csproj'
            }
        }
        stage("Release Stage") {
            steps {
                bat 'dotnet build %WORKSPACE%\\JenkinsWebApplicationDemo.sln /p:PublishProfile=" %WORKSPACE%\\JenkinsWebApplicationDemo\\Properties\\PublishProfiles\\FolderProfile.pubxml" /p:Platform="Any CPU" /p:DeployOnBuild=true /m'
            }
        }
        stage('Deploy Stage') {
            steps {
                //Deploy application on IIS
                bat 'net stop "w3svc"'
                bat '"C:\\Program Files (x86)\\IIS\\Microsoft Web Deploy V3\\msdeploy.exe" -verb:sync -source:package="%WORKSPACE%\\JenkinsWebApplicationDemo\\bin\\Debug\\net6.0\\JenkinsWebApplicationDemo.zip" -dest:auto -setParam:"IIS Web Application Name"="Demo.Web" -skip:objectName=filePath,absolutePath=".\\\\PackagDemoeTmp\\\\Web.config$" -enableRule:DoNotDelete -allowUntrusted=true'
                bat 'net start "w3svc"'
            }
        }
    }
}

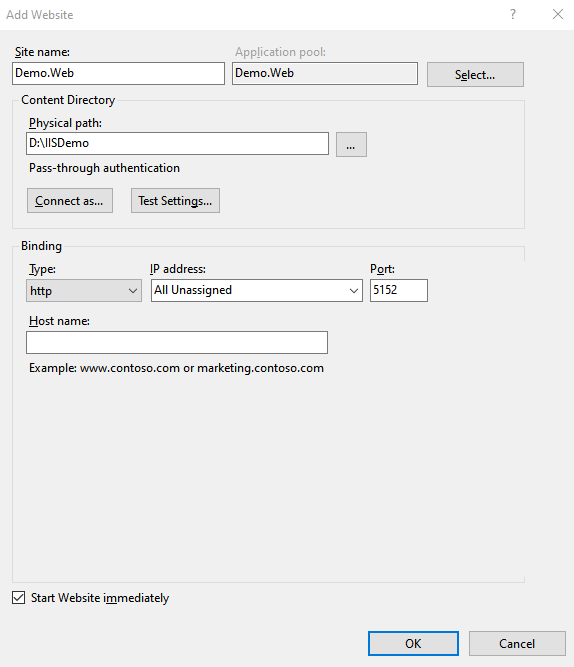

Step 8

Open the IIS and create empty website and point to the any empty folder in that our pipeline will publish and deploy our code after build is getting completed

Jenkins Pipeline and Configuration

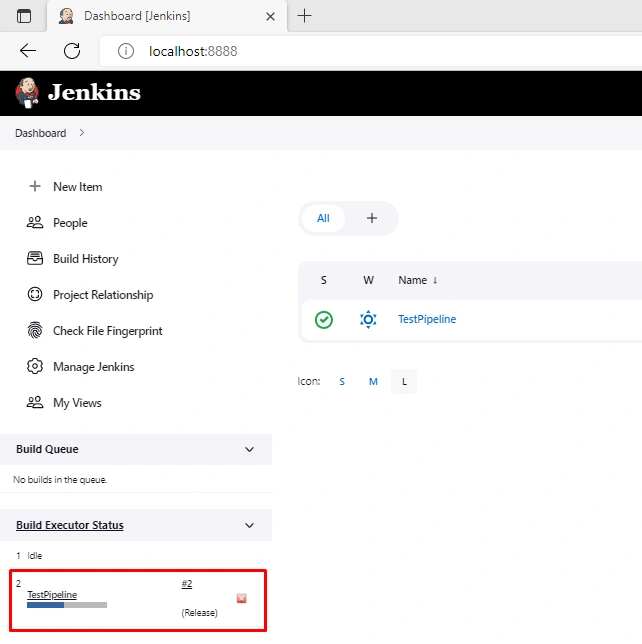

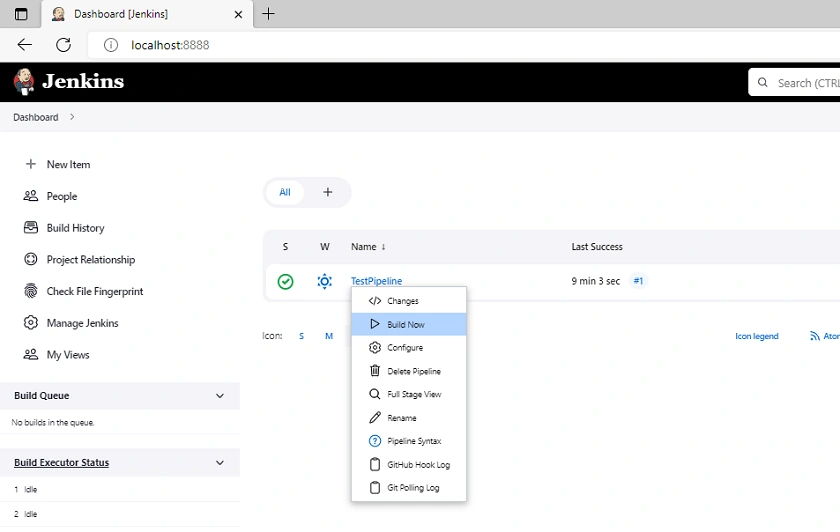

Step 9

After that go to the dashboard and run your pipeline

Jenkins Pipeline and Configuration

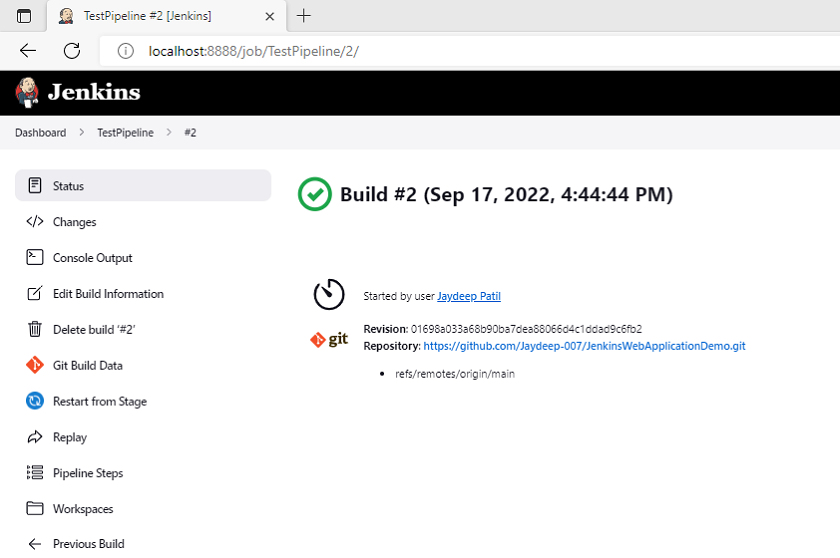

Step 10

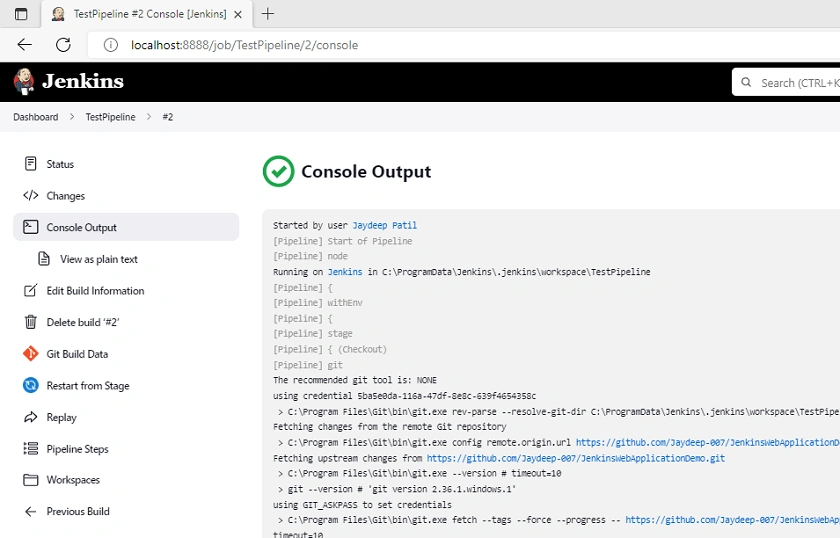

Here you can see the build is started

Jenkins Pipeline and Configuration

Jenkins Pipeline and Configuration

Jenkins Pipeline and Configuration

Now whenever you change add commit the code then build is triggered and the pipeline is going to create a new build for us and deploy it inside the IIS. This process is continuously running. Also, if the build failed due to some test cases and something like that then you can also configure the email using SMTP protocol inside Jenkins that helps us build

Step 11

Finally, Open IIS and you can now access your application with the latest build

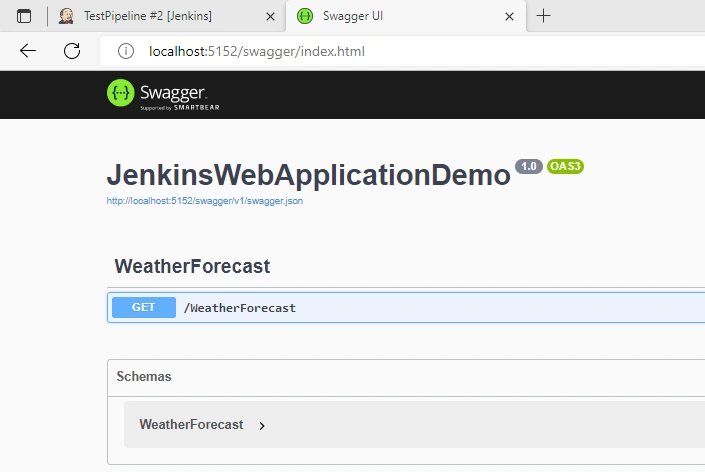

Step 12

Browse the URL from IIS and you can see the application is in running mode

Jenkins Pipeline and Configuration

Git Repository

You can clone the code from my Git Repository

https://github.com/Jaydeep-007/JenkinsWebApplicationDemo

Conclusion

Here we discussed the introduction of Jenkins and step-by-step implementation like installation and the configuration of the pipeline for continuous integration and continuous deployment.

Happy Learning!
