Calculated Columns vs. Measures in Power BI

Introduction

In Power BI, mastering the use of calculated columns and measures is essential for effective data analysis and visualization. While both calculated columns and measures allow you to derive new information from existing data, they serve distinct purposes and have different implications for your Power BI reports. This article aims to clarify the differences between calculated columns and measures, helping you make informed decisions when designing your data models and creating reports.

Calculated Columns

Calculated columns in Power BI are similar to columns in a spreadsheet—they are calculated row-by-row and stored as part of the underlying data model. Calculated columns are computed during data refresh and become a permanent part of the dataset. They are typically used to create new columns based on existing data in the dataset.

How to Create Calculated Columns?

1. Select the table in which you want to create the new column.
2. Select the ‘New Column’ option from the top.


When to Use Calculated Columns?

1. Static Data Manipulation: Calculated columns are useful for tasks such as concatenating strings, performing mathematical operations, or deriving new categorical variables based on existing columns.
2. Filtering and Sorting: Calculated columns can facilitate filtering and sorting operations that depend on computed values.
3. Relationships and Joins: Calculated columns can aid in establishing relationships between tables by creating common fields for joining.

Considerations for Calculated Columns

1. Data Refresh Performance: Adding calculated columns can increase data refresh times, especially for large datasets. Consider the performance implications when adding numerous calculated columns.
2. Storage and Memory: Calculated columns consume storage space within the data model, so avoid creating unnecessary calculated columns to conserve resources.
3. Limited Aggregation: Calculated columns cannot be aggregated across rows in visualizations; they are only available at the row level.

Measures

Measures in Power BI are dynamic calculations that are computed at query time based on the context of the visualization or calculation. Unlike calculated columns, measures are not stored in the data model; instead, they are calculated on the fly in response to user interactions or data queries.

How to Create Calculated Measure?

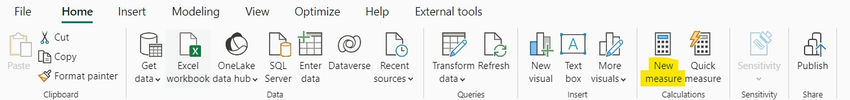

1. Select the ‘New Measure’ option from the top on the Home page.


When to Use Measures?

1. Aggregations and Calculations: Measures are ideal for performing aggregations (sums, averages, counts) and complex calculations (such as ratios, percentages, and averages) across multiple rows or tables.
2. Dynamic Context: Measures adjust their calculations based on the filters, slicers, or context applied within a visualization, providing dynamic insights into the data.
3. Reusability: Measures can be reused across multiple visualizations and reports, promoting consistency and efficiency in report development.

Considerations for Measures

1. Performance Optimization: Well-written measures can improve report performance by offloading calculations to the query engine and reducing the data transferred between Power BI and the data source.
2. Context Sensitivity: Understand how measures respond to changes in context, such as slicers, filters, or drill-down actions, to ensure accurate results in different scenarios.
3. DAX Language Proficiency: Developing complex measures may require proficiency in the Data Analysis Expressions (DAX) language, which powers calculations in Power BI.

Conclusion

Calculated columns and measures serve distinct purposes in Power BI, each with its own strengths and considerations. Calculated columns are suitable for static data manipulation and row-level operations, while measures excel in dynamic aggregations and contextual calculations. By understanding the differences between calculated columns and measures, you can leverage their respective capabilities effectively to create insightful and interactive Power BI reports.
