Building Chat Bots With Bing Search Results Using Bot Framework

Introduction

The Bot Framework supports different types of rich cards, Azure AD authentication, and provides a richer interaction experience to the users. I have already shared about message design, login, and deployment in my previous article. In this article, I will show how to connect and deploy bots into Bing Search.

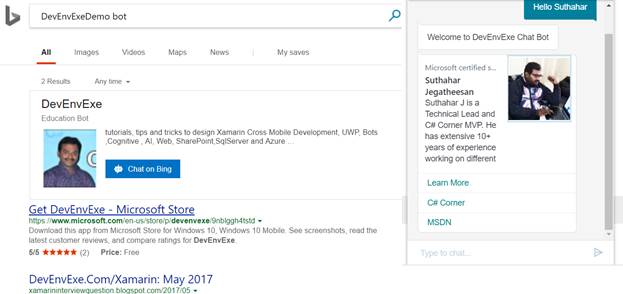

You can build Bing Bot Application using Bot Framework and connect the application to the Bing channel so that whenever a user searches tag /category text, the Bing search output shows your Bot along with your website.



You can follow the below-given steps for implementing your bot application into the Bing Channel.

Setup and Create New Bot Application

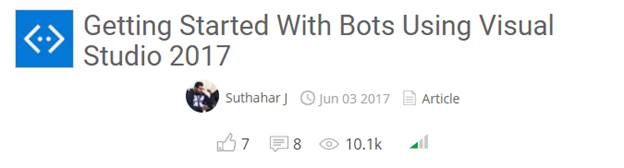

You can read my previous article for creating a Bot application using Visual Studio 2017.



Deploy Bot to Azure

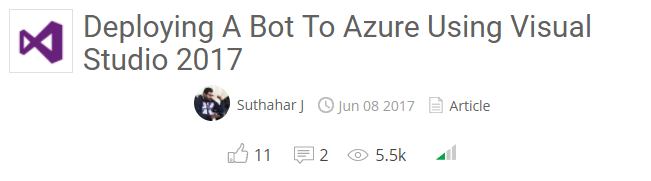

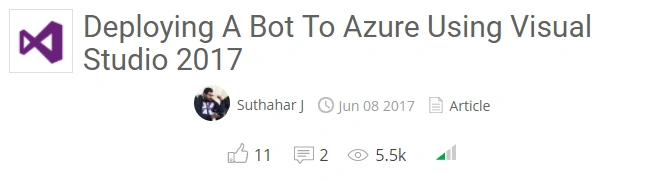

You can read my previous article for deploying a Bot application into Azure using Visual Studio 2017.


Publishing Bot on Bing

Step 1

For publishing a bot on Bing, you need to navigate to Bot Framework Portal > Login with Microsoft account > select "Deployed Bot Application" > click the Channels tab, and then click Bing.



Step 2

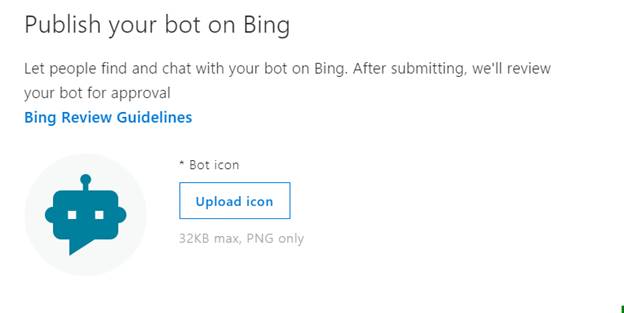

Upload Bot png icon within 32kb. The Bot icon will help people to find bot on Bing with image.



Step 3

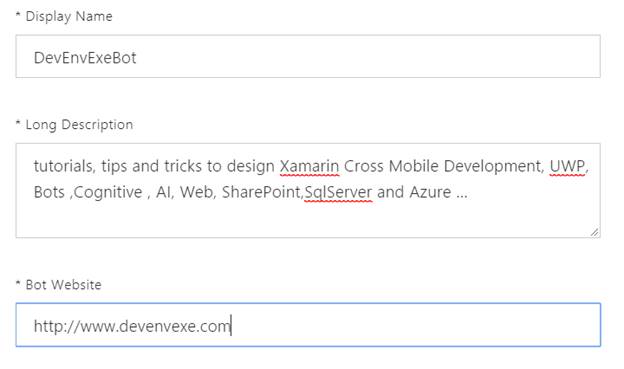

Provide the Bot application's basic information

• Display Name - provide a bot display name. This name will appear in Bing Search results.
• Long Description – provide for bot application. The bot must operate as described in its bot description.
• Website - Link to your website for more information about this bot.




Step 4

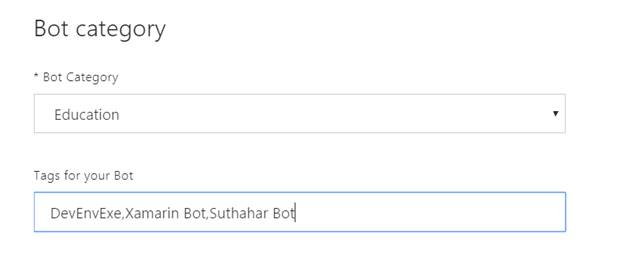

The Category and Tags options will help us to search the bot. You can select relevant category and provide comma-separated tag values.

Step 5

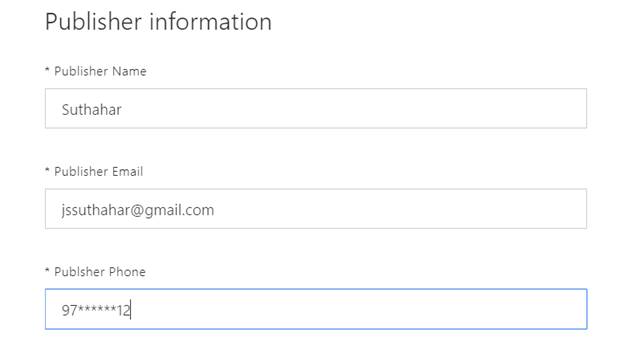

You can provide the following publisher information.

• Publisher Name
• Publisher Email
• Publisher Phone




Step 6

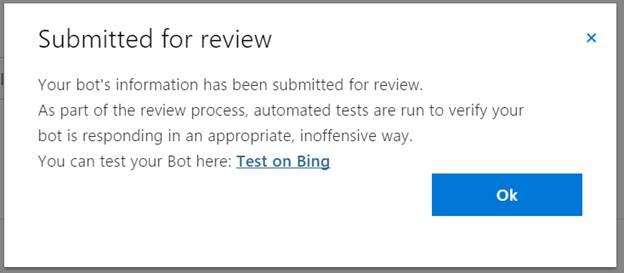

Provide the privacy and terms URL and click on Submit for review.



Step 7

The review process will take a few weeks or days and you will get the approval email. After approval, you can search your Bot on Bing using search keyword based on category and tag.

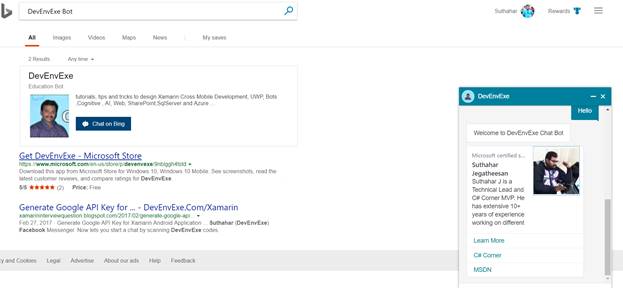

Click "Test on Bing", the link to preview a sample of how the bot will appear on Bing, like below.



Related articles

I have explained about Bot framework installation, deployment, and implementation of the below article.

1. Getting Started with Chatbot Using Azure Bot Service
2. Getting Started with Bots Using Visual Studio 2017
3. Deploying A Bot to Azure Using Visual Studio 2017
4. How to Create ChatBot In Xamarin
5. Getting Started with Dialog Using Microsoft Bot Framework
6. Getting Started with Prompt Dialog Using Microsoft Bot Framework
7. Getting Started With Conversational Forms And FormFlow Using Microsoft Bot Framework
8. Getting Started With Customizing A FormFlow Using Microsoft Bot Framework
9. Sending Bot Reply Message With Attachment Using Bot Framework
10. Getting Started With Hero Card Design Using Microsoft Bot Framework
11. Getting Started With Thumbnail Card Design Using Microsoft Bot Framework
12. Getting Started With Adaptive Card Design Using Microsoft Bot Framework
13. Getting Started with Receipt Card Design Using Microsoft Bot Framework
14. Building Bot Application With Azure AD Login Authentication Using AuthBot

Summary

In this article, you learned how to connect and deploy Bots into Bing Search. If you have any questions/feedback/ issues, please write in the comment box.
