Building a Scalable Real-Time Animal Image Classification System on Azure

In the world of AI and machine learning, real-time image classification has become a cornerstone for various applications. Whether identifying species in wildlife research or automating image tagging for user uploads, the demand for robust, scalable, and intelligent systems is growing.

This article details an end-to-end solution to build a real-time animal image classification system on Azure. By leveraging Azure's rich ecosystem, including Azure Machine Learning (AML), Azure Blob Storage, and other Azure services, we achieve a scalable, secure, and efficient application that integrates seamlessly with custom datasets for enhanced model performance.

Overview of the Solution

Our system identifies, counts, and classifies animal images uploaded by users. Using Azure Machine Learning and other Azure services, the solution accommodates real-time processing and integrates new datasets to enhance model accuracy. Key highlights include

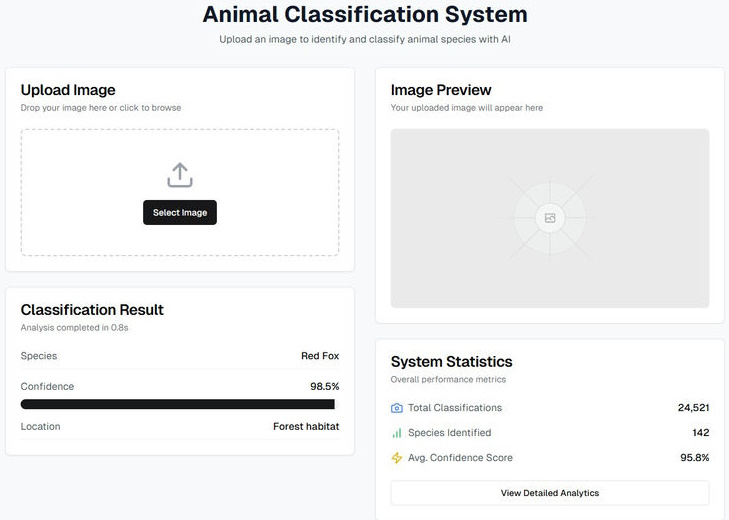

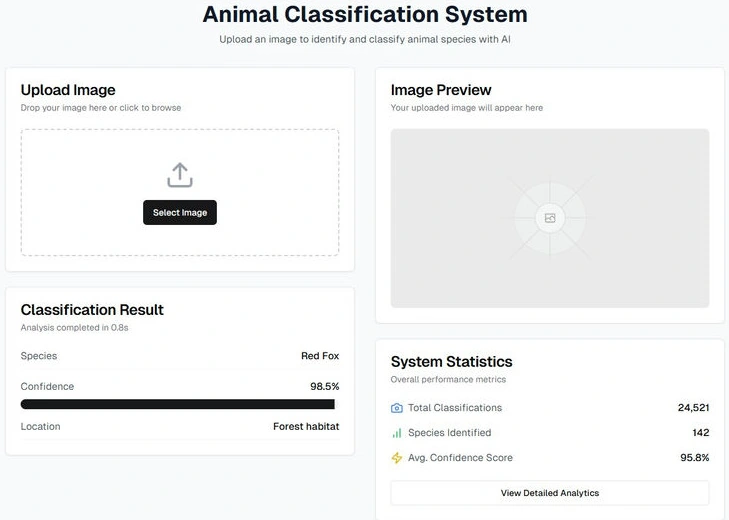

1. A web interface for users to upload images and view results.
2. Real-time classification with Azure Kubernetes Service (AKS).
3. Scalable architecture with seamless data management.
4. Analytics and monitoring for model and system performance.

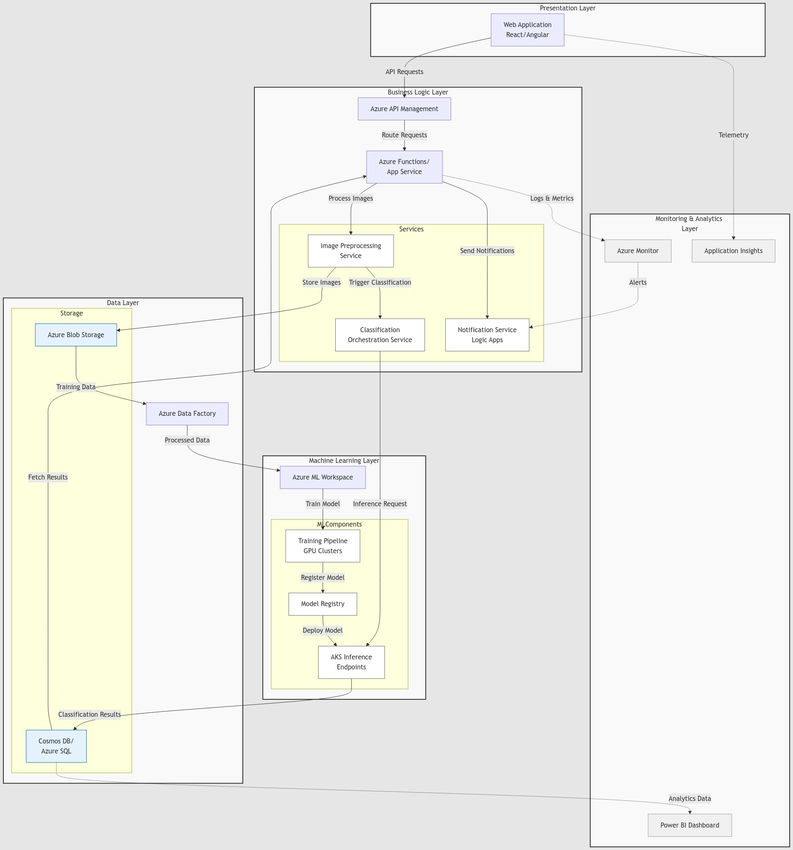

Solution Architecture

The system is designed using a layered architecture for modularity, scalability, and maintainability.

1. Presentation Layer

This layer handles user interactions.

Frontend Framework: React or Angular.

Key Features

• Image upload interface.
• Real-time display of classification results.
• Analytics dashboard to monitor model performance.

The front end communicates with backend services through Azure API Management, ensuring secure and streamlined data transfer.

2. Business Logic Layer

This layer processes requests, manages logic, and orchestrates tasks between components.

Key Components

1. Azure Functions / Azure App Service
   • Hosts REST APIs for handling image uploads, classification results, and analytics data.
2. Image Preprocessing Service
   • Prepares uploaded images for classification.
   • Performs resizing, format conversion, and metadata extraction.
3. Classification Orchestration
   • Forwards preprocessed images to the deployed model endpoint.
   • Manages the responses from the model, including confidence scores and classification labels.
4. Notification Service
   • Sends system alerts using Azure Event Grid and Logic Apps.

3. Machine Learning Layer

This layer focuses on training, managing, and deploying the classification model.

Key Components.

1. Azure Machine Learning Workspace
   • A central hub for managing datasets, experiments, and deployments.
2. Model Training Pipeline
   • Fine-tune the existing model with new datasets using GPU-powered compute clusters.
   • Implements data augmentation and hyperparameter tuning for optimal performance.
3. Model Deployment
   • Deploys the fine-tuned model to Azure Kubernetes Service (AKS) for real-time inference.
   • Uses the AML Model Registry for version control and rollback.

4. Data Layer

This layer handles the storage, management, and retrieval of datasets and classification results.

Key Components

1. Azure Blob Storage
   • Stores user-uploaded images, preprocessed data, and trained models.
   • Organized into containers: uploads/, processed/, datasets/, and models/.
2. Azure Cosmos DB
   • Stores metadata for uploaded images and their classification results.
   • Schema includes fields like image ID, upload timestamp, and confidence scores.
3. Azure Data Factory (ADF)
   • Orchestrates ETL pipelines for preprocessing datasets and integrating new data into the pipeline.

5. Monitoring and Analytics Layer

This layer verifies system health and provides actionable insights.

Key Components

1. Azure Monitor: Tracks system logs, latency, and error rates.
2. Application Insights: Captures telemetry for frontend and backend performance.
3. Power BI: Visualizes classification results, model accuracy, and system usage metrics.

End-to-End Data Flow

1. The user Uploads an Image
   • The user uploads an image via the frontend interface.
   • The image is sent to Azure API Management and stored in Blob Storage (uploads/).
2. Preprocessing and Classification
   • Azure Functions preprocess the image (e.g., resize, format conversion).
   • The image is sent to the deployed model on AKS for classification.
   • Results (species, confidence scores) are stored in Cosmos DB and displayed to the user in real time.
3. Model Training and Deployment
   • A new dataset of less common species is added to Blob Storage (datasets/).
   • Azure Data Factory preprocesses the dataset, and AML fine-tunes the model.
   • The updated model is deployed to AKS to ensure improved classification accuracy.
4. Monitoring and Insights
   • System logs and performance metrics are captured by Azure Monitor and Application Insights.
   • Power BI visualizes user trends, model performance, and system usage.

Benefits of the Azure-Powered Solution

1. Scalability
   • AKS checks that the model endpoint scales based on traffic.
   • Blob Storage automatically scales with data growth.
2. Security
   • Azure AD protects APIs and user data.
   • Azure Key Vault secures sensitive credentials and secrets.
3. Performance
   • GPU-enabled compute clusters accelerate model training.
   • API Management validates low-latency communication between services.
4. Flexibility
   • The modular architecture supports easy integration of new datasets and features.

By leveraging Azure’s robust ecosystem, this real-time animal image classification system demonstrates the power of cloud-native solutions in delivering scalable and intelligent applications. From seamless data management to real-time inference and continuous model improvement, the architecture checks high performance and user satisfaction.

Whether you're building an AI-powered system for research, automation, or user engagement, Azure provides the tools and infrastructure to achieve your goals.
