Introduction
In this article, I will show the steps to build a calculator application using Angular and Bootstrap in a few seconds.
Note. Before going through this session, please visit my previous article related to Angular applications as mentioned below.
Angular Application
Step 1. Create Component
First, create a component named calculator.
ng g c calculator
This creates the calculator.component.ts & calculator.component.html under the folder calculator.
Step 2. Add Angular calculator logic in calculator.component.ts
Here We use the selector: 'ng-calculator'. so, that we can use the calculator component anywhere in our code using the <ng-calculator></ng-calculator>.
import { Component, OnInit } from '@angular/core';
@Component({
selector: 'ng-calculator',
templateUrl: './calculator.component.html',
styleUrls: ['./calculator.component.css']
})
export class CalculatorComponent implements OnInit {
When the user clicks on a number or operand, I append it to the input variable. For example, if the user types 31+210+40, I assign it the input variable. It makes it easier to use the built-in JavaScript function eval to calculate the result just by invoking eval(input). I need to take care of a few issues. For Example, the user may repeat the operands (54++23). Or an invalid decimal number like 54.23.5 etc. Also, eval will throw an error if the number begins with 0.
The below code is not allowed. more than once. Here pressNum captures the numbers & decimal points. and appends it to the input variable. There are two validations here.
input:string = '';
result:string = '';
pressNum(num: string) {
//Do Not Allow . more than once
if (num==".") {
if (this.input !="" ) {
const lastNum=this.getLastOperand()
console.log(lastNum.lastIndexOf("."))
if (lastNum.lastIndexOf(".") >= 0) return;
}
}
The below code which not allow 0 at the beginning and Javascript will throw Octal literals are not allowed in strict mode. A number cannot contain more than one decimal place.
Eval will throw the error (Octal literals are not allowed in strict mode.), if the number begins with 0. Hence we remove it.
if (num=="0") {
if (this.input=="" ) {
return;
}
const PrevKey = this.input[this.input.length - 1];
if (PrevKey === '/' || PrevKey === '*' || PrevKey === '-' || PrevKey === '+') {
return;
}
}
this.input = this.input + num
this.calcAnswer();
}
getLastOperand returns the last operand. For example, if the user input is 921+18 then the last operand is 18.
getLastOperand() {
let pos:number;
console.log(this.input)
pos=this.input.toString().lastIndexOf("+")
if (this.input.toString().lastIndexOf("-") > pos) pos=this.input.lastIndexOf("-")
if (this.input.toString().lastIndexOf("*") > pos) pos=this.input.lastIndexOf("*")
if (this.input.toString().lastIndexOf("/") > pos) pos=this.input.lastIndexOf("/")
console.log('Last '+this.input.substr(pos+1))
return this.input.substr(pos+1)
}
The pressOperator captures the operators. It again appends it to the input variable. We make sure that that operator is followed by a number and not another operator (18++).
pressOperator(op: string) {
//Do not allow operators more than once
const lastKey = this.input[this.input.length - 1];
if (lastKey === '/' || lastKey === '*' || lastKey === '-' || lastKey === '+') {
return;
}
this.input = this.input + op
this.calcAnswer();
}
Here clear removes the last input.
clear() {
if (this.input !="" ) {
this.input=this.input.substr(0, this.input.length-1)
}
}
Here allClear clears everything.
allClear() {
this.result = '';
this.input = '';
}
Here calcAnswer is where the calculation happens. We check the last character. If it is a decimal point (.) then we remove it (Example in 15+13.). We also remove the last character if it is an operator. (Example 15+13+).
calcAnswer() {
let formula = this.input;
let lastKey = formula[formula.length - 1];
if (lastKey === '.') {
formula=formula.substr(0,formula.length - 1);
}
lastKey = formula[formula.length - 1];
if (lastKey === '/' || lastKey === '*' || lastKey === '-' || lastKey === '+' || lastKey === '.') {
formula=formula.substr(0,formula.length - 1);
}
console.log("Formula " +formula);
this.result = eval(formula);
}
Here getAnswer calculates and assigns the result to the input variable.
getAnswer() {
this.calcAnswer();
this.input = this.result;
if (this.input=="0") this.input="";
}
Then use of constructor() and ngOnInit().
constructor() { }
ngOnInit(): void {
}
}
The Code as shown below,
import { Component, OnInit } from '@angular/core';
@Component({
selector: 'ng-calculator',
templateUrl: './calculator.component.html',
styleUrls: ['./calculator.component.css']
})
export class CalculatorComponent implements OnInit {
input:string = '';
result:string = '';
pressNum(num: string) {
if (num==".") {
if (this.input !="" ) {
const lastNum=this.getLastOperand()
console.log(lastNum.lastIndexOf("."))
if (lastNum.lastIndexOf(".") >= 0) return;
}
}
if (num=="0") {
if (this.input=="" ) {
return;
}
const PrevKey = this.input[this.input.length - 1];
if (PrevKey === '/' || PrevKey === '*' || PrevKey === '-' || PrevKey === '+') {
return;
}
}
this.input = this.input + num
this.calcAnswer();
}
getLastOperand() {
let pos:number;
console.log(this.input)
pos=this.input.toString().lastIndexOf("+")
if (this.input.toString().lastIndexOf("-") > pos) pos=this.input.lastIndexOf("-")
if (this.input.toString().lastIndexOf("*") > pos) pos=this.input.lastIndexOf("*")
if (this.input.toString().lastIndexOf("/") > pos) pos=this.input.lastIndexOf("/")
console.log('Last '+this.input.substr(pos+1))
return this.input.substr(pos+1)
}
pressOperator(op: string) {
const lastKey = this.input[this.input.length - 1];
if (lastKey === '/' || lastKey === '*' || lastKey === '-' || lastKey === '+') {
return;
}
this.input = this.input + op
this.calcAnswer();
}
clear() {
if (this.input !="" ) {
this.input=this.input.substr(0, this.input.length-1)
}
}
allClear() {
this.result = '';
this.input = '';
}
calcAnswer() {
let formula = this.input;
let lastKey = formula[formula.length - 1];
if (lastKey === '.') {
formula=formula.substr(0,formula.length - 1);
}
lastKey = formula[formula.length - 1];
if (lastKey === '/' || lastKey === '*' || lastKey === '-' || lastKey === '+' || lastKey === '.') {
formula=formula.substr(0,formula.length - 1);
}
console.log("Formula " +formula);
this.result = eval(formula);
}
getAnswer() {
this.calcAnswer();
this.input = this.result;
if (this.input=="0") this.input="";
}
constructor() { }
ngOnInit(): void {
}
}
Step 3. Add Angular template code in calculator.component.html using Bootstrap
<div class="container-fluid">
<div class="jumbotron col-sm-9 p-2 m-0 bg-warning">
<h2 class="text-center">Angular Calculator Application</h2>
<h3 class="text-center">By Satyaprakash</h3>
<div class="form-group">
<label for="usr">Displays the User Input</label>
<div class="form-control" type="text">{{input}}</div>
</div>
<div class="form-group">
<label for="pwd">Displays the Results</label>
<div class="form-control" type="text">{{result}}</div>
</div>
<div class="col-sm-12 p-1 m-0">
<button class="btn btn-info col-sm-6" type="button" (click)="allClear()">C</button>
<button class="btn btn-danger col-sm-3" type="button" (click)="clear()">x</button>
<button class="btn btn-secondary col-sm-3" type="button" (click)="pressOperator('/')">/</button>
</div>
<div class="col-sm-12 p-1 m-0">
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('7')">7</button>
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('8')">8</button>
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('9')">9</button>
<button class="btn btn-secondary col-sm-3 p-1" type="button" (click)="pressOperator('*')">X</button>
</div>
<div class="col-sm-12 p-1 m-0">
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('4')">4</button>
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('5')">5</button>
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('6')">6</button>
<button class="btn btn-secondary col-sm-3 p-1" type="button" (click)="pressOperator('-')">-</button>
</div>
<div class="col-sm-12 p-1 m-0">
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('1')">1</button>
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('2')">2</button>
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('3')">3</button>
<button class="btn btn-secondary col-sm-3 p-1" type="button" (click)="pressOperator('+')">+</button>
</div>
<div class="col-sm-12 p-1 m-0">
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('.')">.</button>
<button class="btn btn-primary col-sm-3 p-1" type="button" (click)="pressNum('0')">0</button>
<button class="btn btn-lg btn-success col-sm-6 p-1" type="button" (click)="getAnswer()">=</button>
</div>
</div>
</div>
The first textbox displays the user input including the operators.
<div class="container-fluid">
<div class="jumbotron col-sm-9 p-2 m-0 bg-warning">
<h2 class="text-center">Angular Calculator Application</h2>
<h3 class="text-center">By Satyaprakash</h3>
<div class="form-group">
<label for="usr">Displays the User Input</label>
<div class="form-control" type="text">{{input}}</div>
</div>
The second textbox displays the result as the user type.
<div class="form-group">
<label for="pwd">Displays the Results</label>
<div class="form-control" type="text">{{result}}</div>
</div>
C Clears all displays and x clears the last input i.e delete. /, X,- & + are our four operators for division, multiplication subtraction & addition and use . to enter the decimal numbers. = Calculates and resets the user input. I am using event binding to map user clicks to the component class. The pressNum() captures the number & decimal buttons. The pressOperator() method captures the /, X,- & + button clicks. allClear clears all the inputs. clear() deletes the last input. getAnswer() calculates and resets the Calculator again.
Step 4. Add the selector of calculator.component.html in app.component.html
<ng-calculator></ng-calculator>
Step 5. Add the CalculatorComponent in the declaration array of app.module.ts
import { CalculatorComponent } from './calculator/calculator.component';
@NgModule({
declarations: [
AppComponent,
CalculatorComponent
],
Step 6. Add Bootstrap CDN url in the index.html to make the application responsive design
<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<title>Angular Application Real-Time</title>
<base href="/">
<meta name="viewport" content="width=device-width, initial-scale=1">
<link rel="icon" type="image/x-icon" href="favicon.ico">
<link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/css/bootstrap.min.css" integrity="sha384-9aIt2nRpC12Uk9gS9baDl411NQApFmC26EwAOH8WgZl5MYYxFfc+NcPb1dKGj7Sk" crossorigin="anonymous">
</head>
<body>
<app-root></app-root>
</body>
</html>

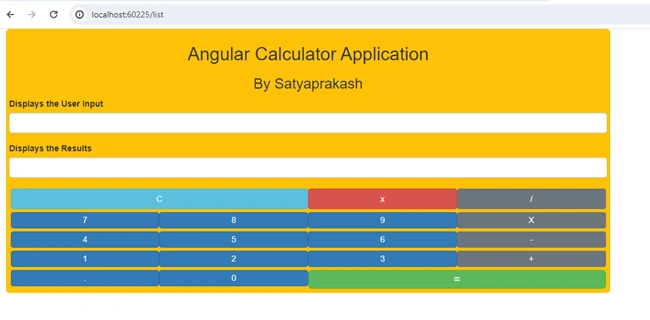

Output
Use the below command to run the Angular application.
ng serve
![Angular Calculator Application]()

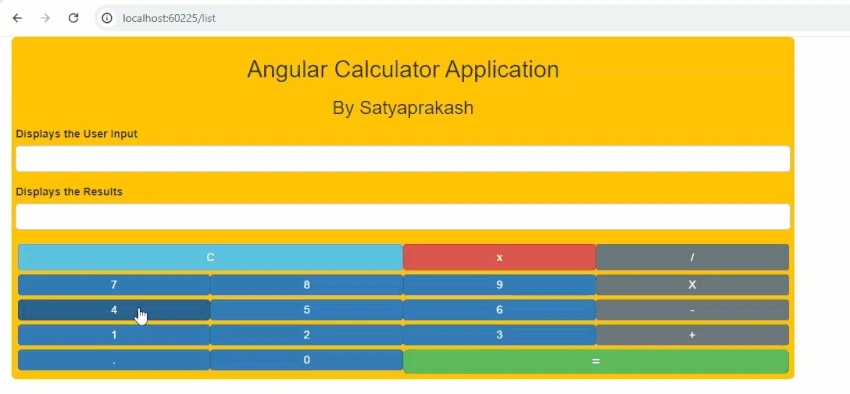

Please check below how it works.
![Angular Calculator Application]()
Summary
In this write-up, we have learned the details below.
- Angular component for calculator Template design and component logic.
- Create an Angular calculator application using Bootstrap.
- Understanding the code description in calculator logic.
Thank You & Stay Tuned For More
