Boost Data Analysis: Box-Cox Transformation

Introduction

In the realm of data science and statistics, transforming data is often a crucial step in preparing it for analysis. One popular method for transforming non-normally distributed data is the Box Cox Transformation. Named after statisticians George Box and Sir David Roxbee Cox, this technique provides a flexible approach to stabilize variance and make data more closely approximate a normal distribution, which is often a fundamental assumption for many statistical techniques.

Box-Cox Transformation

The Box Cox Transformation is a family of power transformations that seeks to find the optimal exponent, lambda (λ), to apply to the data in order to achieve normality. It is defined by the following formula:

Box Cox Formula

Where

  • y is the original data.
  • λ is the transformation parameter, which can take any real value.

 It is not applicable for negative values .

Benefits of Box-Cox Transformation

  1. Improved Normality: By transforming skewed data to a more normal distribution, you ensure your statistical tests and machine learning models are working with more reliable data.
  2. Reduced Outlier Impact: The transformation often reduces the influence of outliers, leading to more robust and accurate results.
  3. Enhanced Visualization: A normal distribution is easier to visualize and interpret, aiding in data exploration and analysis.

Implementation

 Let's consider a hypothetical scenario where we have a set of data representing the heights of individuals, and we'll apply Box Cox Transformation to normalize it.

# Importing necessary modules
import numpy as np
from scipy import stats
import matplotlib.pyplot as plt

# Generating non-normal data (hypothetical heights of individuals)
original_heights = np.random.exponential(scale=160, size=1000)  # Exponential distribution for heights

# Applying Box Cox Transformation to normalize the data
transformed_heights, fitted_lambda = stats.boxcox(original_heights)

# Plotting the original and transformed data
plt.figure(figsize=(10, 5))

# Plotting original data
plt.subplot(1, 2, 1)
plt.hist(original_heights, bins=30, color='skyblue', edgecolor='black', alpha=0.7)
plt.title('Original Heights (Non-Normal)')
plt.xlabel('Height')
plt.ylabel('Frequency')

# Plotting transformed data
plt.subplot(1, 2, 2)
plt.hist(transformed_heights, bins=30, color='lightgreen', edgecolor='black', alpha=0.7)
plt.title('Transformed Heights (Normal)')
plt.xlabel('Transformed Height')
plt.ylabel('Frequency')

# Adding a title to the whole plot
plt.suptitle('Box Cox Transformation: Normalizing Heights')

# Displaying the plot
plt.show()

# Printing the lambda value used for transformation
print(f"Lambda value used for Transformation: {fitted_lambda}")

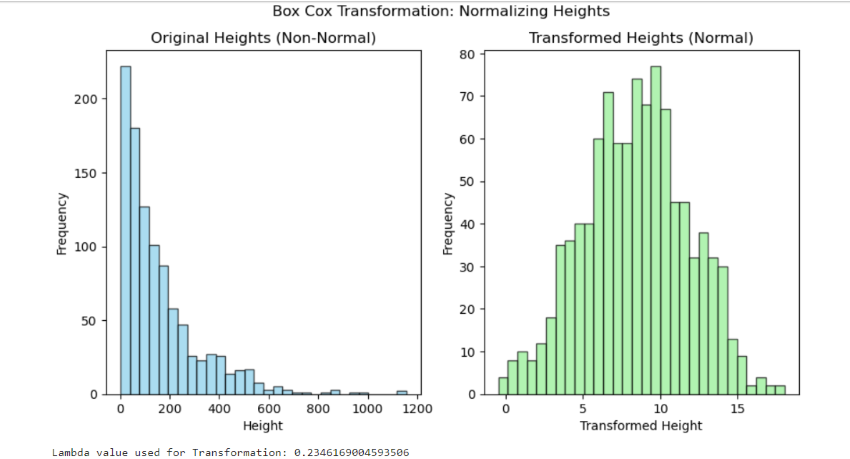

Output

Conclusion

The Box Cox Transformation is a powerful method for normalizing non-normally distributed data. By adjusting data through a family of power transformations, it promotes normality, reduces the impact of outliers, and enhances visualization. This makes statistical analysis and modeling more reliable and interpretable, ensuring better insights and decisions in data science and statistics.
