BIT Functions New T-SQL Enhancements in SQL Server

In this article, we’ll explore some of the new enhancements of BIT functions in SQL Server 2022, their practical applications, and a modified example to demonstrate their usage.

BIT Functions

BIT functions allow developers to manipulate individual bits within a binary value. By using BIT functions, you can compress data, save storage, and work with flags and status indicators directly within your SQL code, streamlining the process and reducing overhead. BIT functions in SQL Server 2022 include BIT_COUNT, GET_BIT, and RIGHT_SHIFT, among others. These enhancements facilitate bit-level processing, making operations like counting bits, extracting specific bits, and bitwise shifting straightforward.

Use Cases for BIT Functions in SQL Server 2022

There are several scenarios where bit-level operations are advantageous.

  • Data Compression: By packing information into bits, you reduce storage requirements.
  • Feature Flags and Permissions: Store multiple boolean flags within a single byte.
  • Data Visualization: Store and manipulate color codes, status flags, and custom indicators compactly.

The following sections cover each new function, demonstrating its usage and benefits.

We'll use the following Employee table for our examples. This table tracks employee access levels and preferences in a compact format utilizing BIT functions. AccessLevels represents different permissions (such as Read, Write, Execute, etc.), while ColorCode encodes color information using bits.

USE AdventureWorks2022;
GO

CREATE TABLE dbo.Employee (
    EmployeeId   int IDENTITY PRIMARY KEY,
    FirstName    varchar(50),
    LastName     varchar(50),
    AccessLevels tinyint,  -- Store access levels or permissions across 8 single-bit values (0 or 1) in a single byte (0-255)
    ColorCode    tinyint   -- Store RGB color components in 3 bits (Red, Green, Blue) in a single byte (0-255)
);

INSERT INTO dbo.Employee (FirstName, LastName, AccessLevels, ColorCode) VALUES
    ('Naveen', 'Kumar', 0x01, 0x07),
    ('Shaukat', 'Salim', 0x23, 0x16),
    ('Gaurav', 'Sharma', 0x3C, 0x3C),
    ('Pranav', 'Jujaray', 0x1A, 0x32),
    ('Mohan', 'B', 0xFF, 0xFF);

BIT_COUNT

The BIT_COUNT function returns the number of set bits (1s) in a binary value. This function is particularly useful when counting active flags.

The below query retrieves the count of active permissions in AccessLevels for each employee. For example, if AccessLevels is 0x1A, BIT_COUNT will return 3, as 1A in hexadecimal translates to 00011010 in binary, which has three bits set.

SELECT
    FirstName,
    AccessLevels,
    AccessLevelCount = BIT_COUNT(AccessLevels)
FROM
    dbo.Employee;

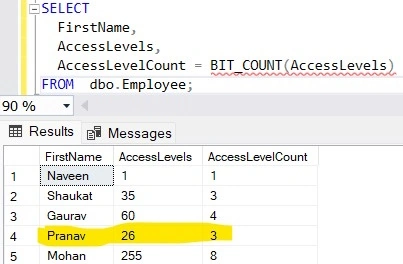

Output

BIT_COUNT

GET_BIT

GET_BIT allows you to retrieve a specific bit from a binary number, returning either 0 or 1 depending on whether the bit at the specified position is set. This function is invaluable when extracting specific flags or indicators.

Suppose the access levels in AccessLevels represent the following permissions.

  • Bit 0: Read
  • Bit 1: Write
  • Bit 2: Execute
  • Bit 3: Delete
  • Bit 4: Admin
  • Bit 5-7: Reserved for future use

You can use GET_BIT to check individual permissions as follows. This query checks each permission type individually, allowing you to quickly identify which permissions are active for each employee.

SELECT
    FirstName,
    AccessLevels,
    ReadPermission = GET_BIT(AccessLevels, 0),
    WritePermission = GET_BIT(AccessLevels, 1),
    ExecutePermission = GET_BIT(AccessLevels, 2),
    DeletePermission = GET_BIT(AccessLevels, 3),
    AdminPermission = GET_BIT(AccessLevels, 4)
FROM dbo.Employee;

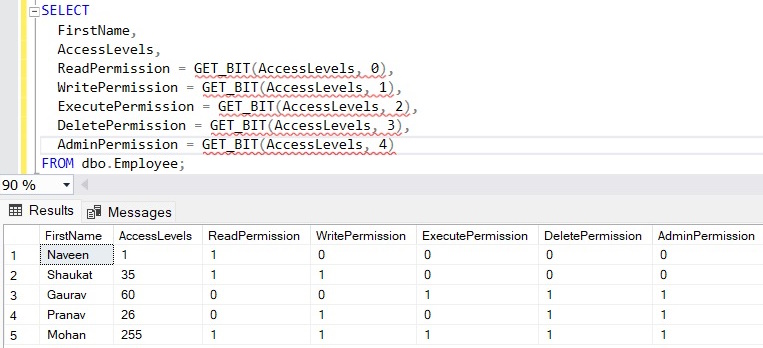

Output

GET_BIT

RIGHT_SHIFT

The RIGHT_SHIFT function shifts a binary number to a specified number of bits to the right. This function is beneficial for extracting data packed into the higher or lower parts of a byte.

Assume the ColorCode value represents RGB as follows.

  • Bits 6-7: Red component
  • Bits 4-5: Green component
  • Bits 0-3: Blue component

The following query uses RIGHT_SHIFT and bit masking to extract the color components: RedComponent uses RIGHT_SHIFT to extract the left-most bits, GreenComponent combines & and >> to isolate and shift the green bits, and BlueComponent masks out everything but the last four bits.

SELECT
    FirstName,
    ColorCode,
    RedComponent   = RIGHT_SHIFT(ColorCode, 6),
    GreenComponent = (ColorCode & 0x30) >> 4,
    BlueComponent  = ColorCode & 0x0F
FROM dbo.Employee;

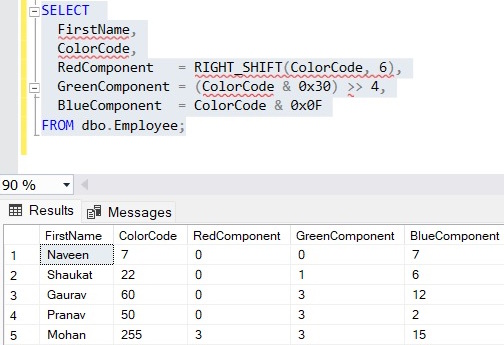

Output

RIGHT_SHIFT

Practical Application of BIT Functions

Using BIT functions, you can manage and interpret complex data configurations with ease. For example, an e-commerce application could use bit flags in a Product table to represent attributes like availability in various colors, sizes, or features.

Conclusion

SQL Server 2022’s BIT functions represent a major enhancement for SQL developers, DBAs, and data engineers. With BIT_COUNT, GET_BIT, RIGHT_SHIFT, and other functions, SQL Server 2022 empowers users to handle binary data directly and efficiently. This not only simplifies code but also allows for compact data storage, which is critical in high-performance, data-intensive environments. Whether you're managing permissions, tracking status flags, or handling color data, these new BIT functions provide powerful tools for efficient and effective data manipulation.
