Introduction
BDD (Behaviour driven development) adapted features of TDD(Test Driven development) and extended a few syntax, which made the Product Owner (PO Role of Scrum Process) or Business Analyst job easy to convert requirements into standard scripts, by analysing the behaviour of features required by customers. And the developer's job will be easy with this behaviour, scripts drive the development.
Pre-requisite
- A Developer should know Java
- Recommend reading about TDD first.
We will see this BDD with an example of calci. BDD is following Gherkin syntax's. An example will be illustrated below Gherkin syntax's
- Feature:
- Scenario:
- Given
- When
- Then
Requirement from the customer: Build a calculator app, for 2 numbers addition and subtraction
For BDD, we will use "io.cucumber" package, which is available in java. Install the package by putting below statement in build.gradle file
implementation group: 'io.cucumber', name: 'cucumber-java', version: '7.2.3'
Convert requirements into feature file like below using Gherkin syntax,
File name: calci.feature
Feature: Test Calci
Scenario: Add 2 numbers
Given Calci app is running
When Provided input 2 and 2 with add
Then get result 4
Scenario: Substract 2 numbers
Given Calci app is running
When Provided input 5 and 2 with sub
Then get result 3
For Gherkin syntax keywords, write steps like below
File name: CalciStepdef.java
import io.cucumber.java.en.Given;
import io.cucumber.java.en.Then;
import io.cucumber.java.en.When;
import static org.junit.jupiter.api.Assertions.assertEquals;
public class CalciStepdef {
int result = 0;
Calci calci=null;
@Given("Calci app is running")
public void step_impl(){
System.out.println("Calci app is running");
calci = new Calci();
}
@When("Provided input {int} and {int} with add")
public void step_impl_A(int a, int b){
result = calci.Add(a, b);
}
@When("Provided input {int} and {int} with sub")
public void step_impl_B(int a, int b){
result = calci.Sub(a, b);
}
@Then("get result {int}")
public void step_impl_c(int out){
assertEquals(result, out);
}
}
Below is the calci.java file which actually contains business logic. Actually, here to develop this calci.java, we need to follow TDD. As the article is to know about BDD. I am putting code directly.
public class Calci {
public int Add(int a, int b) {
return a + b;
}
public int Sub(int a, int b) {
if (a > b) {
return a - b;
}
return b - a;
}
}
Normally, a file/folder structure should look like the one below.

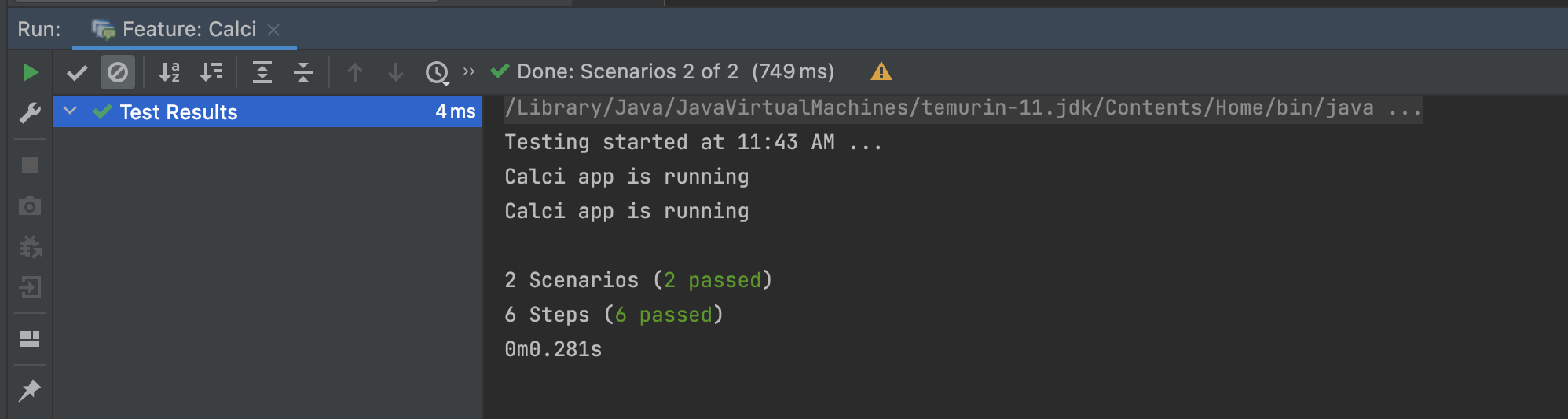

Now execute the feature file, Below is the output window,
Summary
In this article, we understood BDD and its use from converting use case to code.
