Backpressure Pattern- Design Principle

Introduction

In this article, we are going to look into the backpressure pattern. It is a design principle used in software systems to manage and regulate the flow of data between components or services. We can say this pattern in other terms as fast publisher and slow consumer. This pattern involves the concept of applying pressure to the components upstream in order to control the rate of data flow and prevent overload or congestion downstream. By signaling to the upstream components to slow down or stop producing data when the downstream components are unable to process it, the backpressure pattern helps maintain stability and avoid resource exhaustion in the system. Let's get on.

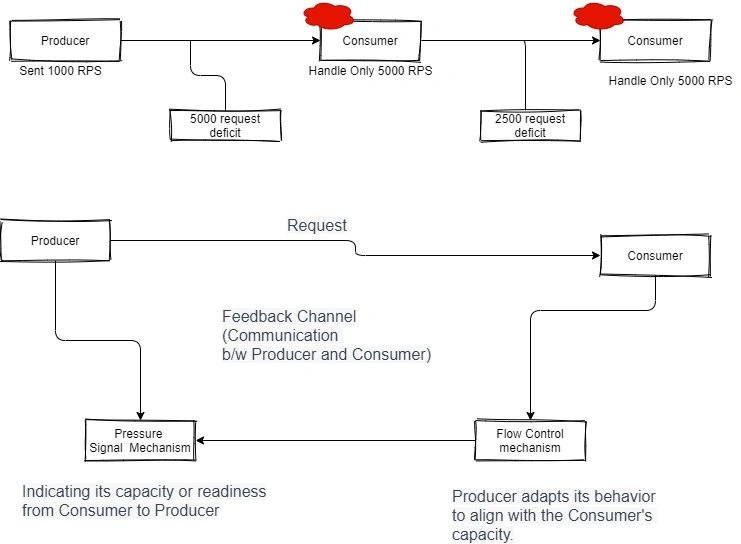

Conceptual Diagram

Components of Backpressure Pattern

The backpressure pattern consists of several key components. By combining these components, the backpressure pattern enables a system to handle varying rates of data production and consumption, preventing overload and ensuring smooth and efficient data processing.

1. Producer Component

   • Generates or produces data/events/messages.
   • Publishes data to a message queue or streaming platform.

2. Consumer Component

   • Subscribes to the message queue or streaming platform to consume the data.
   • Processes the data/events/messages.

3. Feedback Channel

   • Provides a communication channel between the consumer and producer components.
   • Allows the consumer to provide feedback signals to the producer about its capacity or ability to handle the incoming data.

4. Pressure Signaling Mechanism

   • Defines the means by which the consumer sends backpressure signals to the producer.
   • Can be achieved through various methods such as explicit messages, control messages, signaling flags, or resource availability indicators.

5. Flow Control Mechanism

   • Controls the flow of data from the producer to the consumer based on the feedback received.
   • In response to backpressure signals, the producer adjusts its data production rate or behavior to align with the consumer's capacity.
   • The flow control mechanism may involve techniques such as rate limiting, throttling, buffering, or dynamic adjustment of data production.

6. Adaptive Behavior

   • Enables the producer component to dynamically adapt its behavior based on the feedback received from the consumer.
   • The producer can adjust its data production strategy, rate, or other parameters to align with the consumer's processing capacity.

7. Monitoring and Metrics

   • Incorporates monitoring and metrics gathering mechanisms to measure and track the performance of the system, including the data flow and pressure levels.
   • Provides insights into the system's health, identifies bottlenecks, and helps in tuning the backpressure mechanism.

Strategies of BackPressure Pattern

• Control the producer
• Accumulate incoming data spikes temporarily in the buffer
• Dropping or delivering a sample amount of data

Use Case

• One common use case for the backpressure pattern is in the context of asynchronous message-passing systems or event-driven architectures. Consider a scenario where you have a high-volume producer that generates a large number of events or messages and a consumer that processes these events asynchronously.
• A real-time application that can benefit from the backpressure pattern is a distributed messaging system, where messages are exchanged between multiple components or services in a streaming fashion.
• A streaming data processing system, such as Apache Kafka or Apache Flink. These systems handle large volumes of data in real-time and leverage backpressure to ensure efficient and reliable data processing.
• Data processing pipeline with multiple components. For instance, The data source generates a continuous stream of data, the data processor performs some computationally intensive operations on the data, and the data sink stores the processed data.

Conclusion

In conclusion, the backpressure pattern is a valuable design principle for managing the flow of data in software systems. By providing a mechanism for components to communicate their capacity and adapt their behavior accordingly, backpressure helps prevent overload and congestion, ensuring stability and efficiency. Implementing the backpressure pattern offers several benefits.

It helps prevent resource exhaustion, improves system performance, and avoids data loss or degradation. The pattern is particularly useful in scenarios with high data volumes, asynchronous message passing, or real-time streaming applications.

Overall, the backpressure pattern provides an effective solution to address the challenges of data flow management, allowing systems to maintain balance, stability, and responsiveness. By intelligently controlling the data flow based on the consumer's capacity, the backpressure pattern contributes to the reliability and efficiency of software systems.
