Azure HTTP PowerShell Function App - Get Data Using Client ID, Tenant And Thumbprint

Introduction

This article will give you a basic idea about how to Get Data from SharePoint List using Azure HTTP PowerShell Function App with the help of Client ID, Tenant & Thumbprint.

Steps

To authenticate a SharePoint Site with Azure function App, we require a Private & Public certificate.

You can generate an Azure Security certificate using the following PowerShell Commands.

Open your windows Powershell or Windows ISE to run the below command.
1. $password = "*******" | ConvertTo-SecureString -AsPlainText -Force
3. New-PnPAzureCertificate -CommonName "[Name]" -ValidYears 2 -CertificatePassword $password -OutPfx "D:\Laptop Backup\Certificates\[filename.pfx]" -OutCert "D:\Laptop Backup\Certificates\[filename.cer]"
Note
Specify password, Common Name, proper path and filename
Log in to the Azure Portal: https://portal.azure.com
To fetch data from SharePoint using Function App we need to register App and provide required Permission to API.

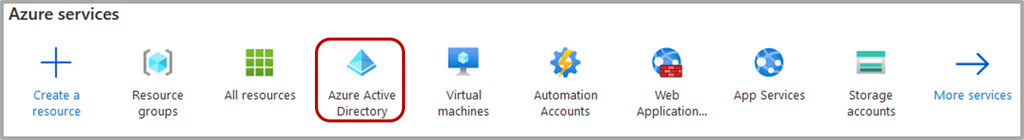

Go to Azure Active Directory

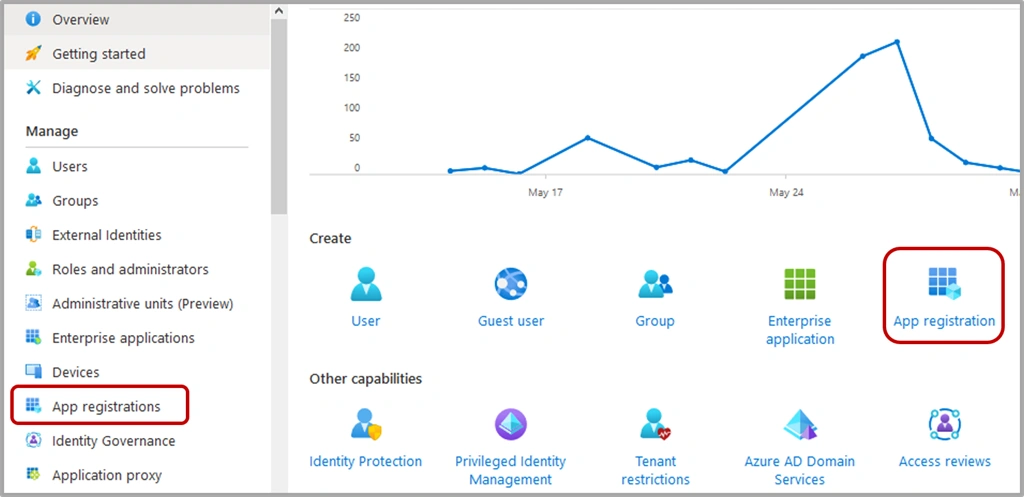

Click on App Registration

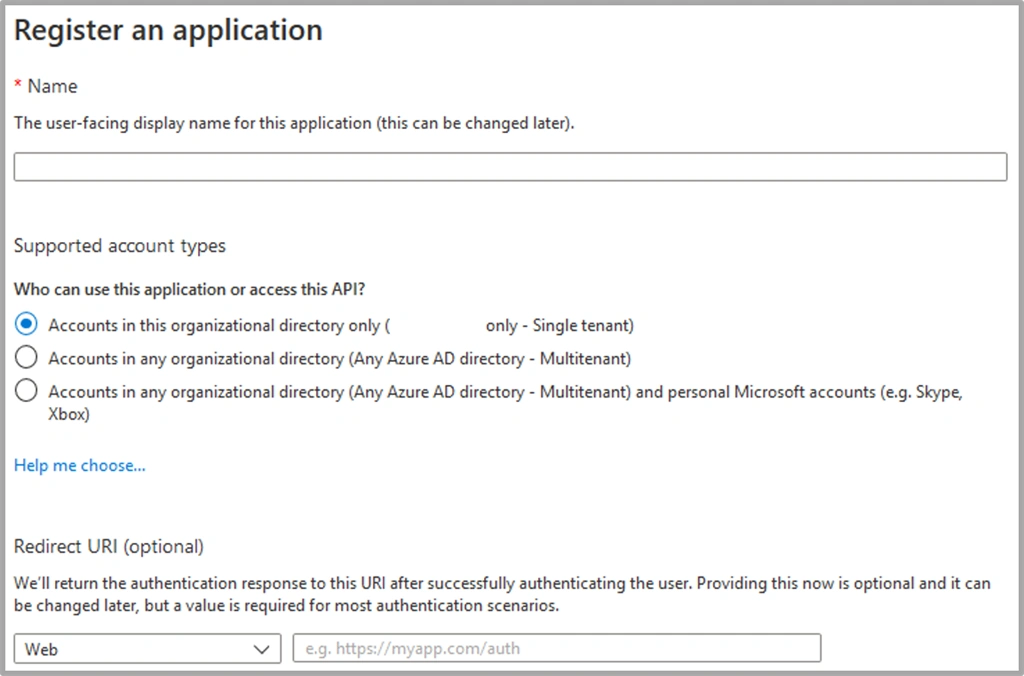

Give an App Name and select Access API.
If you want to fetch data from the current Tenant, then select "Account in this organizational Directory only (Single Tenant)".

Note
I have provided name as “ADAppAZSPPnP”
Once App Registration is done, go to the App.

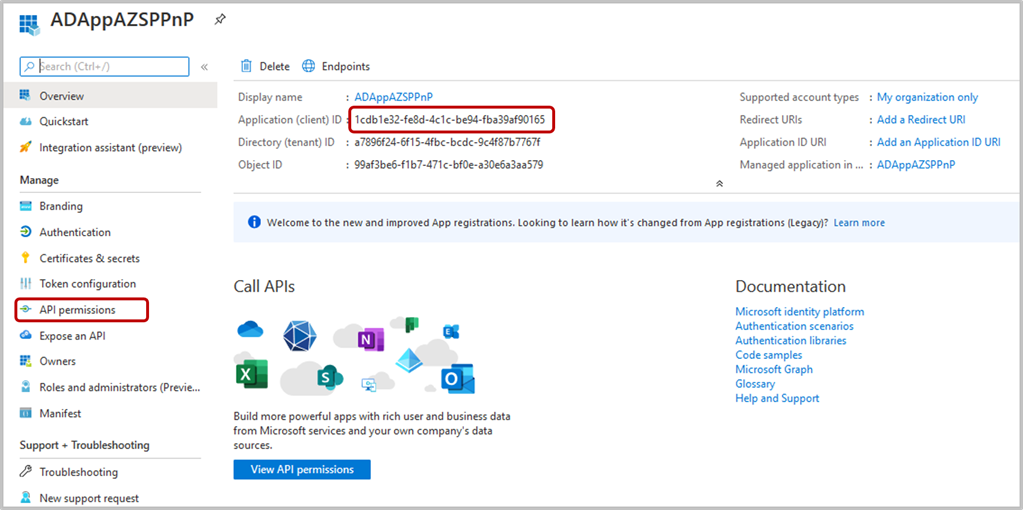

Copy Application (Client ID)
To access SharePoint data, we need to provide Permission to this API. For that, click on API Permission

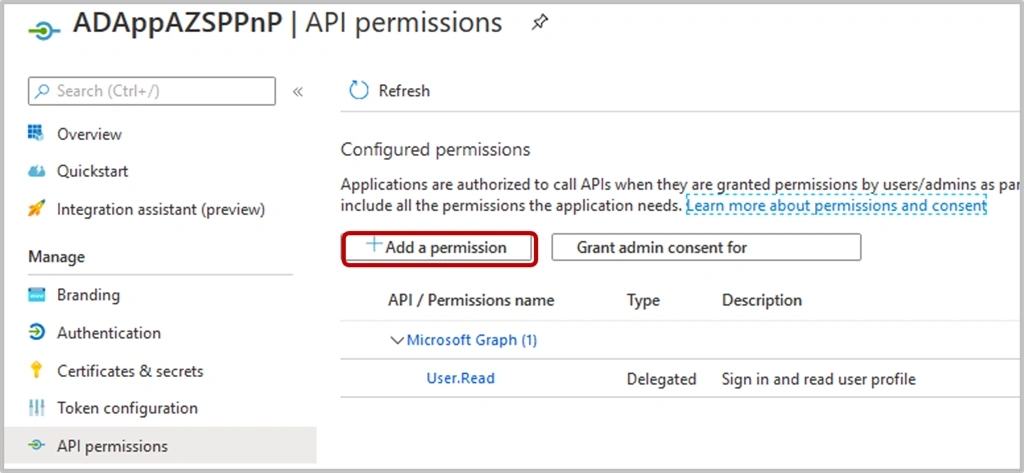

Click on Add Permission.
Here, we can select connectors. We can also select any API supported by Azure.

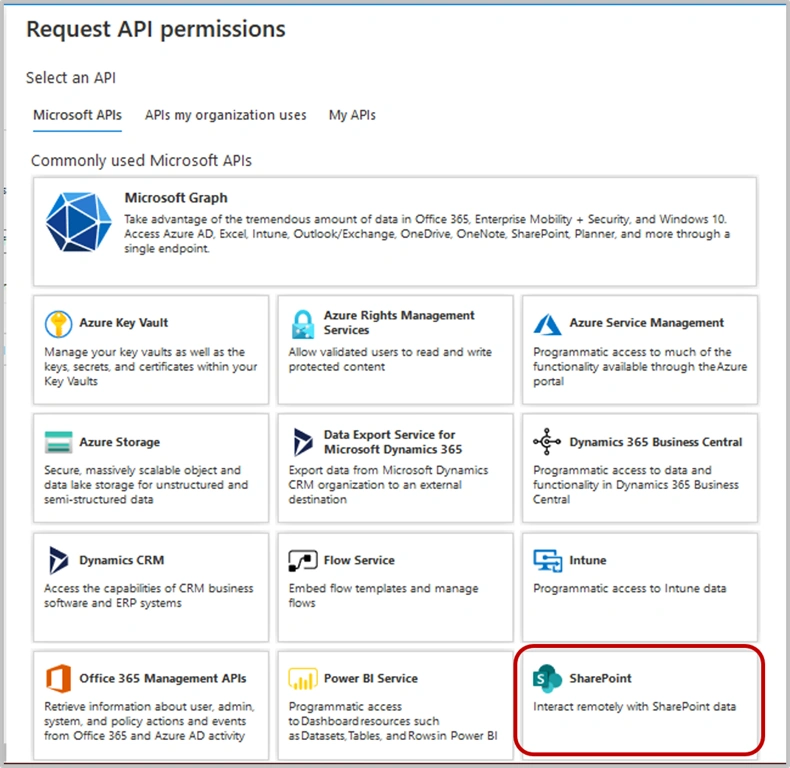

Select SharePoint.

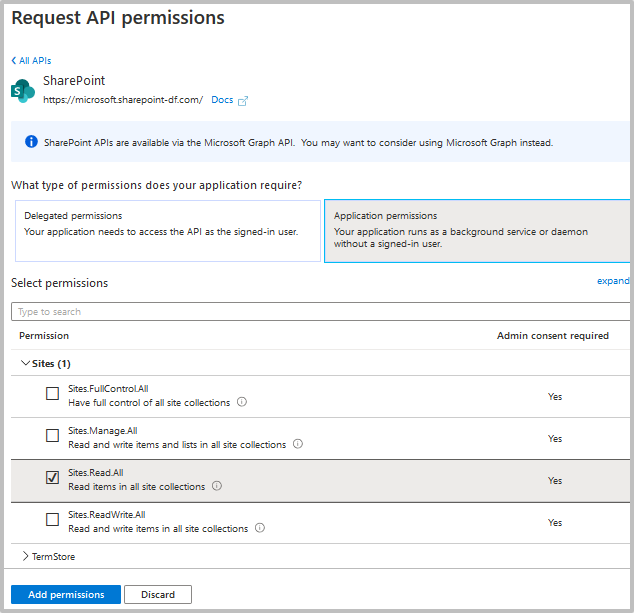

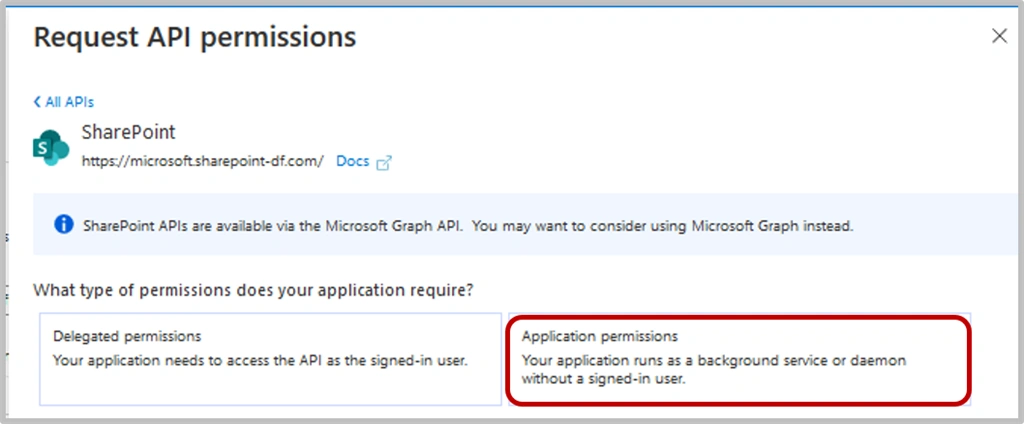

On SharePoint API Permissions, request select “Application Permissions”.
Select the required permission level. In this case, we need to fetch data, so I selected “Sites.Read.All”.

Note
This will provide selected Permission to the whole SharePoint tenant.

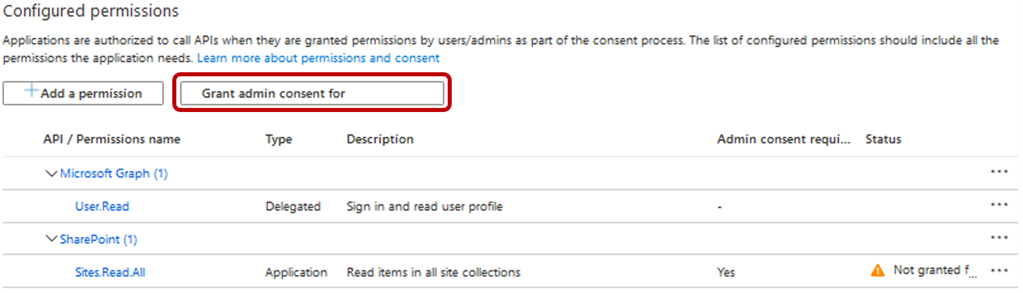

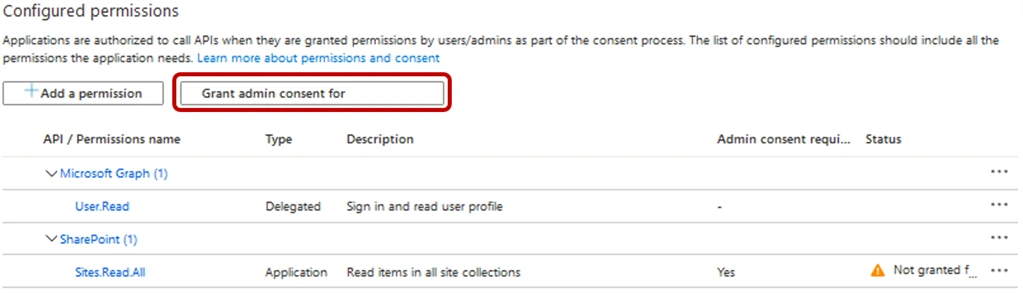

Once permission is selected, we need to grant permission. Click on Grant Admin consent.
For the registered app, we need to add certificates, which we created earlier.
For App registration, we need to upload a public certificate “.cer”

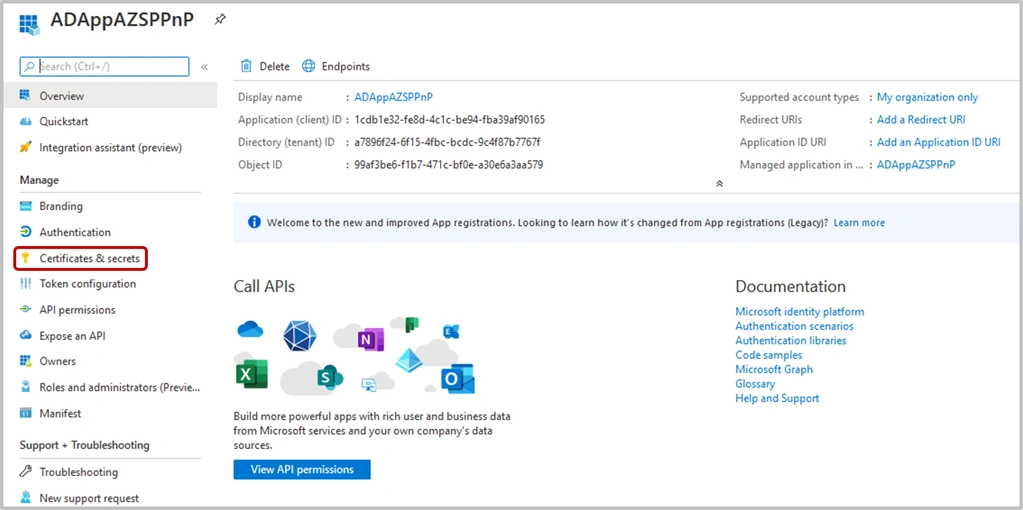

Click on Certificates & secrets.

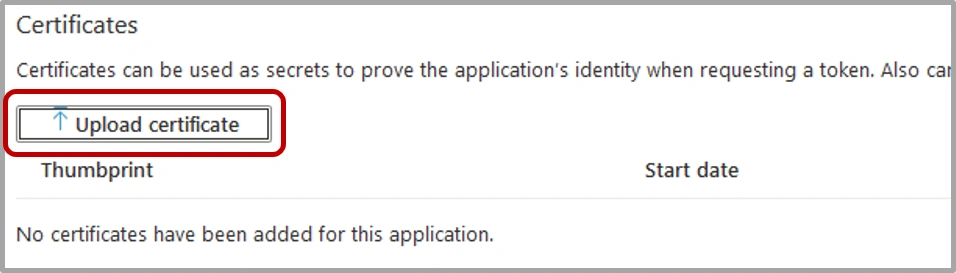

Click on Upload Certificate.

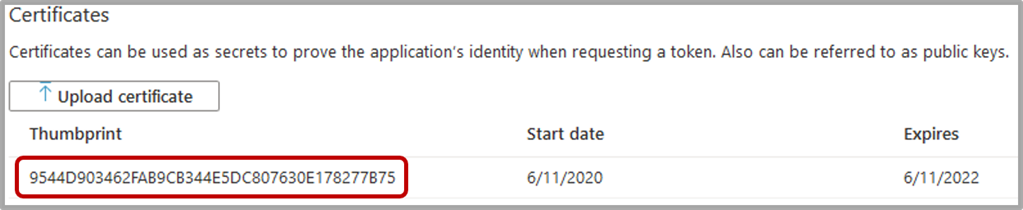

After uploading a certificate, copy your Thumbprint. It will be required in PowerShell script for Site Authentication.
Go to the Function App. On function app, we need to update configuration settings of the App.

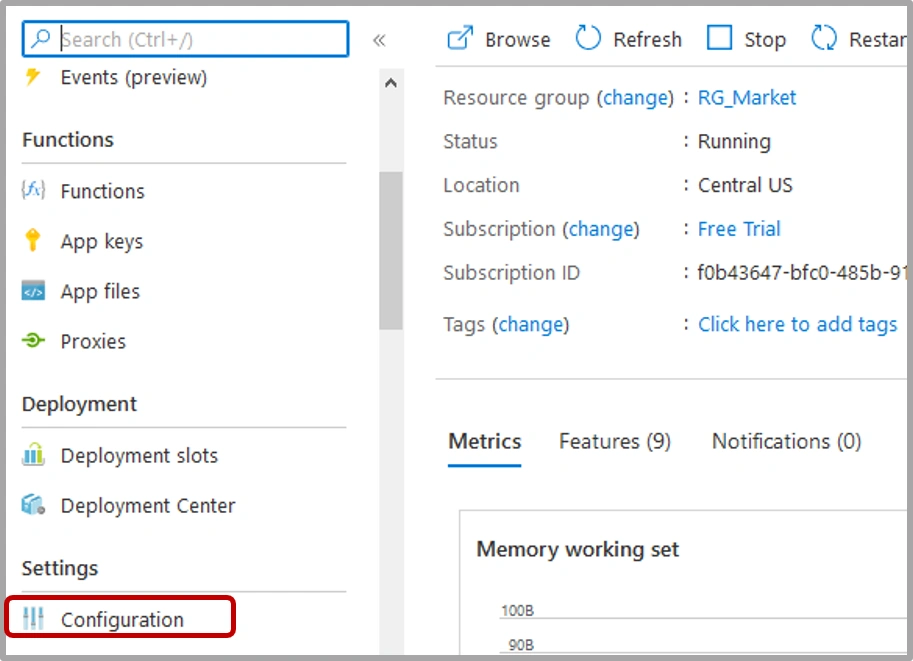

Click on Configuration.

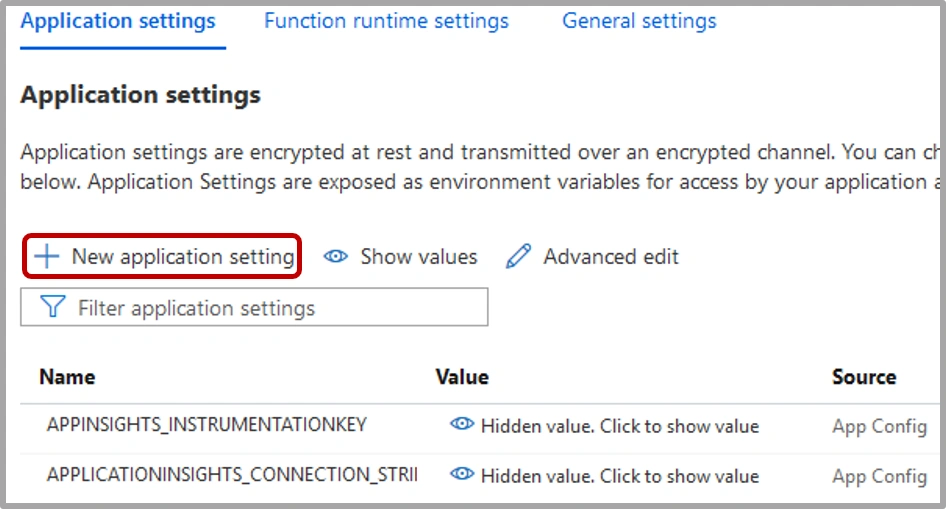

On configuration settings, click on New Application Setting.

Azure HTTP PowerShell Function App To Get Data Using Client ID, Tenant And Thumbprint

Azure HTTP PowerShell Function App To Get Data Using Client ID, Tenant And Thumbprint

Add the following application settings:

ClientID	Paste Client ID which is copied from App Registration
SiteURL	SharePoint SiteURL to fetch data
Tenant	[tenantname].onmicrosoft.com
Thumbprint	Paste Thumbprint ID which is copied from Certificate
WEBSITE_LOAD_CERTIFICATES	*

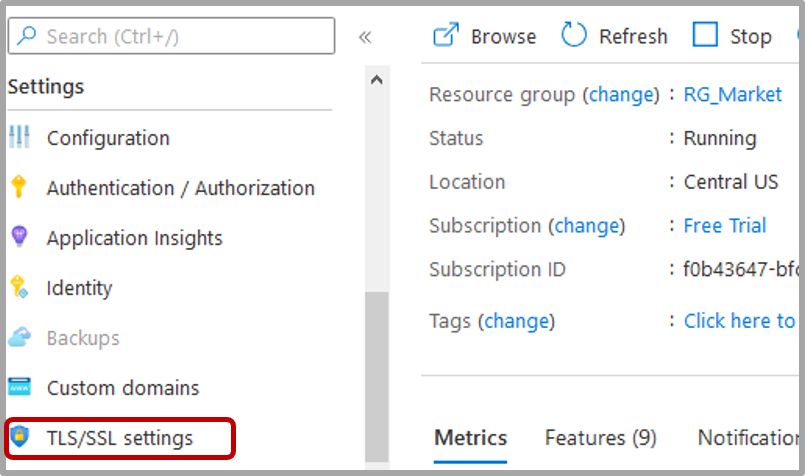

To Authenticate Function App with SharePoint using API, we need to upload the Private Key certificate. For that, go to the TLS/SSL settings of the Function App.

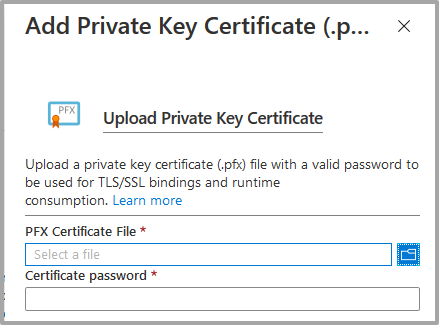

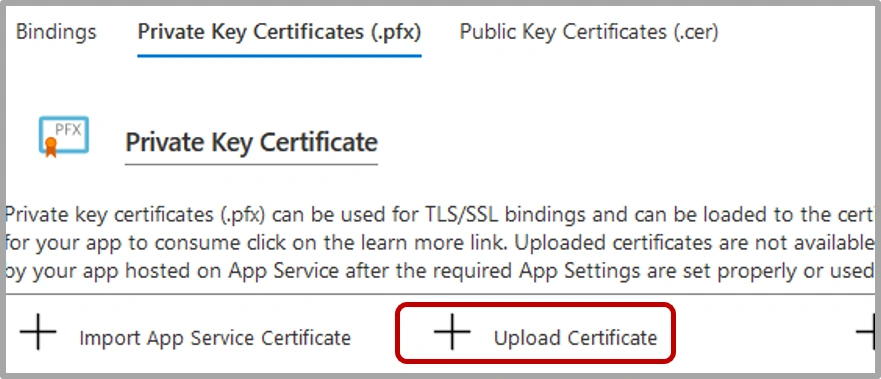

Go to the Private Key Certificate tab and upload the private certificate which we created with the extension “.pfx”
While uploading the certificate, provide a password which we added while creating the certificate
Go to the Function App, if already function is Available, we can use the same or we can create a new one.

To create a new function, refer to post 1.

If you create a new function then you need to upload SharePointPnP dll files under the root folder of a function. For more info, refer to the below article.

Create an Azure HTTP Trigger PowerShell Function App

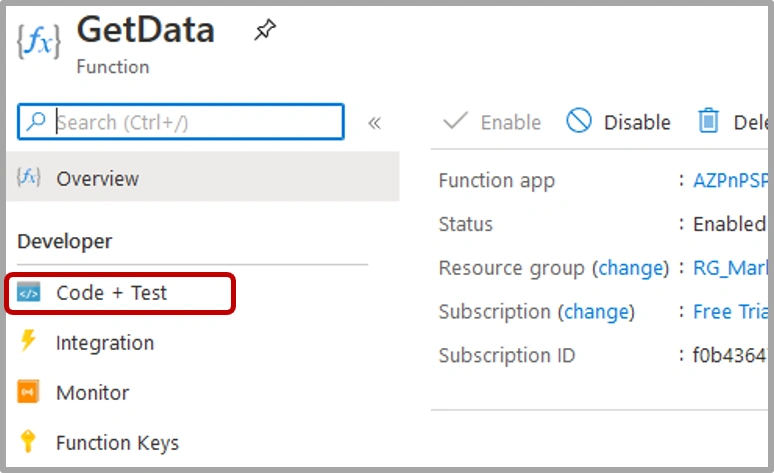

Under the code section, paste the below code:

using namespace System.Net
Import-Module 'D:\home\site\wwwroot\[FunctionName]\modules\SharePointPnPPowerShellOnline\Newtonsoft.Json.dll'
Write-Host "Powershell http trigger"
$requestBody = Get-Content $req -Raw | ConvertFrom-Json
$tenant = $env:Tenant
$cleintid = $env:ClientID
$thumbprint = $env:Thumbprint
$siteurl = $env:SiteURL
$listname = "[ListName]"
Connect-PnPOnline -Url $siteurl -ClientId $cleintid -Thumbprint $thumbprint -Tenant $tenant
$web = Get-PnPWeb
$title = $web.Title
$listitems = Get-PnPListItem -List $listname
$listArray = New-Object System.Collections.Generic.List[System.Object]
foreach ($item in $listitems)
{
$listArray.Add([hashtable]@{
DisplayTitle=$item["Title"];
Id= $item["ID"]
}
)
}
$json = $listArray | ConvertTo-Json
Out-File -Encoding Ascii -FilePath $res -inputObject $json

To check output, click on run or Copy the Function URL and run in a browser.
If you are trying to call this API from a specific application, then you need to add an application hostname in Function App CORS settings.

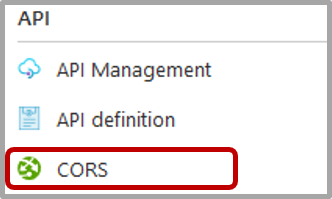

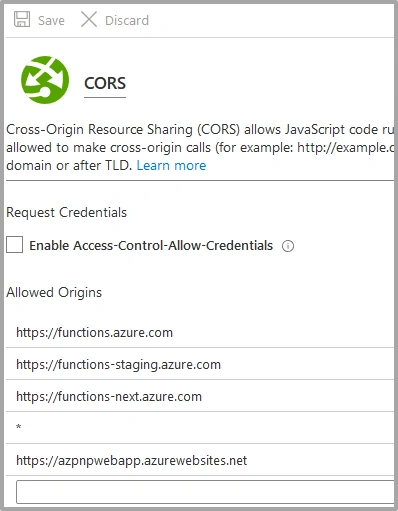

Go to Function App API managment ==> CORS

Under CORS settings add the hostname of the application, if you want to make it open for all External applications then set "*"

Summary

Using the Azure Function App, we can use SharePoint Data to Open source, any HTML, or other systems.

With the use of Client ID, thumbprint & tenant, we don't need to enter the credentials of the user.
