Azure Firewall Cloud-Native, Intelligent, and Scalable Network Security

Introduction

In the rapidly evolving landscape of cloud computing, ensuring robust security measures is paramount. Azure Firewall, a key component of Microsoft's Azure cloud platform, stands as a formidable solution designed to fortify cloud environments against modern cyber threats. As businesses migrate critical workloads to the cloud, the need for a comprehensive and scalable firewall solution becomes evident. In this article, we will explore the capabilities of Azure Firewall, its advantages, and its significance in safeguarding cloud infrastructure.

Understanding Azure Firewall

Azure Firewall is a cloud-native network security service that operates as a first line of defense against threats. It provides organizations with the ability to control and monitor inbound and outbound traffic across their virtual networks. Leveraging a stateful firewall, Azure Firewall can enforce policies based on applications, network rules, and threat intelligence. This ensures that only legitimate traffic flows while malicious or unauthorized attempts are blocked, reducing the attack surface and enhancing security.

Key Features and Advantages

• Application and Network Rules: Azure Firewall offers the capability to create rules based on applications, ensuring that specific applications adhere to defined policies. Additionally, network rules can be established to control traffic flow based on source and destination IP addresses, ports, and protocols.
• Threat Intelligence: Azure Firewall integrates with Azure Threat Intelligence, providing up-to-date information about known malicious IP addresses and domains. This dynamic threat intelligence enhances the firewall's ability to block malicious traffic and thwart potential attacks.
• High Availability: The high-availability architecture of Azure Firewall ensures seamless failover and continuous protection, even in the face of unexpected incidents. This resilience ensures uninterrupted security services.
• Centralized Management: Azure Firewall can be managed centrally through Azure Portal, PowerShell, Azure Policy, and more. This streamlines configuration and management tasks, making it easier to enforce consistent security policies across the entire network.
• Integration with Azure Services: Azure Firewall seamlessly integrates with other Azure services such as Azure Monitor, Azure Security Center, and Azure Sentinel, providing a holistic approach to security monitoring and incident response.

Steps to Create an Azure Firewall

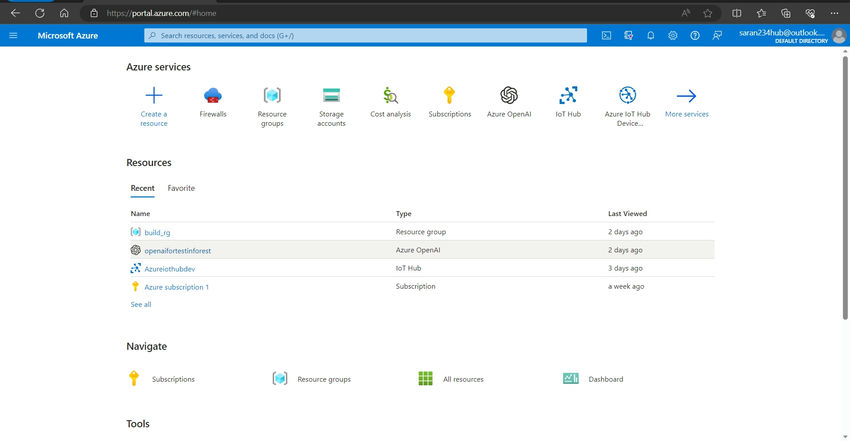

Step 1. Sign in to the Azure Portal

Sign in to the Azure portal using your Azure account credentials.

Step 2. Create a Public IP address

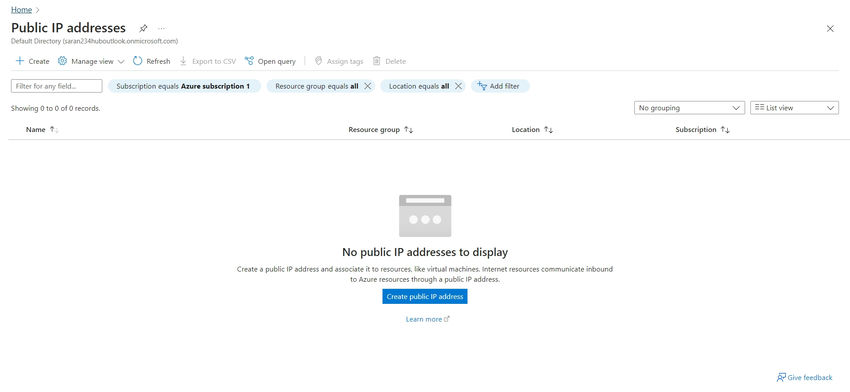

Search for the Public IP address in Azure Portal and click on it. It will take you to the Public IP address dashboard page.

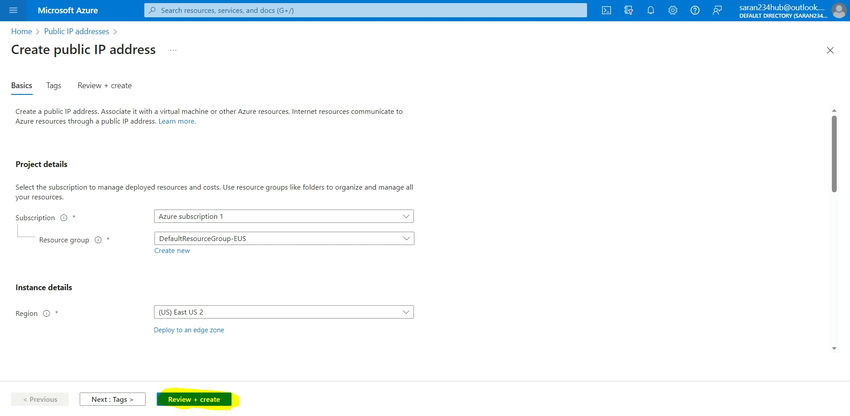

Click Create Public IP address, navigate to the Public IP address basic page, and fill in the necessary details like Project details, Instance details, and configuration details, and then click the Review + Create button.

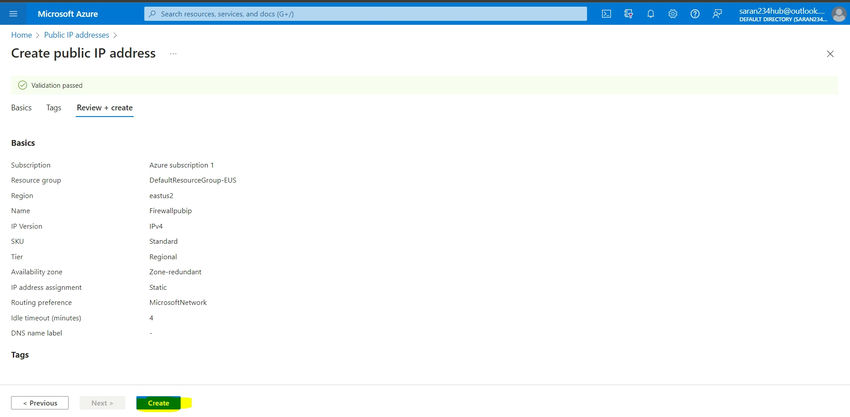

Once the Validation test is passed, click the Create button to create the Public IP address.

Step 3. Create a Virtual Network

Navigate to "Create a resource" in the Azure portal.

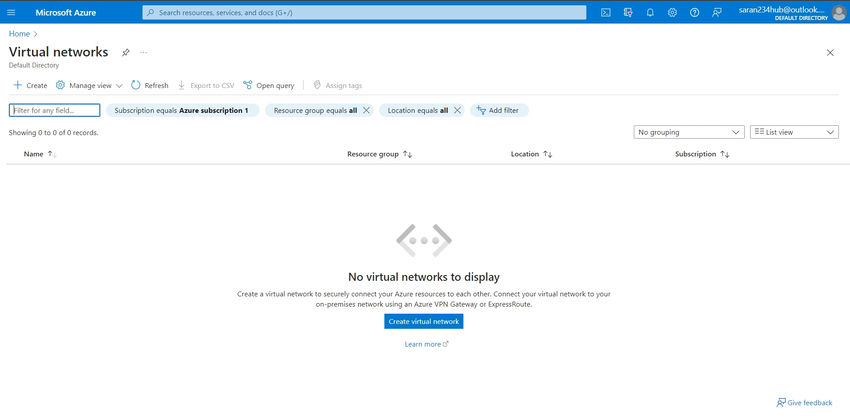

Search for "Virtual Network" and click on "Virtual Network" from the results.

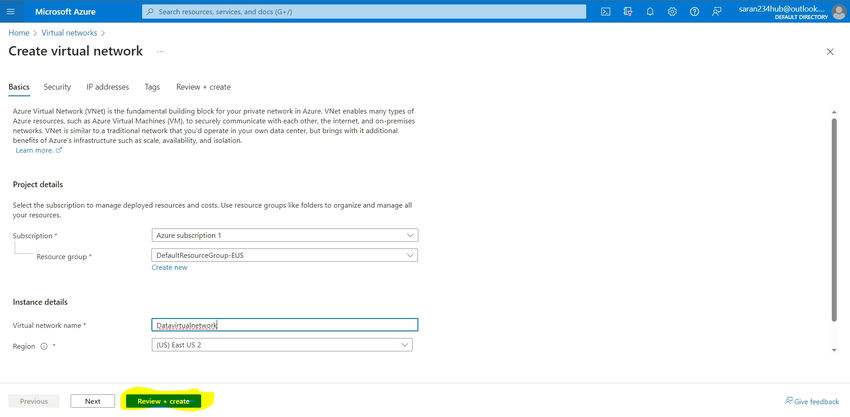

Fill in the required details, such as Resource Group, Subscription, Virtual network name, and Region.

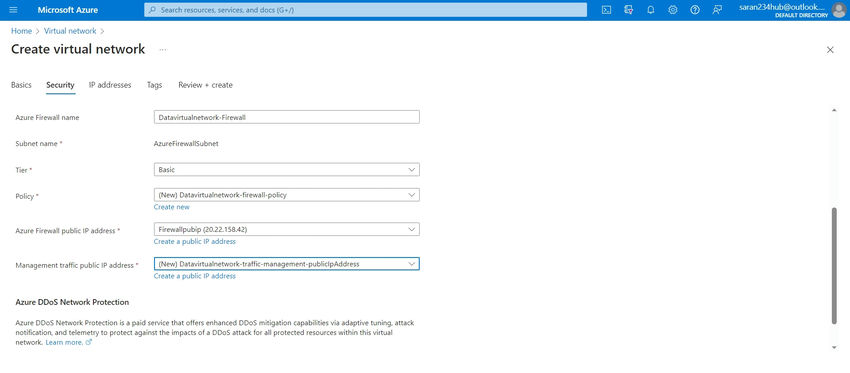

Step 4. Navigate to the Security Tab.

Check the Azure Firewall Option.

Fill in the details for Azure Firewall name, subnet name, Policy

Fill in the required details such as Name, Region, Resource group, and Public IP address.

Choose an existing virtual network or create a new one.

Configure the firewall settings, including IP SKU, Threat intelligence, and Diagnostic settings.

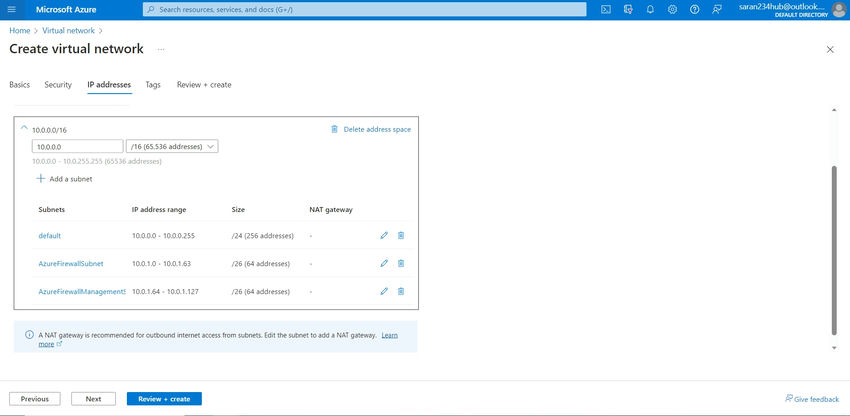

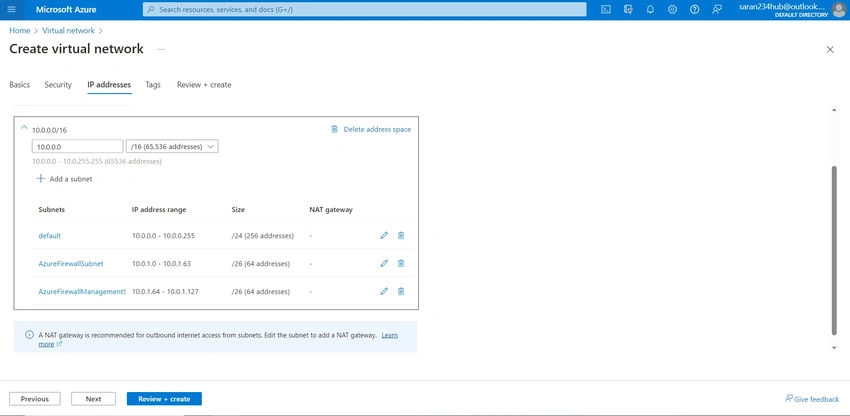

Step 5. Configure IP address

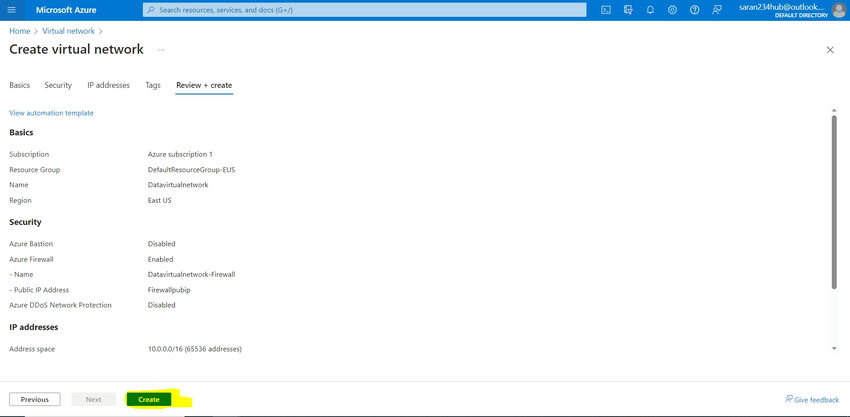

Step 6. Click Review + Create to check all the validations are passed, and then click Create.

Once the Create Button is clicked, the Virtual address, PublicIP, and Azure Firewall will be created.

Use Cases

• Multi-Region Protection: Organizations with a global presence can utilize Azure Firewall to protect multiple regions and enforce consistent security policies, even in a distributed network environment.
• Application Segmentation: Azure Firewall enables application-level segmentation, allowing organizations to isolate critical applications and resources from potential threats.
• Secure Hybrid Connectivity: Businesses with hybrid environments can use Azure Firewall to secure communication between on-premises data centers and Azure resources using Virtual Network Gateway and ExpressRoute.

Conclusion

As cloud adoption accelerates, so does the need for robust security solutions. Azure Firewall emerges as a pivotal component of Microsoft's Azure ecosystem, providing enterprises with a reliable defense against a multitude of cyber threats. By offering application and network rule enforcement, threat intelligence integration, high availability, centralized management, and seamless integration with Azure services, Azure Firewall not only strengthens cloud security but also simplifies the process of maintaining a secure network infrastructure.
