Azure App Service - Profile A .Net Core Application Hosted In Azure App Service - Linux

In this article, we are going to learn how to find performance issues in a .Net Core 3.1 application hosted in Azure App Service – Linux environment

Note
Profiling for apps hosted in the Linux app service plan is in preview at this time of writing.

Create the following services in a Resource Group.

Service Type Comments
Azure App Service Runtime Stack – .Net Core 3.1
Azure App Service Plan OS: Linux Pricing Tier: Standard or Higher
Azure Application Insights Once created, Capture the Instrumentation Key from the Overview blade

I have created the above services in a Resource Group as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – Resource group – Resources

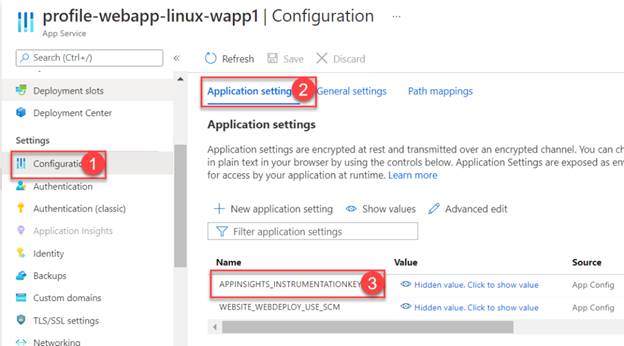

Once you all the services provisioned, link the Application Insights instance with the App Service so that the App Service can push the application telemetry to the Application Insights instance. We can link both of them by creating a Key named APPINSIGHTS_INSTRUMENTATIONKEY and paste the IKey as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Settings

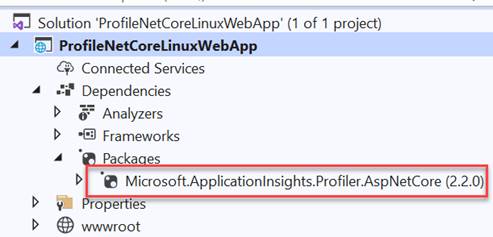

Create a .Net Core Web application and install the below Nuget Package

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – Profiler Nuget Package

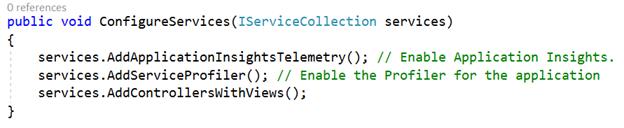

Navigate to the Startup class and register the below service in order to enable Application Insights along with the profiler.
  1. services.AddApplicationInsightsTelemetry(); // Enable Application Insights.
  2. services.AddServiceProfiler(); // Enable the Profiler for the application
The Configure method should look  like this once you add the above lines of code.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – Configure Services

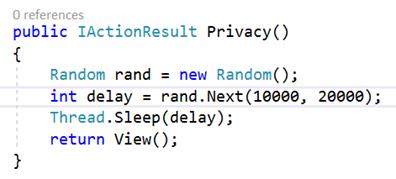

Let’s now add some code in the application that simulates some performance issues. Navigate to any action method and add the below code that makes your app run slow.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – Random Sleep

The above code added a sleep time between 10 to 20 seconds whenever you access the Privacy page. Let’s go ahead and deploy the application to Azure App Service
Once the application is deployed, you should be able to navigate to the page by clicking on the Browse button in the Overview page of the App Service.

You might notice slowness when you navigate to the Privacy page as we have used Thread. Sleep. However, in real-time, there might be various reasons why an endpoint would be slow. As a developer, one might be interested in identifying the exact method which is taking more time. Let us now understand how to identify those slow-performing components.


Enable Profiler in Application Insights

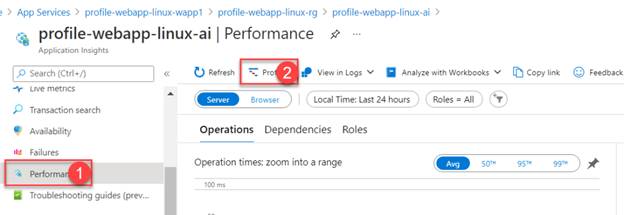

Navigate to the Application Insight’s Performance Blade and click on the Profile button as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Insights – Performance Blade

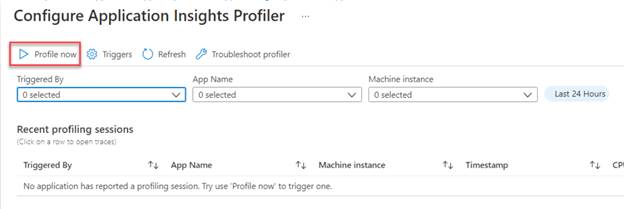

It takes you to another blade which shown all the profiling sessions. Click on the Profile Now button to initiate the Profiling process as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Insights – Profile Now

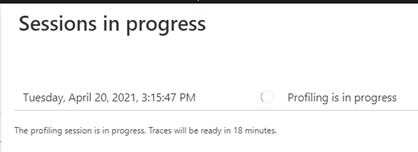

Once you click on click on Profile now button, you will see a new blade open which gives some info about the progress of the profiling.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Insights – Profiler Session In Progress

While this is happening, you need to simulate traffic on your web app. Basically, when you initiate the process, the required agents will be installed on the App Service instance and the profiler will start the process of collecting the metrics and it pushes to the Application Insights instance. By default, it runs for 120 seconds. So, during that period it collects the metrics of the requests. If there are no requests during that period you don’t see any data.

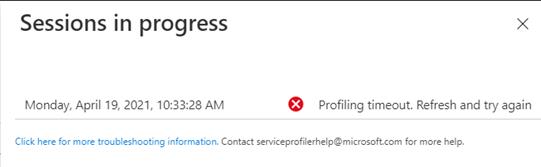

Sometimes, the Profile process would get timed out with the message Profiling timeout. Refresh and try again as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Insights – Profiler Session – Timed out

In such cases, you should ensure that you are using the Standard Pricing tier or higher for the App Service Plan.

Note
As per Microsoft, Profiler works from the Basic tier onwards. However, I couldn’t get it to work with the Basic pricing tier.

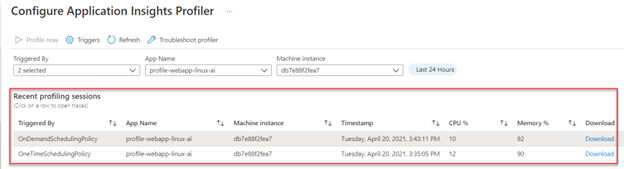

Once you ensure that you are using the Standard pricing tier, you can retry the Profiling again. If the profiling is successful, then you would see the sessions in the Profile listing as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Insights – Profiler Session Listing

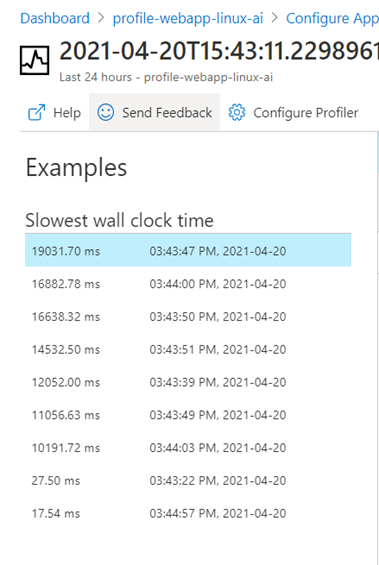

Click on the OnDemandSchedulingPolicy item which will provide more details as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Insights – Profiler Session Examples

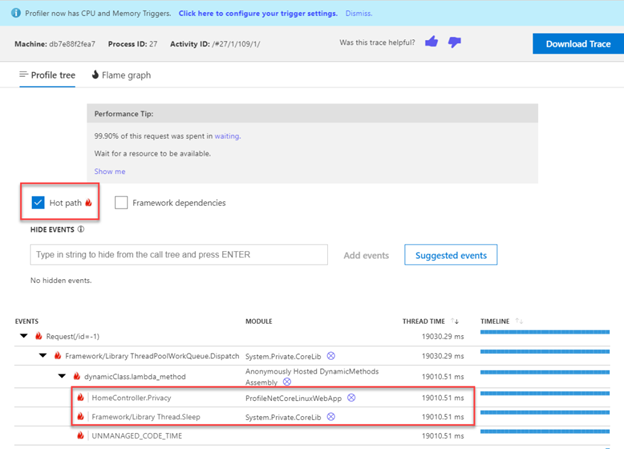

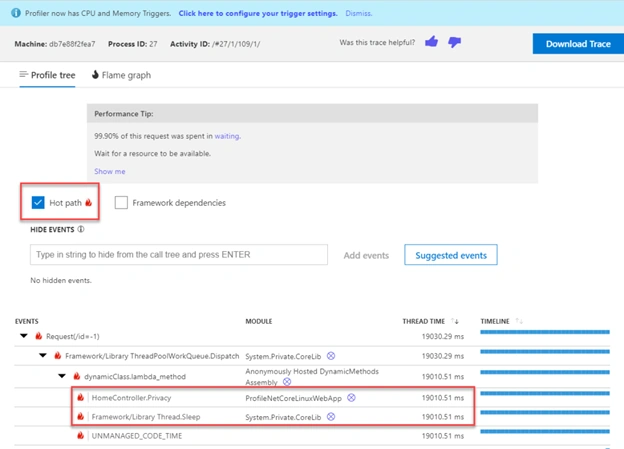

Clicking on any of the items shown above will provide more details about the entire tree of how the various components are execute as shown below.

Azure App Service – Profile a .Net Core Application hosted in Azure App Service – Linux
Azure App Service – Profile .Net Core App Service – Linux – App Insights – Profiler Session

As shown in the above screenshot, it clearly shows us that the Privacy action method of the HomeController is the culprit which is taking lot of time.

The above Profile tree clearly provides us information about which components are taking more time. In this way, we can easily identify the components that are taking more processing time which helps the developers isolate the problem and fix it.

That’s it. In this article, we have learnt how to profile the .net core application hosted in Linux web apps. Hope it helps.

Happy Profiling.
