ASP.NET MVC - AngularJS, Web API And Entity Framework To Build SPA

Introduction

This article walks you through the steps to create a Web Application, using AngularJS, which uses WebAPI to communicate between client and Server side.

Step 1

Create ASP.NET Web API Application

Check the link given below to see all the steps to create a Web API wtih an Entity Framework code first implementation.

http://social.technet.microsoft.com/wiki/contents/articles/26795.asp-net-webapi-entity-framework-code-first.aspx

Step 2

Install NuGet

Now, in order to use an Entity Framework, we need to install a NuGet package.

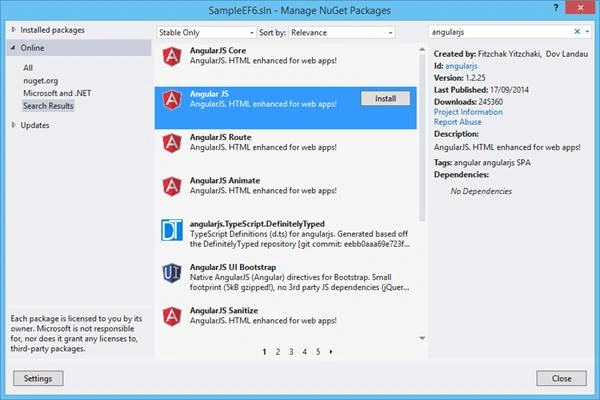

In Visual Studio 2013, select the menu option given below.

Tools-> Library Package manager -> Manage NuGet Packages for the solution.

Search for AngularJS and select the option Install.

AngularJs

This option will automatically install the NuGet package.

Step 3

Create JavaScript Controller

Now, add a new JavaScript file (contactController.js) in scripts directory and add Angular functions.

JavaScript

  1. function contactController($scope, $http) {
  2.     $scope.loading = true;
  3.     $scope.addMode = false;
  4.
  5.     //Used to display the data
  6.     $http.get('/api/Contact/').success(function (data) {
  7.         $scope.Contacts = data;
  8.         $scope.loading = false;
  9.     })
  10.     .error(function () {
  11.         $scope.error = "An Error has occured while loading posts!";
  12.         $scope.loading = false;
  13.     });
  14.
  15.     $scope.toggleEdit = function () {
  16.         this.Contact.editMode = !this.Contact.editMode;
  17.     };
  18.     $scope.toggleAdd = function () {
  19.         $scope.addMode = !$scope.addMode;
  20.     };
  21.
  22.     //Used to save a record after edit
  23.     $scope.save = function () {
  24.         alert("Edit");
  25.         $scope.loading = true;
  26.         var frien = this.Contact;
  27.         alert(emp);
  28.         $http.put('/api/Contact/', frien).success(function (data) {
  29.             alert("Saved Successfully!!");
  30.             emp.editMode = false;
  31.             $scope.loading = false;
  32.         }).error(function (data) {
  33.             $scope.error = "An Error has occured while Saving Contact! " + data;
  34.             $scope.loading = false;
  35.
  36.         });
  37.     };
  38.
  39.     //Used to add a new record
  40.     $scope.add = function () {
  41.         $scope.loading = true;
  42.         $http.post('/api/Contact/'this.newContact).success(function (data) {
  43.             alert("Added Successfully!!");
  44.             $scope.addMode = false;
  45.             $scope.Contacts.push(data);
  46.             $scope.loading = false;
  47.         }).error(function (data) {
  48.             $scope.error = "An Error has occured while Adding Contact! " + data;
  49.             $scope.loading = false;
  50.
  51.         });
  52.     };
  53.
  54.     //Used to edit a record
  55.     $scope.deleteContact = function () {
  56.         $scope.loading = true;
  57.         var Contactid = this.Contact.ContactId;
  58.         $http.delete('/api/Contact/' + Contactid).success(function (data) {
  59.             alert("Deleted Successfully!!");
  60.             $.each($scope.Contacts, function (i) {
  61.                 if ($scope.Contacts[i].ContactId === Contactid) {
  62.                     $scope.Contacts.splice(i, 1);
  63.                     return false;
  64.                 }
  65.             });
  66.             $scope.loading = false;
  67.         }).error(function (data) {
  68.             $scope.error = "An Error has occured while Saving Contact! " + data;
  69.             $scope.loading = false;
  70.
  71.         });
  72.     };
  73.
  74. }

Step 4

Create View

On BundlesConfig file, add the lines of code given below.

C#

  1. bundles.Add(new ScriptBundle("~/bundles/angularjs").Include(
  2.                      "~/Scripts/angular.js",
  3.                      "~/Scripts/contactController.js"));

Open _Layout.cshtml page from shared folder and add these two lines to render AngularJS and contactController in an Application.

JavaScript

  1. @Scripts.Render("~/bundles/angularjs")

Now, let’s work on View.

HTML

  1. @{
  2.     Layout = "~/Views/Shared/_Layout.cshtml";
  3. }
  4.
  5. <h2>Contacts</h2>
  6.
  7. <div ng-app="" ng-controller="contactController" class="container">
  8.     <strong class="error">{{ error }}</strong>
  9.
  10.     <div class="row">
  11.         <div class="logs-table col-xs-12">
  12.             <table class="table table-bordered table-hover" style="width:100%">
  13.                 <tr>
  14.                     <th>Id</th>
  15.                     <th>Name</th>
  16.                     <th>Address</th>
  17.                     <th>City</th>
  18.                     <th>Country</th>
  19.                 </tr>
  20.
  21.                 <tr ng-repeat="contact in contacts">
  22.                     <td>{{ contact.Id }}</td>
  23.                     <td>{{ contact.Name }}</td>
  24.                     <td>{{ contact.Address }}</td>
  25.                     <td>{{ contact.City }}</td>
  26.                     <td>{{ contact.Country }}</td>
  27.                 </tr>
  28.             </table>
  29.         </div>
  30.     </div>
  31. </div>

Step 5

Run an Application

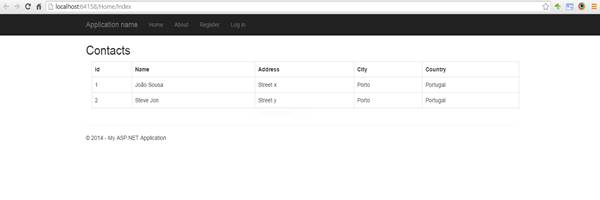

Run the Application to see the output.

output
Resources

Some good resources about Windows Azure can be found at

  • My personal blog: http://joaoeduardosousa.wordpress.com/
  • Angular UI:http://angular-ui.github.io/
