Add SharePoint App Workflow To Host Web List

In my previous article, we have seen how to create an app workflow in SharePoint hosted apps. Here, we will discuss how to add the SharePoint hosted app workflow to the host web list.

Steps to add workflow,

Follow the below steps for adding the workflow in the host web list.

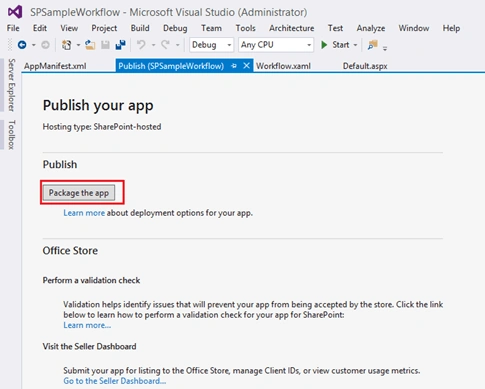

Step 1 - Package the SharePoint app from Visual Studio.

Package the SharePoint app

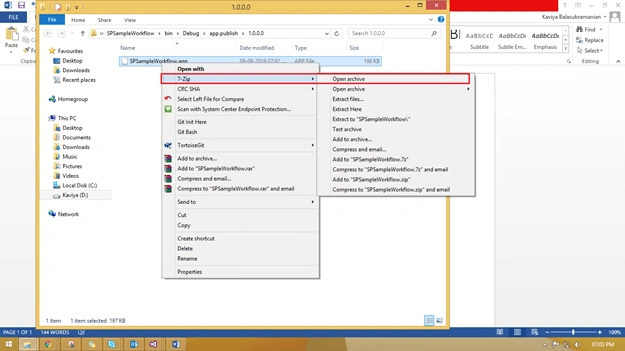

Step 2 - After publishing the app, right click on the .app file and select 7-zip to open the archive, as shown below.

Note: Download the tool here.

 7-zip

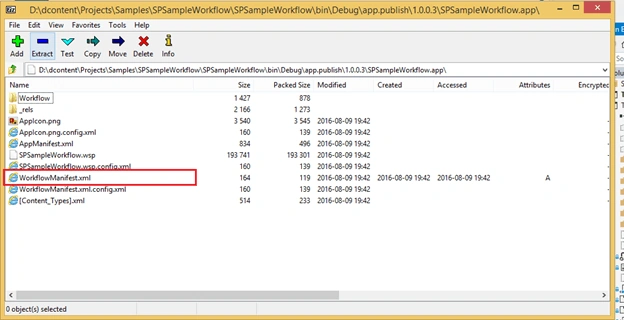

Step 3 - Once it's opened, select the WorkflowManifeas.xml file and open it in notepad.

WorkflowManifeas

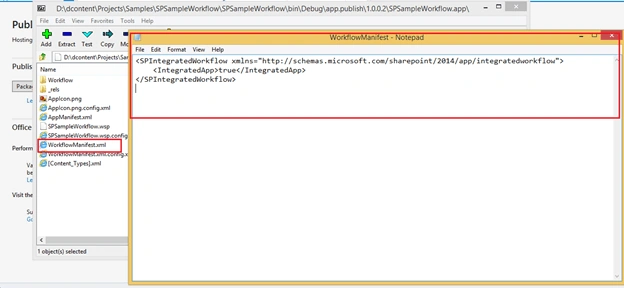

Step 4 - Then, copy the below code, paste it to the workflow manifest file, and save it.

  1. <SPIntegratedWorkflow xmlns="http://schemas.microsoft.com/sharepoint/2014/app/integratedworkflow">
  2.       <IntegratedApp>true</IntegratedApp>
  3. </SPIntegratedWorkflow>
code

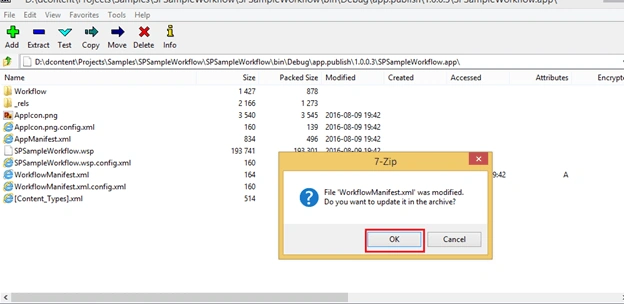

Step 5 - After clicking Save, you will get the following pop up. Just click OK.

pop up

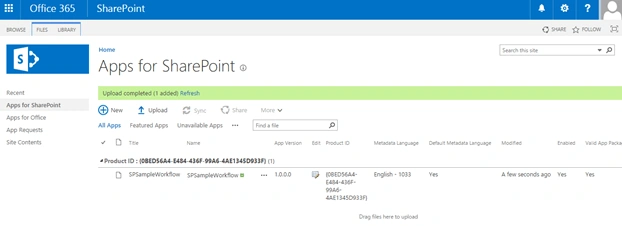

Step 6 - Then, upload the app package in your App Catalog.

upload the app package

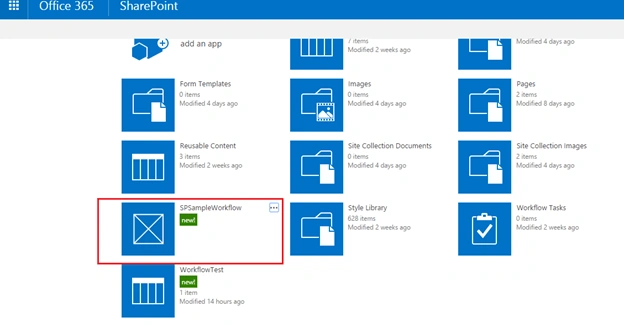

Step 7 - After uploading the file, install the app on your site.

install

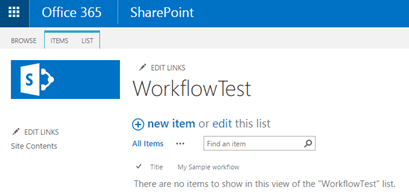

Step 8 - Go to your SharePoint site and open the list where you need to add the workflow.

add workflow

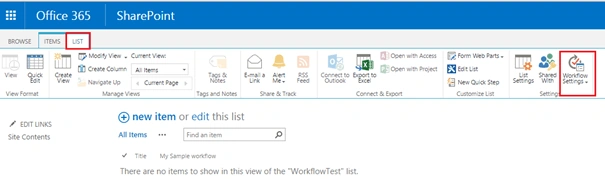

Step 9 - Then, select the List tab from top ribbon.

List

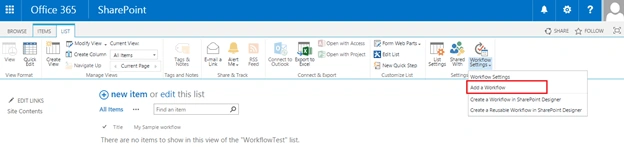

Step 10 - On the ribbon, click on the Workflow settings. Then, select the Add a workflow, as shown below.

add workflow

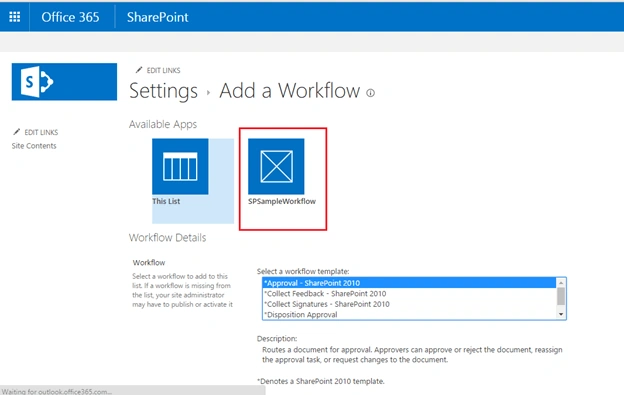

Step 11 - Now, click on your app workflow. It will navigate to Add a workflow page.

Add work flow page

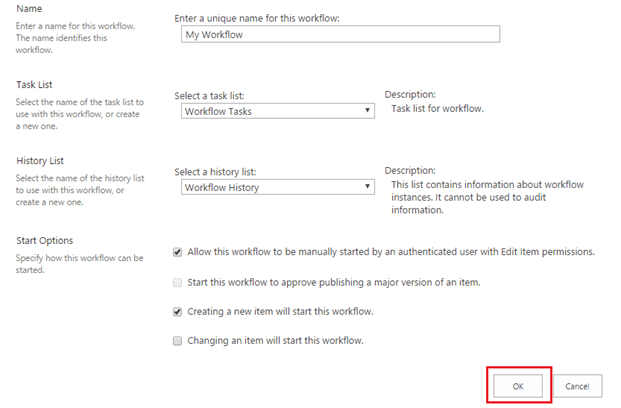

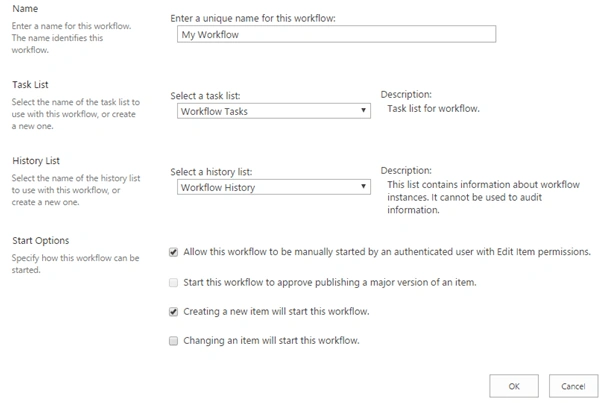

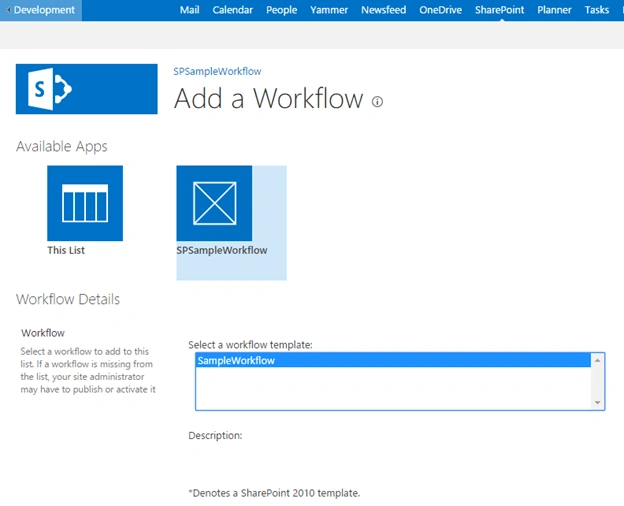

Step 12 - Select the workflow template, as shown below, and then, provide the following details.



  1. Name
  2. Select Task List
  3. Select History List
  4. Select start Options

    workflow
    workflow

Step 13 - Click OK for adding the app workflow.

app workflow

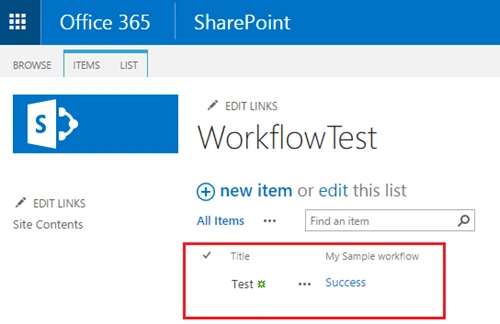

Your workflow will be started successfully when items are added/Modified.

items

Summary

In this article, we have explored how to add the SharePoint hosted app workflow to the host web list in SharePoint Online.
