Add Material-UI Table In ReactJS Application

Introduction


In this article we will learn how to use the Material-UI Table in React applications. Material UI is one of the most popular UI frameworks developed by Google. The Material UI library is designed for faster, easier and developer friendly user interface development. Now Material-UI support in all major browsers and platforms.

Prerequisites
  • We should have the basic knowledge of React.js and Web API.
  • Visual Studio and Visual Studio Code IDE should be installed on your system.
  • SQL Server Management Studio
  • Basic knowledge of React strap and HTML
Implementation Steps
  • Create a Database and Table
  • Create Asp.net Web API Project
  • Create React App
  • Install Material-UI
  • Install Axios

Create a table in the database


Open SQL Server Management Studio, create a database named "Employee", and in this database, create a table. Give that table a name like "Employee".
  1. CREATE TABLE [dbo].[Employee](
  2.     [Id] [int] IDENTITY(1,1) NOT NULL,
  3.     [Name] [varchar](50) NULL,
  4.     [Age] [intNULL,
  5.     [Address] [varchar](50) NULL,
  6.     [City] [varchar](50) NULL,
  7.     [ContactNum] [varchar](50) NULL,
  8.     [Salary] [decimal](18, 0) NULL,
  9.     [Department] [varchar](50) NULL,
  10.  CONSTRAINT [PK_Employee] PRIMARY KEY CLUSTERED
  11. (
  12.     [Id] ASC
  13. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ONON [PRIMARY]
  14. ON [PRIMARY]
  15. GO
Now add a demo data in this table.


Create a new Web API project

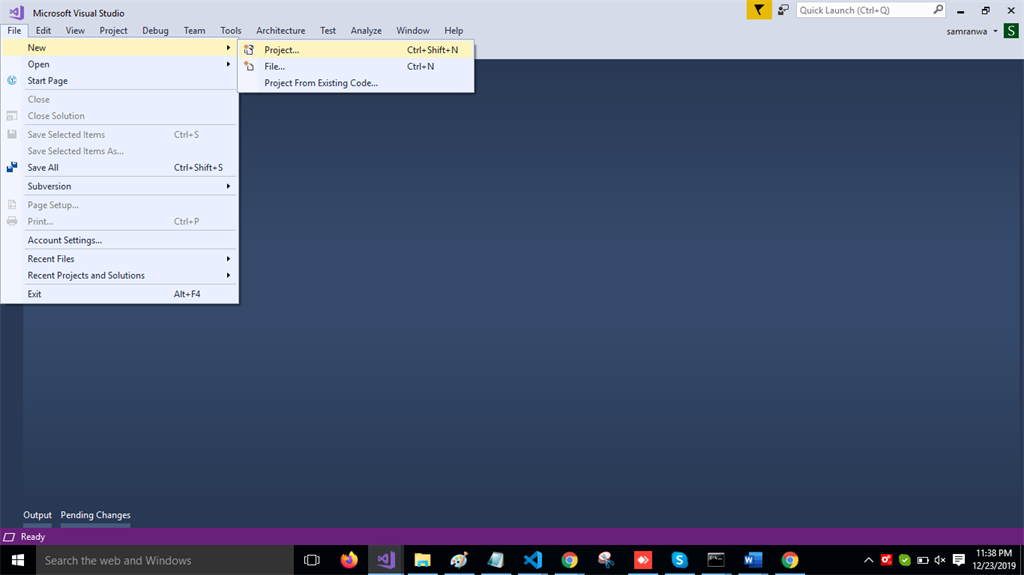

Open Visual Studio and create a new project.

Add Material-UI Table In ReactJS Application

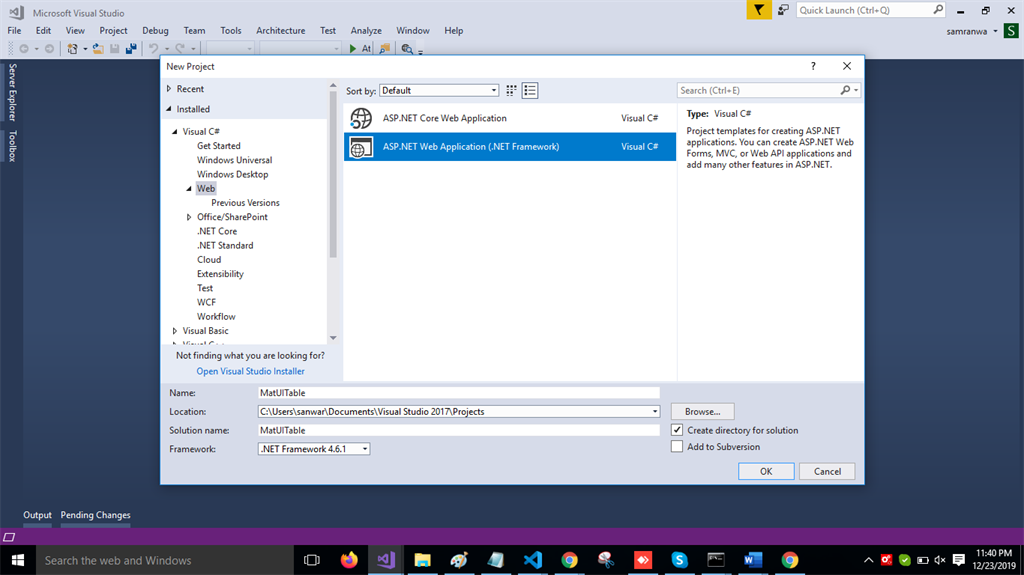

Change the name to MatUITable.

Add Material-UI Table In ReactJS Application

Choose the template as Web API.

Add Material-UI Table In ReactJS Application

Right-click the Models folder from Solution Explorer and go to Add >> New Item >> data.

Add Material-UI Table In ReactJS Application

Click on the "ADO.NET Entity Data Model" option and click "Add".

Add Material-UI Table In ReactJS Application

Select EF Designer from the database and click the "Next" button.

Add Material-UI Table In ReactJS Application

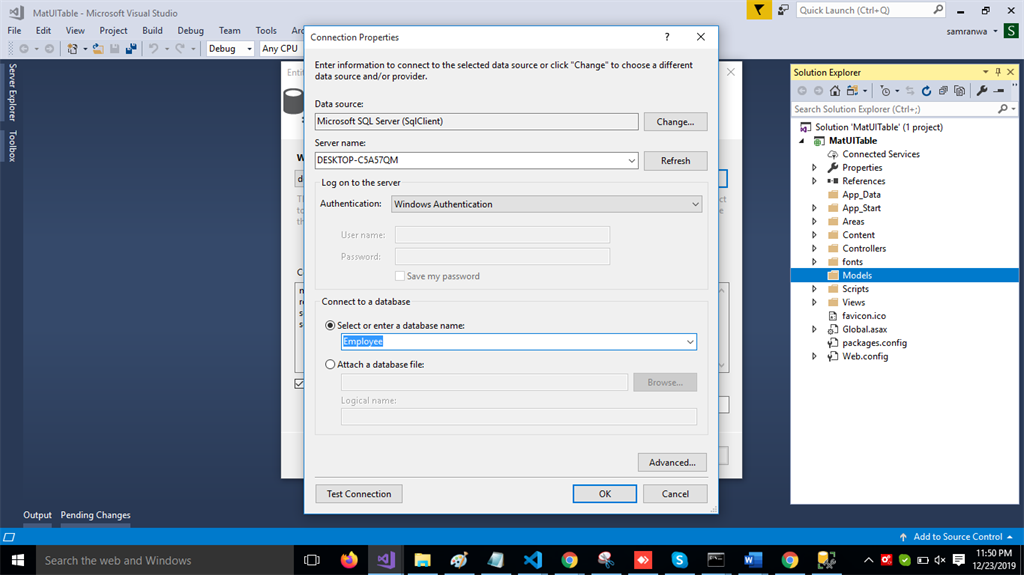

Add the connection properties and select database name on the next page and click OK.

Add Material-UI Table In ReactJS Application

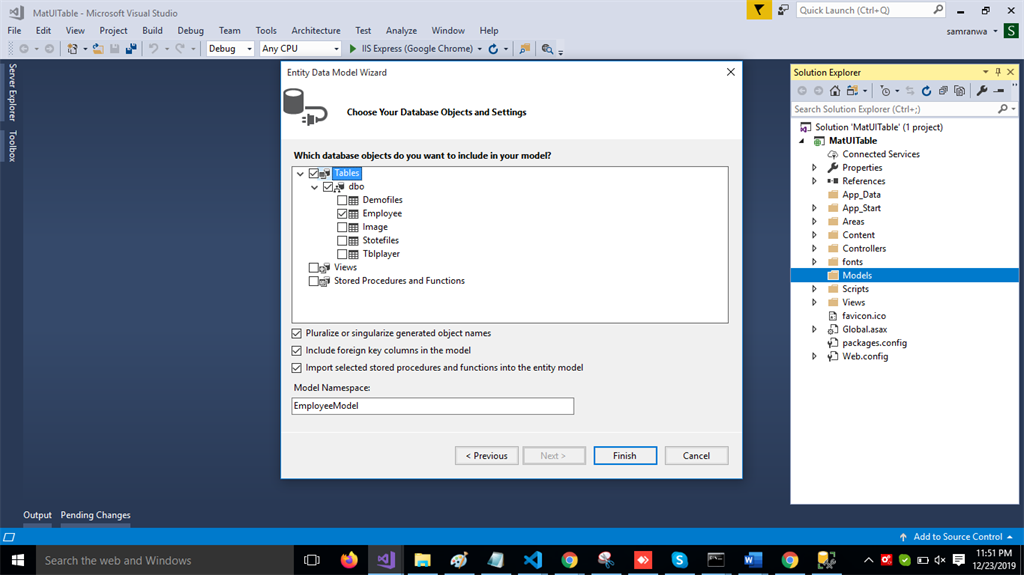

Check the "Table" checkbox. The internal options will be selected by default. Now, click the "Finish" button.

Add Material-UI Table In ReactJS Application

Now, our data model is successfully created.

Right-click on the Controllers folder and add a new controller. Name it as "Employee controller" and add the following namespace in the Employee controller.
  1. using MatUITable.Models;
Now add a method to fetch data from database.
  1. [HttpGet]
  2. [Route("employee")]
  3. public object Getrecord()
  4. {
  5.     var emp = DB.Employees.ToList();
  6.     return emp;
  7. }
Complete Hooks controller code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Net.Http;
  6. using System.Web.Http;
  7. using MatUITable.Models;
  8. namespace MatUITable.Controllers
  9. {
  10.
  11.     [RoutePrefix("Api/Emp")]
  12.     public class EmployeeController : ApiController
  13.     {
  14.         EmployeeEntities DB = new EmployeeEntities();
  15.         [HttpGet]
  16.         [Route("employee")]
  17.         public object Getrecord()
  18.
  19.         {
  20.             var emp = DB.Employees.ToList();
  21.             return emp;
  22.         }
  23.     }

Now, let's enable CORS. Go to Tools, open NuGet Package Manager, search for CORS, and install the "Microsoft.Asp.Net.WebApi.Cors" package. Open Webapiconfig.cs and add the following lines.
  1. EnableCorsAttribute cors = new EnableCorsAttribute("*""*""*");
  2. config.EnableCors(cors);

Create ReactJS project


Now let's first create a React application with the following command.
  1. npx create-react-app matform
Open the newly created project in Visual Studio Code and install Material-UI.


Install Material-UI


Now Install Material-UI by using the following command
  1. npm install @material-ui/core --save
 Now Install the Axios library by using the following command. Learn more about Axios
  1. npm install --save axios
 Now go to src folder and add 2 new components; in one component we are going to use classes and in another we will use Hooks.
  • MatTable.js
  • MatPaginationTable.js
Now open MatTable.js component and import required reference for material UI table
  1. import Table from '@material-ui/core/Table';
  2. import TableBody from '@material-ui/core/TableBody';
  3. import TableCell from '@material-ui/core/TableCell';
  4. import TableContainer from '@material-ui/core/TableContainer';
  5. import TableHead from '@material-ui/core/TableHead';
  6. import TableRow from '@material-ui/core/TableRow';
  7. import Paper from '@material-ui/core/Paper'
 Add the following code in this component.
  1. import React, { Component } from 'react'
  2. import Table from '@material-ui/core/Table';
  3. import TableBody from '@material-ui/core/TableBody';
  4. import TableCell from '@material-ui/core/TableCell';
  5. import TableContainer from '@material-ui/core/TableContainer';
  6. import TableHead from '@material-ui/core/TableHead';
  7. import TableRow from '@material-ui/core/TableRow';
  8. import Paper from '@material-ui/core/Paper';
  9. import axios from 'axios';
  10.
  11. export class MatTable extends Component {
  12.   constructor(props) {
  13.     super(props)
  14.     this.state = {
  15.       ProductData: []
  16.
  17.     }
  18.   }
  19.   componentDidMount() {
  20.     axios.get('http://localhost:51760/Api/Emp/employee').then(response => {
  21.       console.log(response.data);
  22.       this.setState({
  23.         ProductData: response.data
  24.       });
  25.     });
  26.   }
  27.   render() {
  28.     console.log(this.state.ProductData);
  29.     return (
  30.       <TableContainer component={Paper}>
  31.         <Table stickyHeader  aria-label="sticky table">
  32.           <TableHead>
  33.             <TableRow>
  34.               <TableCell>Id</TableCell>
  35.               <TableCell align="right">Name</TableCell>
  36.               <TableCell align="right">Age</TableCell>
  37.               <TableCell align="right">Address</TableCell>
  38.               <TableCell align="right">City</TableCell>
  39.               <TableCell align="right">ContactNum</TableCell>
  40.               <TableCell align="right">Salary</TableCell>
  41.               <TableCell style={{paddingRight:"60px"}} align="right" >Department</TableCell>
  42.             </TableRow>
  43.           </TableHead>
  44.           <TableBody>
  45.             {
  46.               this.state.ProductData.map((p, index) => {
  47.                 return <TableRow key={index}>
  48.                   <TableCell component="th" scope="row">
  49.                     {p.Id}
  50.                   </TableCell>
  51.                   <TableCell align="right">{p.Name}</TableCell>
  52.                   <TableCell align="right">{p.Age}</TableCell>
  53.                   <TableCell align="right">{p.Address}</TableCell>
  54.                   <TableCell align="right">{p.City}</TableCell>
  55.                   <TableCell align="right">{p.ContactNum}</TableCell>
  56.                   <TableCell align="right">{p.Salary}</TableCell>
  57.                   <TableCell style={{paddingRight:"114px"}} align="right">{p.Department}</TableCell>
  58.                 </TableRow>
  59.               })
  60.             }
  61.           </TableBody>
  62.         </Table>
  63.       </TableContainer>
  64.     );
  65.   }
  66. }
  67.
  68. export default MatTable
Now run the project by using the following command 'npm start' and check result,

Add Material-UI Table In ReactJS Application
Now open MatPaginationTable.js and add the following code to show table with pagination.
  1. import React from 'react';
  2. import { makeStyles } from '@material-ui/core/styles';
  3. import Paper from '@material-ui/core/Paper';
  4. import Table from '@material-ui/core/Table';
  5. import TableBody from '@material-ui/core/TableBody';
  6. import TableCell from '@material-ui/core/TableCell';
  7. import TableContainer from '@material-ui/core/TableContainer';
  8. import TableHead from '@material-ui/core/TableHead';
  9. import TablePagination from '@material-ui/core/TablePagination';
  10. import TableRow from '@material-ui/core/TableRow';
  11. import axios from 'axios';
  12. import { useState, useEffect } from 'react'
  13.
  14.
  15. const useStyles = makeStyles({
  16.   root: {
  17.     width: '100%',
  18.   },
  19.   container: {
  20.     maxHeight: 440,
  21.   },
  22. });
  23.
  24. export default function MatPaginationTable() {
  25.   const classes = useStyles();
  26.   const [page, setPage] = React.useState(0);
  27.   const [data, setData] = useState([]);
  28.   const [rowsPerPage, setRowsPerPage] = React.useState(5);
  29.   useEffect(() => {
  30.         const GetData = async () => {
  31.           const result = await axios('http://localhost:51760/Api/Emp/employee');
  32.           setData(result.data);
  33.         }
  34.         GetData();
  35.         console.log(data);
  36. }, []);
  37.   const handleChangePage = (event, newPage) => {
  38.     setPage(newPage);
  39.   };
  40.
  41.   const handleChangeRowsPerPage = event => {
  42.     setRowsPerPage(+event.target.value);
  43.     setPage(0);
  44.   };
  45.
  46.   return (
  47.     <Paper className={classes.root}>
  48.       <TableContainer className={classes.container}>
  49.         <Table stickyHeader aria-label="sticky table">
  50.         <TableHead>
  51.             <TableRow>
  52.               <TableCell>Id</TableCell>
  53.               <TableCell align="right">Name</TableCell>
  54.               <TableCell align="right">Age</TableCell>
  55.               <TableCell align="right">Address</TableCell>
  56.               <TableCell align="right">City</TableCell>
  57.               <TableCell align="right">ContactNum</TableCell>
  58.               <TableCell align="right">Salary</TableCell>
  59.               <TableCell align="right">Department</TableCell>
  60.             </TableRow>
  61.           </TableHead>
  62.           <TableBody>
  63.             {data.slice(page * rowsPerPage, page * rowsPerPage + rowsPerPage).map(row => {
  64.               return (
  65.            <TableRow >
  66.                 <TableCell component="th" scope="row">
  67.                   {row.Id}
  68.                 </TableCell>
  69.                 <TableCell align="right">{row.Name}</TableCell>
  70.                 <TableCell align="right">{row.Age}</TableCell>
  71.                 <TableCell align="right">{row.Address}</TableCell>
  72.                 <TableCell align="right">{row.City}</TableCell>
  73.                 <TableCell align="right">{row.ContactNum}</TableCell>
  74.                 <TableCell align="right">{row.Salary}</TableCell>
  75.                 <TableCell align="right">{row.Department}</TableCell>
  76.               </TableRow>
  77.
  78.               );
  79.             })}
  80.           </TableBody>
  81.         </Table>
  82.       </TableContainer>
  83.       <TablePagination
  84.         rowsPerPageOptions={[5, 10, 15]}
  85.         component="div"
  86.         count={data.length}
  87.         rowsPerPage={rowsPerPage}
  88.         page={page}
  89.         onChangePage={handleChangePage}
  90.         onChangeRowsPerPage={handleChangeRowsPerPage}
  91.       />
  92.     </Paper>
  93.   );

Add reference of this component in app.js file,
  1. import React from 'react';
  2. import logo from './logo.svg';
  3. import './App.css';
  4. import MatTable from './MatTable'
  5. import MatPaginationTable from "./MatPaginationTable";
  6.
  7. function App() {
  8.   return (
  9.     <div className="App">
  10.     <MatPaginationTable/>
  11.     {/* <MatTable/> */}
  12.     </div>
  13.   );
  14. }
  15.
  16. export default App;
Now run the  project

Add Material-UI Table In ReactJS Application

Summary


In this article, we learned how we install a material UI table and show data in that table using Web API in React applications. Material UI is one of the most popular UI frameworks developed by Google.
