A first machine learning project in python with Iris dataset

I. Introduction



Machine learning is a subfield of artificial intelligence, which is learning algorithms to make decision-based on those data and try to behave like a human being. It is now growing one of the top five in-demand technologies of 2018. Iris data set is the famous smaller databases for easier visualization and analysis techniques. In this article, we will see a quick view of how to develop machine learning “hello world program”.



II. Prerequisites



Spyder(python3.6) IDE



III. Topics

1. Environment setup
2. Loading and understanding data
3. Data visualization
4. Train and validate data
5. Predict the result

1. Environment setup

• Download and install Anaconda navigator, which is distributed a variety of integrated development environments for scientific programming and data analyst as without using any command-line commands.
• The spyder IDE provides better interactive editing and debugging facilities for data analysis.
• To check out necessary libraries that have been installed or not with their versions.

• import pandas
  print('pandas version is: {}'.format(pandas.__version__))
  import numpy
  print('numpy version is:{}'.format(numpy.__version__))
  import seaborn
  print('seaborn version is{}'.format(seaborn.__version__))
  import sklearn
  print('sklearn version is:{}'.format(sklearn.__version__))



 2. Load and understanding data

• Pandas is a python package that provides fast and flexible data analysis to the relational or labeled database.
• Before loading the dataset, you should store the dataset in the spyder working directory.

2.1 Loading the dataset

#load dataset
import pandas as PD
iris=pd.read_csv('Iris.csv')



2.2 Understanding the dataset



Here, we are going to do a few tasks to understand how numerical data has categorized.

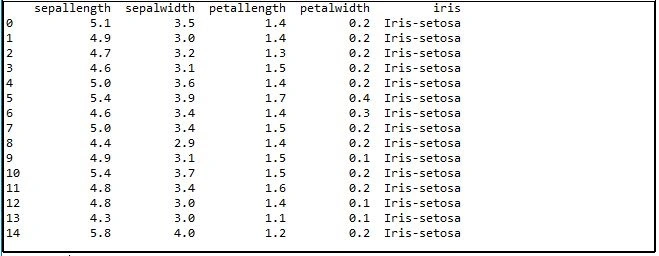

2.2.1 Preview data



Let’s, look at the iris flowers numerical data belongs to their four species. You can see a first 15 numerical row of species. If the dataset contains three types of flower sets called Iris virginica, Versicolor and iris Sentosa. These three flower features are measured along with their species.

#preview data
print(iris.head(15))

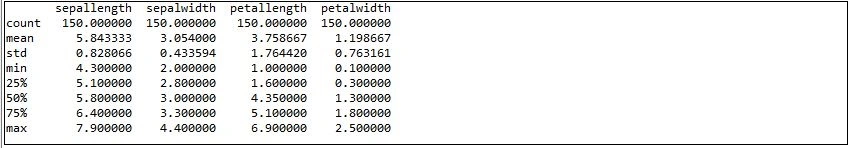

2.2.2 Description of dataset



Let’s look at a summary of each iris instance attributes.

#Description of Data
print(iris.describe())

If the four features of iris species measured by count, min, mean, max, and percentiles.





2.2.3 Description of class



Now, the time to view how many instances the data frame contains.

#Flower distribution
print(iris.groupby('iris').size())

If the dataset contains three classes with 150 instances and its entire instances were measured as numerical values by their features.





2.2.4 Shape of Data



The shape property provides us to seek entire counts of flower instances.

#Data Shape
print(iris.shape)

There is a data frame contains 150 samples under the 5 columns.





3. Data visualization

• The visualization techniques provide imagery representation of Iris species and feature It is used to determine correlations between the X and Y variables (dependent and independent variables).
• Now, we are going to visualize the dataset in two ways such as Boxplot, and pairwise joint plot distribution (scatter plot).

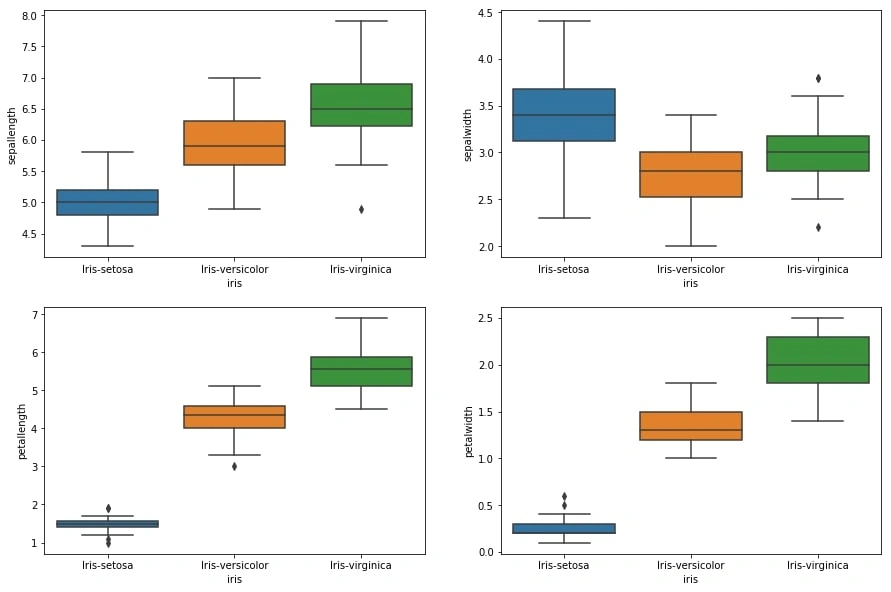

3.1 Boxplot

• The graph represented the shape of data distribution and their upper and lower quartiles.
• The iris species might show with few box plot standard ways such as mean, median, and deviation.

• #Boxplot
  plt.figure(figsize=(15,10))
  plt.subplot(2,2,1)
  sns.boxplot(x='iris',y='sepallength',data=iris)
  plt.subplot(2,2,2)
  sns.boxplot(x='iris',y='sepalwidth',data=iris)
  plt.subplot(2,2,3)
  sns.boxplot(x='iris',y='petallength',data=iris)
  plt.subplot(2,2,4)
  sns.boxplot(x='iris',y='petalwidth',data=iris)

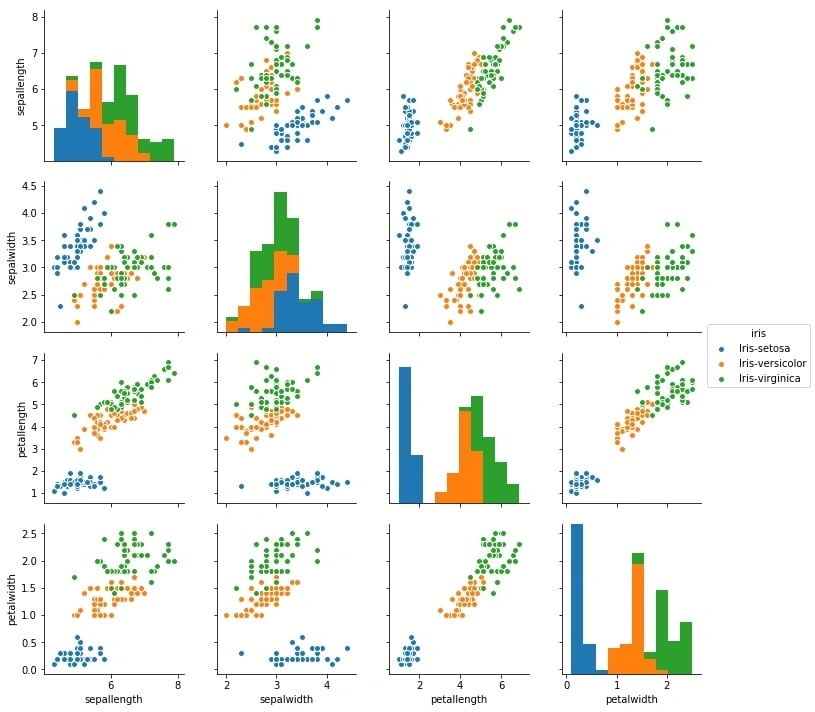

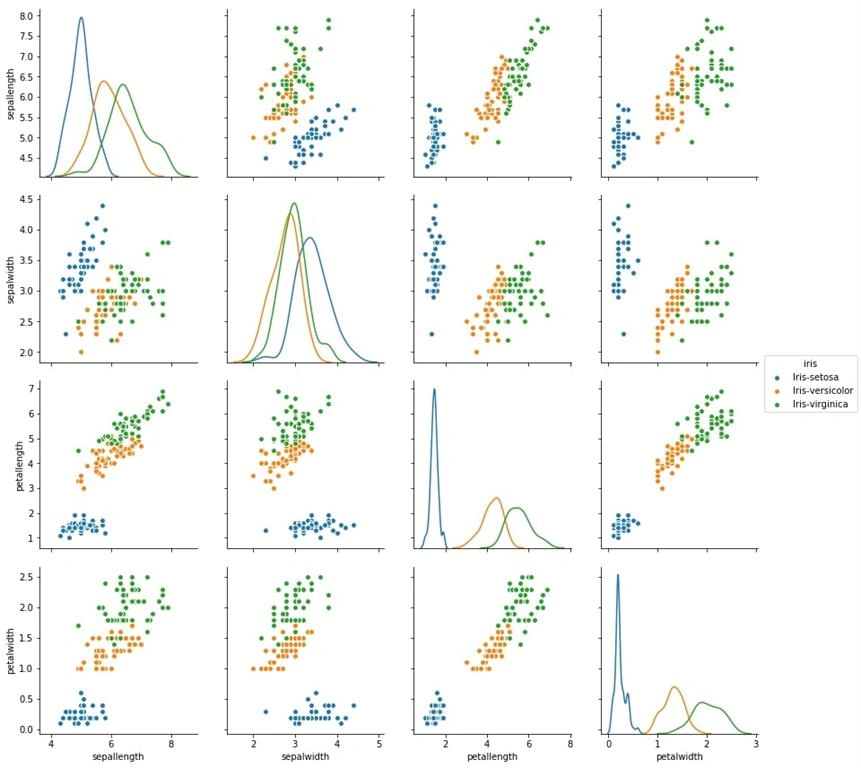

3.2 Pair plot



The pair plot used to figure out a distribution of single variables and the relationship between two variables. If the pair plot is given a solution for that as a clear understanding of each flower sets at a single graph. Each flower scatters plots represented in different colors.

#Pairwise joint plot (scatter matrix)
sns.pairplot(iris, hue='iris', size=3, diag_kind="kde")
sns.pairplot(iris,hue='iris')

Here, it also appears some overleaping data points.







4. Train and validate data (Machine learning)



Here, we’ll separate the dataset into two parts for validation processes such as train data and test data. Then allocating 80% of data for training tasks and the remainder 20% for validation purposes.

#dataset spliting
array = iris.values
X = array[:,0:4]
Y = array[:,4]
validation_size = 0.20
seed = 7
X_train, X_validation, Y_train, Y_validation = cross_validation.train_test_split(X, Y, test_size=validation_size,
random_state=seed)
 #k=10
num_folds = 10
num_instances = len(X_train)
seed = 7
scoring = 'accuracy'

4.1 Train the model (Modeling)

• Now, it's time to determine the best suitable algorithm for getting effective accuracy.
• Here, we are going to evaluate five famous frequently used algorithms such as

1. Linear regression algorithm
2. Logistic regression
3. Decision tree classifier
4. Gaussian Naïve Base
5. Support Vector Machine

#evaluate model to determine better algorithm
models = []
models.append(('LR', LogisticRegression()))
models.append(('LDA', LinearDiscriminantAnalysis()))
models.append(('CART', DecisionTreeClassifier()))
models.append(('NB', GaussianNB()))
models.append(('SVM', SVM()))

results = []
names = []
for name, model in models:
    kfold = cross_validation.KFold(n=num_instances, n_folds=num_folds, random_state=seed)
    cv_results = cross_validation.cross_val_score(model, X_train, Y_train, cv=kfold, scoring=scoring)
    results.append(cv_results)
    names.append(name)
    msg = "%s: %f (%f)" % (name, cv_results.mean(), cv_results.std())
    print(msg)

 The support vector machine model appears a high score of accuracy.





4.2 Algorithm comparison



You can also discover better accuracy by the algorithm comparison graph.

#choose best one model trough graphical representation
plt.figure(figsize=(15,10))
fig = plt.figure()
fig.suptitle('Differentiate algorithms')
ax = fig.add_subplot(111)
plt.boxplot(results)
ax.set_xticklabels(names)
plt.show()

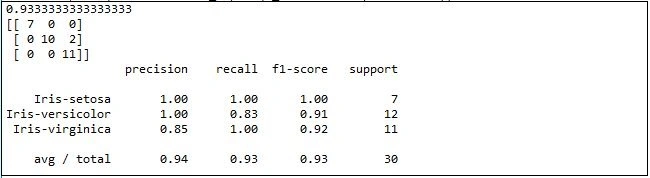

5.  Validate the data(prediction)



Let’s predict a value by validation.

#pretiction
svn = SVM()
svn.fit(X_train, Y_train)
predictions = svn.predict(X_validation)
print(accuracy_score(Y_validation, predictions))
print(confusion_matrix(Y_validation, predictions))
print(classification_report(Y_validation, predictions))



Testing the new data.

#verify new data
X_new = numpy.array([[3, 2, 4, 0.2], [  4.7, 3, 1.3, 0.2 ]])
print("X_new.shape: {}".format(X_new.shape))



Validating the prediction

#validate
prediction = svn.predict(X_new)
print("Prediction of Species: {}".format(prediction))



IV. Summary



I hope, this machine learning a quick demonstration you understood very well.
