Take Backup of a DataBase By Coding

Show all DataServer, Show all database of a selected DataServer and take backup of a selected database.

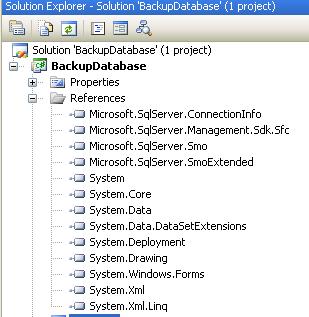

These are the reference list..



Image 1.

This is my c# code

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using Microsoft.SqlServer.Server;
using Microsoft.SqlServer.Management.Smo;
using Microsoft.SqlServer.Management;
using System.IO;
namespace WindowsFormsApplication1
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private void Form1_Load(object sender, EventArgs e)
        {
            GetAllServer();
        }
        //To Get All Server
        private void GetAllServer()
        {
            DataTable dt = SmoApplication.EnumAvailableSqlServers(false);
            if (dt.Rows.Count > 0)
            {
                foreach (DataRow dr in dt.Rows)
                {
                    comboBoxServer.Items.Add((dr["Name"]));
                }
            }
        }
        //To Get All DataBase of a Selected Server
        private void GetAllDataBase()
        {
            System.Data.SqlClient.SqlConnection SqlCon = new System.Data.SqlClient.SqlConnection("server=" + comboBoxServer.SelectedItem.ToString() + ";uid=" + textBoxUid.Text + ";pwd=" + textBoxPassword.Text + ";");
            SqlCon.Open();
            System.Data.SqlClient.SqlCommand SqlCom = new System.Data.SqlClient.SqlCommand();
            SqlCom.Connection = SqlCon;
            SqlCom.CommandType = CommandType.StoredProcedure;
            SqlCom.CommandText = "sp_databases";
            System.Data.SqlClient.SqlDataReader SqlDR;
            SqlDR = SqlCom.ExecuteReader();
            while (SqlDR.Read())
            {
                comboBoxDatabaseList.Items.Add(SqlDR.GetString(0));
            }
        }
        //To Take Backup
        private void TakeBackUp(string BackupDBName, string FileNamePath)
        {
            try
            {
                if (textBoxUid.Text != "" && textBoxPassword.Text != "")
                {
                    Server sqlServerInstance = new Server(new Microsoft.SqlServer.Management.Common.ServerConnection(new System.Data.SqlClient.SqlConnection("Data Source=" + comboBoxServer.SelectedItem.ToString() + ";Initial Catalog=" + comboBoxDatabaseList.SelectedItem.ToString() + "; uid=" + textBoxUid.Text + "; pwd=" + textBoxPassword.Text + ";")));
                    Backup objBackup = new Backup();
                    objBackup.Devices.AddDevice(FileNamePath, DeviceType.File);
                    objBackup.Database = BackupDBName;
                    objBackup.Action = BackupActionType.Database;
                    objBackup.SqlBackup(sqlServerInstance);
                    MessageBox.Show("The backup of database " + "'" + BackupDBName + "'" + " completed sccessfully", "Microsoft SQL Server Management Studio", MessageBoxButtons.OK, MessageBoxIcon.Information);
                }
                else
                {
                    MessageBox.Show("Please enter userId and password");
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
        private void button1_Click(object sender, EventArgs e)
        {
            if (comboBoxDatabaseList.SelectedIndex > 0)
            {
                if (textBoxBackFileName.Text != "")
                {
                    TakeBackUp(comboBoxDatabaseList.SelectedItem.ToString(), "D:\\" + textBoxBackFileName.Text + ".bak");
                }
                else
                {
                    MessageBox.Show("Please type a name for backup file");
                }

            }
            else
            {
                MessageBox.Show("Please select a database to backup");
            }
        }
        private void button2_Click(object sender, EventArgs e)
        {
            this.Dispose();
        }
        private void comboBoxServer_SelectedIndexChanged(object sender, EventArgs e)
        {
            comboBoxDatabaseList.Items.Clear();
            textBoxUid.Text = "";
            textBoxPassword.Text = "";
            MessageBox.Show("Enter UserId And Password to connect this DataSource.");
        }
        private void buttonConnectDb_Click(object sender, EventArgs e)
        {
            if (comboBoxServer.SelectedIndex > 0)
            {
                if (textBoxUid.Text != "" && textBoxPassword.Text != "")
                {
                    GetAllDataBase();
                    MessageBox.Show("Successfully Connected.");
                }
                else
                {
                    MessageBox.Show("Please enter userId and password");
                }
            }
            else
            {
                MessageBox.Show("Please select a Server to connect");
            }
        }
    }
}

When running the application



Image 2.

After successfully connecting select database and type the name of backup file this backup file will save in D Drive(You can change the location).



Image 3.



Image 4.
