Creating a Cascading Dropdown List in MVC 4

For this I will create a new MVC 4 application.

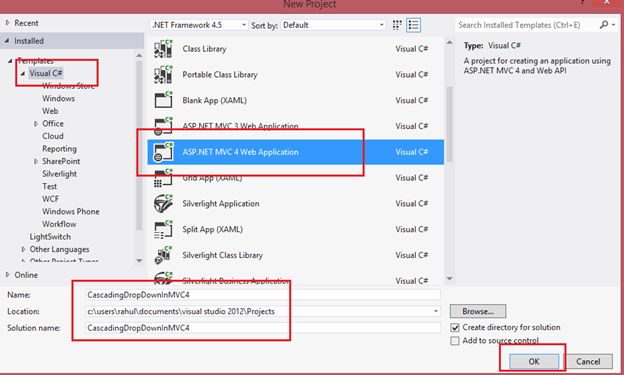

Open Visual Studio 2012 then select "File" -> "New" -> "Project..."

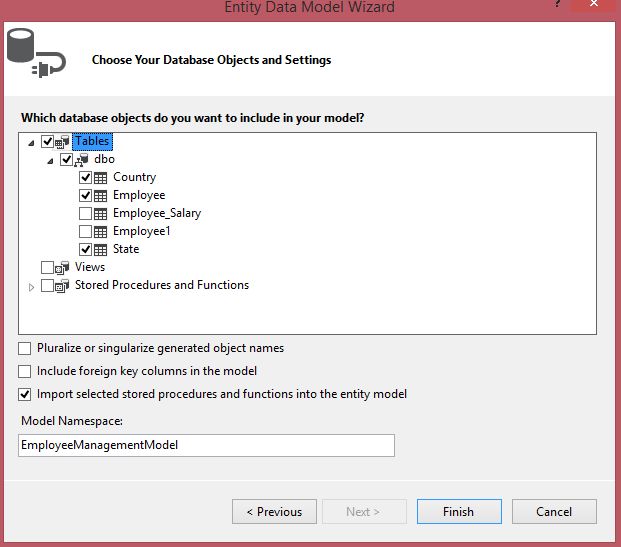

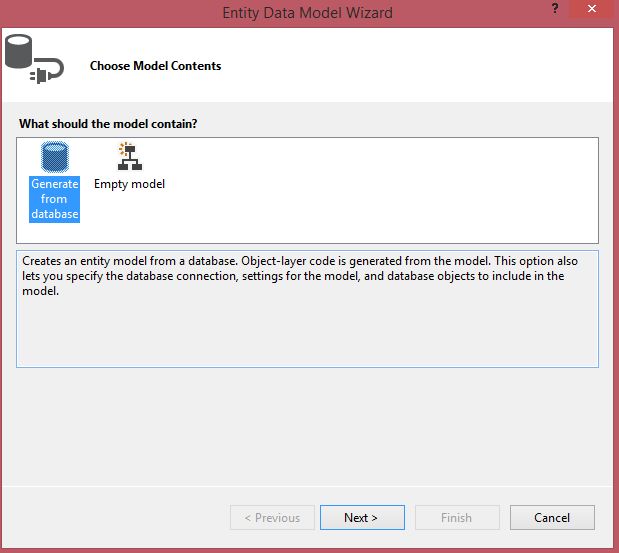

Now add a new ADO.NET Entity data model.

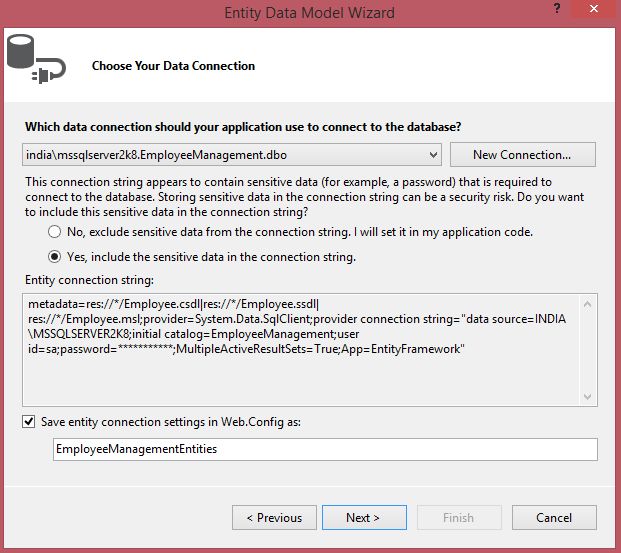

Enter your SQL Server credentials here.

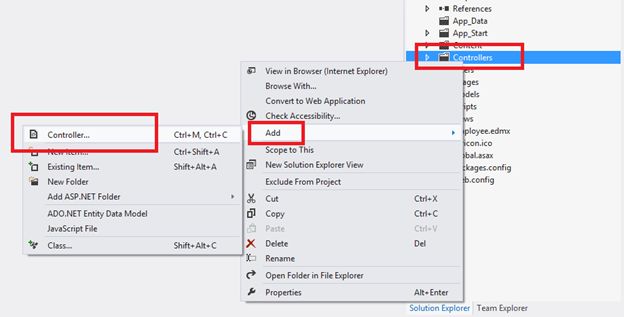

Now add a new Controller.



Now do the following code here in Employee Controller:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using CascadingDropDownInMVC4.Models;
  7. namespace CascadingDropDownInMVC4.Controllers
  8. {
  9.     public class EmployeeController : Controller
  10.     {
  11.         public ActionResult Index()
  12.         {
  13.             EmployeeManagementEntities db = new EmployeeManagementEntities();
  14.             ViewBag.Country = new SelectList(db.Country, "CountryID""CountryName");
  15.             return View();
  16.         }
  17.
  18.         // Json Call to get state
  19.         public JsonResult GetStates(string id)
  20.         {
  21.             List<SelectListItem> states = new List<SelectListItem>();
  22.             var stateList = this.Getstate(Convert.ToInt32(id));
  23.             var stateData = stateList.Select(m => new SelectListItem()
  24.             {
  25.                 Text = m.StateName,
  26.                 Value = m.StateID.ToString(),
  27.             });
  28.             return Json(stateData, JsonRequestBehavior.AllowGet);
  29.         }
  30.
  31.         // Get State from DB by country ID
  32.         public IList<State> Getstate(int CountryId)
  33.         {
  34.             EmployeeManagementEntities db = new EmployeeManagementEntities();
  35.
  36.             return db.State.Where(m => m.CountryID == CountryId).ToList();
  37.         }
  38.         [HttpPost]
  39.         public ActionResult Index(FormCollection formdata)
  40.         {
  41.             // Get Employee informaiton to insert into Data Base
  42.             return RedirectToAction("Index""Home");
  43.         }
  44.     }
  45. }
Now add a View index.cshtml as in the following:
  1. @model CascadingDropDownInMVC4.Models.EmployeeData
  2.
  3. @{
  4.     ViewBag.Title = "Index";
  5. }
  6.
  7. <h2>Index</h2>
  8.
  9. @using (Html.BeginForm())
  10. {
  11.     @Html.ValidationSummary(true)
  12.
  13.     <fieldset>
  14.         <legend>EmployeeData</legend>
  15.
  16.         <div class="editor-label">
  17.             @Html.LabelFor(model => model.Name)
  18.         </div>
  19.         <div class="editor-field">
  20.             @Html.EditorFor(model => model.Name)
  21.             @Html.ValidationMessageFor(model => model.Name)
  22.         </div>
  23.
  24.         <div class="editor-label">
  25.             @Html.LabelFor(model => model.Email)
  26.         </div>
  27.         <div class="editor-field">
  28.             @Html.EditorFor(model => model.Email)
  29.             @Html.ValidationMessageFor(model => model.Email)
  30.         </div>
  31.
  32.         <div class="editor-label">
  33.             @Html.LabelFor(model => model.Designation)
  34.         </div>
  35.         <div class="editor-field">
  36.             @Html.EditorFor(model => model.Designation)
  37.             @Html.ValidationMessageFor(model => model.Designation)
  38.         </div>
  39.         <div class="editor-label">
  40.             @Html.Label("Country")<br />
  41.         </div>
  42.
  43.         <div>
  44.             @Html.DropDownList("Country", ViewBag.Country as SelectList, "-- Please Select a Country  --"new { style="width:250px"})
  45.
  46.         </div>
  47.         <div class="editor-label"><br />
  48.             @Html.Label("State")<br />
  49.         </div>
  50.         <div>
  51.             @Html.DropDownList("State"new SelectList(string.Empty, "Value""Text"), "-- Please select a State --"new { style = "width:250px", @class = "dropdown1" })
  52.         </div>
  53.         <p>
  54.             <input type="submit" value="Create" />
  55.         </p>
  56.     </fieldset>
  57. }
  58.
  59. <script src="~/Scripts/jquery-1.7.1.js"></script>
  60. <script src="~/Scripts/jquery-1.7.1.min.js"></script>
  61.
  62. <script type="text/javascript">
  63.     $(document).ready(function () {
  64.         //Country Dropdown Selectedchange event
  65.         $("#Country").change(function () {
  66.             $("#State").empty();
  67.             $.ajax({
  68.                 type: 'POST',
  69.                 url: '@Url.Action("GetStates")'// Calling json method
  70.                 dataType: 'json',
  71.                 data: { id: $("#Country").val() },
  72.                 // Get Selected Country ID.
  73.                 success: function (states) {
  74.                     $.each(states, function (i, state) {
  75.                         $("#State").append('<option value="' + state.Value + '">' +
  76.                              state.Text + '</option>');
  77.                     });
  78.                 },
  79.                 error: function (ex) {
  80.                     alert('Failed to retrieve states.' + ex);
  81.                 }
  82.             });
  83.             return false;
  84.         })
  85.     });
  86. </script>

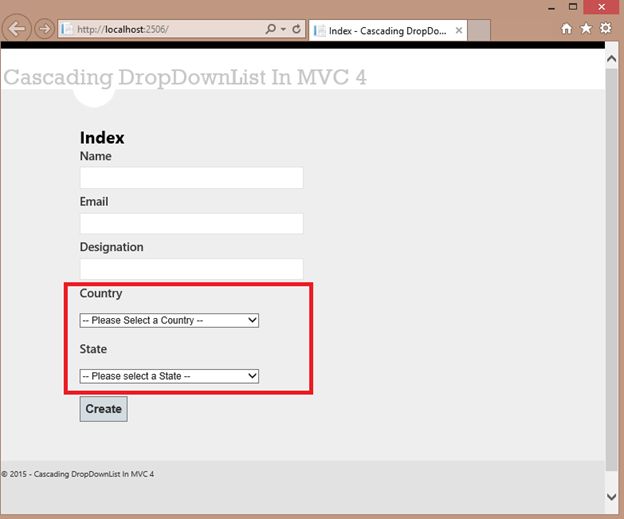

Now run the application as in the following:

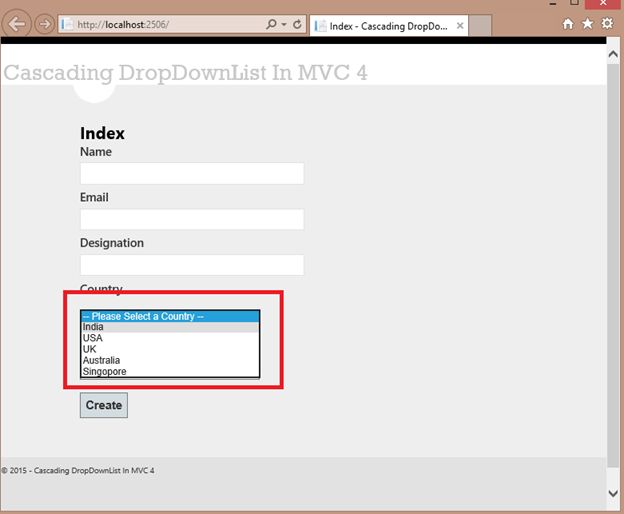

Now select a country as in the following:





Now I have 2 tables for Country & State.



The following is the data in my Country table:

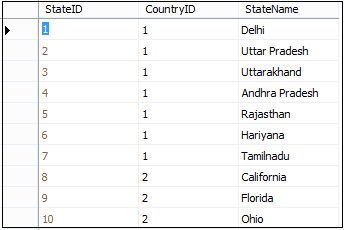

The following is the data in my State table:
