An Image Gallery Application In MVC 4

I am showing this functionality by creating an ASP.Net MVC 4 application (R- An Image Gallery Application In MVC 4).

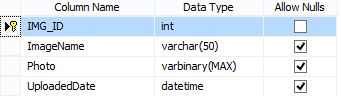

The following is my SQL Server Data Table structure: (Album_Details).

design view
                                       Image 1.

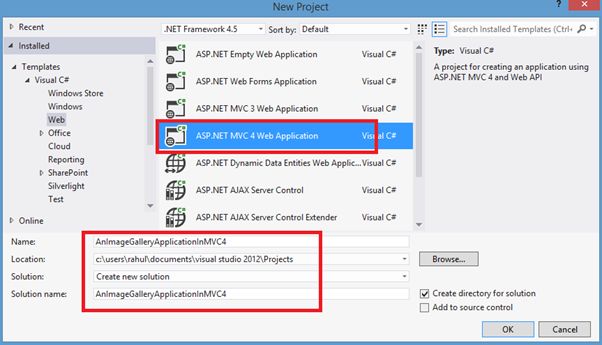

Now open Visual Studio and select "File" -> "New" -> "Project...":

New Project
                                                                        Image 2.

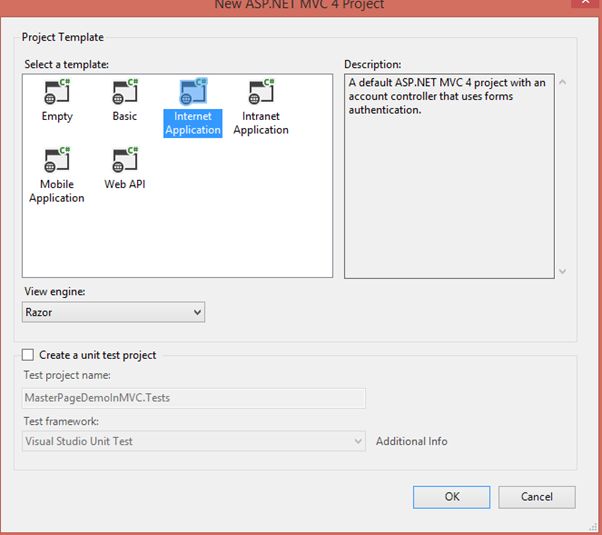

internet application
                                                                        Image 3.

Now right-click on the Model Folder Add New Item -> Add New Class (ImageInfo):

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace AnImageGalleryApplicationInMVC4.Models
  7. {
  8.     public class ImageInfo
  9.     {
  10.         public int Image_Id { get; set; }
  11.         public string Image_Name { get; set; }
  12.         public byte[] Image { get; set; }
  13.         public string Image_UploadedDate { get; set; }
  14.     }
  15. }
Now again right-click on the Model Folder-> Add New Item -> Add New Class (RAlbumService):
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Data;
  6. using System.Data.SqlClient;
  7. using System.Configuration;
  8. using System.IO;
  9.
  10. namespace AnImageGalleryApplicationInMVC4.Models
  11. {
  12.     public class RAlbumService
  13.     {
  14.         public IList<ImageInfo> GetAllImages()
  15.         {
  16.             List<ImageInfo> objImgInfo = new List<ImageInfo>();
  17.             SqlDataAdapter da;
  18.             DataSet ds = new DataSet();
  19.             SqlConnection con = new SqlConnection();
  20.             con.ConnectionString = @"Data Source=MYPC\SqlServer2k8;Integrated Security=true;Initial Catalog=R-ImageGallery";
  21.             SqlCommand cmd = new SqlCommand("SELECT * FROM Album_Details", con);
  22.             da = new SqlDataAdapter(cmd);
  23.             da.Fill(ds);
  24.             con.Open();
  25.             cmd.ExecuteNonQuery();
  26.             con.Close();
  27.             if (!object.Equals(ds.Tables[0], null))
  28.             {
  29.                 if (ds.Tables[0].Rows.Count > 0)
  30.                 {
  31.
  32.                     for (int i = 0; i < ds.Tables[0].Rows.Count; i++)
  33.                     {
  34.                         ImageInfo objThisIMGInfo = new ImageInfo();
  35.                         objThisIMGInfo.Image_Id = Convert.ToInt32(ds.Tables[0].Rows[i]["IMG_ID"]);
  36.                         objThisIMGInfo.Image_Name = ds.Tables[0].Rows[i]["ImageName"].ToString();
  37.                         objThisIMGInfo.Image = (byte[])ds.Tables[0].Rows[i]["Photo"];
  38.
  39.
  40.                         objThisIMGInfo.Image_UploadedDate = ds.Tables[0].Rows[i]["UploadedDate"].ToString().Split(' ')[0];
  41.
  42.                         objImgInfo.Add(objThisIMGInfo);
  43.                     }
  44.
  45.                 }
  46.             }
  47.             return objImgInfo.ToList();
  48.         }
  49.
  50.         public byte[] GetImageDetails(int id)
  51.         {
  52.             SqlConnection con = new SqlConnection(@"Data Source=MYPC\SqlServer2k8;Integrated Security=true;Initial Catalog=R-ImageGallery");
  53.             using (SqlCommand cmd = new SqlCommand())
  54.             {
  55.                 cmd.Connection = con;
  56.                 cmd.CommandType = CommandType.Text;
  57.                 cmd.CommandText = "SELECT Photo FROM Album_Details where IMG_ID=@ImageId";
  58.                 cmd.Parameters.AddWithValue("@ImageId", id);
  59.                 con.Open();
  60.                 SqlDataReader dr = cmd.ExecuteReader();
  61.                 ImageInfo objImageInfo = new ImageInfo();
  62.                 while (dr.Read())
  63.                 {
  64.                     objImageInfo.Image = (byte[])dr["Photo"];
  65.                 }
  66.                 return objImageInfo.Image;
  67.             }
  68.         }
  69.
  70.         public int UploadImage(ImageInfo objImageInfo)
  71.         {
  72.             SqlConnection con = new SqlConnection(@"Data Source=MYPC\SqlServer2k8;Integrated Security=true;Initial Catalog=R-ImageGallery");
  73.             using (SqlCommand cmd = new SqlCommand())
  74.             {
  75.                 cmd.Connection = con;
  76.                 cmd.CommandType = CommandType.Text;
  77.                 cmd.CommandText = "INSERT INTO Album_Details(ImageName,Photo) VALUES(@ImageName,@Photo)";
  78.                 cmd.Parameters.AddWithValue("@ImageName", objImageInfo.Image_Name);
  79.                 cmd.Parameters.AddWithValue("@Photo", objImageInfo.Image);
  80.                 con.Open();
  81.                 int result = cmd.ExecuteNonQuery();
  82.                 con.Close();
  83.                 return result;
  84.             }
  85.         }
  86.     }
  87. }
Now right-click on Controller -> Add New Controller (Albums):
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using AnImageGalleryApplicationInMVC4.Models;
  7. using System.IO;
  8.
  9. namespace AnImageGalleryApplicationInMVC4.Controllers
  10. {
  11.     public class AlbumsController : Controller
  12.     {
  13.         RAlbumService objAlbumModelService = new RAlbumService();
  14.
  15.         [HttpGet]
  16.         public ActionResult Index()
  17.         {
  18.             ViewBag.total = objAlbumModelService.GetAllImages().ToList().Count;
  19.             return View(objAlbumModelService.GetAllImages().ToList());
  20.         }
  21.
  22.         public ActionResult GetImgInformation(int id)
  23.         {
  24.             byte[] cover = objAlbumModelService.GetImageDetails(id);
  25.             if (cover != null)
  26.             {
  27.                 return File(cover, "image/jpg");
  28.             }
  29.             else
  30.             {
  31.                 return null;
  32.             }
  33.         }
  34.
  35.
  36.         [HttpPost]
  37.         public ActionResult Index(FormCollection collection)
  38.         {
  39.             HttpPostedFileBase file = Request.Files["ImageData"];
  40.             ImageInfo objAlbumMaster = new ImageInfo();
  41.             objAlbumMaster.Image_Name = collection["ImageName"].ToString();
  42.             objAlbumMaster.Image = ConvertToBytes(file);
  43.             objAlbumModelService.UploadImage(objAlbumMaster);
  44.             return View(objAlbumModelService.GetAllImages().ToList());
  45.         }
  46.
  47.         public byte[] ConvertToBytes(HttpPostedFileBase image)
  48.         {
  49.             byte[] imageBytes = null;
  50.             BinaryReader reader = new BinaryReader(image.InputStream);
  51.             imageBytes = reader.ReadBytes((int)image.ContentLength);
  52.             return imageBytes;
  53.         }
  54.     }
  55. }
Now right-click on the Index Method name add new view and do the following code:
  1. @model IList<AnImageGalleryApplicationInMVC4.Models.ImageInfo>
  2. @{
  3.     ViewBag.Title = "An Image Gallery Application In MVC 4";
  4. }
  5. <table>
  6.     <tr>
  7.         <td style="vertical-align: top; width: 15%;">
  8.             <table style="border: solid 2px Red; padding: 5px; width: 100%;">
  9.                 <tr>
  10.                     <td style="background-color: skyblue; color: red; text-align: center; font-weight: bold;">Upload Image
  11.                     </td>
  12.                 </tr>
  13.                 <tr>
  14.                     <td>
  15.                         @using (Html.BeginForm("Index", "Albums", FormMethod.Post, new { enctype = "multipart/form-data" }))
  16.                         {
  17.                             @Html.AntiForgeryToken()
  18.                             <table style="width: 100%;">
  19.                                 <tr>
  20.                                     <td style="padding-left: 10px;">Name :
  21.                                     </td>
  22.                                     <td>@Html.TextBox("ImageName", "", new { style = "width:200px" })
  23.                                     </td>
  24.                                 </tr>
  25.                                 <tr>
  26.                                     <td style="padding-left: 10px;">Image :
  27.                                     </td>
  28.                                     <td>
  29.                                         <input type="file" name="ImageData" id="ImageData" />
  30.                                     </td>
  31.                                 </tr>
  32.                                 <tr>
  33.                                     <td></td>
  34.                                     <td>
  35.                                         <input type="submit" name="submit" value="Upload" />
  36.                                     </td>
  37.                                 </tr>
  38.                             </table>
  39.
  40.                         }
  41.
  42.                     </td>
  43.                 </tr>
  44.             </table>
  45.         </td>
  46.         <td style="vertical-align:top;">
  47.             <table style="border: solid 2px Green; padding: 5px; width: 100%;">
  48.                 <tr>
  49.                     <td colspan="4" style="background-color: skyblue; color: red; text-align: center; font-weight: bold;">All Uploaded Images
  50.                     </td>
  51.                 </tr>
  52.                 <tr>
  53.                     <td>
  54.                         <table>
  55.                             @{
  56.                                 const int ShowColumn = 3;
  57.                                 int OldRecords = 0;
  58.                                 var items = Model.Skip(OldRecords).Take(ShowColumn);
  59.
  60.                                 while (items.Count() > 0)
  61.                                 {
  62.                                 <tr>
  63.                                     @foreach (var item in items)
  64.                                     {
  65.                                         <td style="padding-left: 5px;">
  66.                                             <table>
  67.                                                 <tr>
  68.                                                     <td style="text-align: center;">
  69.                                                         <img src="/Albums/GetImgInformation/@item.Image_Id" width="140" />
  70.                                                     </td>
  71.                                                 </tr>
  72.                                                 <tr>
  73.                                                     <td style="text-align: center; font-weight: bold; color: Teal">@item.Image_Name | @item.Image_UploadedDate
  74.                                                     </td>
  75.                                                 </tr>
  76.
  77.                                             </table>
  78.                                         </td>
  79.                                     }
  80.                                 </tr>
  81.                                     OldRecords += ShowColumn;
  82.                                     items = Model.Skip(OldRecords).Take(ShowColumn);
  83.                                 }
  84.                             }
  85.                         </table>
  86.                     </td>
  87.                 </tr>
  88.             </table>
  89.
  90.         </td>
  91.     </tr>
  92. </table>

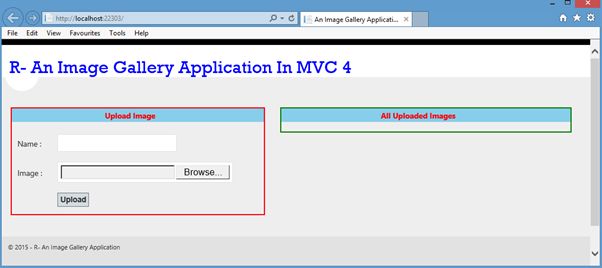

Now run your application:

Run your application
                                                                        Image 4.

                                                                     Image 5.

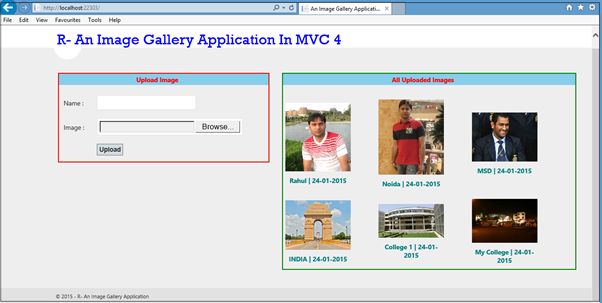

show image
                                                                      Image 6.
