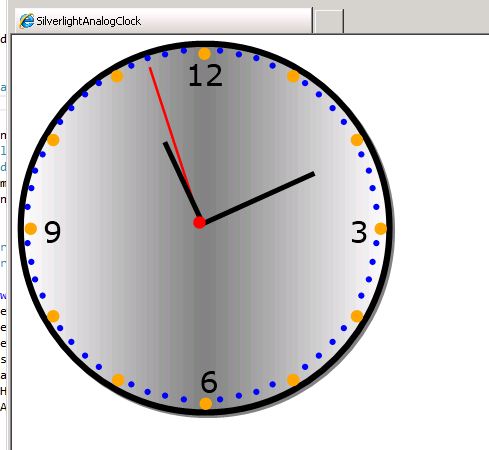

Analog Clock Using .NET Silverlight

Introduction

Step 1

Create a new project in Visual Studio 2012 and select "Silverlight Application".



Step 2

Open MainPage.xaml and add the following code.
  1. <UserControl x:Class="SilverlightAnalogClock.MainPage"
  2.     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4.     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
  5.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.     mc:Ignorable="d"
  7.     d:DesignHeight="300" d:DesignWidth="400">
  8.
  9.     <Grid x:Name="LayoutRoot" Background="White">
  10.
  11.     </Grid>
  12. </UserControl>
Step 3

Open MainPage.xaml.cs and add the following code.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Windows;
  6. using System.Windows.Controls;
  7. using System.Windows.Documents;
  8. using System.Windows.Input;
  9. using System.Windows.Media;
  10. using System.Windows.Media.Animation;
  11. using System.Windows.Media.Imaging;
  12. using System.Windows.Shapes;
  13.
  14. namespace SilverlightAnalogClock
  15. {
  16.     public partial class MainPage : UserControl
  17.     {
  18.
  19.         public Canvas ClockArea = null;
  20.         public Rectangle secondHand = null;
  21.         public Rectangle minuteHand = null;
  22.         public Rectangle hourHand = null;
  23.
  24.         public RotateTransform secondHandRotate = null;
  25.         public RotateTransform minuteHandRotate = null;
  26.         public RotateTransform hourHandRotate = null;
  27.
  28.         public Ellipse outerCircle = null;
  29.
  30.         public Point centerPoint;
  31.         public double HEIGHT  = 0;
  32.         public double WIDTH  = 0;
  33.         public double RADIUS = 0;
  34.
  35.         public MainPage()
  36.         {
  37.             InitializeComponent();
  38.
  39.             ClockArea = new Canvas()
  40.             {
  41.
  42.                 Width = 300,
  43.                 Height = 300,
  44.                 HorizontalAlignment = HorizontalAlignment.Left,
  45.                 VerticalAlignment = VerticalAlignment.Top
  46.
  47.             };
  48.
  49.             ClockArea.SetValue(Grid.RowProperty, 0);
  50.             ClockArea.SetValue(Grid.ColumnProperty, 0);
  51.             ClockArea.Margin = new Thickness(0, 0, 0, 0);
  52.             this.LayoutRoot.Children.Add(ClockArea);
  53.
  54.             WIDTH = ClockArea.Width;
  55.             HEIGHT = ClockArea.Height;
  56.             centerPoint.X = (WIDTH/2);
  57.             centerPoint.Y = (HEIGHT/2);
  58.
  59.             RADIUS = 400;
  60.             DrawClockFace();
  61.
  62.             Point TOPPOINT = new Point(0, 0);
  63.
  64.             DrawMinuteHand();
  65.             DrawSecondHand();
  66.             DrawHourHand();
  67.             DrawCenterCircle();
  68.
  69.
  70.             //Start the Clock
  71.             ClockStart();
  72.
  73.
  74.         }
  75.
  76.         public void ClockStart()
  77.         {
  78.             // Create and Start the Thread Timer
  79.             System.Windows.Threading.DispatcherTimer clockTimer = new System.Windows.Threading.DispatcherTimer();
  80.             clockTimer.Interval = new TimeSpan(0, 0, 0, 0, 1000);
  81.             clockTimer.Tick += new EventHandler(Clock_Tick);
  82.             clockTimer.Start();
  83.         }
  84.
  85.         // Get and Set the Angles of Each Hand at every Clock Ticks
  86.         public void Clock_Tick(object o, EventArgs sender)
  87.         {
  88.             double hourRotateValue = Convert.ToDouble(DateTime.Now.Hour.ToString());
  89.             double minuteRotateValue = Convert.ToDouble(DateTime.Now.Minute.ToString());
  90.             double secondRotateValue = Convert.ToDouble(DateTime.Now.Second.ToString());
  91.             hourRotateValue = (hourRotateValue + minuteRotateValue / 60) * 30;
  92.             minuteRotateValue = (minuteRotateValue + secondRotateValue / 60) * 6;
  93.             secondRotateValue = Convert.ToDouble(DateTime.Now.Second.ToString()) * 6;
  94.             minuteHandRotate.Angle = minuteRotateValue;
  95.             hourHandRotate.Angle = hourRotateValue;
  96.             secondHandRotate.Angle = secondRotateValue;
  97.         }
  98.
  99.         // Draw Center Circle
  100.         public void DrawCenterCircle()
  101.         {
  102.             Ellipse centerCircle = new Ellipse()
  103.             {
  104.
  105.                 Width = 10,
  106.                 Height = 10,
  107.                 Stroke = new SolidColorBrush(Colors.Red),
  108.                 Fill = new SolidColorBrush(Colors.Red),
  109.                 HorizontalAlignment = HorizontalAlignment.Center,
  110.                 VerticalAlignment = VerticalAlignment.Center
  111.
  112.             };
  113.
  114.             centerCircle.SetValue(Grid.RowProperty, 0);
  115.             centerCircle.SetValue(Grid.ColumnProperty, 0);
  116.             Canvas.SetLeft(centerCircle, (WIDTH / 2) - (centerCircle.Width / 2));
  117.             Canvas.SetTop(centerCircle, (HEIGHT / 2) - (centerCircle.Height / 2));
  118.             ClockArea.Children.Add(centerCircle);
  119.         }
  120.
  121.         // Draw Clock Face
  122.         public void DrawClockFace()
  123.         {
  124.
  125.             int smallCircle = 5;
  126.
  127.             Color c = Colors.Blue;
  128.             int p = 0;
  129.
  130.             // Draw Shadow of Outer Circle
  131.             Ellipse outerCircleShadow = new Ellipse()
  132.             {
  133.                 Width = (WIDTH),
  134.                 Height = (WIDTH),
  135.                 Stroke = new SolidColorBrush(Colors.Gray),
  136.                 StrokeThickness = 5,
  137.                 HorizontalAlignment = HorizontalAlignment.Center,
  138.                 VerticalAlignment = VerticalAlignment.Center
  139.
  140.             };
  141.
  142.             outerCircleShadow.SetValue(Grid.RowProperty, 0);
  143.             outerCircleShadow.SetValue(Grid.ColumnProperty, 0);
  144.             Canvas.SetLeft(outerCircleShadow, (WIDTH / 2) - (outerCircleShadow.Width / 2) + 6.5);
  145.             Canvas.SetTop(outerCircleShadow, (HEIGHT / 2) - (outerCircleShadow.Height / 2) + 6.5);
  146.             ClockArea.Children.Add(outerCircleShadow);
  147.
  148.             //  Draw Outer Circle
  149.             outerCircle = new Ellipse()
  150.             {
  151.                 Width = (WIDTH ),
  152.                 Height = (WIDTH),
  153.                 Stroke = new SolidColorBrush(Colors.Black),
  154.                 StrokeThickness = 5,
  155.                 HorizontalAlignment = HorizontalAlignment.Center,
  156.                 VerticalAlignment = VerticalAlignment.Center
  157.             };
  158.             outerCircle.SetValue(Grid.RowProperty, 0);
  159.             outerCircle.SetValue(Grid.ColumnProperty, 0);
  160.             Canvas.SetLeft(outerCircle, (WIDTH / 2) - (outerCircle.Width / 2) + 4.5);
  161.             Canvas.SetTop(outerCircle, (HEIGHT / 2) - (outerCircle.Height / 2) + 4.5);
  162.             ClockArea.Children.Add(outerCircle);
  163.
  164.
  165.             outerCircle.Fill = new LinearGradientBrush()
  166.                 {
  167.                     EndPoint = new Point(1, 0),
  168.                     GradientStops = new GradientStopCollection()
  169.                     {
  170.                             new GradientStop() { Color = Colors.White, Offset = 0 },
  171.                             new GradientStop() { Color = Colors.Gray, Offset = 0.5 },
  172.                              new GradientStop() { Color = Colors.White, Offset = 1 }
  173.                     }
  174.                 };
  175.
  176.             int clockDigits = 3;
  177.             double rad = (WIDTH/2) - 10.0f;
  178.             // 60 Innner Dots as Small Circle
  179.             for (double i = 0.0; i < 360.0; i += 6)
  180.             {
  181.
  182.             double angle = i * System.Math.PI / 180;
  183.
  184.             int x = (int)(centerPoint.X + rad * System.Math.Cos(angle));
  185.             int y = (int)(centerPoint.Y + rad * System.Math.Sin(angle));
  186.
  187.             if (p % 5 == 0)
  188.             {
  189.                 smallCircle = 10;
  190.                 c = Colors.Orange;
  191.             }
  192.             else
  193.             {
  194.                 smallCircle = 5;
  195.                 c = Colors.Blue;
  196.             }
  197.             if (p % 15 == 0)
  198.             {
  199.                 TextBlock tb = new TextBlock();
  200.                 tb.Text = clockDigits.ToString();
  201.                 tb.FontSize = 24;
  202.
  203.                 tb.SetValue(Grid.RowProperty, 0);
  204.                 tb.SetValue(Grid.ColumnProperty, 0);
  205.                 Canvas.SetLeft(tb, x );
  206.                 Canvas.SetTop(tb, y);
  207.                 if (clockDigits == 3)
  208.                 {
  209.                     Canvas.SetLeft(tb, x - 20);
  210.                     Canvas.SetTop(tb, y - 10);
  211.                 }
  212.                 if (clockDigits == 6)
  213.                 {
  214.                     Canvas.SetLeft(tb, x);
  215.                     Canvas.SetTop(tb, y - 30);
  216.                 }
  217.                 if (clockDigits == 9)
  218.                 {
  219.                     Canvas.SetLeft(tb, x + 15);
  220.                     Canvas.SetTop(tb, y - 10);
  221.                 }
  222.                 if (clockDigits == 12)
  223.                 {
  224.                     Canvas.SetLeft(tb, x - 10);
  225.                     Canvas.SetTop(tb, y + 5 );
  226.                 }
  227.
  228.
  229.                 ClockArea.Children.Add(tb);
  230.                 clockDigits = clockDigits + 3;
  231.             }
  232.
  233.             p++;
  234.
  235.                         Ellipse innerPoints = new Ellipse()
  236.                         {
  237.                             Width = smallCircle,
  238.                             Height = smallCircle,
  239.                             Stroke = new SolidColorBrush(c),
  240.                             Fill = new SolidColorBrush(c),
  241.                             HorizontalAlignment = HorizontalAlignment.Center,
  242.                             VerticalAlignment = VerticalAlignment.Center
  243.                         };
  244.                         innerPoints.SetValue(Grid.RowProperty, 0);
  245.                         innerPoints.SetValue(Grid.ColumnProperty, 0);
  246.                         Canvas.SetLeft(innerPoints, x);
  247.                         Canvas.SetTop(innerPoints, y);
  248.                         ClockArea.Children.Add(innerPoints);
  249.
  250.             }
  251.
  252.
  253.         }
  254.         // Draw the Second Hand
  255.         public void DrawSecondHand()
  256.         {
  257.
  258.             double handLength = (HEIGHT / 2) - 20;
  259.             secondHand = new Rectangle()
  260.             {
  261.                 Width = 1,
  262.                 Height = handLength,
  263.                 Stroke = new SolidColorBrush(Colors.Red),
  264.                 Fill = new SolidColorBrush(Colors.Red),
  265.                 HorizontalAlignment = HorizontalAlignment.Center,
  266.                 VerticalAlignment = VerticalAlignment.Center
  267.             };
  268.
  269.             secondHand.SetValue(Grid.RowProperty, 0);
  270.             secondHand.SetValue(Grid.ColumnProperty, 0);
  271.             //Add Rotate Transformation
  272.             secondHandRotate = new RotateTransform();
  273.             secondHandRotate.Angle = 0;
  274.             //Set Center for Rotation
  275.             secondHandRotate.CenterX = Canvas.GetLeft(secondHand);
  276.             secondHandRotate.CenterY = secondHand.Height;
  277.             secondHand.RenderTransform = secondHandRotate;
  278.             //Set Initial Position of Hand
  279.             Canvas.SetTop(secondHand, centerPoint.Y - handLength);
  280.             Canvas.SetLeft(secondHand, WIDTH/2);
  281.             ClockArea.Children.Add(secondHand);
  282.
  283.         }
  284.
  285.         public void DrawMinuteHand()
  286.         {
  287.             double handLength = (HEIGHT / 2) - 50;
  288.             minuteHand = new Rectangle()
  289.             {
  290.                 Width = 4,
  291.                 Height = handLength,
  292.                 Stroke = new SolidColorBrush(Colors.Black),
  293.                 Fill = new SolidColorBrush(Colors.Black),
  294.                 HorizontalAlignment = HorizontalAlignment.Center,
  295.                 VerticalAlignment = VerticalAlignment.Center
  296.             };
  297.
  298.             minuteHand.SetValue(Grid.RowProperty, 0);
  299.             minuteHand.SetValue(Grid.ColumnProperty, 0);
  300.
  301.             minuteHandRotate = new RotateTransform();
  302.             minuteHandRotate.Angle = 0;
  303.             minuteHandRotate.CenterX = Canvas.GetLeft(minuteHand);
  304.             minuteHandRotate.CenterY = minuteHand.Height;
  305.             minuteHand.RenderTransform = minuteHandRotate;
  306.             Canvas.SetTop(minuteHand, centerPoint.Y - handLength);
  307.             Canvas.SetLeft(minuteHand, WIDTH / 2);
  308.             ClockArea.Children.Add(minuteHand);
  309.
  310.         }
  311.         public void DrawHourHand()
  312.         {
  313.             double handLength = (HEIGHT / 2) - 80;
  314.             hourHand = new Rectangle()
  315.             {
  316.                 Width = 4,
  317.                 Height = handLength,
  318.                 Stroke = new SolidColorBrush(Colors.Black),
  319.                 Fill = new SolidColorBrush(Colors.Black),
  320.                 HorizontalAlignment = HorizontalAlignment.Center,
  321.                 VerticalAlignment = VerticalAlignment.Center
  322.             };
  323.
  324.             hourHand.SetValue(Grid.RowProperty, 0);
  325.             hourHand.SetValue(Grid.ColumnProperty, 0);
  326.
  327.             hourHandRotate = new RotateTransform();
  328.             hourHandRotate.Angle = 0;
  329.             hourHandRotate.CenterX = Canvas.GetLeft(hourHand);
  330.             hourHandRotate.CenterY = hourHand.Height;
  331.             hourHand.RenderTransform = hourHandRotate;
  332.             Canvas.SetTop(hourHand, centerPoint.Y - handLength);
  333.             Canvas.SetLeft(hourHand, WIDTH / 2);
  334.             ClockArea.Children.Add(hourHand);
  335.
  336.         }
  337.
  338.     }
  339. }
Output

Now execute and you will get a fully drawn Analog Clock.





Similar Articles
