Index in SQL Server

Introduction

If you work or plan to work with RDBMS such as SQL Server, I'm sure you have heard of indexes. An index in SQL Server contains keys built from one or more columns in the table or view. The index keys are stored in a structure (B-tree) that enables SQL Server to find the row or rows associated with the key values quickly and efficiently. In this article, we will learn what an index is, different types of indexes, why do we need an index, and how to create an index SQL Server with code examples.

What is an index in SQL Server?

An index is a data structure that enables data to be found quickly by SQL Server. Indexes are special lookup tables that the database search engine can use to speed up data retrieval. Simply put, an index is a pointer to data in a table. An index in a database is very similar to an index in the back of a book. We can create an index on one or more columns (maximum 16 columns).

We can compare the index of a table with an index of a book. An index contains a sorted list of info about the contents of a book. When we need to search for a topic then we go through the index and search in the index info. Such that the index saves time and provides quick results.

Mainly an index increases the speed of data retrieval but it also increases the overhead of data modification, like inserting, deleting, and updating the data. Now we consider some important points about indexes. You can create indexes on both, tables and views.

Why do we need an Index on a table?

Suppose we have a table (or view) of records of employees that contains a million records and we want to search for a specific id of an employee. A normal search system will search for the employee ID in each row. This process is called “Table Scan”. A table without a clustered index is called a “heap table”. This process can require a large amount of time if the records are at the end of the table.

To overcome this problem we can also use indexes. An index arranges the data of the table in a sorted manner in the form of a B-tree (Hash Tables and R-trees are also used).

Types of Indexes

There are the following two main index types.

  1. Clustered Index
  2. Non-Clustered Index

Step 1. Copy the code for creating a table as in the following.

CREATE TABLE [dbo].[Employee_Detail](
    [Emp_IId] [int] NOT NULL,
    [Emp_Name] [nvarchar](50) NOT NULL,
    [Emp_Age] [int] NOT NULL,
    [Emp_Salary] [int] NOT NULL
) ON [PRIMARY]

GO

Step 2. Now insert some values into the table as in the following.

Insert into Employee_Detail Values(100,'Pankaj',20,25000)
Insert into Employee_Detail Values(101,'Rahul',19,28000)
Insert into Employee_Detail Values(102,'Sanjeev',21,32000)
Insert into Employee_Detail Values(103,'Divyanshu',22,26000)
Insert into Employee_Detail Values(104,'Omi',26,27000)
Insert into Employee_Detail Values(105,'Sandeep',28,24000)
Insert into Employee_Detail Values(106,'Neeraj',24,35000)
Insert into Employee_Detail Values(107,'Narendra',29,45000)

Now the table will look as in the following.

Table

We will now consider both types of indexes.

Clustered Index in SQL Server

A Clustered Index is a special type of index that reorders the way records in the table are physically stored. Therefore the table can have only one Clustered Index and this is usually made on the primary key. The leaf nodes of a Clustered Index contain the data pages. It is like a dictionary, where all words are sorted in alphabetical order in the entire book. Since it alters the physical storage of the table, only one Clustered Index can be created per table.

We can create a Clustered Index using one of the following two ways.

Using Primary Key

When we create a Primary Key on a table then the system creates a Clustered Index automatically.

Alter table Employee_Detail
Add Constraint Primarykey_Constraint Primary Key(Emp_IId)

Primary Key

Using "Create clustered index" Query

We can also create an index using a "Create Clustered Index" query. The following is a sample.

Create Clustered Index My_ClusteredIndex
on Employee_Detail(Emp_IId)

As we said above, the system creates a B-Tree when we create a Clustered Index. The system also creates a B-Tree. We will now examine how a Clustered Index works.

If we create a B-tree for our table then it will look like this.

B-tree

Image Reference Google Searches

A B-Tree contains one head node. In our case node, 103 is our head node. The left side value of each node is always less than the node and the right side value is always greater than the node.

Let us examine some examples.

select * from employee_Detail where Emp_Iid=103

In a normal case, the system will perform four comparisons, the first for 100, the second for 101, and the third for 103, and in the fourth comparison, it will find the desired result.

Using an index it only does a single comparison because 103 is the head node of the B-Tree.

select * from employee_Detail where Emp_Iid=106

In a normal case, the system will do 7 comparisons from 100 to 105 then in the 7th comparison, it will find the desired result.

Using an index only does 2 comparisons. First, we look for the root node value of the root node which is 103 so we move to the next node towards the right side then we find the desired result.

After considering the preceding examples we can say that by using an index we can increase the speed of data retrieval.

Let us consider one more example.

select * from employee_Detail where Emp_Iid=100

In a normal case, the system will do a single comparison because it will find 100 at the beginning of the table.

Using an index the system first checks the root node and it will find the value of the root node is equal to 103. It will then go to the left side of the root node. The value of the next node is 101. That is greater than 100 so the system again moves towards the left side. Now the system finds the desired result.

In this case, the index takes a little bit more time.

Clustered Indexes are useful when the amount of data is large in the table. When the amount of data is small then it is not useful since it will take a large amount of time to do a non-Indexed query.

Non-Indexed query

Image Reference Google Searches

In the preceding example, we can see that the leaf node of the B-Tree is a combination of the Clustering Key and rows of the data. So in the case of a Clustered Index, each node contains a key and row data. When any type of searching query is done then the system will compare the key value of the node. If it finds the desired key value then it will return the row data of that node.

Advantages of Clustered Indexes

  1. Quickly returns a large range of data
  2. Fast for presorted results
  3. Physical ordering of the data of the column
  4. A Clustered Index can improve the performance of data retrieval

Disadvantages of Clustered Indexes

  1. Frequently updated data increases the overhead of rearranging the B-tree.
  2. Only one Clustered Index per table.
  3. If the size of the table is small then it is not effective.

Non-Clustered Index

A Non-Clustered Index, on the other hand, does not alter the way the rows are stored in the table. It creates a completely different object within the table that contains the column(s) selected for indexing and a pointer back to the table's rows containing the data. A Non-Clustered Index is a special type of index in which the logical order of the index does not match the physical stored order of the rows on disk. The leaf node of a Non-Clustered Index does not consist of the data pages. Instead, the leaf nodes contain index rows.

A Non-Clustered Index also uses a B-tree. Each node of the B-Tree contains a key value and a pointer. The pointer holds the reference of the table row. This means that with a Non-Clustered Index there is extra work required to follow that pointer to the row in the table to retrieve any other desired values.

A table contains one or more than one Non-Clustered Index.

The following describes the creation of a non-clustered and non-unique index for a single column.

Create Nonclustered Index NonClusteredIndex
on Employee_Detail(Emp_Name)

Index

The following describes the creation of a non-clustered and non-unique index for multiple columns.

Create Nonclustered Index NonClusteredIndex
on Employee_Detail(Emp_Name,Emp_Age)

Multiple columns

The following describes the creation of a non-clustered and unique index for a single column.

Create unique Nonclustered Index NonClusteredIndex
on Employee_Detail(Emp_Name)

Single column

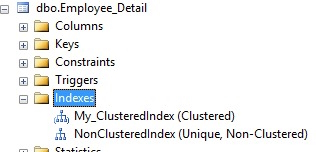

The following describes the creation of a non-clustered and unique index for multiple columns.

Create unique Nonclustered Index NonClusteredIndex
on Employee_Detail(Emp_Name,Emp_Age)

Non-clustered

A non-unique Non-Clustered Index allows us to insert a duplicate value into an indexed column but a unique Non-Clustered Index doesn't allow us to enter duplicate values into a column.

The following are some important points about Non-Clustered Indexes.

  1. Clustered Indexes are only the logical order of the index. In other words, a Clustered Index contains a key and the value of the row but a Non-Clustered Index only contains a key and a pointer to the row.
  2. If a Clustered Index exists on the table, the Non-Clustered Index instead of Row_Id as the key is used for the Clustered Index's key as a row locator.
  3. It is only useful when the column contains repeated data.
  4. For indexes covering multiple columns, the order of the columns in the index is important. The best practice is to use the column with the lowest cardinality first and the column with the highest cardinality last. Recall that cardinality means the number of distinct values for that column.

Difference between Clustered and Non-Clustered Index

  1. A Clustered Index is a physical ordering of the data but a Non-Clustered Index is a logical ordering of the data (more like a pointer to the data).
  2. A table has only one Clustered Index but a table can have one or more Non-Clustered Indexes.
  3. Clustered Indexes are used when the data is unique but a Non-Clustered Index can work with clustered and Non-Clustered Indexes.
  4. Data in a Clustered Index is always sorted but for Non-Clustered Indexes that are not necessary. We can see it in the following example.

Data

Image Reference Google

Let us see an important scenario.

What will happen if we already have a Primary Key for the table and we add a new Clustered Index to the table?

Answer

Reference Google

In the preceding example, we can see that we have a primary key in the table. Now if we add a new Clustered Index to the table then it will throw an error.

Error

According to this error, we cannot create more than one Clustered Index on a table.

What will happen if we already have a Clustered Index Key in the table and we add a Primary Key to the table?

Answer

Answer

The preceding image shows that we have a Clustered Index in the table. Now we add a primary key.

Alter table Employee_Detail
add Constraint Priamy_Key primary Key(Emp_Name)

Output

Output

According to the preceding image if we already have a Clustered Index in the table and we are adding a Primary Key to the table then this Primary Key will generate a Non-Clustered Index.

Conclusion

In this article, we learned about Indexes with their different types and code examples in SQL Server.
