Show Notificatiooon Using a Button in Android

Introduction


In this article, I will tell you how to produce a notification by the notification manager in Android, but in this article, I will tell you how to generate a notification using a button in Android. To develop this application you can use the following procedure.

Step 1

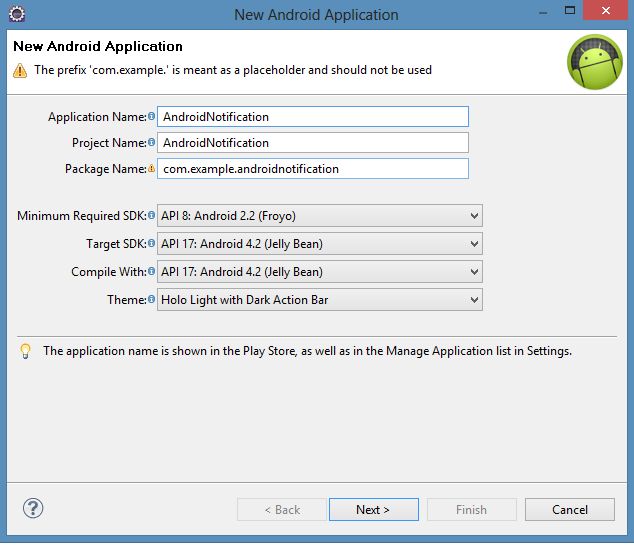

As usual, create a new project file as in the following.


Step 2

Open the "activity_main.xml" file and update it as in the following code.
  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.       android:paddingBottom="@dimen/activity_vertical_margin"
  4.     android:paddingLeft="@dimen/activity_horizontal_margin"
  5.     android:paddingRight="@dimen/activity_horizontal_margin"
  6.     android:paddingTop="@dimen/activity_vertical_margin"
  7.     tools:context=".MainActivity"
  8.     android:orientation="vertical"
  9.     android:layout_width="fill_parent"
  10.     android:layout_height="fill_parent"
  11.     >
  12.   <Button android:id="@+id/notify"
  13.       android:layout_width="fill_parent"
  14.       android:layout_height="fill_parent"
  15.       android:layout_weight="1"
  16.       android:text=" Show Notification Button"
  17.       android:onClick="triggerNotification"
  18.       />
  19.   <Button android:id="@+id/cancel"
  20.       android:layout_width="fill_parent"
  21.       android:layout_height="fill_parent"
  22.       android:layout_weight="1"
  23.       android:text="Cancel Notification Button"
  24.       android:onClick="clearNotification"
  25.       />
  26. </LinearLayout>
Step 3

Open the "MainActivity.java" file and update it as in the following code.
  1. package com.example.androidsecondapp;
  2. import android.app.Activity;
  3. import android.app.Notification;
  4. import android.app.NotificationManager;
  5. import android.app.PendingIntent;
  6. import android.content.Intent;
  7. import android.os.Bundle;
  8. import android.view.Menu;
  9. import android.view.View;
  10. public class MainActivity extends Activity {
  11.       //Notification message ID
  12.        private static final int NOTIFY_ME_ID=1337;
  13.       //Counter
  14.        private int count=0;
  15.       //Create NotificationManager  object
  16.        private NotificationManager notifyMgr=null;
  17.       @Override
  18.       protected void onCreate(Bundle savedInstanceState) {
  19.             super.onCreate(savedInstanceState);
  20.             setContentView(R.layout.activity_main);
  21.       notifyMgr=(NotificationManager)getSystemService(NOTIFICATION_SERVICE);
  22.       }
  23.       public void triggerNotification(View v) {
  24.             //Instantiate notification with icon and ticker message
  25.             Notification notifyObj=new Notification(R.drawable.ic_launcher,"Notification message!",System.currentTimeMillis());
  26.             //PendingIntent to launch our activity if the user selects it
  27.             PendingIntent i=PendingIntent.getActivity(this0,
  28.                                         new Intent(this, NotifyActivity.class),0);
  29.             //Set the info that show in the notification panel
  30.             notifyObj.setLatestEventInfo(this"Notification Created","Click here to see the message", i);
  31.             //Value indicates the current number of events represented by the notification
  32.             notifyObj.number=++count;
  33.             //Set default vibration
  34.             notifyObj.defaults |= Notification.DEFAULT_VIBRATE;
  35.             //Set default notification sound
  36.             notifyObj.defaults |= Notification.DEFAULT_SOUND;
  37.             //Clear the status notification when the user selects it
  38.             notifyObj.flags|=Notification.FLAG_AUTO_CANCEL;
  39.             //Send notification
  40.             notifyMgr.notify(NOTIFY_ME_ID, notifyObj);
  41.               }
  42.       public void clearNotification(View v) {
  43.              //Clear the notification
  44.             notifyMgr.cancel(NOTIFY_ME_ID);
  45.              }
  46.
  47.       @Override
  48.       public boolean onCreateOptionsMenu(Menu menu) {
  49.             // Inflate the menu; this adds items to the action bar if it is present.
  50.             getMenuInflater().inflate(R.menu.main, menu);
  51.             return true;
  52.       }

Step 4

Now create a new Java file as "NotifyActivity.java" with the following code:
  1. package com.example.androidsecondapp;
  2. import android.app.Activity;
  3. import android.os.Bundle;
  4. import android.widget.TextView;
  5. public class NotifyActivity extends Activity
  6. {
  7.  @Override
  8.  public void onCreate(Bundle savedInstanceState)
  9.  {
  10.   super.onCreate(savedInstanceState);
  11.   TextView txt = new TextView(this);
  12.   txt.setText("You have successfully opened the activity associated with the notification!");
  13.   setContentView(txt);
  14.  }

Step 5

Open and update the manifest file as "AndroidManifest.xml" using the following code:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="com.example.androidsecondapp"
  4.     android:versionCode="1"
  5.     android:versionName="1.0" >
  6.     <uses-sdk
  7.         android:minSdkVersion="8"
  8.         android:targetSdkVersion="17" />
  9.     <application
  10.         android:allowBackup="true"
  11.         android:icon="@drawable/ic_launcher"
  12.         android:label="@string/app_name"
  13.         android:theme="@style/AppTheme" >
  14.         <activity
  15.             android:name="com.example.androidsecondapp.MainActivity"
  16.             android:label="@string/app_name" >
  17.             <intent-filter>
  18.                 <action android:name="android.intent.action.MAIN" />
  19.                 <category android:name="android.intent.category.LAUNCHER" />
  20.             </intent-filter>
  21.         </activity>
  22.         <activity android:label="@string/app_name"
  23.               android:name=".NotifyActivity"></activity>
  24.     </application>
  25. </manifest>
Step 6

See the output

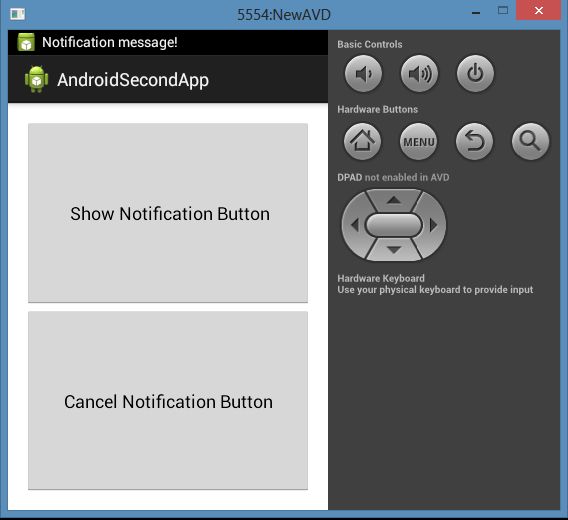

Notification Button


Notification Message
