Linear Layout In Android

Introduction


In this article, I explain the Linear Layout in Android. In Linear Layout we can use two types of views, one is horizontal and the other is vertical. When we want a linear design or simple design, we use this type of Linear Layout otherwise a Relative Layout is usually used in Android view displays.

Here I will show you how to use a Linear Layout in Android. In this article I will take a Linear Layout and one inner Linear Layout as shown in the output below, the main layout will be a vertical layer and the inner one will be a horizontal layer.

Step 1

First of all, create a new Android application project as shown below.


Step 2

Now open the XML file as "res/layout/activity_main.xml" and update it with the following code. This XML code is only for the Linear Layout and the view inside it.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <!-- Parent linear layout with vertical orientation -->
  3. <LinearLayout
  4.   xmlns:android="http://schemas.android.com/apk/res/android"
  5.   android:orientation="vertical"
  6.   android:layout_width="match_parent"
  7.   android:layout_height="match_parent">
  8.   <TextView
  9.       android:id="@+id/textview1"
  10.       android:layout_width="fill_parent" android:layout_height="wrap_content"
  11.             android:text="Email:" android:padding="5dip"/>
  12.   <EditText
  13.       android:id="@+id/edittext1"
  14.       android:layout_width="fill_parent"
  15.       android:layout_height="wrap_content"
  16.       android:layout_marginBottom="10dip"
  17.       android:text="@string/email" />
  18.   <EditText
  19.       android:id="@+id/edittex2"
  20.       android:layout_width="fill_parent"
  21.       android:layout_height="wrap_content"
  22.       android:layout_marginBottom="10dip" />
  23.   <Button
  24.       android:id="@+id/enter_btn"
  25.       android:layout_width="fill_parent"
  26.       android:layout_height="wrap_content"
  27.       android:text="Enter" />
  28.   <!-- Child linear layout with horizontal orientation -->
  29.   <LinearLayout android:layout_width="fill_parent"
  30.               android:layout_height="wrap_content"
  31.               android:orientation="horizontal" android:background="#2a2a2a"
  32.               android:layout_marginTop="25dip">
  33.   <TextView
  34.       android:id="@+id/home_btn"
  35.       android:layout_width="fill_parent"
  36.       android:layout_height="wrap_content"
  37.       android:layout_weight="1"
  38.       android:gravity="center"
  39.       android:padding="15dip"
  40.       android:text="Home"
  41.       android:textColor="#ffffff" />
  42.   <TextView
  43.       android:id="@+id/reset_btn"
  44.       android:layout_width="fill_parent"
  45.       android:layout_height="wrap_content"
  46.       android:layout_weight="1"
  47.       android:gravity="center"
  48.       android:padding="15dip"
  49.       android:text="Reset"
  50.       android:textColor="#ffffff" />
  51.    </LinearLayout>
  52.    <TextView
  53.        android:id="@+id/result_txtview"
  54.        android:layout_width="fill_parent"
  55.        android:layout_height="match_parent"
  56.        android:text=" " />
  57. </LinearLayout>
Step 3

Now Open the "MainAcivity.java" file and update it with your logic.
  1. package com.example.linearlayout;
  2. import android.R.string;
  3. import android.app.Activity;
  4. import android.app.backup.RestoreObserver;
  5. import android.os.Bundle;
  6. import android.view.Menu;
  7. import android.view.View;
  8. import android.view.View.OnClickListener;
  9. import android.widget.Button;
  10. import android.widget.TextView;
  11. public class MainActivity extends Activity {
  12.       Button home_btn,entr_btn,rst_btn;
  13.       TextView tv1,tv2,rslt_tv;
  14.       String tv,s1,s2;
  15.       @Override
  16.       protected void onCreate(Bundle savedInstanceState) {
  17.             super.onCreate(savedInstanceState);
  18.             setContentView(R.layout.activity_main);
  19.             tv1=(TextView) findViewById(R.id.edittext1);
  20.             tv2=(TextView) findViewById(R.id.edittex2);
  21.             entr_btn=(Button) findViewById(R.id.enter_btn);
  22.             home_btn=(Button) findViewById(R.id.home_btn);
  23.             rst_btn=(Button) findViewById(R.id.reset_btn);
  24.             rslt_tv=(TextView) findViewById(R.id.result_txtview);
  25.             entr_btn.setOnClickListener(new OnClickListener() {
  26.                  @Override
  27.                   public void onClick(View v) {
  28.                         // TODO Auto-generated method stub
  29.                         s1= tv1.getText().toString();
  30.                         s2=tv2.getText().toString();
  31.                         rslt_tv.setText(s1+s2);
  32.                   }
  33.             });
  34.       }
  35.        @Override
  36.       public boolean onCreateOptionsMenu(Menu menu) {
  37.             // Inflate the menu; this adds items to the action bar if it is present.
  38.             getMenuInflater().inflate(R.menu.activity_main, menu);
  39.             return true;
  40.       }
  41.
  42. }
Step 4

Open the "strings.xml" file and update it as given below.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <resources>
  3.     <string name="app_name">LinearLayout</string>
  4.     <string name="hello_world">Hello world!</string>
  5.     <string name="menu_settings">Settings</string>
  6.     <string name="email"></string>
  7.     <string name="button"></string>
  8.
  9. </resources>
Step 5

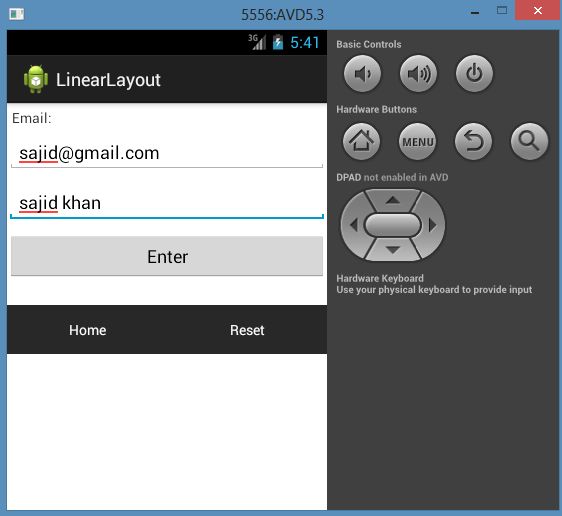

Output

In the output you will see in the Outer Linear Layout I defined a vertical text view, two edit texts, one button and one inner Linear Layout with two horizontal buttons inside it.
