Create Menu In Android

Introduction


In this article I explain how to create a menu in Android. Menus are a very important user interface entity in Android that provides actions for a specific view such as shown in the following application.

In this application I will show how to code a menu in Android and how it works.

Step 1

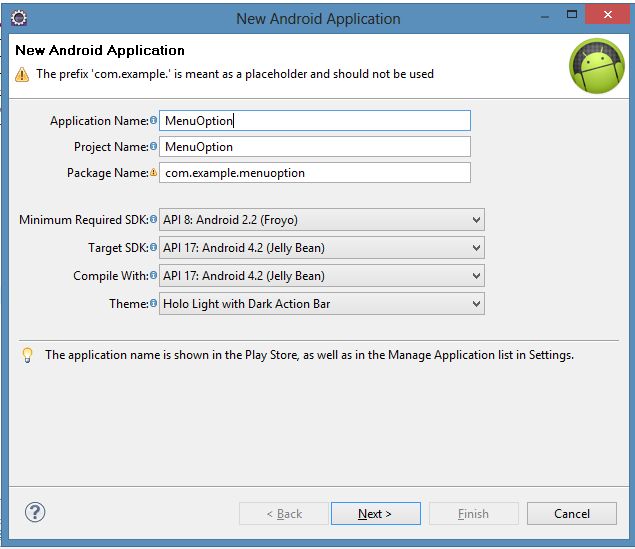

First of all create a new Android application project as shown below:


Step 2

Now open the XML file as "res/layout/activity_main.xml" and update it as in the following code:
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent"
  5.     tools:context=".MainActivity" >
  6.     <TextView
  7.         android:id="@+id/textView1"
  8.         android:layout_width="200dp"
  9.         android:layout_height="50dp"
  10.         android:layout_alignParentTop="true"
  11.         android:layout_centerHorizontal="true"
  12.         android:layout_marginTop="170dp"
  13.         android:gravity="center"
  14.         android:textColor="#778866"
  15.         android:background="#020202"
  16.         android:text="@string/menu"
  17.         android:textAppearance="?android:attr/textAppearanceLarge" />
  18. </RelativeLayout>
Step 3

In this step create a new XML file named "menu.xml" using the following code:
  1. <menu xmlns:android="http://schemas.android.com/apk/res/android" >
  2.     <item
  3.         android:id="@+id/menu_settings"
  4.         android:orderInCategory="100"
  5.         android:showAsAction="never"
  6.         android:title="@string/menu_settings"/>
  7.       <item
  8.           android:id="@+id/option"
  9.           android:icon="@drawable/option_icon"
  10.           android:title="Option"/>
  11.       <item
  12.           android:id="@+id/delete"
  13.           android:icon="@drawable/delete_icon"
  14.           android:title="Delete"/>
  15.       <item
  16.           android:id="@+id/back"
  17.           android:icon="@drawable/back_icon"
  18.           android:title="Back"/>
  19. </menu>
Step 4

Now open the "MainAcivity.java" file and update it with your logic.
  1. package com.example.menucreation;
  2. import android.app.Activity;
  3. import android.os.Bundle;
  4. import android.view.Menu;
  5. import android.view.MenuInflater;
  6. import android.view.MenuItem;
  7. import android.widget.Toast;
  8. public class MainActivity extends Activity {
  9.     @Override
  10.     public void onCreate(Bundle savedInstanceState) {
  11.         super.onCreate(savedInstanceState);
  12.         setContentView(R.layout.activity_main);
  13.     }
  14.    // Initiating Menu XML file (menu.xml)
  15.     @Override
  16.     public boolean onCreateOptionsMenu(Menu menu)
  17.     {
  18.         MenuInflater menuInflater = getMenuInflater();
  19.         menuInflater.inflate(R.layout.menu, menu);
  20.         return true;
  21.     }
  22.     @Override
  23.     public boolean onOptionsItemSelected(MenuItem item)
  24.     {
  25.         switch (item.getItemId())
  26.         {
  27.         case R.id.menu_settings:
  28.             Toast.makeText(this"menu settings", Toast.LENGTH_SHORT).show();
  29.             return true;
  30.         case R.id.option:
  31.             Toast.makeText(this"Option is Selected", Toast.LENGTH_SHORT).show();
  32.             return true;
  33.         case R.id.delete:
  34.             Toast.makeText(this" deleted ", Toast.LENGTH_SHORT).show();
  35.             return true;
  36.
  37.         case R.id.back:
  38.             Toast.makeText(this"you are exit", Toast.LENGTH_SHORT).show();
  39.             return true;
  40.         default:
  41.             return super.onOptionsItemSelected(item);
  42.         }
  43.     }
Step 5

Open the "strings.xml" file and update it as given below.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <resources>
  3.     <string name="app_name">MenuCreation</string>
  4.     <string name="hello_world">Hello world!</string>
  5.     <string name="menu_settings">Settings</string>
  6.     <string name="option"></string>
  7.     <string name="delete"></string>
  8.     <string name="back"></string>
  9.     <string name="menu">"Welcome in Menu "</string>
  10. </resources>
Step 6

Output

In the output you will see in the outer Linear Layout I defined a vertical text view, two edit texts, one button and one inner Linear Layout with two horizontal buttons inside it.

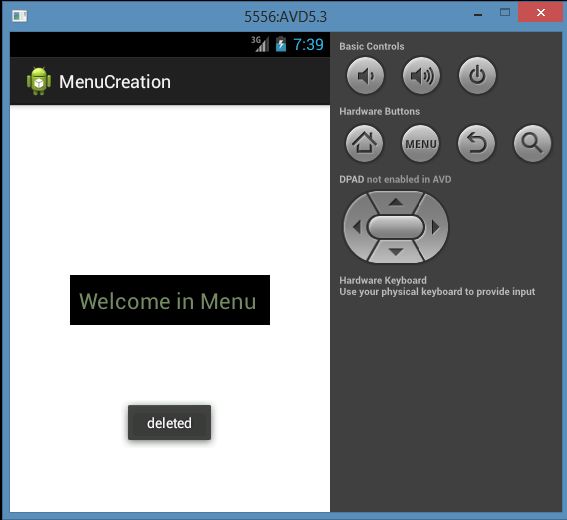

Selected option:
