Displaying Google Maps in ASP.NET Web Application

Objective

To develop a web application using asp.net for displaying GoogleMaps.

Steps

1. Download the 'GMaps.dll' file, and extract the folder.
2. Open VisualStudio.Net -> File -> New Web Site
3. Go to Tool Box -> right-click on any tab -> Add New Tab
   • Name it as GoogleMapControls -> right click on 'GoogleMapControls' tab
   • Browse.. 'GMaps.dll' (GMaps.dll file is provided in gmaps.zip along with the source code)
   • OK.
   Now, GMaps controls will appear under the 'GoogleMapControls' tab.
4. Design

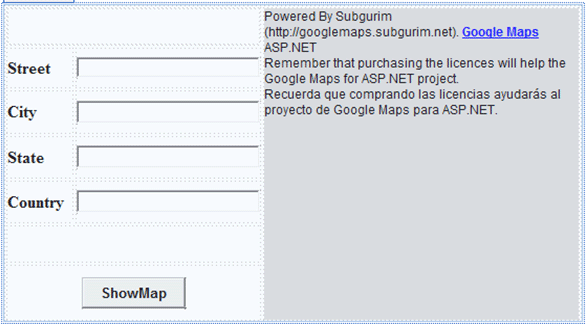

   Design the form as above with 5 TextBoxes, 1 Button, and 1 GMap control (present under the 'GoogleMapControls' tab).
5. Code

   using System;
   using System.Configuration;
   using Subgurim.Controles;
   public partial class _Default : System.Web.UI.Page
   {
       protected void btnShowMap_Click(object sender, EventArgs e)
       {
           string fulladdress = string.Format("{0}.{1}.{2}", TextBox1.Text, txtCity.Text, txtCountry.Text);
           string skey = ConfigurationManager.AppSettings["googlemaps.subgurim.net"];
           GeoCode geocode;
           geocode = GMap1.getGeoCodeRequest(fulladdress);
           var glatlng = new Subgurim.Controles.GLatLng(geocode.Placemark.coordinates.lat, geocode.Placemark.coordinates.lng);
           GMap1.setCenter(glatlng, 16, Subgurim.Controles.GMapType.GTypes.Normal);
           var oMarker = new Subgurim.Controles.GMarker(glatlng);
           GMap1.addGMarker(oMarker);
       }
   }


6. web.config file code
   To use the Gmaps controls, write the following code under appSettings of web.config file.

   <appSettings>
       <add key="googlemaps.Subgurim.net" value="YourGoogleMapsAPIKeyHere" />
   </appSettings>

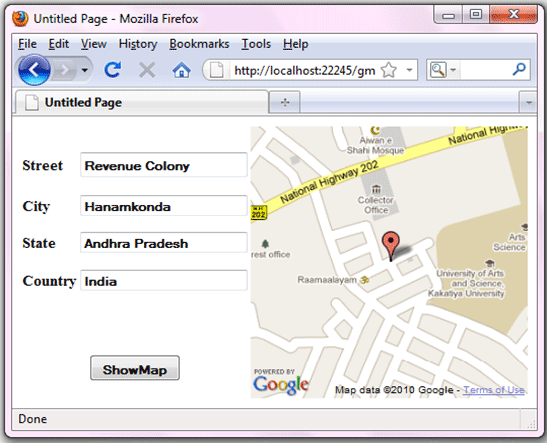

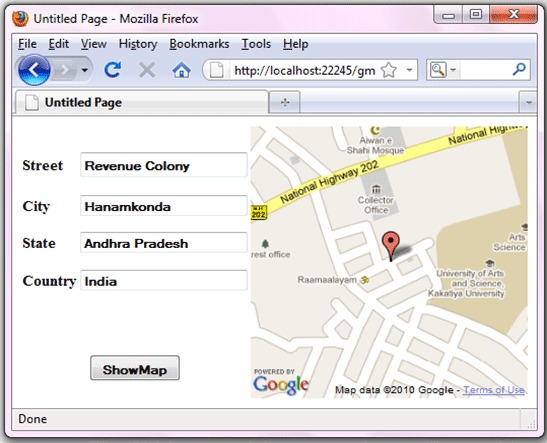

Output

Note. 'GMaps.dll'is provided in 'gmaps.zip' along with the source code.
