Re-size and Compress Image in Android Studio

Introduction


In this article, you will learn how to resize and compress an image in Android. Resizing and compressing an image is sometimes very useful.

Step 1

"string.xml" used in this project is:
  1. <resources>
  2.     <string name="app_name">CompressImage</string>
  3.     <string name="action_settings">Settings</string>
  4.     <string name="hello_world">Image Compressor</string>
  5. </resources>
Step 2

Right-click on "layout" then select "New" -> "Layout resource file". Name this file as "splash_layout" and add the following code to it:
  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.               android:orientation="vertical"
  3.               android:layout_width="match_parent"
  4.               android:layout_height="match_parent">
  5.     <TextView
  6.             android:layout_width="fill_parent"
  7.             android:layout_height="wrap_content"
  8.             android:text="@string/hello_world"
  9.             android:textSize="30dp"
  10.             android:layout_marginLeft="60dp"
  11.             android:layout_marginTop="80dp"/>
  12.     <ImageView
  13.         android:layout_height="300dp"
  14.         android:layout_width="300dp"
  15.         android:id="@+id/image"
  16.         android:layout_marginLeft="40dp"
  17.         android:layout_marginTop="80dp"
  18.         android:src="@drawable/compress" />
  19. </LinearLayout>

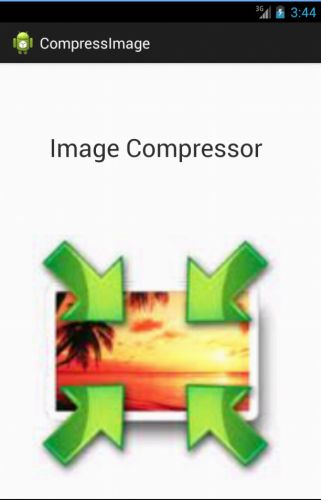

The layout  looks like:


Step 3

Open "activity_main" and add the following to it:
  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent"
  5.     android:paddingLeft="@dimen/activity_horizontal_margin"
  6.     android:paddingRight="@dimen/activity_horizontal_margin"
  7.     android:paddingTop="@dimen/activity_vertical_margin"
  8.     android:paddingBottom="@dimen/activity_vertical_margin"
  9.     tools:context=".MainActivity"
  10.     android:orientation="vertical">
  11.     <TextView
  12.         android:layout_width="wrap_content"
  13.         android:layout_height="wrap_content"
  14.         android:text="Choose image"
  15.         android:textSize="30dp"
  16.         android:layout_marginLeft="50dp"/>
  17.     <ImageView
  18.         android:id="@+id/im1"
  19.         android:layout_height="wrap_content"
  20.         android:layout_width="fill_parent"
  21.         android:src="@drawable/camera"
  22.         android:onClick="compress"/>
  23.     <ImageView
  24.             android:id="@+id/im2"
  25.             android:layout_height="wrap_content"
  26.             android:layout_width="fill_parent"
  27.             android:src="@drawable/im2"
  28.             android:onClick="compress"
  29.             android:layout_marginTop="20dp"/>
  30. </LinearLayout>

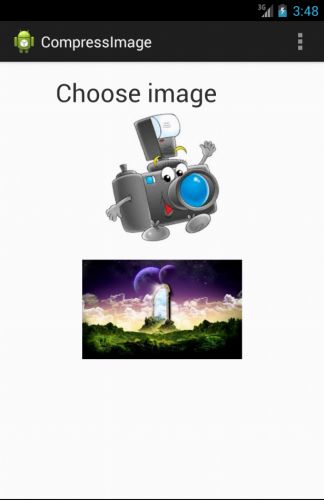

The layout looks like:


Step 4

Right-click on the package then select "New" -> "Java class". Name it Splash_screen and add the following code to it:
  1. package com.chhavi.compressimage;
  2.
  3. import android.app.Activity;
  4. import android.content.Intent;
  5. import android.os.Bundle;
  6. import android.view.MotionEvent;
  7.
  8. public class Splash_screen extends Activity {
  9.     private Thread mSplashThread;
  10.
  11.     @Override
  12.     protected void onCreate(Bundle savedInstanceState) {
  13.         super.onCreate(savedInstanceState);
  14.         setContentView(R.layout.splash_layout);
  15.         final Splash_screen sPlashScreen = this;
  16.
  17.             mSplashThread =  new Thread(){
  18.             @Override
  19.             public void run(){
  20.                 try {
  21.                     synchronized(this){
  22.
  23.                         wait(5000);
  24.                     }
  25.                 }
  26.                 catch(InterruptedException ex){
  27.                 }
  28.
  29.                 finish();
  30.
  31.                 Intent intent = new Intent();
  32.                 intent.setClass(sPlashScreen, MainActivity.class);
  33.                 startActivity(intent);
  34.             }
  35.         };
  36.         mSplashThread.start();
  37.     }
  38.
  39.     @Override
  40.
  41.     public boolean onTouchEvent(MotionEvent evt)
  42.     {
  43.         if(evt.getAction() == MotionEvent.ACTION_DOWN)
  44.         {
  45.             synchronized(mSplashThread){
  46.                 mSplashThread.notifyAll();
  47.             }
  48.         }
  49.         return true;
  50.     }
  51. }
Step 5

Open "MainActivity" and add the following code to it:
  1. package com.chhavi.compressimage;
  2.
  3. import android.graphics.Bitmap;
  4. import android.graphics.BitmapFactory;
  5. import android.graphics.Matrix;
  6. import android.graphics.drawable.BitmapDrawable;
  7. import android.os.Bundle;
  8. import android.app.Activity;
  9. import android.util.Log;
  10. import android.view.Menu;
  11. import android.view.View;
  12. import android.widget.EditText;
  13. import android.widget.ImageView;
  14. import java.io.ByteArrayOutputStream;
  15.
  16. public class MainActivity extends Activity {
  17.
  18.     ImageView im;
  19.     Bitmap originalImage;
  20.     int width;
  21.     int height;
  22.     int newWidth = 200;
  23.     int newHeight = 200;
  24.     Matrix matrix;
  25.     Bitmap resizedBitmap;
  26.     float scaleWidth ;
  27.     float scaleHeight;
  28.     ByteArrayOutputStream outputStream;
  29.
  30.     @Override
  31.     protected void onCreate(Bundle savedInstanceState) {
  32.         super.onCreate(savedInstanceState);
  33.         setContentView(R.layout.activity_main);
  34.     }
  35.
  36.     public void compress(View v)
  37.     {
  38.         setContentView(R.layout.activity_main);
  39.         switch (v.getId())
  40.         {
  41.             case R.id.im1:
  42.
  43.                 originalImage = BitmapFactory.decodeResource(getResources(), R.drawable.camera);
  44.                 width = originalImage.getWidth();
  45.                 Log.i("Old width................", width + "");
  46.                 height = originalImage.getHeight();
  47.                 Log.i("Old height................", height + "");
  48.
  49.                 matrix = new Matrix();
  50.                 scaleWidth = ((float) newWidth) / width;
  51.                 scaleHeight = ((float) newHeight) / height;
  52.                 matrix.postScale(scaleWidth, scaleHeight);
  53.                 matrix.postRotate(45);
  54.
  55.                 resizedBitmap = Bitmap.createBitmap(originalImage, 0, 0, width, height, matrix, true);
  56.                 outputStream = new ByteArrayOutputStream();
  57.                 resizedBitmap.compress(Bitmap.CompressFormat.JPEG, 100, outputStream);
  58.                 im=(ImageView)findViewById(R.id.im1);
  59.                 im.setImageBitmap(resizedBitmap);
  60.                 width = resizedBitmap.getWidth();
  61.                 Log.i("new width................", width + "");
  62.                 height = resizedBitmap.getHeight();
  63.                 Log.i("new height................", height + "");
  64.
  65.             break;
  66.
  67.             case R.id.im2:
  68.
  69.                  originalImage = BitmapFactory.decodeResource(getResources(),R.drawable.im2);
  70.                  width = originalImage.getWidth();
  71.                  Log.i("Old width................", width + "");
  72.                  height = originalImage.getHeight();
  73.                  Log.i("Old height................", height + "");
  74.
  75.                  matrix = new Matrix();
  76.                  scaleWidth = ((float) newWidth) / width;
  77.                  scaleHeight = ((float) newHeight) / height;
  78.                  matrix.postScale(scaleWidth, scaleHeight);
  79.                  matrix.postRotate(-45);
  80.                  Bitmap resizedBitmap = Bitmap.createBitmap(originalImage, 0, 0, width, height, matrix, true);
  81.                  im=(ImageView)findViewById(R.id.im2);
  82.
  83.                  outputStream = new ByteArrayOutputStream();
  84.                  resizedBitmap.compress(Bitmap.CompressFormat.JPEG, 100, outputStream);
  85.                  im.setImageBitmap(resizedBitmap);
  86.                  width = resizedBitmap.getWidth();
  87.                  Log.i("new width................", width + "");
  88.                  height = resizedBitmap.getHeight();
  89.                  Log.i("new height................", height + "");
  90.
  91.                  break;
  92.         }
  93.     }
  94.
  95.     @Override
  96.     public boolean onCreateOptionsMenu(Menu menu) {
  97.         // Inflate the menu; this adds items to the action bar if it is present.
  98.         getMenuInflater().inflate(R.menu.main, menu);
  99.         return true;
  100.     }
  101. }
In the code above, the "compress" function is used to compress the bitmap. "createBitmap" resizes the bitmap.

Step 6

Open "AndroidManifest" and do the following changes in it:
  1. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  2.     package="com.chhavi.compressimage"
  3.     android:versionCode="1"
  4.     android:versionName="1.0" >
  5.
  6.     <uses-sdk
  7.         android:minSdkVersion="7"
  8.         android:targetSdkVersion="16" />
  9.
  10.     <application
  11.         android:allowBackup="true"
  12.         android:icon="@drawable/ic_launcher"
  13.         android:label="@string/app_name"
  14.         android:theme="@style/AppTheme" >
  15.         <activity
  16.             android:name="com.chhavi.compressimage.MainActivity"
  17.             android:label="@string/app_name" >
  18.             <intent-filter>
  19.                 <action android:name="android.intent.action.MAIN" />
  20.                 <category android:name="android.intent.category.DEFAULT" />
  21.             </intent-filter>
  22.         </activity>
  23.
  24.         <activity android:name=".Splash_screen">
  25.             <intent-filter>
  26.                 <action android:name="android.intent.action.MAIN"/>
  27.                 <category android:name="android.intent.category.LAUNCHER"/>
  28.             </intent-filter>
  29.         </activity>
  30.
  31.     </application>
  32.
  33. </manifest>
Output snapshots.

First, the splash screen appears.

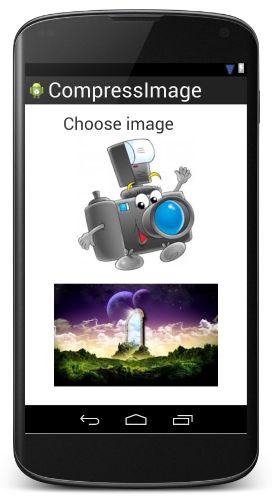

After some time:

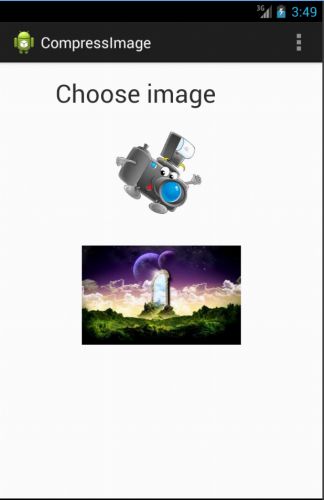

Clicking on the first image will resize and compress the image.

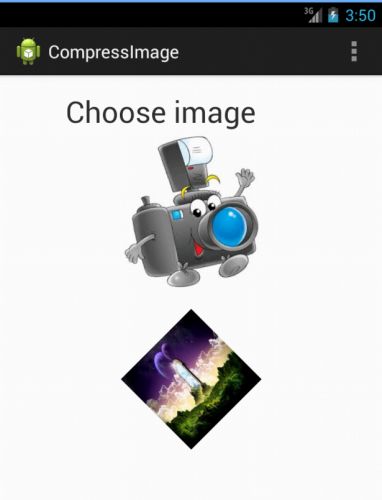

Clicking on the second image will resize and compress the second image


Thank you
