Image Gallery in Android Studio

Introduction


In this article, you will learn how to make a simple gallery in Android. The main purpose will be to display all available images as a scrollable list and show the selected image in a larger view.

Step 1

Add 7 seven images in drawable. Copy the images you want to use, to clipboard and past them in drawable. Name of jpg images used by me are: im1, im2, im3, im4, im5, im6, im7.

Step 2

Open "activity_main" and add the following code to it:
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.                 android:layout_width="match_parent"
  3.                 android:layout_height="match_parent"
  4.                 android:background="@android:color/white"
  5.                 android:orientation="vertical" >
  6.   <ImageView
  7.           android:id="@+id/selected"
  8.           android:layout_width="fill_parent"
  9.           android:layout_height="fill_parent"
  10.           android:layout_above="@+id/gallery_relative_layout"
  11.           android:layout_marginLeft="30dip"
  12.           android:layout_marginRight="30dip"
  13.           android:layout_marginTop="30dip"
  14.
  15.             />
  16.   <View
  17.           android:layout_width="match_parent"
  18.           android:layout_height="1dp"
  19.           android:background="#000000"
  20.           android:layout_marginTop="300dp"
  21.           android:layout_above="@+id/gallery_relative_layout"
  22.             />
  23.
  24.   <RelativeLayout
  25.           android:id="@+id/gallery_relative_layout"
  26.           android:layout_width="fill_parent"
  27.           android:layout_height="200dip"
  28.           android:layout_alignParentBottom="true"
  29.           android:orientation="horizontal"
  30.           android:paddingTop="20dp">
  31.
  32.     <HorizontalScrollView
  33.           android:id="@+id/hor_scroll_view"
  34.           android:layout_width="match_parent"
  35.           android:layout_height="wrap_content"
  36.                >
  37.       <LinearLayout
  38.           android:id="@+id/gallery"
  39.           android:layout_width="wrap_content"
  40.           android:layout_height="wrap_content"
  41.           android:orientation="horizontal" >
  42.         <ImageView
  43.             android:id="@+id/image1"
  44.             android:layout_width="wrap_content"
  45.             android:layout_height="wrap_content"
  46.             android:src="@drawable/im1"
  47.             android:onClick="biggerView"/>
  48.         <ImageView
  49.             android:id="@+id/image2"
  50.             android:layout_width="wrap_content"
  51.             android:layout_height="wrap_content"
  52.             android:src="@drawable/im2"
  53.             android:onClick="biggerView"/>
  54.         <ImageView
  55.             android:id="@+id/image3"
  56.             android:layout_width="wrap_content"
  57.             android:layout_height="wrap_content"
  58.             android:src="@drawable/im3"
  59.             android:onClick="biggerView"/>
  60.         <ImageView
  61.             android:id="@+id/image4"
  62.             android:layout_width="wrap_content"
  63.             android:layout_height="wrap_content"
  64.             android:src="@drawable/im4"
  65.             android:onClick="biggerView"/>
  66.         <ImageView
  67.                 android:id="@+id/image5"
  68.                 android:layout_width="wrap_content"
  69.                 android:layout_height="wrap_content"
  70.                 android:src="@drawable/im5"
  71.                 android:onClick="biggerView"/>
  72.         <ImageView
  73.                 android:id="@+id/image6"
  74.                 android:layout_width="wrap_content"
  75.                 android:layout_height="wrap_content"
  76.                 android:src="@drawable/im6"
  77.                 android:onClick="biggerView"/>
  78.         <ImageView
  79.                 android:id="@+id/image7"
  80.                 android:layout_width="wrap_content"
  81.                 android:layout_height="wrap_content"
  82.                 android:src="@drawable/im7"
  83.                 android:onClick="biggerView"/>
  84.       </LinearLayout>
  85.     </HorizontalScrollView>
  86.   </RelativeLayout>
  87. </RelativeLayout>
The View has been added to show a horizontal separator between the big image and ScrollView.

The layout looks like:


Step 3

Open "MainActivity" and add the following code to it:
  1. package com.chhavi.gallerytest;
  2.
  3. import android.os.Bundle;
  4. import android.app.Activity;
  5. import android.util.Log;
  6. import android.view.Menu;
  7. import android.view.View;
  8. import android.widget.ImageView;
  9.
  10. public class MainActivity extends Activity {
  11.
  12.     ImageView im;
  13.     @Override
  14.     protected void onCreate(Bundle savedInstanceState) {
  15.         super.onCreate(savedInstanceState);
  16.         setContentView(R.layout.activity_main);
  17.     }
  18.
  19.
  20.     public void biggerView(View v)
  21.     {
  22.        im=(ImageView)findViewById(R.id.selected);
  23.
  24.        switch (v.getId())
  25.        {
  26.            case R.id.image1: im.setImageResource(R.drawable.im1);
  27.                              break;
  28.            case R.id.image2: im.setImageResource(R.drawable.im2);
  29.                              break;
  30.            case R.id.image3: im.setImageResource(R.drawable.im3);
  31.                              break;
  32.            case R.id.image4: im.setImageResource(R.drawable.im4);
  33.                              break;
  34.            case R.id.image5: im.setImageResource(R.drawable.im5);
  35.                              break;
  36.            case R.id.image6: im.setImageResource(R.drawable.im6);
  37.                              break;
  38.            case R.id.image7: im.setImageResource(R.drawable.im7);
  39.                              break;
  40.        }
  41.     }
  42.
  43.     @Override
  44.     public boolean onCreateOptionsMenu(Menu menu) {
  45.         // Inflate the menu; this adds items to the action bar if it is present.
  46.         getMenuInflater().inflate(R.menu.main, menu);
  47.         return true;
  48.     }
Output snapshots:

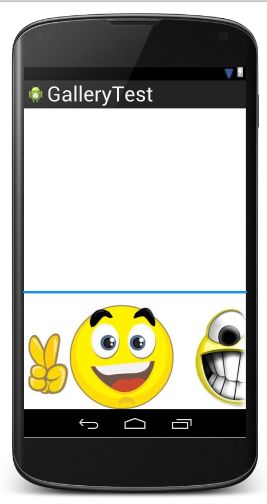

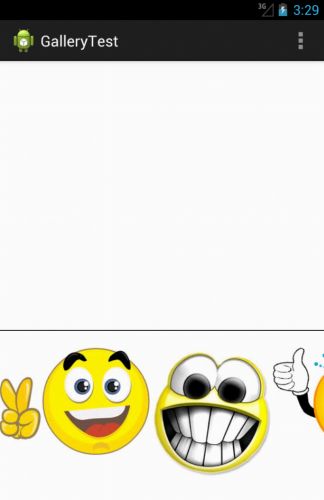

Initial view:

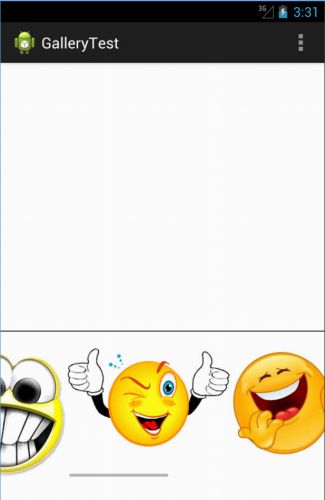

You can scroll to view the images that are not visible.

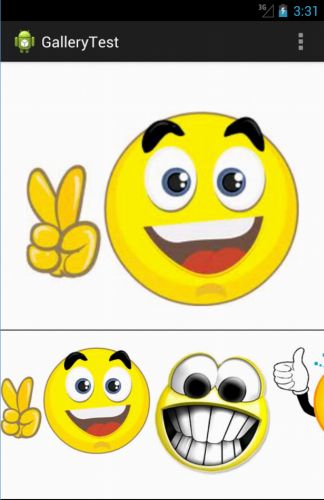

Clicking on the first image will give you:

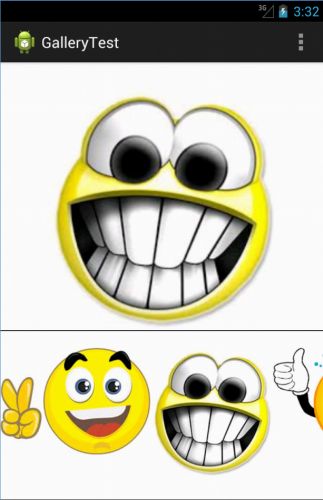

Clicking the next image:

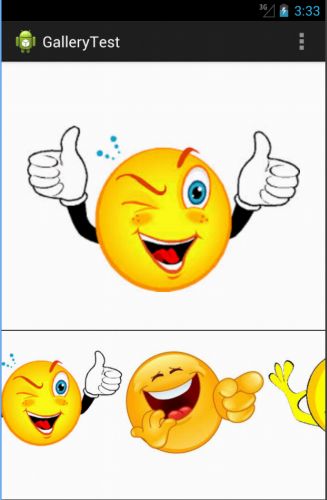

Clicking the next image:


and so on...

Thank you..... Enjoy coding :)
