Learn About Android Layouts

Introduction


Android has the following six types of layout in mobile applications:
  1. Linear Layout
  2. Relative Layout
  3. Table Layout
  4. Frame Layout

1. Linear Layout


First, create layout XML of the linear name.

Figure 1: Create Layout XML

Delete the default code in the XML file then open the graphical layout and drag a Linear Layout (Vertical ) or Linear Layout (Horizontal).

Graphical Layout

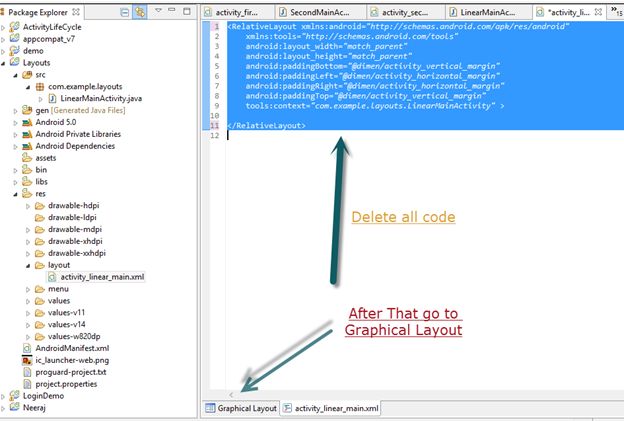

Figure 2: Graphical Layout

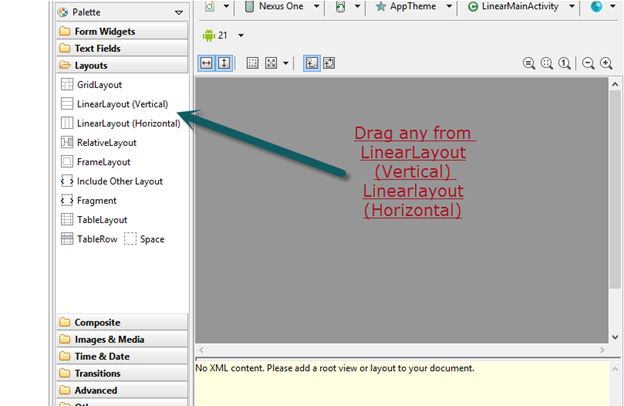

Drag Linear Layout

After dragging any one of them then go to the code in the XML file and see.

For LinearLayout (Vertical):
  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     android:layout_width="fill_parent"
  3.     android:layout_height="fill_parent"
  4.     android:orientation="vertical" >
  5.
  6. </LinearLayout>
  7. for Lu=inearLayout(Horizontal)
  8. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  9.     android:layout_width="fill_parent"
  10.     android:layout_height="fill_parent" >
  11.
  12.
  13. </LinearLayout>
    So LinearLayout (Horizontal) is the default LinearLayout, but you can change the layout by editing the code:
    1. android:orientation="vertical"
    2. “Vertical” replace by Horizontal or delete this line then vertical convert into a horizontal layout

    2. Relative Layout


    The relative Layout is the default layout when we create activity.

    Relative is easy to use for adjusting the element in the layout.

    In a relative layout, every element arranges itself relative to other elements or a parent element.
    1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    2.     xmlns:tools="http://schemas.android.com/tools"
    3.     android:layout_width="match_parent"
    4.     android:layout_height="match_parent"
    5.     android:paddingBottom="@dimen/activity_vertical_margin"
    6.     android:paddingLeft="@dimen/activity_horizontal_margin"
    7.     android:paddingRight="@dimen/activity_horizontal_margin"
    8.     android:paddingTop="@dimen/activity_vertical_margin"
    9.     tools:context="com.example.layouts.RelativeMainActivity" >
    10.
    11. </RelativeLayout>
    Example

    Relative Layout

    Figure 3: Relative Layout

    Relative Layout code

    Figure 4: Relative Layout code


    3. Table Layout


    The Table Layout works as a HTML table in Android. In the Table Layout you can divide the layout into rows and columns. It is also easy to understand.

    Table Layout

    Figure 5: Table Layout
    1. <TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    2.     android:layout_width="wrap_content"
    3.
    4.     android:layout_height="wrap_content"
    5.
    6.      >
    7.
    8.     <TableRow
    9.         android:id="@+id/tableRow1"
    10.         android:layout_width="fill_parent"
    11.         android:layout_height="wrap_content"
    12.         android:gravity="center_horizontal" >
    13.
    14.         <TextView
    15.             android:id="@+id/textView1"
    16.             android:layout_width="wrap_content"
    17.             android:layout_height="wrap_content"
    18.             android:text="Row1Col1"
    19.             android:textAppearance="?android:attr/textAppearanceLarge"
    20.             android:background="#b0b0b0"
    21.             android:textColor="#0000bb"
    22.             android:layout_weight="1" />
    23.
    24.         <TextView
    25.             android:id="@+id/textView8"
    26.             android:layout_width="wrap_content"
    27.             android:layout_height="wrap_content"
    28.             android:text="Row1Col2"
    29.             android:textAppearance="?android:attr/textAppearanceLarge"
    30.             android:background="#b0b0b0"
    31.             android:textColor="#00bb00"
    32.             android:layout_weight="1"/>
    33.
    34.     </TableRow>
    35.
    36.     <TableRow
    37.         android:id="@+id/tableRow2"
    38.         android:layout_width="fill_parent"
    39.         android:layout_height="wrap_content"
    40.         android:gravity="center_horizontal"
    41.
    42.     >
    43.
    44.         <TextView
    45.             android:id="@+id/textView2"
    46.             android:layout_width="wrap_content"
    47.             android:layout_height="wrap_content"
    48.             android:text="Row2Col1"
    49.             android:textAppearance="?android:attr/textAppearanceLarge"
    50.             android:background="#b0b0b0"
    51.             android:textColor="#bb0000"
    52.             android:layout_weight="1"/>
    53.
    54.         <TextView
    55.             android:id="@+id/textView3"
    56.             android:layout_width="match_parent"
    57.             android:layout_height="wrap_content"
    58.             android:background="#b0b0b0"
    59.             android:text="Row2Col2"
    60.             android:textAppearance="?android:attr/textAppearanceLarge"
    61.             android:textColor="#0000b0"
    62.             android:layout_weight="1" />
    63.
    64.         <TextView
    65.             android:id="@+id/textView4"
    66.             android:layout_width="wrap_content"
    67.             android:layout_height="wrap_content"
    68.             android:text="Row2Col3"
    69.             android:textAppearance="?android:attr/textAppearanceLarge"
    70.             android:background="#b0b0b0"
    71.             android:textColor="#00b00b"
    72.             android:layout_weight="1"
    73.             />
    74.
    75.     </TableRow>
    76.
    77.     <TableRow
    78.         android:id="@+id/tableRow3"
    79.         android:layout_width="fill_parent"
    80.         android:layout_height="wrap_content"
    81.         android:gravity="center_horizontal" >
    82.
    83.         <TextView
    84.             android:id="@+id/textView7"
    85.             android:layout_width="wrap_content"
    86.             android:layout_height="wrap_content"
    87.             android:text="Row3Col1"
    88.             android:textAppearance="?android:attr/textAppearanceLarge"
    89.             android:background="#b0b0b0"
    90.             android:textColor="#00bb00"
    91.             android:layout_weight="1"/>
    92.
    93.     </TableRow>
    94.
    95. </TableLayout>

      4. Frame Layout


      The Frame Layout is a flexible layout for changing the height and width of elements. It gives us the facility to overlap elements with each other, such as Text on an image.

      Frame Layout

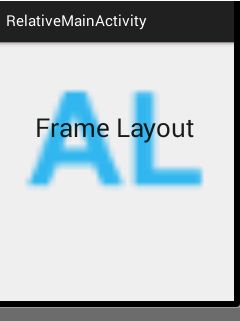

      Figure 6: Frame Layout
      1. <FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
      2.     android:layout_width="fill_parent"
      3.     android:layout_height="fill_parent" >
      4.
      5.     <ImageView
      6.         android:id="@+id/imageView1"
      7.         android:layout_width="match_parent"
      8.         android:layout_height="262dp"
      9.         android:src="@drawable/ic_launcher" />
      10.
      11.     <TextView
      12.         android:id="@+id/textView1"
      13.         android:layout_width="match_parent"
      14.         android:layout_height="226dp"
      15.         android:gravity="center_vertical|center_horizontal"
      16.         android:text="Frame Layout"
      17.         android:textAppearance="?android:attr/textAppearanceLarge"
      18.         android:textSize="35sp" />
      19.
      20. </FrameLayout>
