Control Chart Using .Net

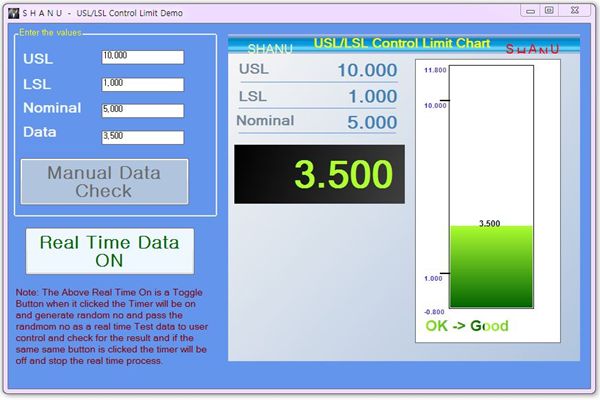

Control Chart

Introduction

Nowadays the automobile industry is interested in automated measuring machines to ensure quality and to compete in the global industry. Control Charts take a major role in ensuring quality by measuring automobile components. The purpose of this article is to make a simple Control Bar Chart for measuring systems like Camshafts, Crankshafts and Master Settings and so on. A digital sensor is used for measuring a Camshaft and a Crankshaft. Then the measured data is analyzed using the Control Chart.

Control Chart (ref)

The Control Charts are graphs for checking the quality of a control of a process. In Control Charts UCL/LCL or USL/LSL will be used to check with the resultant data. If the measurement data is within the range of limits then the process is OK(GOOD). If the measurement data is above or below the limits then the process is NG (NOT GOOD).

  1. OK (GOOD) -> USL <= Measurement Data >= LSL
  2. NG (NOT GOOD) -> Upper Range -> Measurement Data > USL
  3. NG (NOT GOOD) -> Lower Range -> Measurement Data < LSL

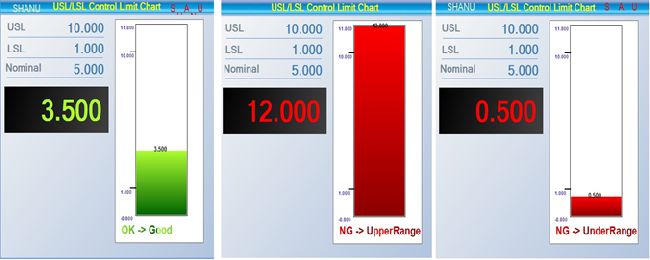

    USL

In my simple Control Chart USL /LSL is used for verifying the data. USL is the Upper Specification Limit and LSL is the Lower Specification Limit. Note in this sample I have used USL/LSL.

Difference between USL/LSL and UCL/LCL

(The UCL or Upper Control Limit and LCL or Lower Control Limit are limits set by your process based on the actual amount of variation of your process. The USL or upper specification limit and LSL or lower specification limit are limits set by your customer's requirements. This is the variation that they will accept from your process. Ref)

I have been working on several automation projects. Instead of using third-party tools, I planned to create a simple program using .Net for creating a USL/LSL Control Bar chart for the master setting. The main purpose of this article is to share what I have developed to other members.

I have created a Control Chart as a User Control so that it can be used easily in all projects.

In this article I have attached a Zip file named SHANUControlChart_SRC.zip which contains:

  1. "SHANUControlChart_CNT" Folder (This folder contains the Control Chart User control Source code.)
  2. "SHANUControlChart_DEMO" Folder (This folder conains the Demo program that includes the Control Chart user control with Random Measurement sample using Timer control).

Using the code

1. First we will start with the User Control. To Create a user control:

  1. Create a new Windows Control Library project.
  2. Set the name of the project and click Ok (here my user control name is SHANUControlChart_CNT).
  3. Add all the controls that is needed.
  4. In the code behind declare all the public variables and Public property variables. Here USL/LSL/Nominal and Measurement Data Public property has been declared which will be used to pass the data from the Windows application.
    1. 'Public Property Declaration
    2.     Public Property MasterData() As String
    3.         Get
    4.             Return lblMasterData.Text
    5.         End Get
    6.         Set(value As String)
    7.             lblMasterData.Text = value
    8.         End Set
    9.     End Property
    10.
    11.     Public Property USLData() As String
    12.         Get
    13.             Return lblUslData.Text
    14.         End Get
    15.         Set(value As String)
    16.             lblUslData.Text = value
    17.         End Set
    18.     End Property
    19.
    20.     Public Property LSLData() As String
    21.         Get
    22.             Return lblLslData.Text
    23.         End Get
    24.         Set(value As String)
    25.             lblLslData.Text = value
    26.         End Set
    27.     End Property
    28.
    29.
    30.     Public Property NominalData() As String
    31.         Get
    32.             Return lblNominalData.Text
    33.         End Get
    34.         Set(value As String)
    35.             lblNominalData.Text = value
    36.         End Set
    37.     End Property
  5. In my User Control I used a Timer control to always check for the measurment data and produce the Bar Chart.in the user control load. I have enabled and started the timer. The timer Tick Event calls the function "LoadcontrolChart()". In this fucntion I set all the USL/LSL and measurement data and draw the Chart Control.
    1. Public Sub LoadcontrolChart()
    2.         Try
    3.             'For Barand GageLoad
    4.             upperLimitChk = False
    5.             lowerLimitchk = False
    6.             errLimtchk = False
    7.             Dim pointVal As Integer
    8.             Dim calcvalues As Double
    9.             Dim calcvalues1 As Double
    10.             '  Dim upperValue As Double
    11.             Dim hasread As Integer
    12.             Dim UpperRange As Double
    13.             Dim err As String
    14.             pointVal = 3
    15.             Dim ival As Integer
    16.
    17.             sensordata = Convert.ToDouble(lblMasterData.Text.Trim())
    18.             frmMasteringPictuerBox.Refresh()
    19.             upperValue = System.Convert.ToDouble(lblUslData.Text)
    20.             lovervalue = System.Convert.ToDouble(lblLslData.Text)
    21.             If upperValue = lovervalue Then
    22.                 lovervalue = lovervalue - 1
    23.             End If
    24.
    25.             inputValue = System.Convert.ToDouble(lblMasterData.Text)
    26.             'here we call the draw ractangle fucntion
    27.             drawRectanles(barheight, barwidth, upperValue, lovervalue, loverInitialvalue, upperInititalvalue, xval, yval)
    28.
    29.         Catch ex As Exception
    30.         End Try
    31.     End Sub
    In this method we check the measurement data with the USL and LSL limit values. If the measurement data is within the range of USL and LSL then the output will be Ok. I have used the if condition to check the values as below.
    1. ''This method is to draw the control chart
    2.     Public Sub drawRectanles(ByVal barheight As Double, ByVal barwidth As Double, ByVal uppervalue As Double, ByVal lovervalue As Double, ByVal loverinitialvalue As Double, ByVal upperinitialvalue As Double, ByVal xval As Double, ByVal yval As Double)
    3.         Try
    4.             Dim limitsline As Double
    5.             Dim lowerlimitline As Double
    6.             Dim underrange As Double
    7.             Dim upperrange As Double
    8.             Dim differentpercentage As Double
    9.             Dim totalheight As Double
    10.             Dim inputvalueCal As Double
    11.             Dim finaldisplayvalue As Double
    12.             Dim backColors1 As Color
    13.             Dim backColors2 As Color
    14.             'this is for the range persentage Calculation
    15.             differentpercentage = uppervalue - lovervalue
    16.             differentpercentage = differentpercentage * 0.2
    17.             'Upper range value
    18.             upperrange = uppervalue + differentpercentage
    19.             'Lover range value
    20.             underrange = lovervalue - differentpercentage
    21.             totalheight = upperrange - underrange
    22.             'For Upper Limit
    23.             ''limitsline = barheight * 0.2 - 10
    24.             limitsline = lovervalue - underrange
    25.             limitsline = limitsline / totalheight
    26.             limitsline = barheight * limitsline + 10
    27.             'For Lower Limit
    28.             lowerlimitline = uppervalue - underrange
    29.             lowerlimitline = lowerlimitline / totalheight
    30.             lowerlimitline = barheight * lowerlimitline + 10
    31.             'lowerlimitline = barheight - limitsline + 10
    32.             'for finding the rangedata
    33.             inputvalueCal = inputValue - underrange
    34.             finaldisplayvalue = inputvalueCal / totalheight
    35.             finaldisplayvalue = barheight * finaldisplayvalue
    36.             Dim g As Graphics = frmMasteringPictuerBox.CreateGraphics
    37.             Dim f5 As Font
    38.             f5 = New Font("arial", 22, FontStyle.Bold, GraphicsUnit.Pixel)
    39.             ''If condition to check for the result and display the chart accordingly depend on limit values.
    40.             If inputValue = "0.000" Then
    41.                 If zeroDisplay = 0 Then
    42.                     backColors1 = Color.Red
    43.                     backColors2 = Color.DarkRed
    44.                     Dim a5 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 90, 19), backColors1, backColors2, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    45.                     g.DrawString("NG -> UnderRange", f5, a5, System.Convert.ToInt32(xval) - 40, barheight + 24)
    46.                     lblMasterData.ForeColor = Color.Red
    47.
    48.                     frmMasteringlblmsg.Text = "NG -> UnderRange"
    49.                 Else
    50.                     backColors1 = Color.GreenYellow
    51.                     backColors2 = Color.DarkGreen
    52.                     Dim a5 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 90, 19), backColors1, backColors2, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    53.                     g.DrawString("OK -> Good", f5, a5, System.Convert.ToInt32(xval) - 40, barheight + 24)
    54.                     lblMasterData.ForeColor = Color.GreenYellow
    55.
    56.                     frmMasteringlblmsg.Text = "OK -> Good"
    57.                 End If
    58.             ElseIf inputValue >= lovervalue And inputValue <= uppervalue Then
    59.                 backColors1 = Color.GreenYellow
    60.                 backColors2 = Color.DarkGreen
    61.                 If upperLimitChk = False Then
    62.                     backColors1 = Color.GreenYellow
    63.                     backColors2 = Color.DarkGreen
    64.                     lblMasterData.ForeColor = Color.GreenYellow
    65.                 Else
    66.                     backColors1 = Color.Red
    67.                     backColors2 = Color.DarkRed
    68.                     lblMasterData.ForeColor = Color.Red
    69.                 End If
    70.                 Dim a5 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 100, 19), backColors1, backColors2, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    71.                 g.DrawString("OK -> Good", f5, a5, System.Convert.ToInt32(xval) - 40, barheight + 24)
    72.
    73.                 frmMasteringlblmsg.Text = "OK -> Good"
    74.                 'frmMasteringlblOrignalData.ForeColor = Color.GreenYellow
    75.             ElseIf inputValue < lovervalue Then
    76.                 backColors1 = Color.Red
    77.                 backColors2 = Color.DarkRed
    78.                 Dim a5 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 100, 19), backColors1, backColors2, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    79.                 g.DrawString("NG -> UnderRange", f5, a5, System.Convert.ToInt32(xval) - 40, barheight + 24)
    80.                 lblMasterData.ForeColor = Color.Red
    81.                 'frmMasteringlblOrignalData.ForeColor = Color.Red
    82.
    83.                 frmMasteringlblmsg.Text = "NG -> UnderRange"
    84.             ElseIf inputValue > uppervalue Then
    85.                 backColors1 = Color.Red
    86.                 backColors2 = Color.DarkRed
    87.                 Dim a5 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 100, 19), backColors1, backColors2, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    88.                 g.DrawString("NG -> UpperRange", f5, a5, System.Convert.ToInt32(xval) - 40, barheight + 24)
    89.                 lblMasterData.ForeColor = Color.Red
    90.                 'frmMasteringlblOrignalData.ForeColor = Color.Red
    91.
    92.                 frmMasteringlblmsg.Text = "NG -> UpperRange"
    93.             Else
    94.                 backColors1 = Color.Red
    95.                 backColors2 = Color.DarkRed
    96.                 Dim a5 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 100, 19), backColors1, backColors2, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    97.                 g.DrawString("Not Good", f5, a5, System.Convert.ToInt32(xval) - 40, barheight + 24)
    98.                 lblMasterData.ForeColor = Color.Red
    99.
    100.                 frmMasteringlblmsg.Text = "Not Good"
    101.             End If
    102.
    103.             Dim apen As New Pen(Color.Black, 2)
    104.             g.DrawRectangle(Pens.Black, System.Convert.ToInt32(xval) - 2, System.Convert.ToInt32(yval) - 2, System.Convert.ToInt32(barwidth) + 3, System.Convert.ToInt32(barheight) + 3)
    105.
    106.             g.DrawLine(apen, System.Convert.ToInt32(xval) - 15, System.Convert.ToInt32(limitsline), System.Convert.ToInt32(xval), System.Convert.ToInt32(limitsline))
    107.             g.DrawLine(apen, System.Convert.ToInt32(xval) - 15, System.Convert.ToInt32(lowerlimitline), System.Convert.ToInt32(xval), System.Convert.ToInt32(lowerlimitline))
    108.             Dim a1 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 100, 19), Color.Blue, Color.Orange, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    109.             Dim f As Font
    110.             f = New Font("arial", 10, FontStyle.Bold, GraphicsUnit.Pixel)
    111.             g.DrawString((String.Format("{0:N3}", CDbl(uppervalue.ToString))), f, a1, System.Convert.ToInt32(xval) - 40, System.Convert.ToInt32(limitsline) + 1)
    112.             g.DrawString((String.Format("{0:N3}", CDbl(lovervalue.ToString))), f, a1, System.Convert.ToInt32(xval) - 40, System.Convert.ToInt32(lowerlimitline) + 1)
    113.             g.DrawString((String.Format("{0:N3}", CDbl(upperrange.ToString))), f, a1, System.Convert.ToInt32(xval) - 40, 9)
    114.             g.DrawString((String.Format("{0:N3}", CDbl(underrange.ToString))), f, a1, System.Convert.ToInt32(xval) - 40, barheight + 10)
    115.             Dim a As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(xval, barheight + 10, barwidth, finaldisplayvalue + 1), backColors1, backColors2, Drawing.Drawing2D.LinearGradientMode.Vertical)
    116.
    117.             Dim a2 As New System.Drawing.Drawing2D.LinearGradientBrush(New RectangleF(0, 0, 100, 19), Color.Black, Color.Black, Drawing.Drawing2D.LinearGradientMode.Horizontal)
    118.             Dim f2 As Font
    119.             f2 = New Font("arial", 12, FontStyle.Bold, GraphicsUnit.Pixel)
    120.             If inputValue >= upperrange Then
    121.                 g.FillRectangle(a, New RectangleF(xval, 10, barwidth, barheight))
    122.                 g.DrawString((String.Format("{0:N3}", CDbl(inputValue.ToString))), f2, a2, System.Convert.ToInt32(xval) + 40, yval - 8)
    123.             ElseIf inputValue <= underrange Then
    124.                 g.FillRectangle(a, New RectangleF(xval, barheight + 10, barwidth, 4))
    125.                 g.DrawString((String.Format("{0:N3}", CDbl(inputValue.ToString))), f2, a2, System.Convert.ToInt32(xval) + 40, barheight + 10)
    126.             Else
    127.                 g.FillRectangle(a, New RectangleF(xval, barheight - finaldisplayvalue + 10, barwidth, finaldisplayvalue))
    128.                 g.DrawString((String.Format("{0:N3}", CDbl(inputValue.ToString))), f2, a2, System.Convert.ToInt32(xval) + 40, barheight - System.Convert.ToInt32(finaldisplayvalue))
    129.             End If
    130.             ' End If
    131.             g.Dispose()
    132.         Catch ex As Exception
    133.         End Try
    134.     End Sub
  6. After completion, save, build and run the project.

2. Now we create a Windows application and add and test our "SHANUControlChart_CNT" User Control.

  1. Create a new Windows project.
  2. Open your form and then from the Toolbox right-click then choose items > browse then select your User Control DLL and add it.
  3. Drag the User Control to your Windows form.
  4. Place all the USL/LSL and Measurement TextBox for input from the user. In the Manual check button click pass all the data to the User Control using the public property as below.
    1. private void btnDisplay_Click(object sender, EventArgs e)
    2. {
    3.     shanuControlChart.USLData = txtusl.Text;
    4.     shanuControlChart.LSLData = txtLSL.Text;
    5.     shanuControlChart.NominalData = txtNominal.Text;
    6.     shanuControlChart.MasterData = txtData.Text;
    7. }
  5. In my demo program I have used the timer for the randomly sampled measurement data result checking. I have used the "btnRealTime" as a toggle button. When the first time Enabled is clicked and start the timer and when the same button is clicked again the timer is stopped. When the timer is started I generated a random number and pass the various data to the User Control and check for the chart result.
    1. private void btnRealTime_Click(object sender, EventArgs e)
    2. {
    3.    if (btnRealTime.Text == "Real Time Data ON")
    4.    {
    5.      btnRealTime.Text = "Real Time Data OFF";
    6.      btnRealTime.ForeColor = Color.Red;
    7.      timer1.Enabled = true;
    8.      timer1.Start();
    9.   }
    10.   else
    11.   {
    12.       btnRealTime.Text = "Real Time Data ON";
    13.       btnRealTime.ForeColor = Color.DarkGreen;
    14.       timer1.Enabled = false;
    15.       timer1.Stop();
    16.   }
    17. }
    18.
    19. / Timer Tick Event to check for the different random sample Measurement test data.
    20.
    21. private void timer1_Tick(object sender, EventArgs e)
    22. {
    23.     Random rnd =new Random();
    24.
    25.     Double rndval = rnd.Next(1, 20);
    26.     txtData.Text = rndval.ToString("0.000");//FormatNumber(rndval.ToString(), 3, , 0)
    27.     shanuControlChart.USLData = txtusl.Text;
    28.     shanuControlChart.LSLData = txtLSL.Text;
    29.     shanuControlChart.NominalData = txtNominal.Text;
    30.     shanuControlChart.MasterData = txtData.Text;
    31. }

Conclusion

The main purpose of this article is to create a simple and standard Control Bar Chart User Control for the automobile industry.


Similar Articles
