How to Create a Folder in SharePoint 2010 Document Library Using NINTEX Workflow

Introduction

In this article you will see how to create a new folder in a SharePoint 2010 Document Library using a NINTEX workflow. I have created a Document Library named “Source” in which the workflow is created when the workflow is executed for the document in
the “Source” library, a folder will be created in the “Destination” Document Library. This is just an example to explain creating a new folder in the Document Library.

Workflow Design

The Create item action creates a new folder in a SharePoint 2010 Document Library.

Folder workflow

1. Navigate to the Source Document Library.
2. Click on the Library tab and then click on Workflow Settings.
3. Click on Create a Workflow in Nintex Workflow.


4. Click on Cancel.


5. Drag and drop the Create item action from the Libraries and lists section.


6. Click on Configure from the drop down list in the Create item action.


7. Enter the values as shown below.


8. Click on Save.

Publish the workflow

1. Click on the Publish button in the ribbon interface.


2. Ensure the Title is set; optionally you can set the values for Description and Change Comments.


3. Click on the Submit button.


4. The workflow is published successfully.



Test the workflow

1. Navigate to the Source Document Library.
2. Select the document and then click on Workflows in the ribbon interface.


3. Click on the Folder workflow and then click on the Start button.


4. After a few minutes the workflow status will be changed to Completed.

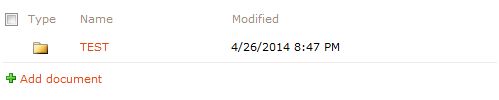

5. Navigate to the “Destination” Document Library, you will see a new folder as shown below.



Summary

Thus in this article you saw how to create a new folder in a SharePoint 2010 Document Library using a NINTEX workflow.
