SQL Server: System Views

System Views

When we create a new Database then SQL Server automatically creates System Views.

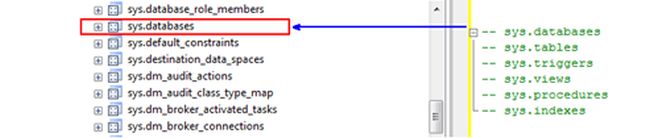

The following are a few System Views:

1. sys.databases
2. sys.tables
3. sys.triggers
4. sys.views
5. sys.procedures

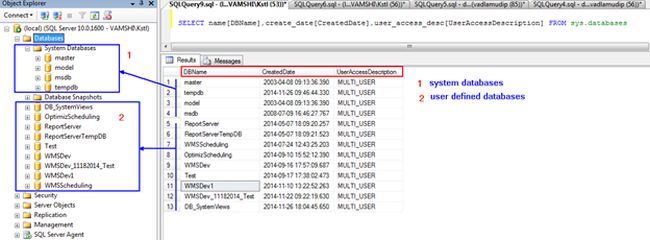

sys.databases view

The sys.databases view:

• Returns all the databases (system databases and user defined) names, database created date, user access description and other information of the database.


• Here we show only the Name, created date and user access description.

SELECT name[DBName],create_date[CreatedDate],user_access_desc[UserAccessDescription] FROM sys.databases



sys.tables view

The sys.tables view returns all the tables information (like table name, type of table, created date and modified date and so on) in a database:

• Create database name as “DB_SystemViews”.


• Create tables(tbl_defaultValues, tbl_parent and tbl_child) in that database.



CREATE DATABASE DB_SystemViews
GO

CREATE TABLE tbl_defaultValues
(
    Id INT IDENTITY(1,1) not null
)

GO

CREATE TABLE tbl_parent
(
    Id INT IDENTITY(1,1) CONSTRAINT PK_tbl_parent_Id PRIMARY KEY,
    Name VARCHAR(50)
)
GO

CREATE TABLE tbl_child
(
    Id INT IDENTITY(1,1) PRIMARY KEY,
    Name VARCHAR(50),
    ParentId INT CONSTRAINT FK_tbl_parent_tbl_child_ParentId FOREIGN KEY REFERENCES tbl_parent(Id)
)

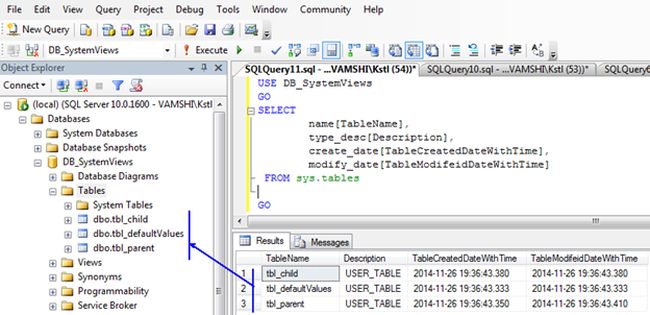

After creating the table if we want to see the created tables in the database DB_SystemViews.

USE DB_SystemViews
GO
SELECT
        name[TableName],
        type_desc[Description],
        create_date[TableCreatedDateWithTime],
        modify_date[TableModifeidDateWithTime]
 FROM sys.tables

GO

The preceding query returns DB_SystemViews database tables.



sys.triggers view

The sys.triggers view returns all the triggers information (like trigger name, type of trigger, created date and modified date and so on) in the database tables.

Create simple triggers for two different tables (tbl_parent and tbl_child).

USE DB_SystemViews
GO

CREATE TRIGGER trg_parentTrigger ON tbl_parent FOR INSERT
AS
INSERT INTO dbo.tbl_defaultValues default values

GO

CREATE TRIGGER trg_childTrigger ON tbl_child FOR INSERT
AS
INSERT INTO dbo.tbl_defaultValues default values

GO

If we want to see the triggers in a database DB_SystemViews.

USE DB_SystemViews
GO

SELECT
    name[TriggerName],
    type_desc[TriggerType],
    create_date[TriggerCreatedDate],
    modify_date[TriggerModifiedDate]
FROM sys.triggers



• This view also shows trigger tables and trigger status also.

• Status indicates whether the trigger is in enabled or disabled mode, it returns a Boolean value.

• 0: indicates the trigger is in Enabled mode

• 1: indicates the trigger is in Disabled mode

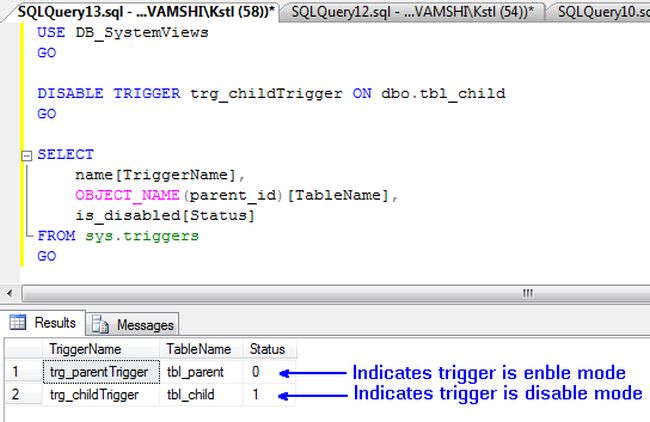

USE DB_SystemViews
GO

--disable the trigger
DISABLE TRIGGER trg_childTrigger ON dbo.tbl_child
GO

SELECT
    name[TriggerName],
    OBJECT_NAME(parent_id)[TableName],
    is_disabled[Status]
FROM sys.triggers
GO

sys.views view

The sys.views view returns all the views information (like view name, type of view, created date and modified date and so on) in a database.

The following shows how to create a simple view:

USE DB_SystemViews
GO

CREATE VIEW vParent
AS
    select * from tbl_parent

GO

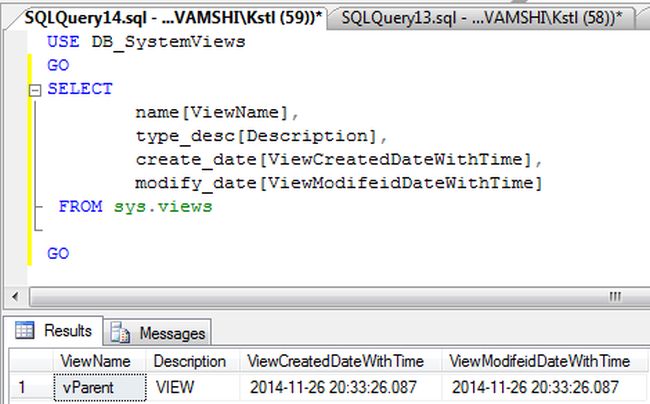

If we want to see the views in a database DB_SystemViews.

USE DB_SystemViews
GO
SELECT
        name[ViewName],
        type_desc[Description],
        create_date[ViewCreatedDateWithTime],
        modify_date[ViewModifeidDateWithTime]
 FROM sys.views

GO

sys.procedures view

The sys.procedures view returns all the procedures information (like procedure name, type of procedure, created date and modified date and so on) in a database.

The following shows how to create a simple proc:

USE DB_SystemViews
GO

CREATE PROC sp_parent
AS
 SELECT * FROM tbl_parent

GO

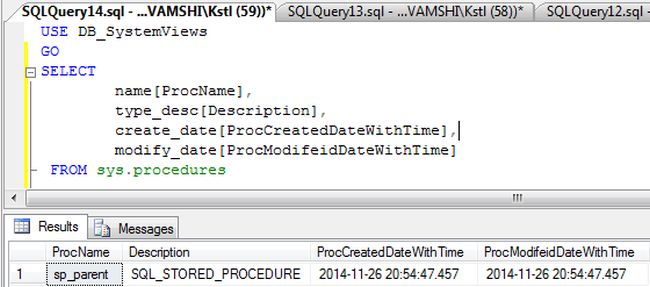

If we want to see the procedures in a database DB_SystemViews.

USE DB_SystemViews
GO
SELECT
        name[ProcName],
        type_desc[Description],
        create_date[ProcCreatedDateWithTime],
        modify_date[ProcModifeidDateWithTime]
 FROM sys.procedures
