Cool Features in Visual Studio 2013 : Part 1

Introduction


You can download the Preview Release of Visual Studio 2013 from the following link:

http://www.microsoft.com/visualstudio/eng/products/2013-editions#product-2013-summary

Visual Studio 2013 came up with .Net Framework 4.5.1 that focused on key areas, like developer productivity, application performance and continuous innovation.

We can get the complete info on .Net Framework 4.5.1 through the link:

http://blogs.msdn.com/b/dotnet/archive/2013/06/26/announcing-the-net-framework-4-5-1-preview.aspx

Now let's step into the features.

Features at a Glance

  1. Synchronize Settings
  2. Change in web Templates
  3. Peak Definition(Alt+F12)
  4. Scaffolding
  5. Browser Link
  6. Code lens Indicators
  7. Enhanced Scrollbar
  8. HTML 5 Editor Enhancements
  9. Themes
  10. Java Script Enhancements
  11. Auto Brace Complete
  12. Move Line Up and down(Alt+ and Alt+)
  13. Code Map Window
  14. Feedback and Notifications
  15. UI icons Enhancement

Feature 1: Synchronize settings (Authentication)

At startup you can find a button to sign in for the first time, you will get the following dialog screen prompting for sign in:

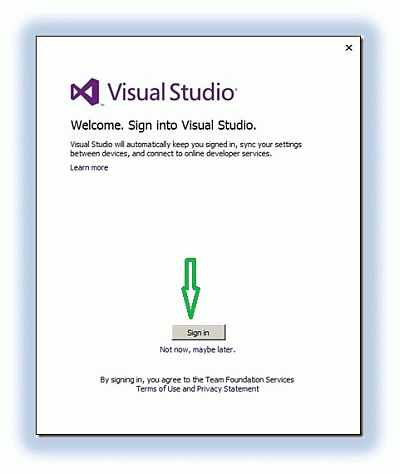

Figure 1: Start up Screen

You can use your Microsoft I'd like MSDN, Hotmail, and live.com to sign in. This is a cool feature where your settings are synchronized with your email id. The next time you sign in on a different machine you can find the settings you have applied. It makes your work comfortable wherever you use Visual Studio.

Feature 2: Change in Web Templates

When you create a new project you will notice changes in the templates.

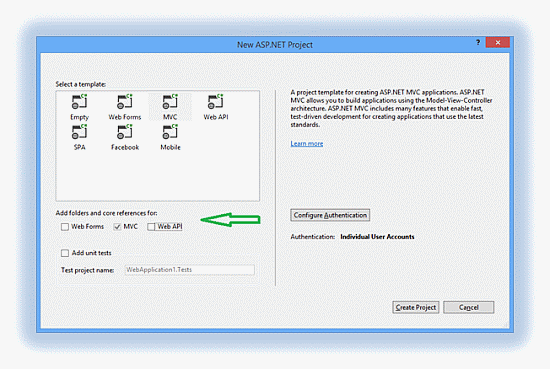

Figure 2:
Web Templates

You will find an option for a Core Reference for Web Forms, MVC and Web API all together in one template. You can also add a unit tests project with your web application and configure authentication.

Feature 3: Peak Definition

Another cool feature is Peak Definition that allows you to get an inline read-only view that contains the actual structure of the code without migrating away from the file.

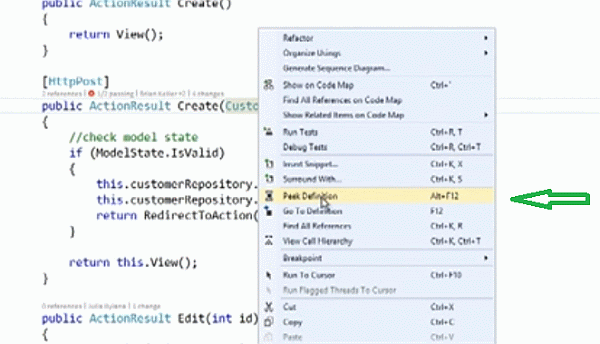

Figure 3: Peak Definition

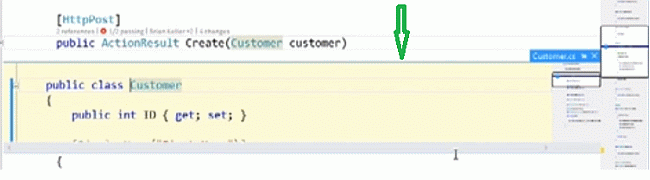

Figure 3a: Peak Definition inline preview

Feature 4:
Scaffolding

Now we can add scaffolding to all types of projects (including Web API/MVC/Web Forms) as shown in Figure 4.

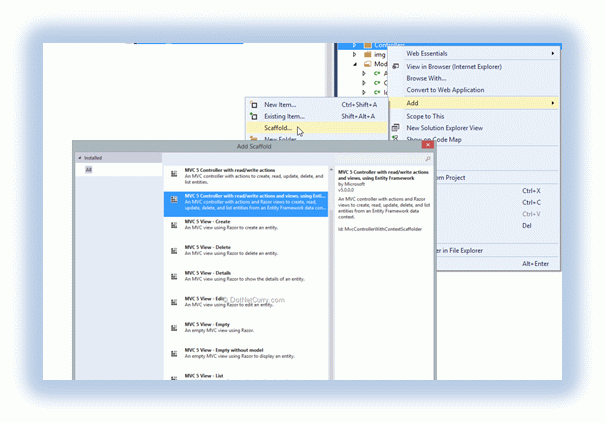

Figure 4: Scaffolding

Feature 5: Browser Link near Start

We can find an icon near the start command as shown in Figure 5.

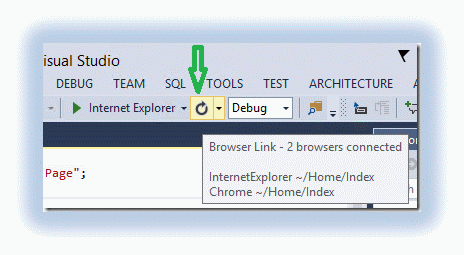

Figure 5: Browser Link

It provides a two-way link between Visual Studio and the browsers. We can edit the content in debug mode and when we click on the browser link it refreshes the browser with the latest content.

Feature 6: Code lens Indicators

The Code Lens Indicators shows all the references of the specified method and change sets and the tests that have been passed or failed and also the name of the developer or author that that last made changes, as in the following.

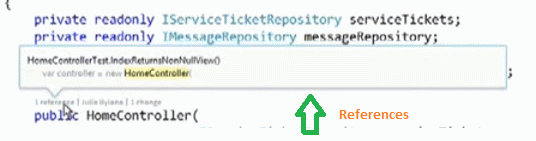

Figure 6: References

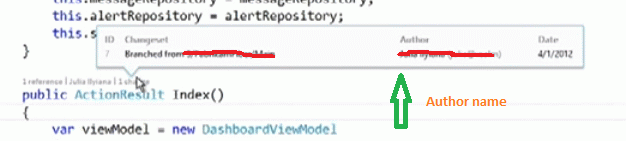

Figure 6a: Author Name

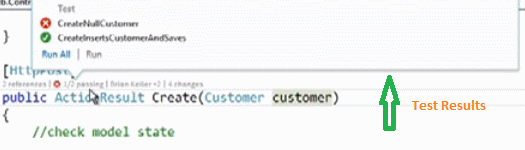

Figure 6b: Tests Passed/Failed

Feature 7: Enhanced Scrollbar

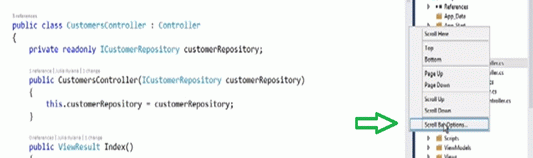

Another new cool feature is Scrollbar Enhancement. Now we can see a right-click option menu on the scroll bar and when we click on the scroll bar options we can find a bunch of options. Here we can enable and disable various annotations and one of the main feature here is the show carat position.

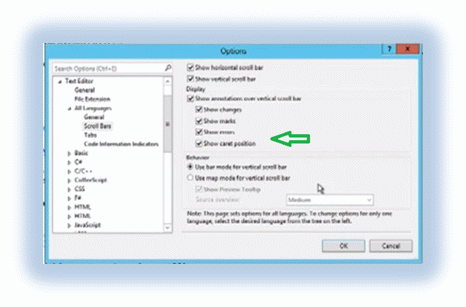

Figure 7: Scroll bar

Here we can see the carat position in action. It points (with a tiny bar) at where you are working on and when we scroll down for a piece of information we can easily return to where we were working, as in the following.

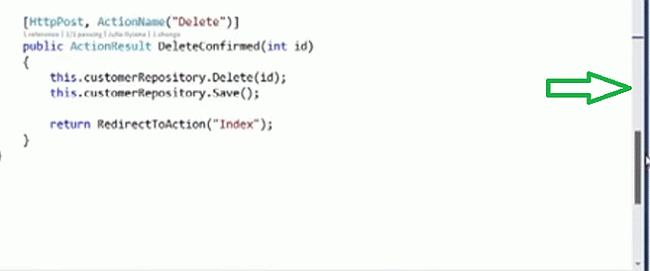

Figure 8: Carat Position

Another option is the Map Mode With Preview Tooltip. When we enable this option the scroll bar becomes little bit wider that gives the visual sense of the code file and when we click there we can watch the preview as shown in Figure 8c.

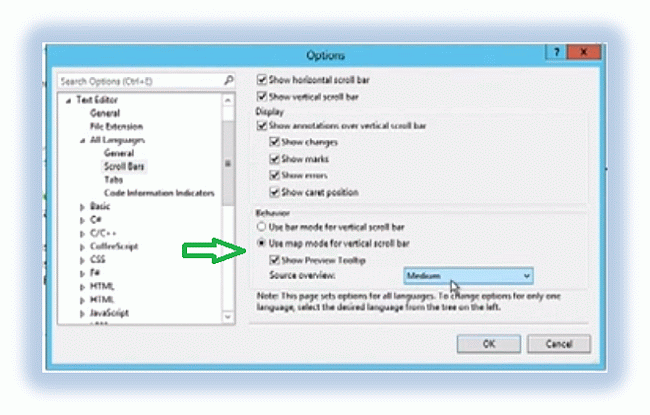

Figure 8b: Map Mode

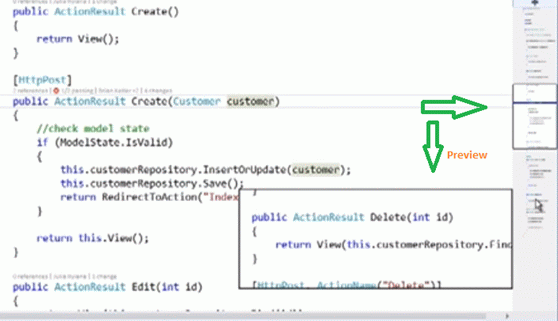

Figure 8c: Map Mode preview

Conclusion

The preview of the remaining features can be found in my next article, Part 2 Cool Features in Visual Studio 2013. Even though I have covered all the main features I might have missed some of the features Please let me know through your comments. Thanks for having a look at my article with this new features. I hope we can have a better coding experience.

Happy Coding
