Launch The SharePoint List Forms on Dialog

SharePoint list has the following three type of forms:

  • DispForm
  • NewForm
  • Editform

By default SharePoint list forms are opening as a page, but we can have the option to open the forms on Dialog.



Figure 1: Form

Steps

The following are the steps to change the list forms to dialog.

Step 1: Open SharePoint List on your site.



Figure 2 : Sample List

Step 2: Select List option from the ribbon bar to go to the list settings as in the following screenshot:



Figure 3: Ribbon Bar

Step 3: Click the List Settings on the ribbon bar.



Figure 4: List Setting

Step 4: On the List settings page select the Advanced settings option.



Figure 5: Advanced settings

Step 5: Then scroll down the advanced settings page, you will get the following options as in the following screenshot:


Figure 6: Setting

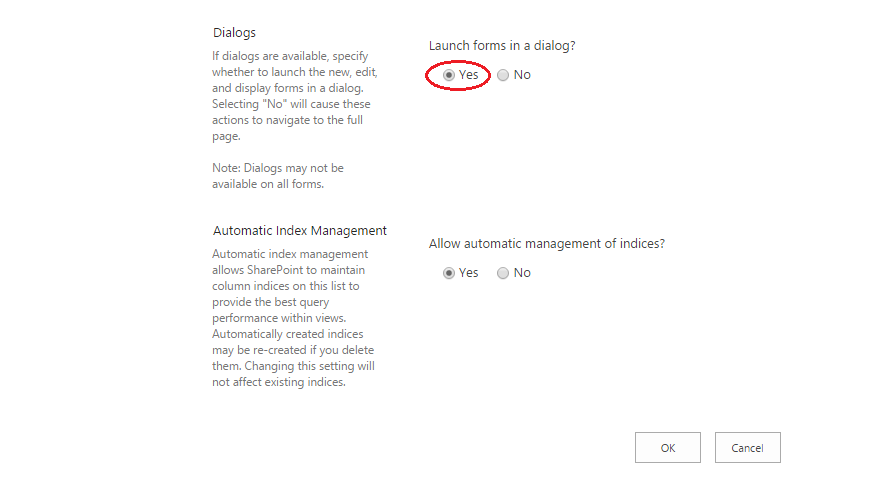

Step 6: Check the “yes” on advanced settings page to open the form on dialog.


Figure 7: Check yes

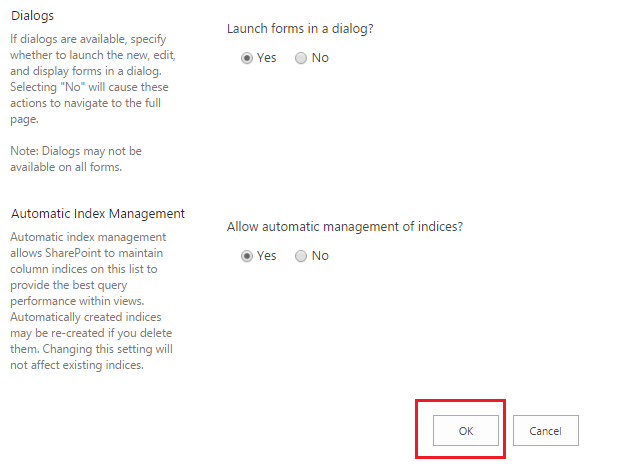

Step 7: Click “Ok” to save the settings.



Figure 8: Click OK

Finally your list forms will open in dialog as in the following screenshot:



Figure 9: Final List

Summary

In this article we explored how to open SharePoint NewForm, Dispform and Editform in dialog.
