WEB Request to Update the Listitem in SharePoint 2013 And Office 365

Introduction

Go to the list in your site and add a Nintex Workflow app.

We have actions on the left side and on the center. As you can see we can insert an action by clicking on it. Then we can see the following to insert the action from:

  • Integration
  • Libraries and Lists
  • Logic and Flow
  • Operations
  • User Interactions
  • Utility

Next drag the WEB REQUEST item and update the list item action to the Nintex page. Your workflow should be like this, you might be seeing an exclamation mark as a warning because it is yet not configured. Once we configure it, the notification goes away.

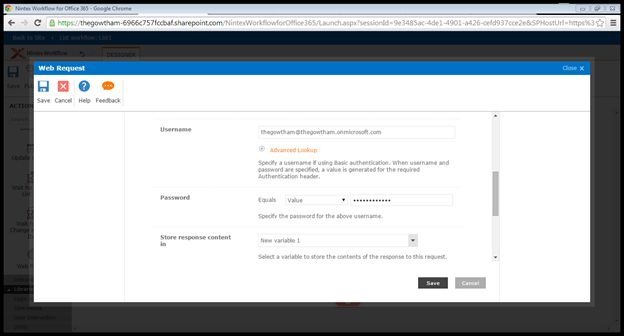

Double-click the WEB REQUEST item section and the pop-up window will open the Configuration wizard. We need to add the following details.

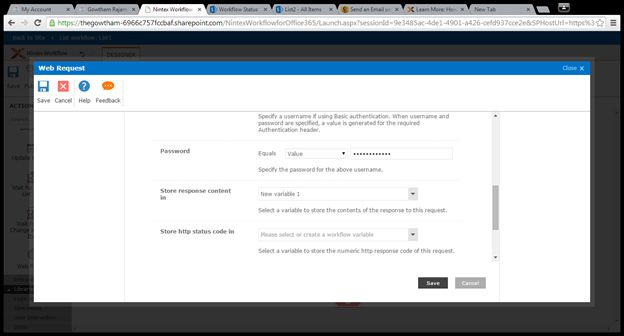

To store the content before the item is updated:

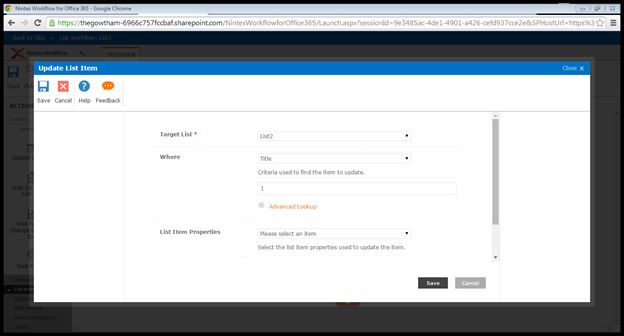

Select the update list item.



Then select the update field for the field you want the update to use (the work low Variable).

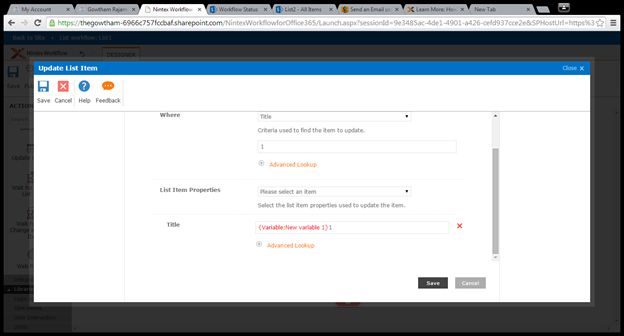

advanced workflow

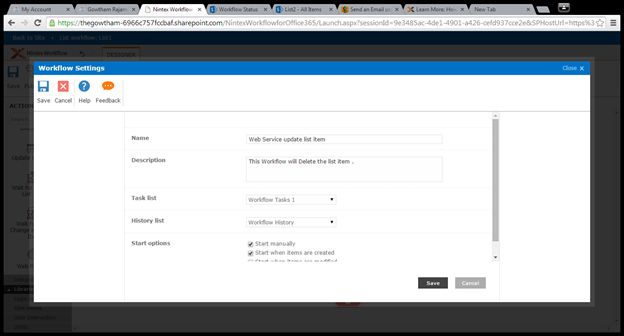

Select the list where you want to update the item and fill in the output variable and remaining fields.

  • Name
  • Description
  • Task List: Select the Task List to store all the tasks created by Nintex
  • History List: Select the History List to store all the tasks created by Nintex



Then publish the workflow.

Start Options –Like SharePoint Designer

  • Start manually
  • Start when items are created
  • Start when items are modified

After you configured, click on Save and publish.

saving workflow

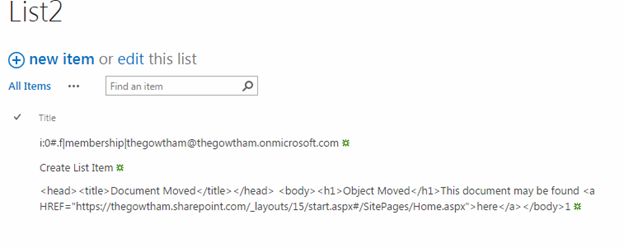

Output: Add an item into List 1 then check the web service in LIST2.
