ASP.NET Gridview Code: Part II - DataBinding in AutoGenerateColumns

Simple GridView data binding using C# with AutoGenerateColumns.

This article is about "GridView Code". This is my second article on Simple GridView Data Binding using C# with AutoGenerateColumns.

You can see my first article from the following link:

http://www.c-sharpcorner.com/Blogs/11296/simple-gridview-data-binding-in-Asp-Net.aspx

AutoGenerateColumns

Gets or sets a value indicating whether bound fields are automatically created for each field in the data source.

GridView Data binding with AutoGenerateColumns = true

  1. When the AutoGenerateColumns property is set to true, an AutoGeneratedField object is automatically created for each field in the data source.
  2. Each field is then displayed as a column in the GridView control in the order that the fields appear in the data source.
  3. This option provides a convenient way to display every field in the data source; however, you have limited control of how an automatically generated column field is displayed or behaves.
  4. The default is true.

Source Code

  1. <div>
  2.     <asp:GridView ID="grdCompany" runat="server" AutoGenerateColumns="true">
  3.         <Columns>
  4.             <asp:BoundField HeaderText="Id" DataField="id" />
  5.             <asp:BoundField HeaderText="Company" DataField="company" />
  6.             <asp:BoundField HeaderText="Address" DataField="address" />
  7.             <asp:BoundField HeaderText="Pincode" DataField="pincode" />
  8.         </Columns>
  9.     </asp:GridView>
  10. </div>
or:

  1. <div>
  2.     <asp:GridView ID="grdCompany" runat="server">
  3.         <Columns>
  4.             <asp:BoundField HeaderText="Id" DataField="id" />
  5.             <asp:BoundField HeaderText="Company" DataField="company" />
  6.             <asp:BoundField HeaderText="Address" DataField="address" />
  7.             <asp:BoundField HeaderText="Pincode" DataField="pincode" />
  8.         </Columns>
  9.     </asp:GridView>
  10. </div>
C# Code

  1. protected void Page_Load(object sender, EventArgs e)
  2. {
  3.     if (!IsPostBack)
  4.         bindGridview();
  5. }
  6. public DataTable getDataTable()
  7. {
  8.     DataTable dt = new DataTable();
  9.     try
  10.     {
  11.         dt = new DataTable();
  12.         dt.Columns.Add("id"typeof(int));
  13.         dt.Columns.Add("company"typeof(string));
  14.         dt.Columns.Add("address"typeof(string));
  15.         dt.Columns.Add("pincode"typeof(string));
  16.         dt.Rows.Add(1, "Capgemini""Vikhroli East, Mumbai""400 079");
  17.         dt.Rows.Add(2, "TCS""Tech Park, Bangalore""560066");
  18.         dt.Rows.Add(3, "Wipro IT""Guindy, Chennai""600032");
  19.     }
  20.     catch { throw; }
  21.     return dt;
  22. }
  23. public void bindGridview()
  24. {
  25.     //grdCompany.AutoGenerateColumns = true;
  26.     grdCompany.DataSource = getDataTable();
  27.     grdCompany.DataBind();
  28. }

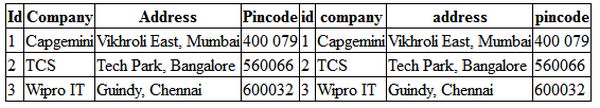

Output


GridView Data binding with AutoGenerateColumns = false

  1. You can manually define the column fields by setting the AutoGenerateColumns property to false and then creating a custom Columns collection.

  2. In addition to bound column fields, you can also display a button column field, a checkbox column field, a command field, a hyperlink column field, an image field, or a column field based on your own custom-defined template.

Source Code

  1. <div>
  2.     <asp:GridView ID="grdCompany" runat="server" AutoGenerateColumns="false">
  3.         <Columns>
  4.             <asp:BoundField HeaderText="Id" DataField="id" />
  5.             <asp:BoundField HeaderText="Company" DataField="company" />
  6.             <asp:BoundField HeaderText="Address" DataField="address" />
  7.             <asp:BoundField HeaderText="Pincode" DataField="pincode" />
  8.         </Columns>
  9.     </asp:GridView>
  10. </div>

C# Code

  1. protected void Page_Load(object sender, EventArgs e)
  2. {
  3.     if (!IsPostBack)
  4.         bindGridview();
  5. }
  6. public DataTable getDataTable()
  7. {
  8.     DataTable dt = new DataTable();
  9.     try
  10.     {
  11.         dt = new DataTable();
  12.         dt.Columns.Add("id"typeof(int));
  13.         dt.Columns.Add("company"typeof(string));
  14.         dt.Columns.Add("address"typeof(string));
  15.         dt.Columns.Add("pincode"typeof(string));
  16.         dt.Rows.Add(1, "Capgemini""Vikhroli East, Mumbai""400 079");
  17.         dt.Rows.Add(2, "TCS""Tech Park, Bangalore""560066");
  18.         dt.Rows.Add(3, "Wipro IT""Guindy, Chennai""600032");
  19.     }
  20.     catch { throw; }
  21.     return dt;
  22. }
  23. public void bindGridview()
  24. {
  25.     //grdCompany.AutoGenerateColumns = false;
  26.     grdCompany.DataSource = getDataTable();
  27.     grdCompany.DataBind();
  28. }

Output
