How to Set SplashScreen in Android

Procedure
  1. Start Eclipse IDE.
  2. Create a new project.
  3. Create two Java files, one is MainActivity.java file and the other is A.java.
  4. Create two XML files, one is activity_main.xml file and the other is home.xml for layout design.
  5. Declare a variable of the TimerTask.
  6. Then declare a TimerTask function like this:
  1. TimerTask ttt=new TimerTask() {
  2.       public void run() {
  3.          Intent i=new Intent(getApplicationContext(),A.class);
  4.          startActivity(i);
  5.       }
  6.    };
  7.    Timer t=new Timer();
  8.    t.schedule(ttt, 4000);
  9.
The following is the code.
  1. MainActivity.java
  2. package com.example.splashscreenn;
  3. import java.util.Timer;
  4. import java.util.TimerTask;
  5. import android.os.Bundle;
  6. import android.app.Activity;
  7. import android.content.Intent;
  8. import android.view.Menu;
  9. public class MainActivity extends Activity {
  10.  TimerTask ttt;
  11.  @Override
  12.  protected void onCreate(Bundle savedInstanceState) {
  13.   super.onCreate(savedInstanceState);
  14.   setContentView(R.layout.activity_main);
  15.   ttt = new TimerTask() {
  16.    @Override
  17.    public void run() {
  18.     Intent i = new Intent(getApplicationContext(), A.class);
  19.     startActivity(i);
  20.    }
  21.   };
  22.   Timer t = new Timer();
  23.   t.schedule(ttt, 4000);
  24.  }

A.java
  1. package com.example.splashscreenn;
  2. import android.app.Activity;
  3. import android.os.Bundle;
  4. public class A extends Activity {
  5.  @Override
  6.  protected void onCreate(Bundle savedInstanceState) {
  7.   super.onCreate(savedInstanceState);
  8.   setContentView(R.layout.home);
  9.  }

activity_main.xml
  1. <RelativeLayout
  2.     xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.
  5.       android:layout_width="match_parent"
  6.       android:layout_height="match_parent"
  7.       android:background="#ff0000"
  8.       android:paddingBottom="@dimen/activity_vertical_margin"
  9.       android:paddingLeft="@dimen/activity_horizontal_margin"
  10.       android:paddingRight="@dimen/activity_horizontal_margin"
  11.       android:paddingTop="@dimen/activity_vertical_margin"
  12.       tools:context=".MainActivity" >
  13.
  14.     <TextView
  15.          android:layout_width="wrap_content"
  16.          android:layout_height="wrap_content"
  17.          android:text="Abhijeet" />
  18.
  19. </RelativeLayout>
home.xml
  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout
  4.     xmlns:android="http://schemas.android.com/apk/res/android"
  5.       android:layout_width="match_parent"
  6.       android:layout_height="match_parent"
  7.       android:orientation="vertical" >
  8.
  9.     <Spinner
  10.       android:id="@+id/spinner1"
  11.       android:layout_width="match_parent"
  12.       android:layout_height="wrap_content" />
  13.
  14.     <Spinner
  15.       android:id="@+id/spinner2"
  16.       android:layout_width="match_parent"
  17.       android:layout_height="wrap_content" />
  18.
  19.     <Spinner
  20.       android:id="@+id/spinner3"
  21.       android:layout_width="match_parent"
  22.       android:layout_height="wrap_content" />
  23.
  24. </LinearLayout>

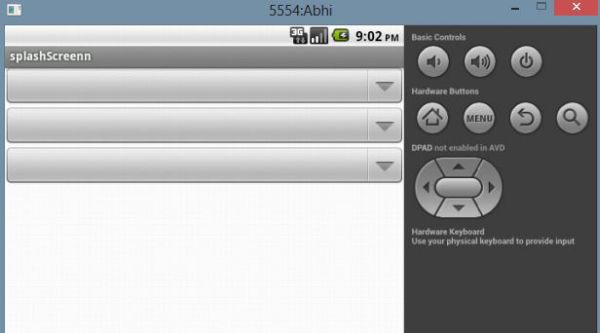

Output
