How to Set Spinner in Android

Spinner


Spinners provide a quick way to select one value from a set. In the default state, a spinner shows its currently selected value.

Procedure
  1. Start the Eclipse IDE.
  2. Create a new project.
  3. Create a MainActivity.java file.
  4. Create an activity_main.xml for layout design.
  5. Declare a spinner in the XML layout, for example:
    1. <Spinner
    2. android:layout_width="wrap_content"
    3. android:layout_height="wrap_content"
    4. android:id="@+id/ss"/>

  6. Declare a string array with some elements and pass these elements to the ArrayAdapter.

    For instance
    1. String[] str={"select","yellow","red","Green","purple","blue"};
    2. ArrayAdapter<String> adap=new ArrayAdapter<String>
    3. (this, android.R.layout.simple_spinner_item,str);

The code is given below.

MainActivity.java
  1. package com.example.spinnertodayy;
  2. import android.app.Activity;
  3. import android.graphics.Color;
  4. import android.os.Bundle;
  5. import android.view.View;
  6. import android.widget.AdapterView;
  7. import android.widget.AdapterView.OnItemSelectedListener;
  8. import android.widget.ArrayAdapter;
  9. import android.widget.RelativeLayout;
  10. import android.widget.Spinner;
  11. import android.widget.TextView;
  12. import android.widget.Toast;
  13. public class MainActivity extends Activity {
  14. Spinner s1;
  15. RelativeLayout ll;
  16. String[] str={"select","yellow","red","Green","purple","blue"};
  17. @Override
  18. protected void onCreate(Bundle savedInstanceState) {
  19. super.onCreate(savedInstanceState);
  20. setContentView(R.layout.activity_main);
  21. s1=(Spinner) findViewById(R.id.ss);
  22. ll=(RelativeLayout) findViewById(R.id.rr);
  23. ArrayAdapter<String> adap=new ArrayAdapter<String>
  24. (this, android.R.layout.simple_spinner_item,str);
  25. s1.setAdapter(adap);
  26. s1.setOnItemSelectedListener(new OnItemSelectedListener() {
  27. public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2,
  28. long arg3) {
  29. // TODO Auto-generated method stub
  30. String ss1=arg0.getItemAtPosition(arg2).toString();
  31. String ss=((TextView)arg1).getText().toString();
  32. Toast.makeText(getApplicationContext(), ss, 10000).show();
  33. }
  34. public void onNothingSelected(AdapterView<?> arg0) {
  35. // TODO Auto-generated method stub
  36. }
  37. });
  38. }
  39.
activity_main.xml
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.    xmlns:tools="http://schemas.android.com/tools"
  3.    android:layout_width="match_parent"
  4.    android:layout_height="match_parent"
  5.    android:id="@+id/rr"
  6.    android:paddingBottom="@dimen/activity_vertical_margin"
  7.    android:paddingLeft="@dimen/activity_horizontal_margin"
  8.    android:paddingRight="@dimen/activity_horizontal_margin"
  9.    android:paddingTop="@dimen/activity_vertical_margin"
  10.    tools:context=".MainActivity" >
  11.    <Spinner
  12.       android:layout_width="wrap_content"
  13.       android:layout_height="wrap_content"
  14.       android:id="@+id/ss"/>
  15. </RelativeLayout>

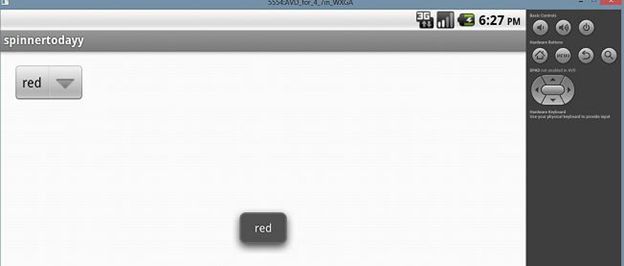

Output
