First Case of Intent in Android

Intent


An intent is an abstract description of an operation to be performed. In simple words, we can say that intent is basically used to notify the Android system about the occurrence of an event.

Procedure

Use the following procedure:
  1. Start Eclipse IDE.
  2. Create a new project.
  3. Create two Java files, one is MainActivity.java and the other is a.java.
  4. Create two XML files, one is activity_main.xml file and the second is other.xml for layout design.
  5. In the first case of intent, we add an activity with an intent filter in the manifest file.

    For instance
    1. <activity
    2. android:name="A"
    3. android:label="@string/app_name" >
    4. <intent-filter>
    5. <action android:name="abhijeet" />
    6. <category android:name="android.intent.category.DEFAULT" />
    7. </intent-filter>
    8. </activity>

  6. Then look up the button by its id in the MainActivity.java file and declare a string in it.
  7. Then in the onclick function declare an intent.

    For example
    1. public void onClick(View v) {
    2. Intent i=new Intent(str);
    3. startActivity(i);
    4. }

The code is given below.

MainActivity.java
  1. package com.example.intentistcaseeeee;
  2. import android.os.Bundle;
  3. import android.app.Activity;
  4. import android.content.Intent;
  5. import android.view.Menu;
  6. import android.view.View;
  7. import android.view.View.OnClickListener;
  8. import android.widget.Button;
  9. public class MainActivity extends Activity implements OnClickListener {
  10.  Button b1;
  11.  String str = "abhijeet";
  12.  @Override
  13.  protected void onCreate(Bundle savedInstanceState) {
  14.   super.onCreate(savedInstanceState);
  15.   setContentView(R.layout.activity_main);
  16.   b1 = (Button) findViewById(R.id.button1);
  17.   b1.setOnClickListener(this);
  18.  }
  19.  public void onClick(View v) {
  20.   Intent i = new Intent(str);
  21.   startActivity(i);
  22.  }
  23.
  1. <RelativeLayout
  2.     xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.
  5. android:layout_width="match_parent"
  6. android:layout_height="match_parent"
  7. android:paddingBottom="@dimen/activity_vertical_margin"
  8. android:paddingLeft="@dimen/activity_horizontal_margin"
  9. android:paddingRight="@dimen/activity_horizontal_margin"
  10. android:paddingTop="@dimen/activity_vertical_margin"
  11. tools:context=".MainActivity" >
  12.
  13. <TextView
  14.   android:id="@+id/textView1"
  15.   android:layout_width="wrap_content"
  16.   android:layout_height="wrap_content"
  17.   android:text="@string/hello_world" />
  18.
  19. <Button
  20.   android:id="@+id/button1"
  21.   android:layout_width="wrap_content"
  22.   android:layout_height="wrap_content"
  23.   android:layout_below="@+id/textView1"
  24.   android:layout_marginTop="52dp"
  25.   android:layout_toRightOf="@+id/textView1"
  26.   android:text="Button" />
  27.
  28. </RelativeLayout>

A.java
  1. package com.example.intentistcaseeeee;
  2. import android.app.Activity;
  3. import android.os.Bundle;
  4. public class A extends Activity {
  5.  @Override
  6.  protected void onCreate(Bundle savedInstanceState) {
  7.   super.onCreate(savedInstanceState);
  8.   setContentView(R.layout.other);
  9.  }
  10.
Other.xml
  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout
  4.     xmlns:android="http://schemas.android.com/apk/res/android"
  5. android:layout_width="match_parent"
  6. android:layout_height="match_parent"
  7. android:orientation="vertical" >
  8.
  9. <Spinner
  10.   android:id="@+id/spinner1"
  11.   android:layout_width="match_parent"
  12.   android:layout_height="wrap_content" />
  13.
  14. <RadioButton
  15.   android:id="@+id/radioButton1"
  16.   android:layout_width="wrap_content"
  17.   android:layout_height="wrap_content"
  18.   android:text="RadioButton" />
  19.
  20. <CheckBox
  21.   android:id="@+id/checkBox1"
  22.   android:layout_width="wrap_content"
  23.   android:layout_height="wrap_content"
  24.   android:text="CheckBox" />
  25.
  26. </LinearLayout>

AndroidManifest.xml
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest
  3.
  4. xmlns:android="http://schemas.android.com/apk/res/android"
  5. package="com.example.intentistcaseeeee"
  6. android:versionCode="1"
  7. android:versionName="1.0" >
  8.
  9. <uses-sdk
  10.   android:minSdkVersion="8"
  11.   android:targetSdkVersion="17" />
  12.
  13. <application
  14.   android:allowBackup="true"
  15.   android:icon="@drawable/ic_launcher"
  16.   android:label="@string/app_name"
  17.   android:theme="@style/AppTheme" >
  18.
  19.     <activity
  20.     android:name="MainActivity"
  21.     android:label="@string/app_name" >
  22.
  23.             <intent-filter>
  24.                 <action android:name="android.intent.action.MAIN" />
  25.                 <category android:name="android.intent.category.LAUNCHER" />
  26.             </intent-filter>
  27.         </activity>
  28.         <activity
  29.
  30.     android:name="A"
  31.
  32.     android:label="@string/app_name" >
  33.             <intent-filter>
  34.                 <action android:name="abhijeet" />
  35.                 <category android:name="android.intent.category.DEFAULT" />
  36.             </intent-filter>
  37.         </activity>
  38.     </application>
  39. </manifest>

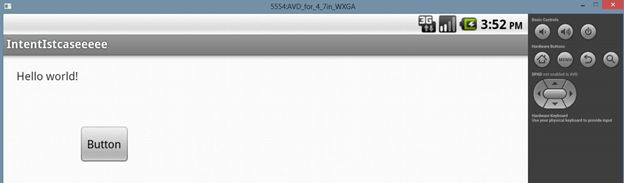

Output

Output

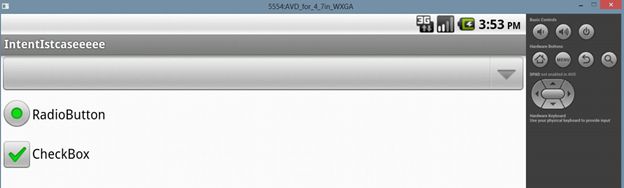

By clicking on the Button:

Output
