Heart Beat Pulse Checking Through Arduino Mega

Introduction

  • In this article, I explain about Heart Beat Pulse checking through the Arduino Mega. It can easily display the wave on a PC monitor.
  • In the PC monitor, it displays the reading of the pulse.
  • The wave form can be displayed in the sine wave form.
Parts Of List:
  • Arduino Mega
  • Easy pulsev1.1 sensor
  • HRM-2511E
  • Hookup wires
  • PC.
Connection:

Step 1: Connection from the Easy pulsev1.1 sensor to Arduino mega.


Figure1: Easy pulsev1.1
  • Connect the Vcc in the Easy pulse v1.1 sensor to the Vcc of the Arduino Mega.
  • Connect the Gnd in the Easy pulse v1.1 sensor to the Gnd of the Arduino Mega.
  • Connect the Ao in the Easy pulse v1.1 sensor to the Ao of the Arduino Mega.

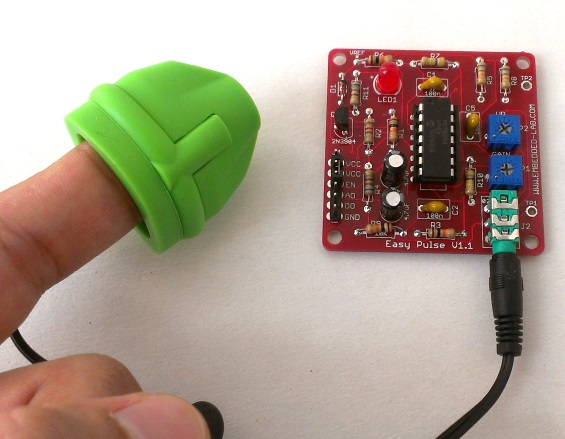

Figure2: connection of HRM-2511E to Easy pulsev1.1

Connect the HRM-2511E and Easy pulsev1.1 in the power cable.

Programming
  1. void setup()
  2.  {
  3. Serial.begin(115200);
  4. }
  5.
  6. void loop()
  7. {
  8.   int sensorValue = analogRead(A0);
  9.   Serial.println(sensorValue);
  10.   delay_x(5);
  11. }
  12.
  13. void delay_x(uint32_t millis_delay)
  14. {
  15.   uint16_t micros_now = (uint16_t)micros();
  16.
  17.   while (millis_delay > 0)
  18. {
  19.   if (((uint16_t)micros() - micros_now) >= 1000)
  20.  {
  21.   millis_delay--;
  22.   micros_now += 1000;
  23.     }
  24.   }
  25. }
  26.
  27. void setup()
  28.  {
  29. Serial.begin(115200);
  30. }
  31.
  32. void loop()
  33. {
  34.   int sensorValue = analogRead(A0);
  35.   Serial.println(sensorValue);
  36.   delay_x(5);
  37. }
  38.
  39. void delay_x(uint32_t millis_delay)
  40. {
  41.   uint16_t micros_now = (uint16_t)micros();
  42.
  43.   while (millis_delay > 0)
  44. {
  45.   if (((uint16_t)micros() - micros_now) >= 1000)
  46.  {
  47.   millis_delay--;
  48.   micros_now += 1000;
  49.     }
  50.   }
  51. }
Explanation:
  • It can easily check the heart pulse in the body.
  • Connect to the HRM-2511E and see the heart beat pulse in the PC monitor.
  • It will display the sine wave pulse as the correct wave form.
Output:

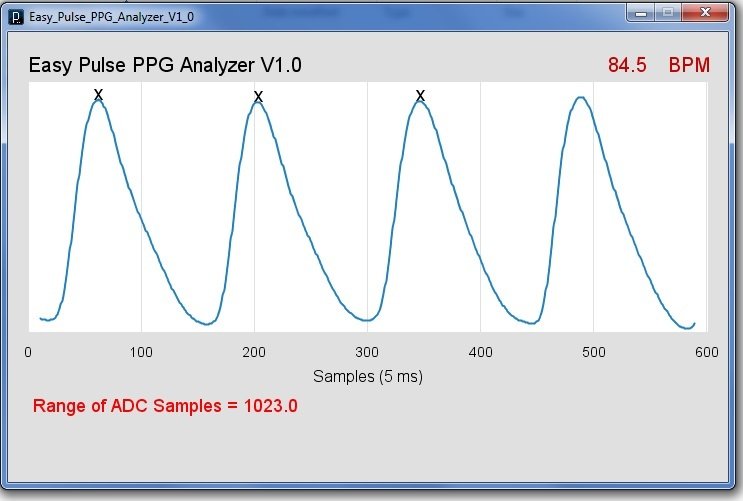

Figure3:output
